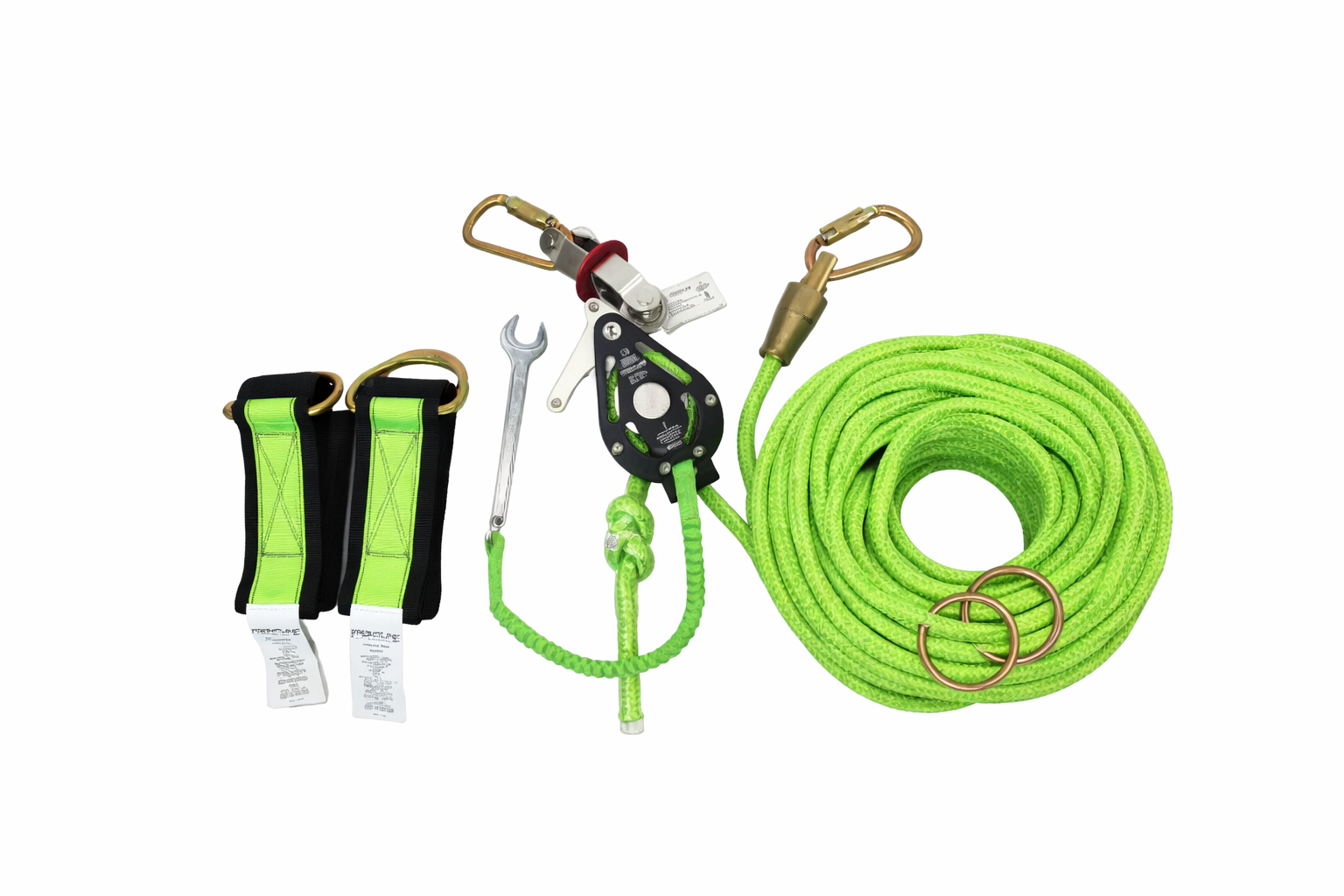

The Frontline HLK1004 is a temporary 4-person horizontal lifeline system featuring a 5/8" kernmantle rope and a uniquely integrated aluminum/stainless steel tensioner. Designed for adjustable spans from 15' to 100', this system helps Canadian crews increase productivity while maintaining continuous fall protection.

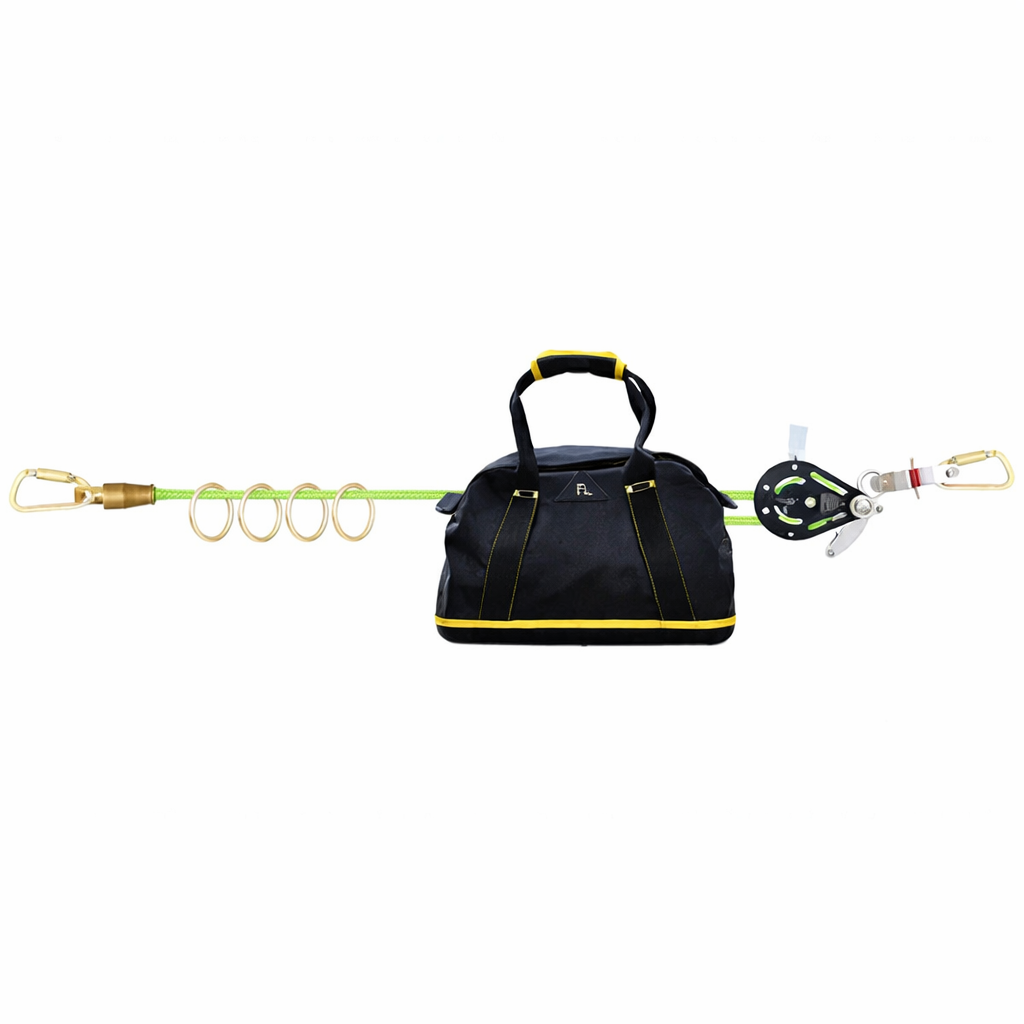

The lifeline includes four high-strength alloy steel O-ring mobile anchors, allowing multiple users to connect lanyards or SRLs with ease. The entire assembly is packaged in a convenient carry bag that remains attached to the system—keeping unused rope safely stowed and protected from abrasion, cuts, and contaminants.
Adjustable 15'–100' Span
Integrated pulley and tensioner allow quick length adjustment. Built-in tension indicator swivels freely when adequate tension is achieved.
4-User Capacity
Designed to accommodate up to four workers when used in accordance with a properly engineered fall protection plan.
Durable Hardware
Highly corrosion-resistant aluminum and stainless steel pulley/tensioner components for demanding Canadian jobsite conditions.
Anti-Twist Design
Swivel brass connector helps prevent unintentional rope twisting or tangling during installation and use.
| Model | HLK1004 |
| Users | Up to 4 |
| Span Coverage | 15' – 100' |
| Rope Type | 5/8" Kernmantle Rope |
| Mobile Anchors | 4 High-Strength Steel O-Rings |
| Anchorage | Includes (2) 6' Cross Arm Straps |
| Min. Breaking Strength | 5,620 lbs |
| Standards |
✔ ANSI Z359.1-2007
✔ EN 795:2012 Type C
✔ TS16415:2013 Type C
|
⚠️ Installation & Safety Notes
Horizontal lifeline systems must be installed under the supervision of a qualified person. Anchor structure strength, span length, number of users, and fall clearance must be properly evaluated in accordance with CSA Z259 standards and applicable provincial regulations (e.g., OHSA, WorkSafeBC, Alberta OHS, CNESST).
- Reusable temporary system for construction and maintenance work.
- Quick setup and takedown to reduce downtime on site.
- Integrated storage bag keeps excess rope protected and organized.
- Corrosion-resistant components suited for varied Canadian climates.
