SSRA1 4-Piece Pro Pack — 4 Anchors, Nylon-Tip Set Screws & Torque Wrench
4-Worker Crew Outfit • OSHA/ANSI CertifiedThe SSRA1 4-Piece Pro Pack outfits a four-worker crew with everything needed to safely tie off on standing seam metal roofs — without penetrating a single panel. Four certified non-penetrating SSRA1 anchors, four sets of nylon-tip set screws (24-gauge compatible), and one calibrated micro torque wrench in a single bundle. The torque wrench is the critical piece: SSRA1 anchors must be installed to exact in-pound specifications using hand tools only, never impact drivers. This kit ensures every crew member has a properly torqued, code-compliant 5,000 lb anchor point on the roof.
Overview
OSHA and ANSI standards require one independent 5,000 lb anchor point per worker for fall arrest. This 4-Piece Pro Pack provides exactly four certified tie-off points plus the calibrated torque tool needed for code-compliant installation. The SSRA1 is the industry's lightest OSHA/ANSI 5,000 lb-certified anchor at just 4.5 lb per unit, made from solid 6061-T6 aluminum with stainless steel hardware. Each anchor uses twelve set screws (six pairs of opposing screws) gripping the standing seam without ever touching the roof panel — preserving the roof warranty and creating zero leak risk. The included torque wrench is non-negotiable for proper installation: cupped-tip set screws must be torqued to exactly 90 in-lbs (22-gauge steel), and nylon-tip set screws to 180–200 in-lbs (22- or 24-gauge steel). Impact drivers strip threads and crush seams — the calibrated micro torque wrench prevents both. The bundle also includes installed cupped-tip set screws on each anchor plus an additional set of nylon-tip screws so each crew has both options on hand for whatever panel gauge they encounter on site.
Key Features
Outfits a 4-Worker Crew
Four certified independent tie-off points satisfy the OSHA/ANSI requirement of one 5,000 lb anchor per worker for fall arrest. One bundle, one crew, ready to work.
Calibrated Torque Wrench Included
1/4" drive micro torque wrench with 3/16" socket bit ensures every set screw hits the exact in-pound spec. Click-to-torque design prevents over-tightening and seam damage.
Both Set Screw Types Included
Each anchor ships with 12 cupped-tip set screws (installed) for 22-gauge steel plus an extra pack of 12 nylon-tip set screws for 22- or 24-gauge steel. Cover any panel gauge on site.
14,500 lb Ultimate Failure Tested
Independent ISO 17025/ANSI Z359.18-certified lab tested each SSRA1 to 14,500 lb ultimate failure — nearly 3× the OSHA/ANSI 5,000 lb minimum. Class-leading safety margin.
Universal Standing Seam Fit
Patented universal-fit body works with over 500 standing seam panel profiles (95% of the market) including snaplock, T-seams, bulb seams, mechanical lock, and trapezoidal panels.
Salt Spray & Corrosion Tested
ASTM B-117 accelerated salt spray tested. 6061-T6 aluminum body with stainless steel components — rust-free for outdoor jobsite use across all Canadian seasons and coastal climates.
Technical Specifications
| Kit Contents | 4 × SSRA1 anchors with installed D-rings, 4 × cupped-tip set screw packs (installed), 4 × nylon-tip set screw packs, 4 × owner's manuals, 4 × 3/16" hex bits, 1 × 1/4" drive micro torque wrench with 3/16" socket bit |
| Manufacturer SKU | SSRAProPack |
| Application | Permanent or temporary fall arrest anchorage on standing seam metal roofs |
| OSHA Compliance | OSHA 1926.502 / 1910.66 (5,000 lb anchorage) |
| ANSI Compliance | ANSI Z359.18 (independently lab tested) |
| SSRA1 Static Strength | 5,000 lb minimum per anchor (in all directions of pull) |
| SSRA1 Ultimate Failure (Tested) | 14,500 lb (independent ISO 17025 lab tested) |
| Salt Spray Testing | ASTM B-117 accelerated salt spray tested |
| SSRA1 Material | 6061-T6 aluminum body, stainless steel set screws and hardware |
| SSRA1 Weight | ~4.5 lb per anchor (industry's lightest 5,000 lb-certified anchor) |
| D-Ring | Certified 5,000 lb (installed on each anchor) |
| Set Screws (Per Anchor) | 12 stainless steel cupped-tip (installed) + 12 stainless steel nylon-tip (separate) |
| Cupped-Tip Torque | 90 in-lbs (22-gauge steel panels) |
| Nylon-Tip Torque | 180–200 in-lbs (22- or 24-gauge steel panels) |
| Compatible Substrates | 22- and 24-gauge steel standing seam panels |
| Not Compatible With | Aluminum, copper, zinc, or other soft-metal panels; curved, tapered, or batten-seam profiles |
| Workers Per Kit | 4 (one anchor per worker for OSHA/ANSI fall arrest compliance) |
| Required PPE | Worker must use inline shock absorber or shock pack with the SSRA1 |
| Warranty | Limited Lifetime Warranty |
| Origin | Designed and fabricated in the USA |
Standards & Compliance Notice
OSHA/ANSI Compliant — CSA Z259.15 Not Third-Party Certified
The SSRA1 is OSHA 1926.502/1910.66 and ANSI Z359.18 compliant, with a 5,000 lb minimum static strength rating in all directions of pull. Each anchor was independently tested by an ISO 17025/ANSI Z359.18-accredited lab to a 14,500 lb ultimate breaking strength — nearly 3× the regulatory minimum. The manufacturer does not list CSA Z259.15 (Anchorage Connectors) third-party certification on the product specifications. Canadian provincial OHS codes generally require anchor points to either meet CSA Z259.15 or be rated by a qualified professional engineer to support 22.2 kN (5,000 lbs) per worker for fall arrest. The SSRA1 meets and substantially exceeds the strength requirement, but acceptance for Canadian fall arrest use is the responsibility of the installing party, a qualified professional engineer, or the site safety officer. Workers must always pair the SSRA1 with an inline shock absorber or shock pack — required by the manufacturer regardless of certification jurisdiction.

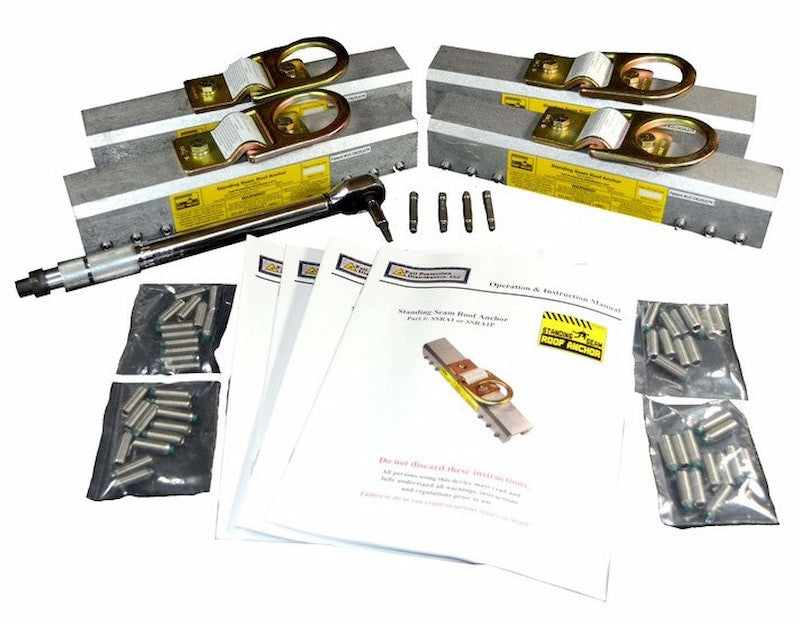

What's in the Box
- (4) SSRA1 standing seam roof anchors with patented 6061-T6 aluminum body and universal-fit design
- (4) 5,000 lb certified D-rings (installed on each anchor)
- (4) packs of 12 stainless steel cupped-tip set screws (installed on each anchor)
- (4) packs of 12 stainless steel nylon-tip set screws (separate, for 24-gauge use)
- (4) SSRA1 owner's manuals
- (4) 3/16" hex bits
- (1) 1/4" drive micro torque wrench with 3/16" socket bit (calibrated, click-to-torque)
Applications
- Standing seam metal roofing installation, repair, and inspection
- Solar panel installation on standing seam roof systems
- Skylight and rooftop equipment installation
- Snow guard, gutter, trim, and accessory installation
- Commercial and industrial roof maintenance crews
- Re-roofing projects where multiple workers tie off simultaneously
- Any standing seam roofing crew of up to 4 workers needing OSHA/ANSI-compliant fall arrest
Compatibility — Standing Seam Profiles
The SSRA1 fits over 95% of standing seam panels in the industry — over 500 specific profiles including snaplock, single-lock, double-lock, T-seam, bulb seam, mechanical lock, MR-24, and trapezoidal styles. Approved for 22- and 24-gauge steel only. Not compatible with aluminum, copper, zinc, or other soft metals (set-screw pressure deforms soft metals and compromises grip). Not compatible with curved, tapered, or batten-seam profiles. Nailstrip-style panels are approximately 50% compatible — some seams are too wide at the base for proper engagement. Always perform a test fit before committing to a full installation using an RCT seam clamp or single SSRA1 anchor against your exact panel profile.
Why the Torque Wrench Matters
The SSRA1 holds 5,000 lb because the set screws are torqued to a specific in-pound value — not "tight enough by feel." Cupped-tip screws on 22-gauge steel must hit exactly 90 in-lbs. Nylon-tip screws on 22- or 24-gauge steel must hit 180–200 in-lbs. Under-torque means the anchor can slip during a fall event. Over-torque can strip the threads or crush the standing seam itself, voiding both the anchor's grip and potentially the roof warranty. Impact drivers are strictly prohibited — they spin too fast, apply uncontrolled torque, and routinely cause both failures. The included calibrated micro torque wrench has a click-to-torque mechanism that audibly signals when proper torque is reached, eliminating guesswork. One torque wrench services all four anchors in this Pro Pack.
Compliance & Standards
Primary: OSHA 1926.502 / 1910.66 — 5,000 lb anchorage; ANSI Z359.18 (independently lab tested)
Tested Strength: 14,500 lb ultimate failure (ISO 17025 lab tested), nearly 3× the regulatory 5,000 lb minimum
CSA Status: Not third-party certified to CSA Z259.15. Canadian users must verify acceptance with a qualified professional engineer or site safety officer before fall arrest application.
PPE Requirement: Worker must use an inline shock absorber or shock pack with the SSRA1 — connect through a CSA Z259.10 harness with a CSA Z259.11 lanyard or CSA Z259.2.2 SRL.
Frequently Asked Questions
Shipping & Availability
The SSRA1 4-Piece Pro Pack ships across Canada from Fall Protection Canada. Contact Fall Protection Canada for bulk pricing on multi-kit orders, larger crew packs (8-piece Contractor Pack available), or to bundle this Pro Pack with SSRA2 walkboard adapters or SSRA3 anchor plates for horizontal lifeline use.
