Frontline CO2NN Counterweight Anchor System, Non-Penetrating | Canada

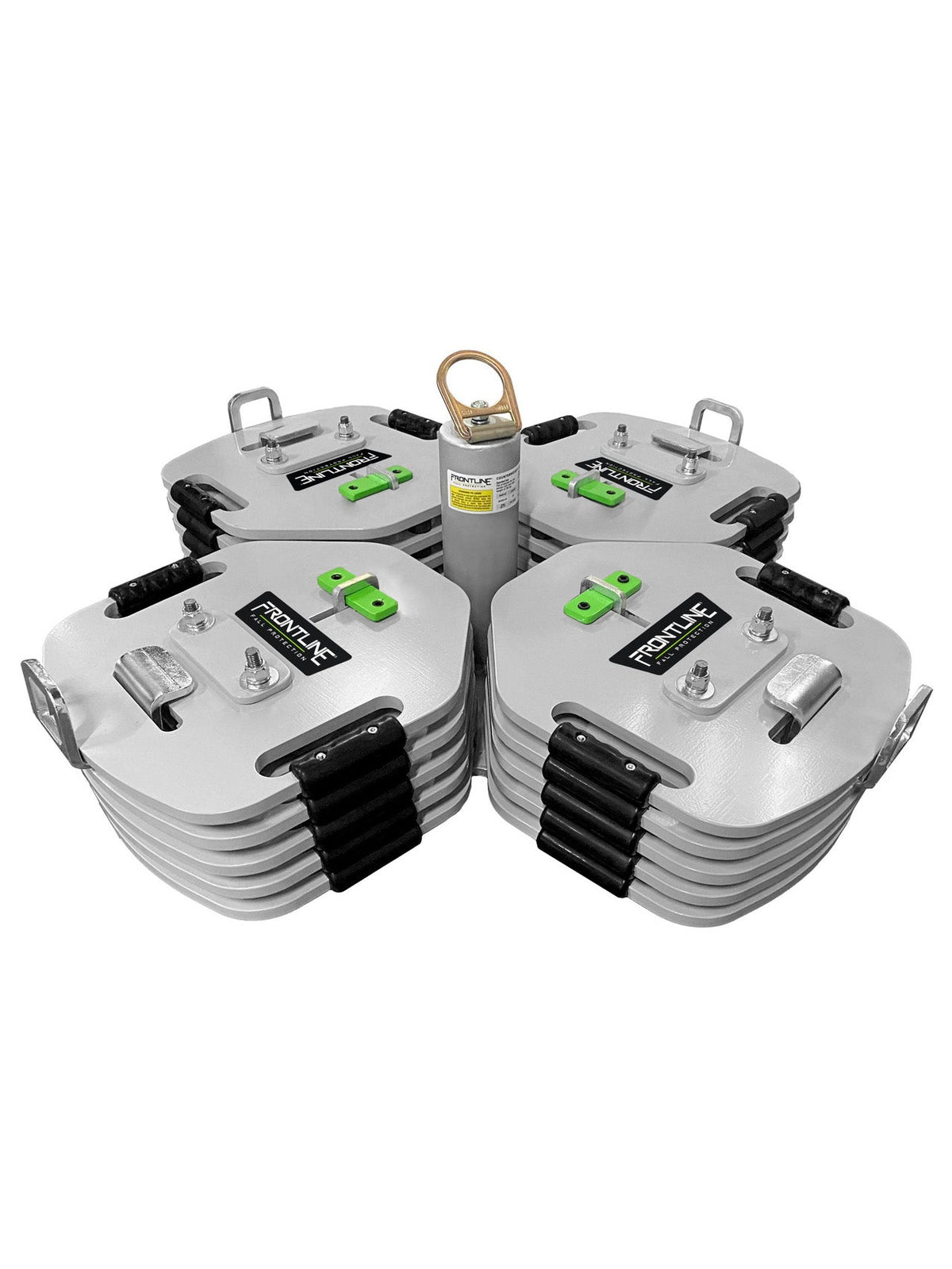

Frontline CO2NN Counterweight Anchor System, Non-Penetrating. A non-penetrating counterweight anchor for roofs and other areas with fall hazards. Because nothing goes through the roof, it suits finished roofs and many surfaces, with protective pads under the bases. Built for one person in fall arrest or restraint, with a 360-degree swivel D-ring, four lifting points, ergonomic handles on the weights and a hot-dip galvanized anchor on bases with anti-corrosive paint. For roofs up to a 5° pitch; arrives fully assembled; 310 lb maximum user capacity.
Frontline CO2NN counterweight anchor system key features
- Non-penetrating: no holes in the roof or substrate
- For one person in fall arrest or restraint

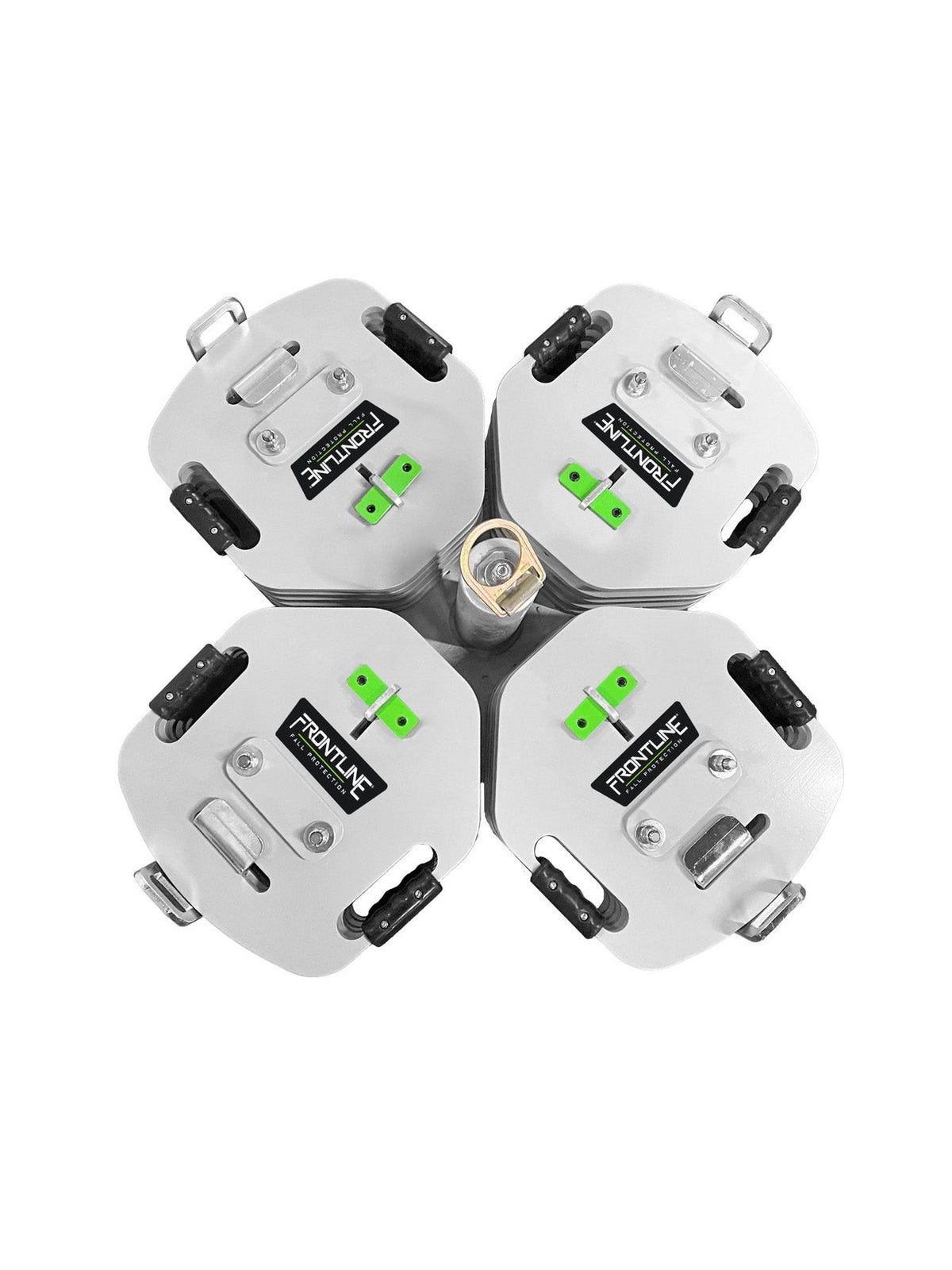

- D-ring swivels 360 degrees
- Four lifting points for moving and lifting the system
- Protective pads protect a finished roof or substrate
- Ergonomic handles for lifting the weights and reducing pinch risk

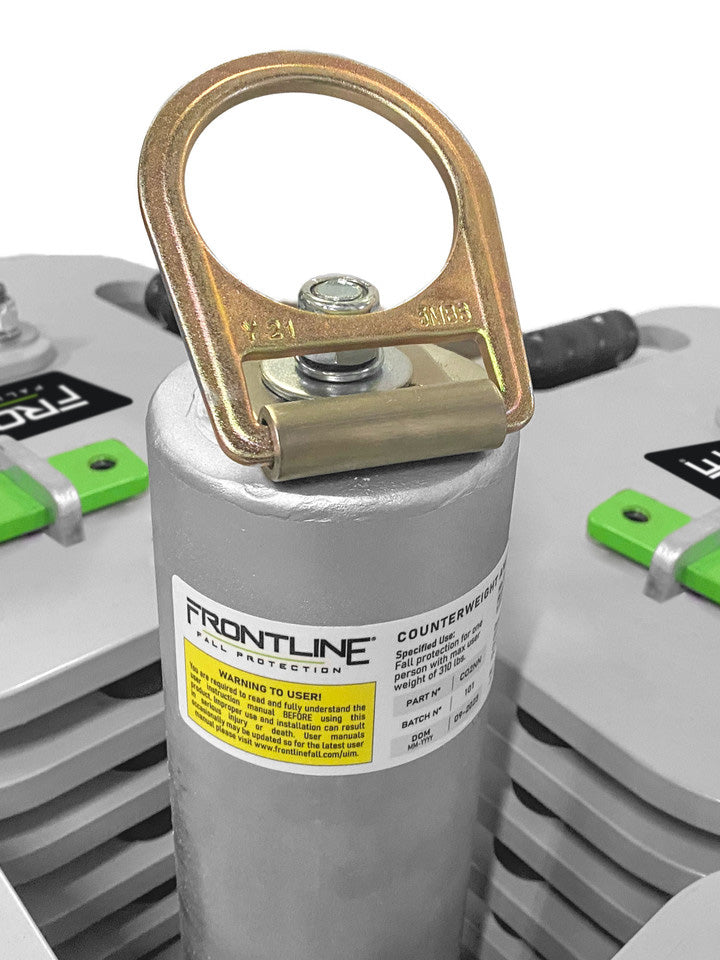

- Hot-dip galvanized anchor; bases finished with anti-corrosive paint
- Works with compatible self-retracting lifelines, lanyards or lifelines
- Arrives fully assembled and ready to use
Frontline CO2NN counterweight anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | CO2NN |
| Type | Non-penetrating counterweight anchor |
| Users | 1 person, fall arrest or restraint |
| Maximum user capacity | 310 lb |
| Roof pitch | Up to 5° |
| Finish | Hot-dip galvanized anchor, anti-corrosive painted bases |
| Anchor point | 360° swivel D-ring |
| Standards | Meets or exceeds OSHA 1910, OSHA 1926 and EN 795:2012 |
| Supplied | Fully assembled |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline CO2NN counterweight anchor

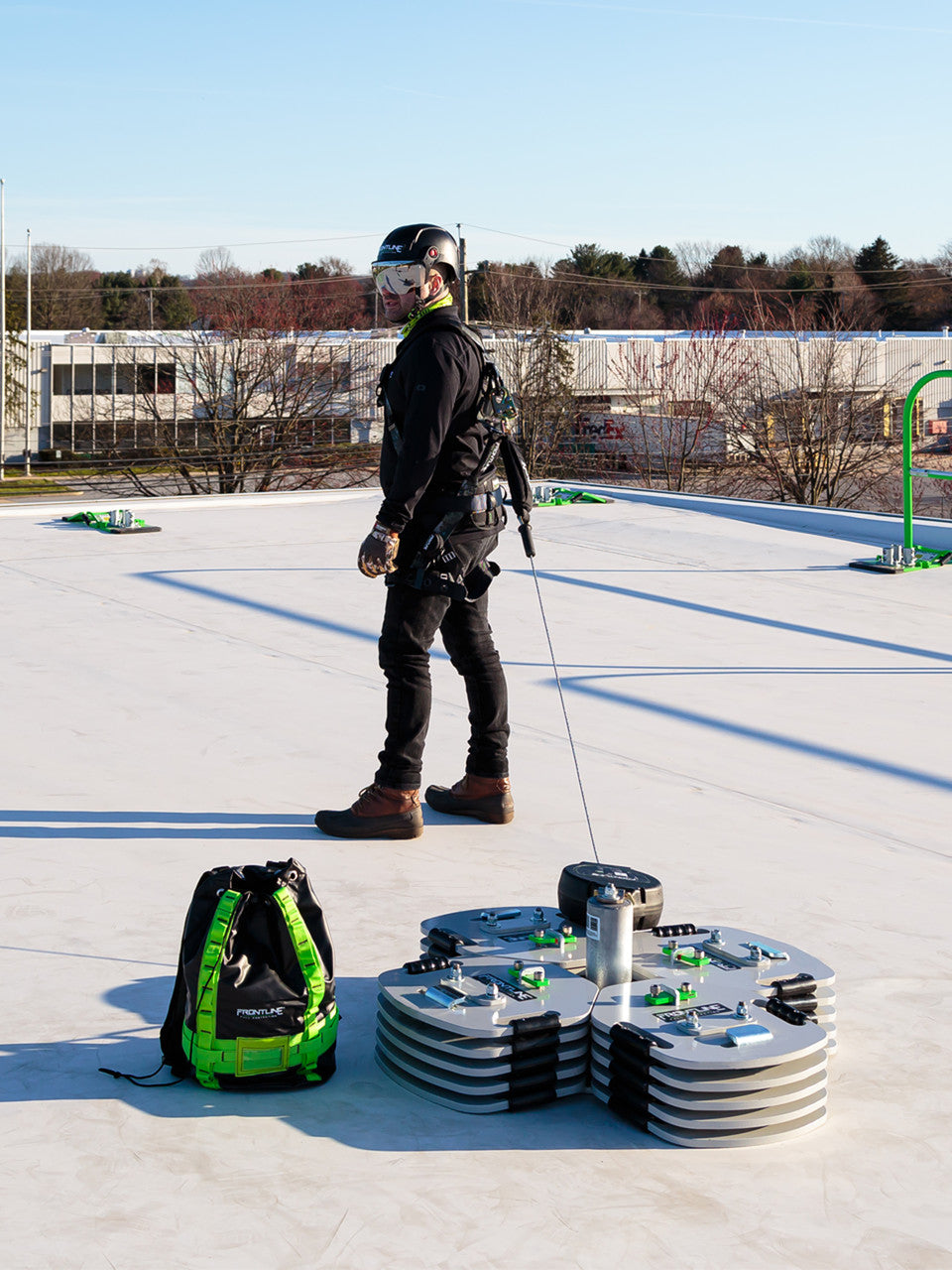

Finished flat roofs
Tie off without penetrating a new or warrantied membrane.
Rooftop service work
Set the anchor near HVAC or equipment and move it with the lifting points.
Low-slope areas with fall hazards
Fall arrest or restraint on surfaces up to a 5° pitch.
Is the Frontline CO2NN CSA certified? Compliance in Canada
Is the Frontline CO2NN CSA certified?
No. Frontline states it meets or exceeds OSHA 1910, OSHA 1926 and EN 795:2012. For CSA-marked anchors, see our Safety Direct range.
Does it put holes in the roof?
No. It is a non-penetrating counterweight anchor with protective pads under the bases.
How many workers can use it?
It is designed for one person in fall arrest or restraint applications.
What roof slope can it sit on?
Frontline rates it for roofs up to a 5° pitch.
Does it need assembly?
No, it arrives fully assembled and ready to use.
Pair the Frontline CO2NN anchor with an SRL or restraint lanyard
Use it with a compatible SRL, lanyard or lifeline and a full body harness. Browse the rest of our roof anchors for permanent options. Questions on fit or quantities? Contact Fall Protection Canada.
