Frontline DAC-HBASE davit H-base
$12,283.99
Skip to product information
Frontline DAC-HBASE davit H-base
1/3

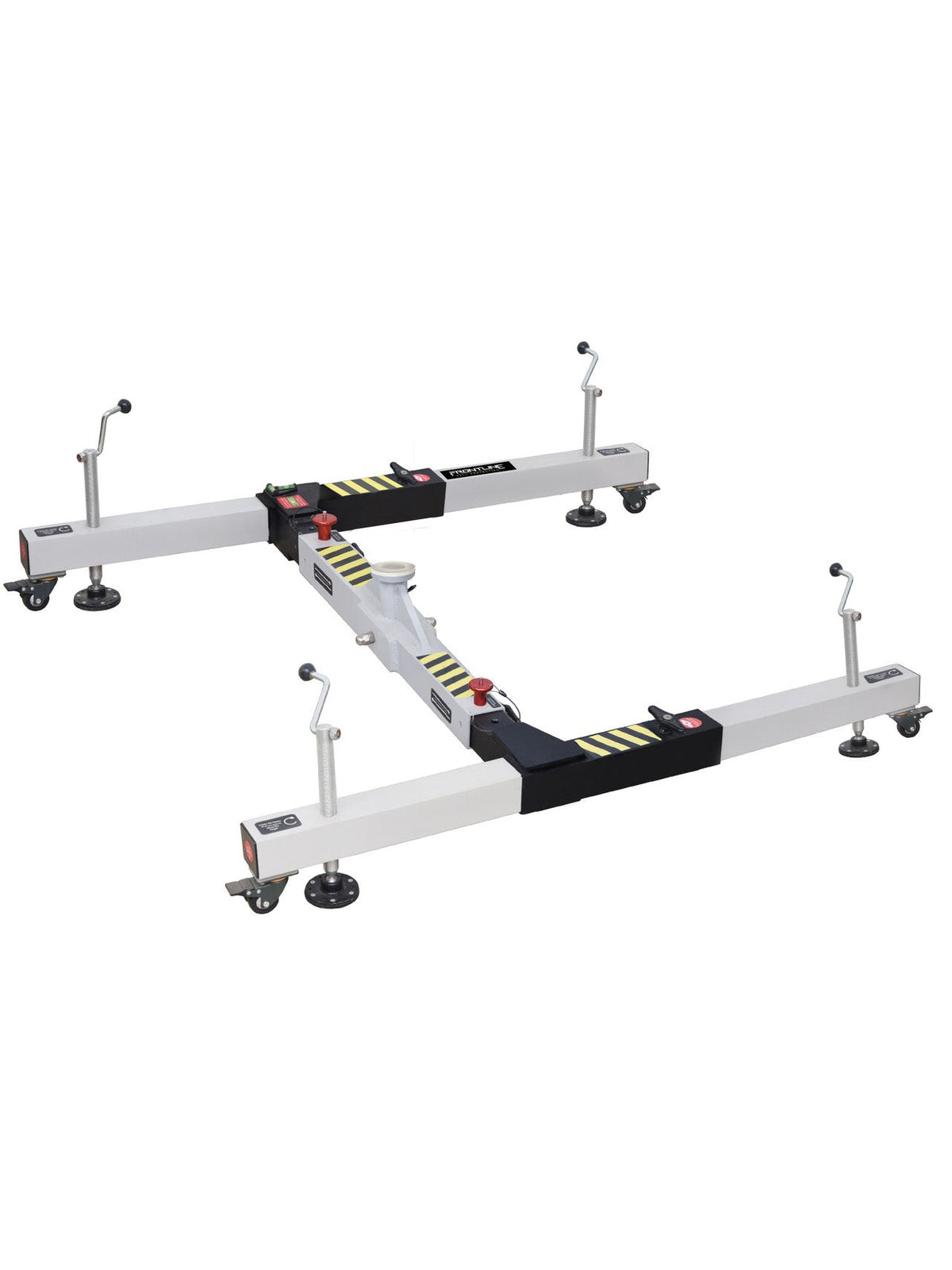

  • Frontline DAC-HBASE davit H-base

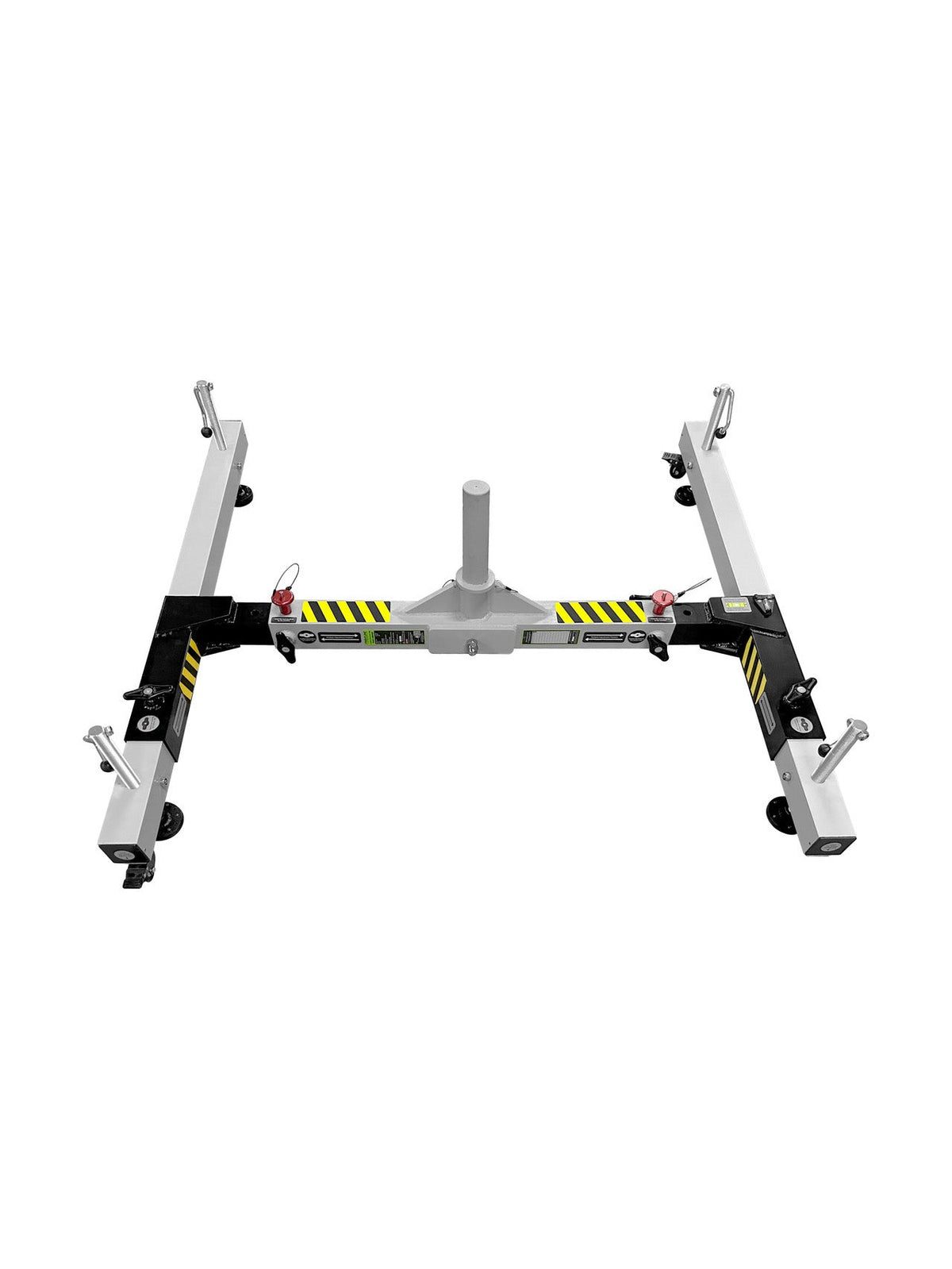

  • Frontline DAC-HBASE H-base, second view

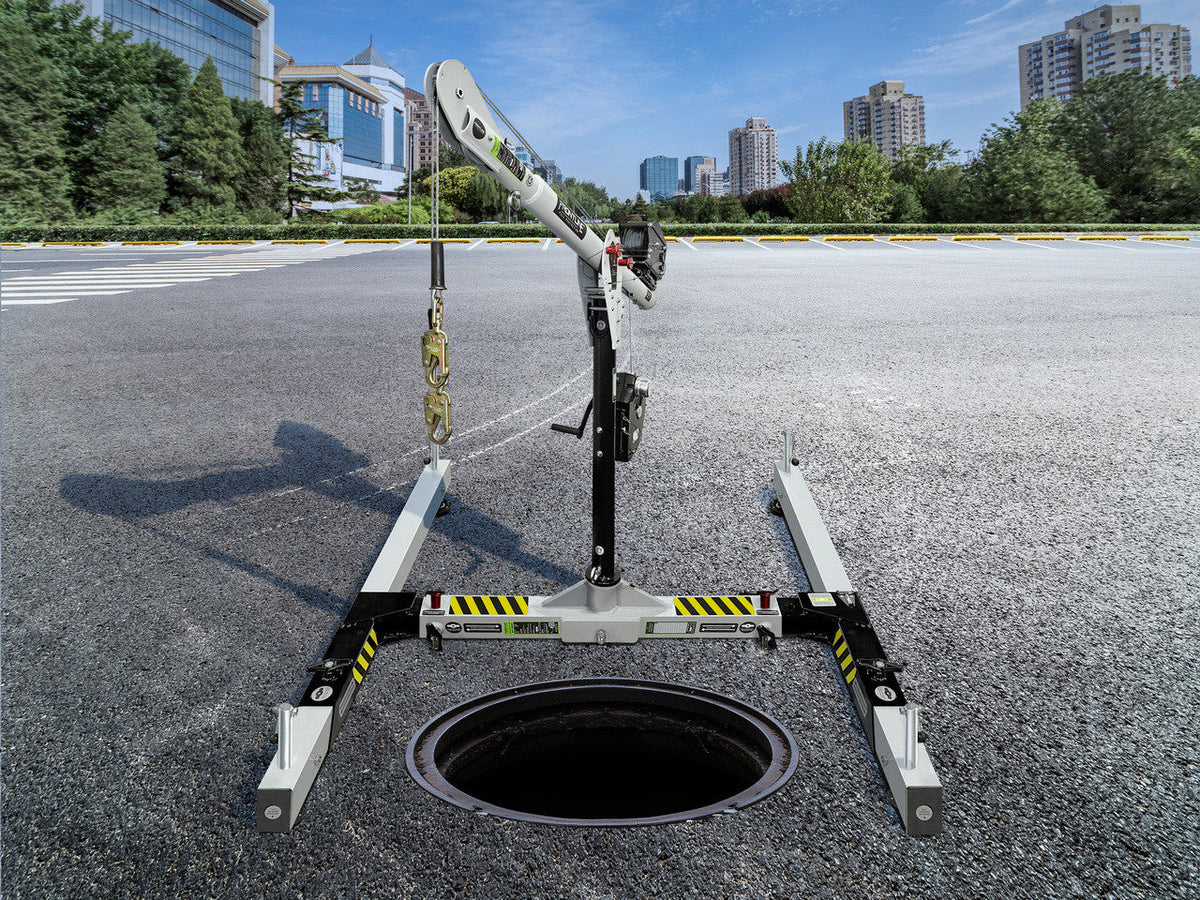

  • Frontline DAC H-base set up over an opening
Frontline DAC-HBASE Davit System H-Base, Modular Non-Penetrating Base | Canada

Frontline DAC-HBASE Davit System H-Base, Modular Non-Penetrating Base | Canada

$12,283.99

Frontline DAC-HBASE davit system H-base. A non-penetrating, modular base for Frontline's DAC davit arm system, for confined space and rescue work where permanent mounting isn't possible. Set it over manholes, tanks and other compatible entries, add Frontline's davit mast and arm (sold separately), and you have a complete confined space access system without drilling the substrate.

⚠
Base only, and ANSI/OSHA not CSAThis listing is the H-base only; the davit mast and arm are sold separately. Frontline rates its gear to ANSI/OSHA; it is not CSA certified. If your site or province requires CSA-marked equipment, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Frontline does not list a separate standard for the base on its own; set up and inspect the assembled system per Frontline’s instructions.
Component
H-base only
Mounting
Non-penetrating
Opening
Ø43.3 to 59.44 in
Material
Aluminum alloy

Frontline DAC-HBASE davit H-base key features

  • Non-penetrating design: stable anchorage with no substrate modifications
  • Modular base for the Frontline DAC davit mast and arm (sold separately)
  • Fits openings from Ø43.3 in (minimum) to Ø59.44 in (maximum)
  • High-strength aluminum alloy construction
  • Built for quick deployment and portability for temporary setups

Frontline DAC-HBASE davit H-base specifications

Manufacturer Frontline Fall Protection
Model / SKU DAC-HBASE
Component H-base only (mast and arm sold separately)
Material High-strength aluminum alloy
Opening range Ø43.3 in minimum to Ø59.44 in maximum
Weight (base only) 137.92 lb (62.56 kg) per Frontline
Compliance ANSI/OSHA per Frontline; not CSA certified
Region Fall Protection Canada, Paris, Ontario · freight quoted to your site

Where crews set up the Frontline DAC-HBASE davit H-base

Manholes

Temporary davit setup over the opening.

Tanks and vaults

Anchorage without drilling the substrate.

Rescue standby

Portable base for retrieval and rescue.

Ships from Ontario
Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises. Large freight item: contact us for a freight quote to your site.

Frontline DAC-HBASE davit H-base questions answered

Does the DAC-HBASE include the davit arm?

No. This is the H-base only; Frontline’s davit mast and arm are sold separately.

What opening sizes does the H-base fit?

Frontline lists a minimum opening of Ø43.3 in and a maximum of Ø59.44 in.

Is the Frontline DAC-HBASE CSA certified?

No. Frontline gear is rated to ANSI/OSHA, not CSA. For CSA-marked equipment see our Safety Direct CSA range.

Pair the Frontline DAC-HBASE with the DAC davit and retrieval SRL

Add the DAC davit mast and arm, then a retrieval SRL or winch. Questions on sizing or quantities? Contact Fall Protection Canada.
