Frontline GUB56 56 lb guardrail base, safety green
Safety Green
$1,299.99
Skip to product information
Frontline GUB56 56 lb guardrail base, safety green
1/5

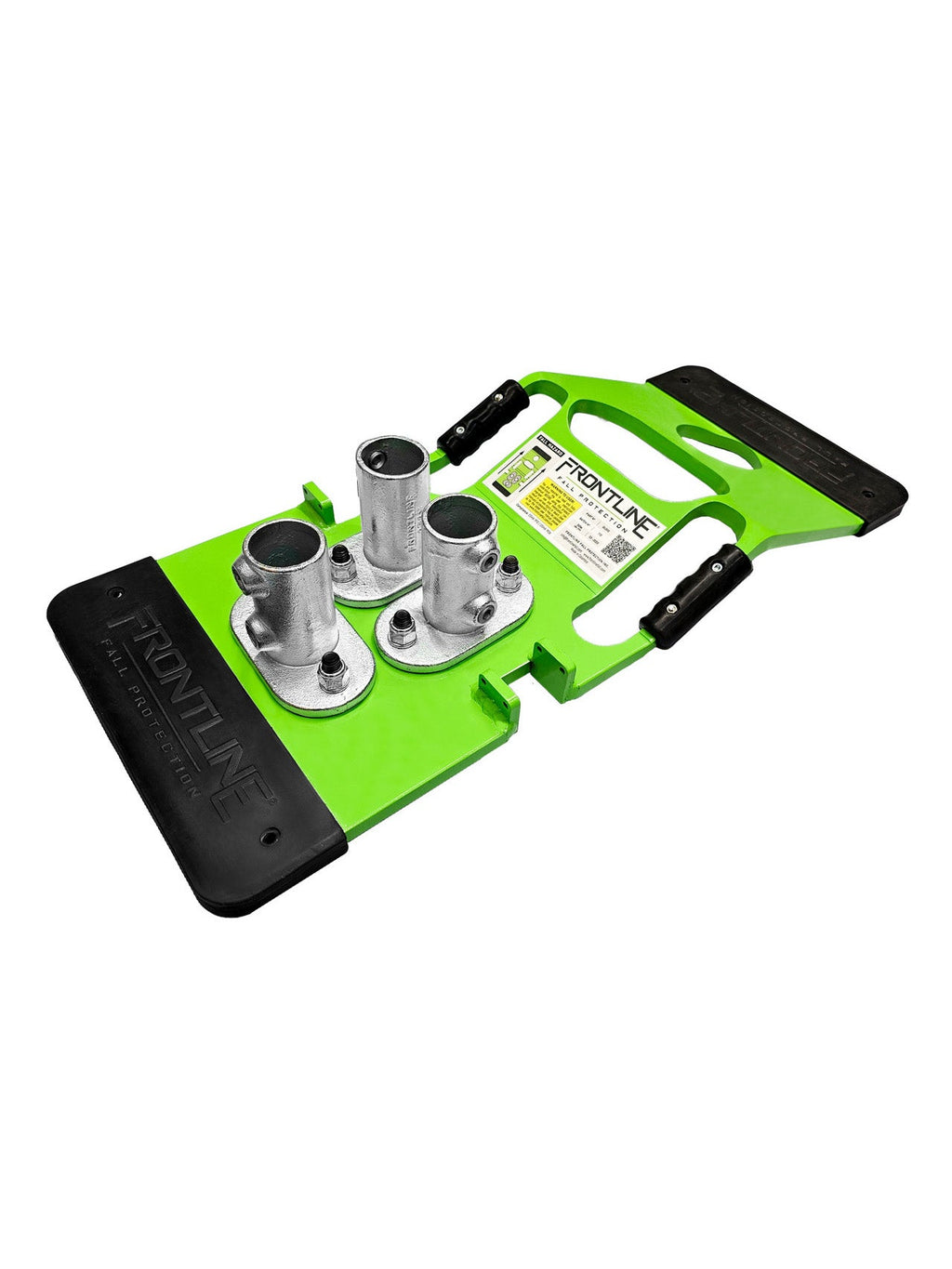

  • Frontline GUB56 56 lb guardrail base, safety green

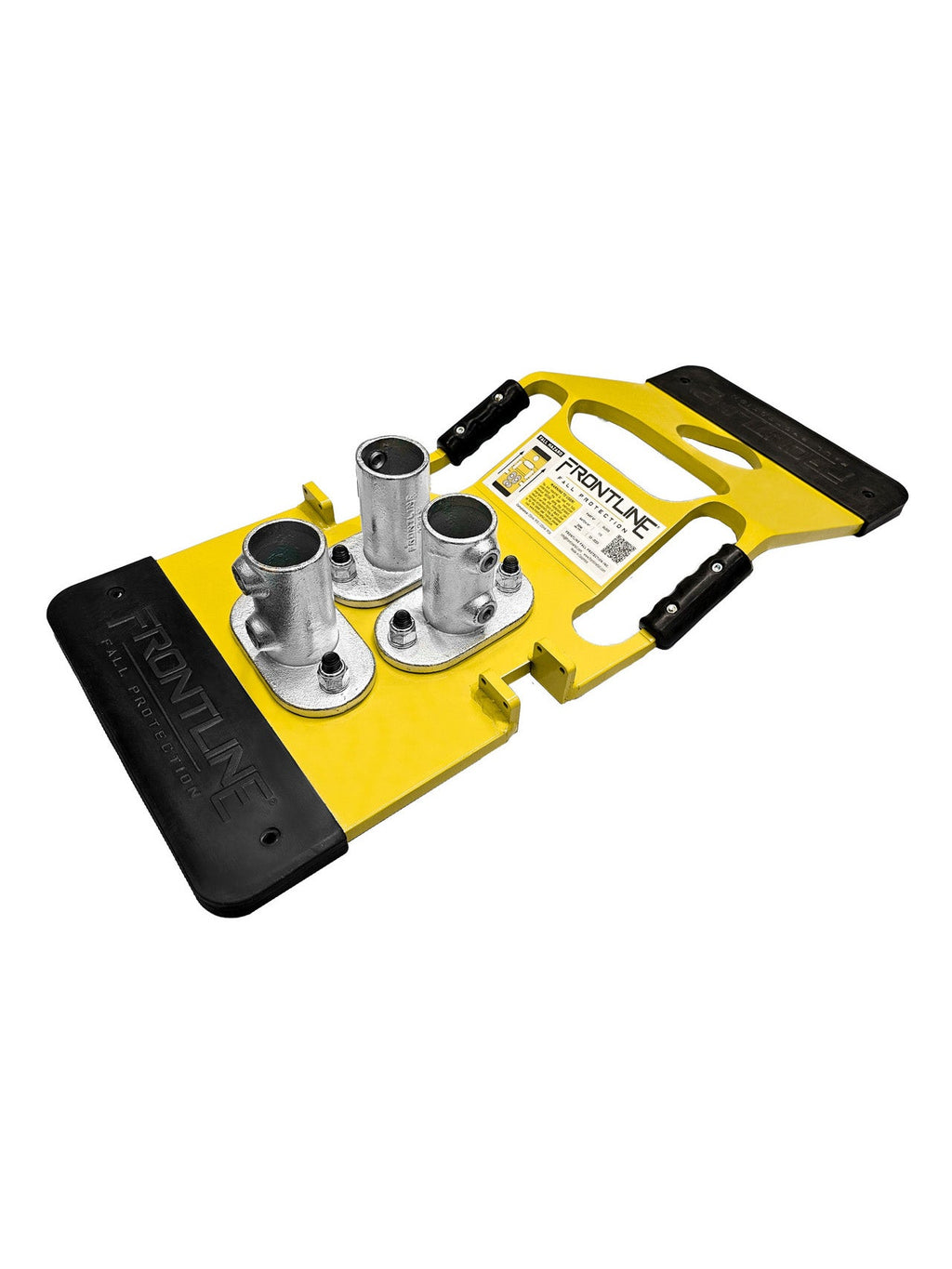

  • Frontline GUB56 guardrail base, safety yellow

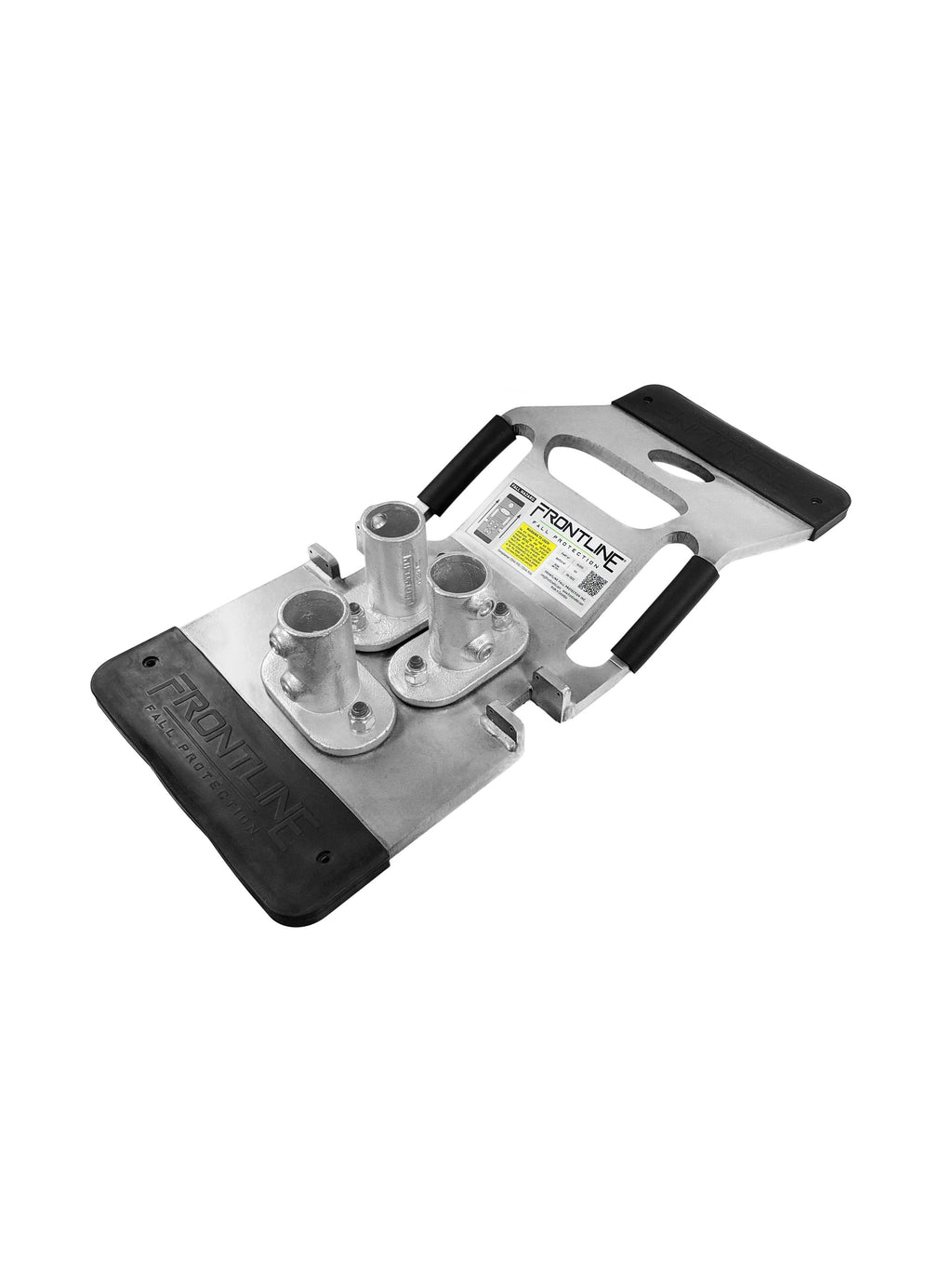

  • Frontline GUB56 guardrail base, hot dip galvanized

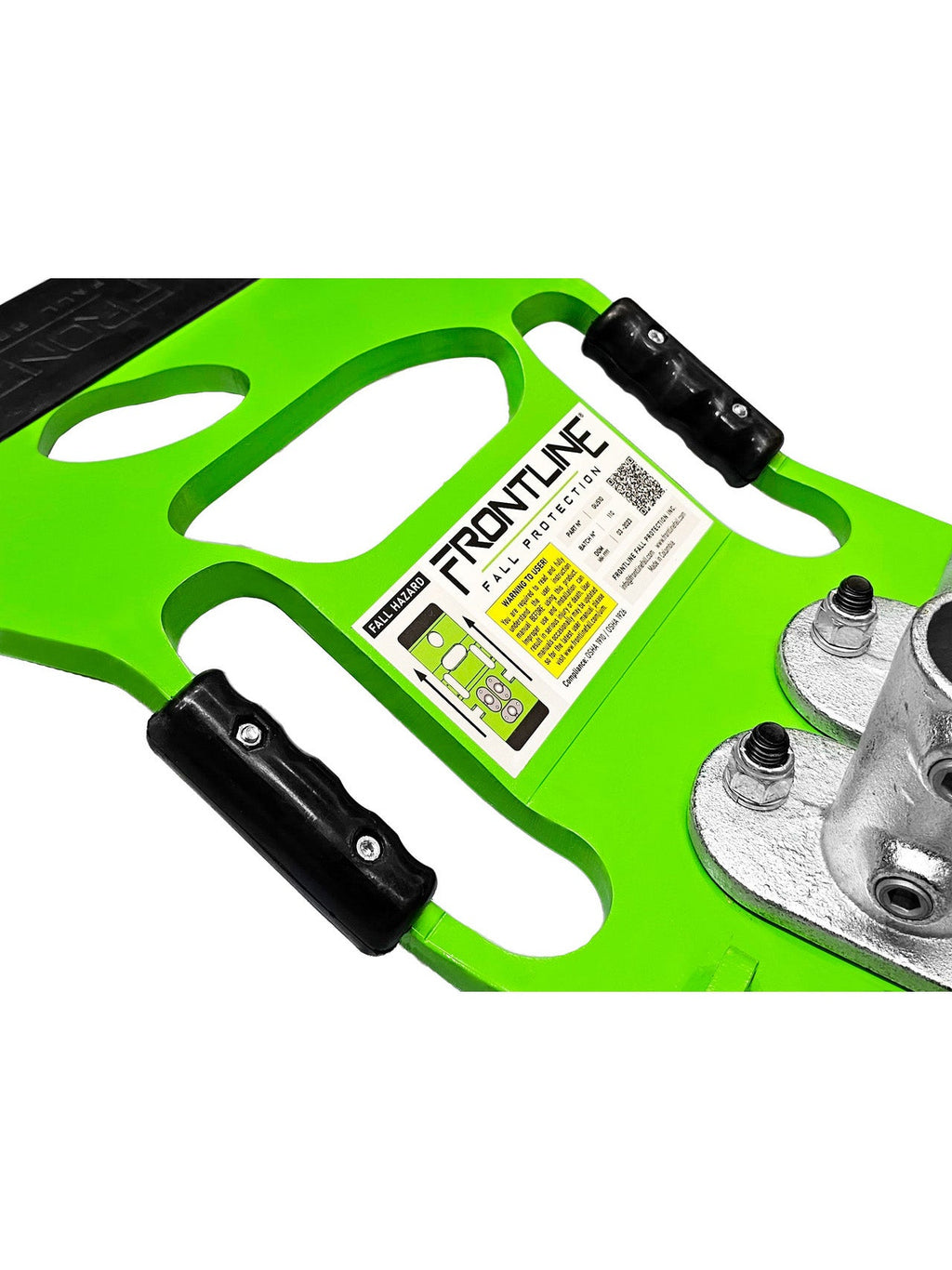

  • Frontline GUB56 base with EPDM supports and handles

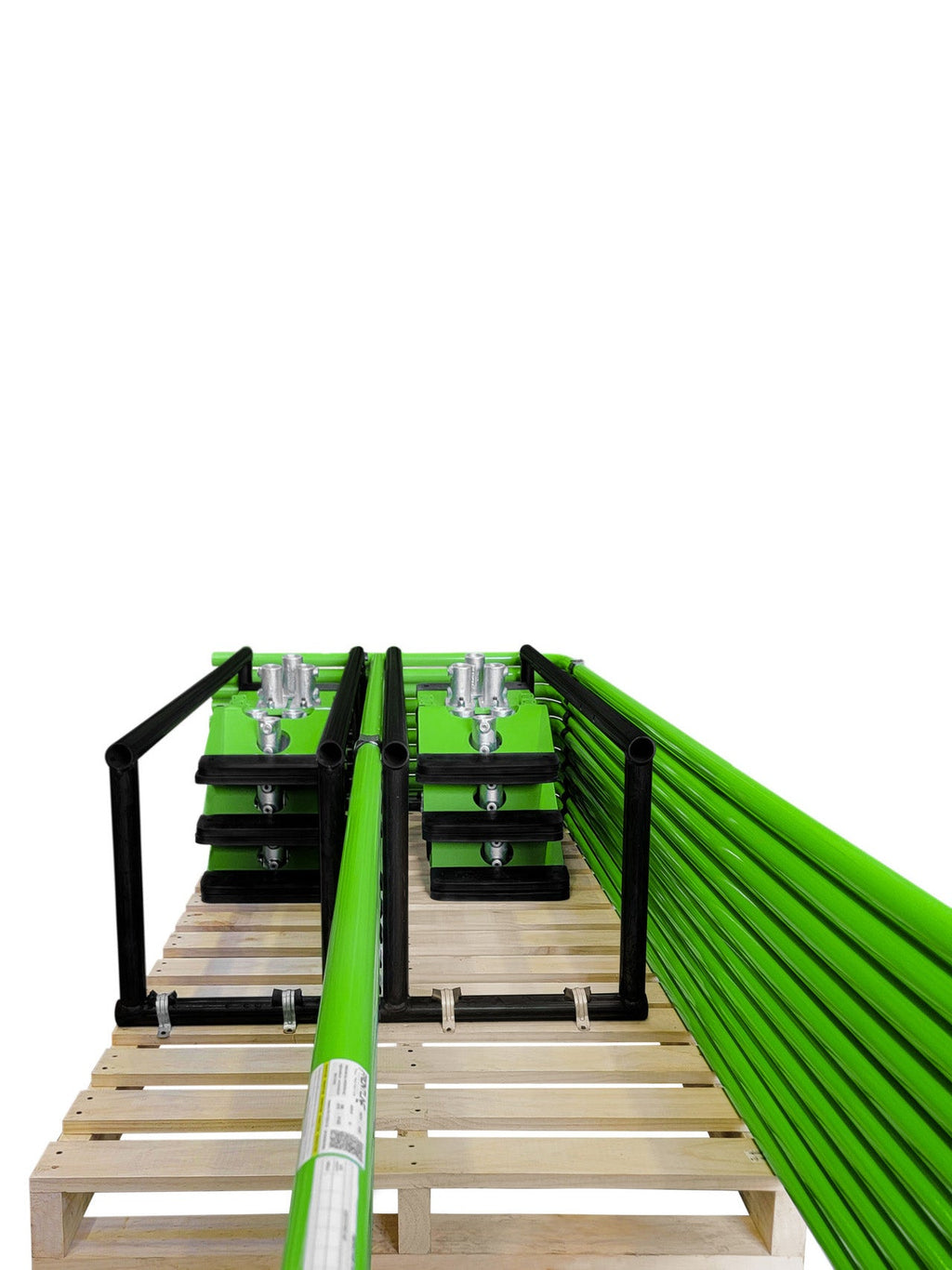

  • Frontline guardrails installed in GUB56 bases
Frontline GUB56 Guardrail Base, 56 lb | Canada

Frontline GUB56 Guardrail Base, 56 lb | Canada

$1,299.99
Finish

Frontline GUB56 Guardrail Base, 56 lb. A single 56 lb base for Frontline non-penetrating guardrail systems, for extending a run, adding a corner or replacing a damaged base. Rails slide into its fittings and lock with two grub screws. Extended EPDM supports on both sides keep it stable and protect the roof, two foam handles make it easy to carry, and two toe board slots take Frontline toe boards. Four holes allow an optional fixed install.

⚠
Compliance in Canada: OSHA, not CSAFrontline states its guardrail system meets or exceeds OSHA 1910 and 1926 and is tested by an independent lab accredited to ISO/IEC 17025:2017. It is not CSA certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use.
Equipment type
Guardrail base
Weight
56 lb
Fits
Frontline guardrail rails
Standard
OSHA 1910 / 1926

Frontline GUB56 guardrail base key features

  • 56 lb base for Frontline guardrail systems
  • Rails slide into the fittings and lock with two grub screws
  • Two extended EPDM supports on each side for stability
  • Two foam handles for carrying
  • Two universal toe board slots
  • Four holes for an optional fixed install drilled into the substrate

Frontline GUB56 guardrail base specifications

Manufacturer Frontline Fall Protection
Model / SKU GUB56GRN (green) · GUB56YLW (yellow) · GUB56HDG (galvanized)
Weight 56 lb
Bases included 1
Compatibility Frontline guardrail systems
Rail locking Two grub screws
Finishes Safety green, safety yellow, hot dip galvanized
Standards Meets or exceeds OSHA 1910 and 1926 (system); tested by an ISO/IEC 17025:2017 accredited lab
Region Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide

Where crews use the Frontline GUB56 guardrail base

Extending a run

Add bases when you add rails to a guardrail perimeter.

Corners and ends

An extra base to close out a run.

Spares

Replace a damaged or lost base on site.

Ships from Ontario
Stocked by Fall Protection Canada in Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline GUB56 guardrail base CSA certified?

Is the Frontline GUB56 CSA certified?

No. Frontline states its guardrail system meets or exceeds OSHA 1910 and 1926. Confirm your layout meets your provincial OHS guardrail rules.

Which rails fit it?

Frontline guardrail rails, such as those in the GUS10, GUS75 and GUS05 kits.

How much does it weigh?

56 lb.

Does it need to be bolted down?

No. It is non-penetrating; the four holes are for an optional fixed install.

Pair the Frontline GUB56 base with Frontline guardrail rails

Use it with Frontline guardrail rails, the GUG55 gate and GUTO toe boards. Send us your roof perimeter and we'll quote rails and bases together. Contact Fall Protection Canada.
