Frontline HCLL260 Elite 2-Person 60 ft Temporary Horizontal Lifeline | Canada

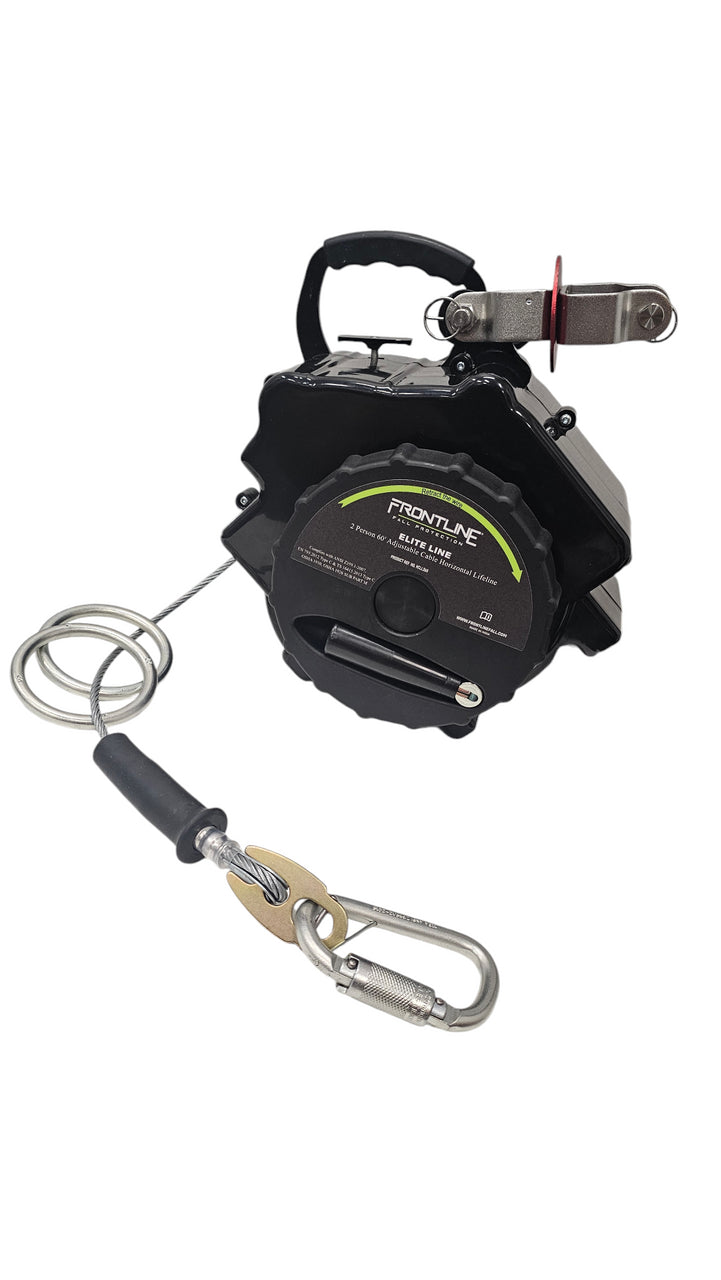

Frontline HCLL260 Elite 2-Person 60 ft Temporary Horizontal Lifeline | Canada. Frontline's Elite two-person temporary horizontal lifeline in a case: 60 ft of 7x19 galvanized steel wire cable on a built-in winch with a rotating tension indicator, two high-strength alloy steel O-ring mobile anchors, an inbuilt shock absorption mechanism and a termination connection end. Push the button, pull the cable to length, winch it tight until the indicator spins free, and two workers are tied off. High-strength polymer housing, moulded handle, 34.5 lb.

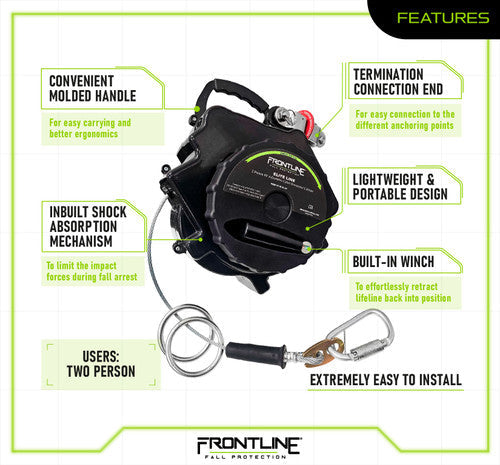

Frontline HCLL260 horizontal lifeline key features
- 7x19 galvanized steel wire cable with an integrated tension indicator and built-in winch
- Two high-strength alloy steel O-ring mobile anchors for secure connection points
- Push-button release to extend the lifeline; built-in winch to tension it and retract it into its compact case
- Rotating tension indicator moves freely once the system is properly tensioned and ready for use
- Inbuilt shock absorption mechanism to limit impact forces during fall arrest
- Durable high-strength polymer housing: lightweight and portable between jobsites
- Moulded carry handle for better ergonomics
- Termination connection end for straightforward connection to the anchorage points
- Maximum span 60 ft; quick, straightforward installation
Frontline HCLL260 temporary horizontal lifeline specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | HCLL260 |
| Users | Two persons |
| Capacity | 310 lb per person |

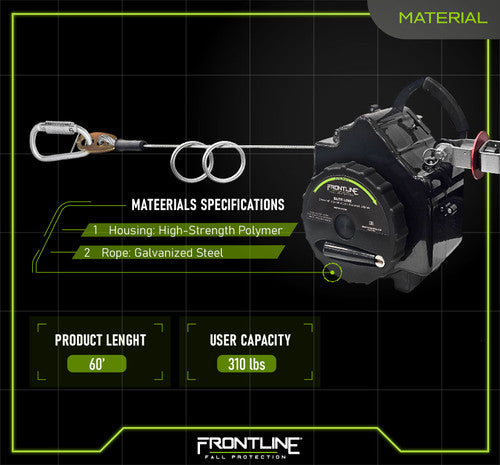

| Lifeline | 7x19 galvanized steel wire cable, 60 ft |
| Maximum span | 60 ft |

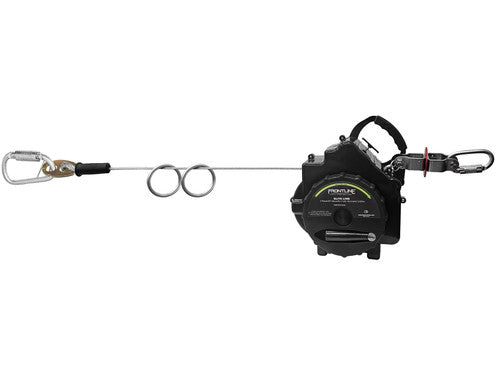

| Tensioning | Built-in winch with rotating tension indicator |

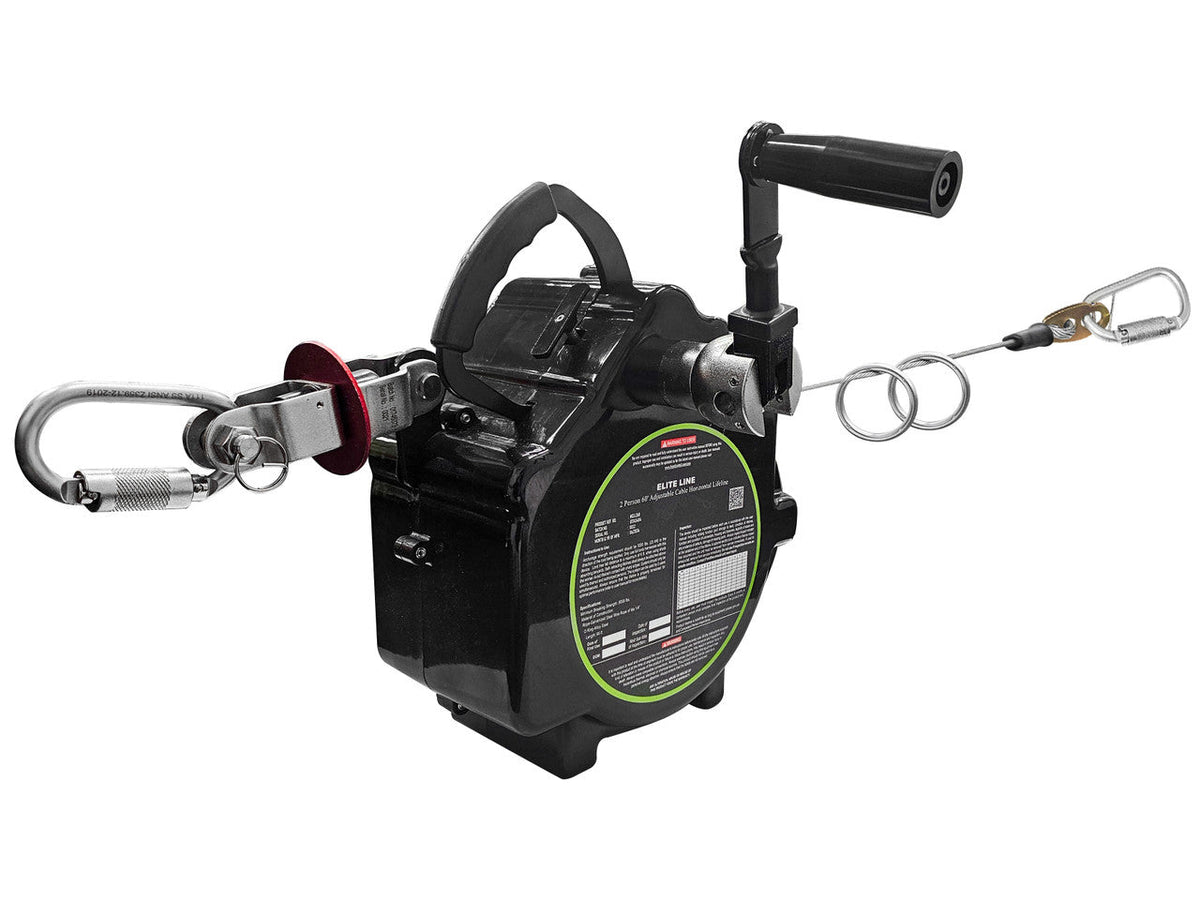

| Mobile anchors | Two high-strength alloy steel O-ring mobile anchors |
| Shock absorption | Inbuilt mechanism |
| Housing | High-strength polymer, moulded handle |
| Unit weight | 34.5 lb |

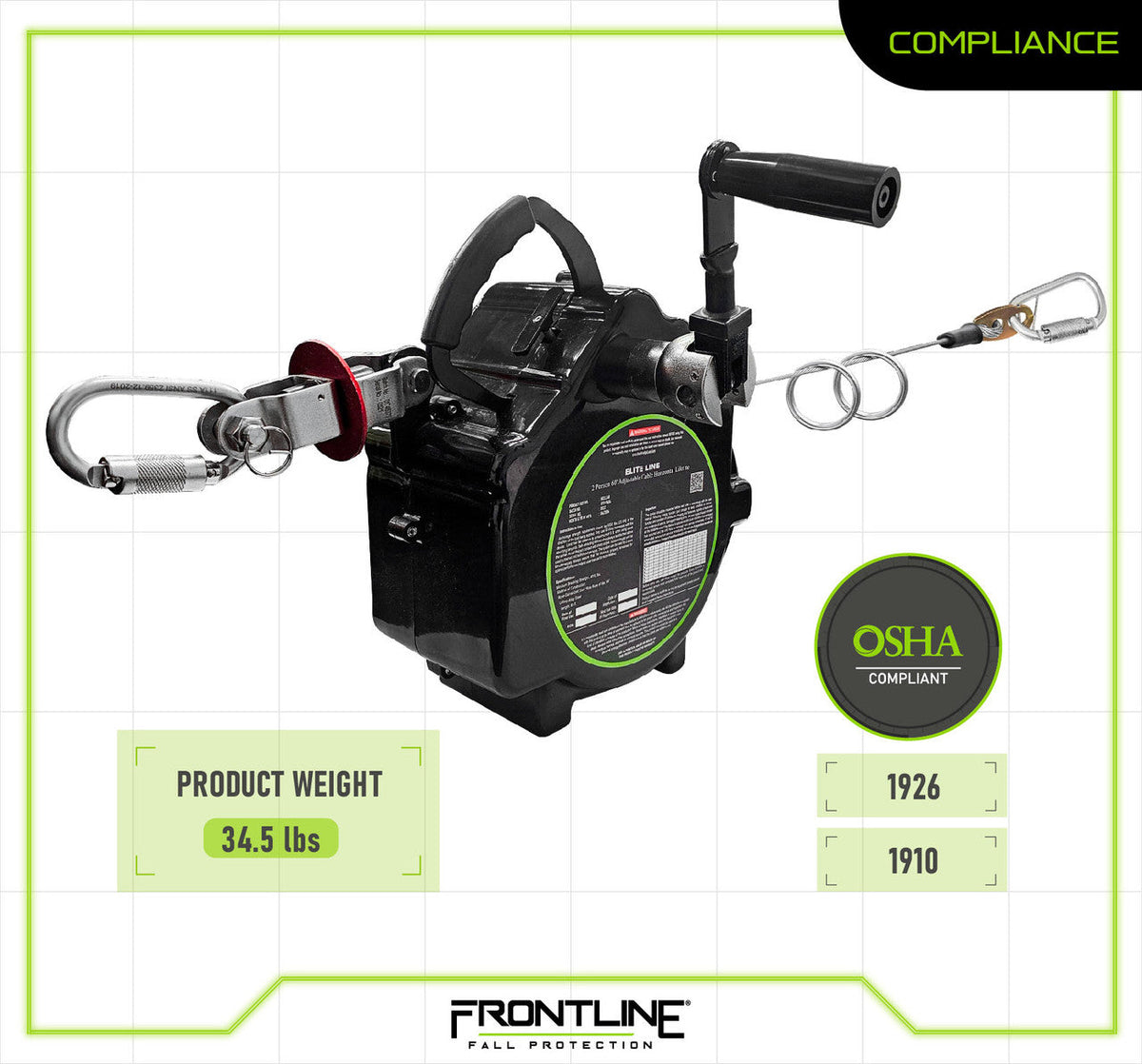

| Standards | Meets or exceeds OSHA 1910 and OSHA 1926, as Frontline states |
| End anchors | Not included; use anchors rated for a two-person horizontal lifeline per Frontline's instructions |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline HCLL260 horizontal lifeline
Flat and low-slope roofs
Run 60 ft between two rated anchors so two workers can move the length of the roof.
Steel erection and decking
Temporary line along a beam line between column anchors.
Bridge and precast
Portable two-person system that packs into its case between sites.
Plant shutdowns
Fast set-up over tanks and equipment where no permanent line exists.
Is the Frontline HCLL260 CSA certified? Compliance in Canada
Is the Frontline HCLL260 CSA certified?
No. Frontline rates it to OSHA 1910 and OSHA 1926. For CSA-marked horizontal lifeline systems, ask us about our Safety Direct range.
How many workers can use the HCLL260?
Two, at 310 lb each, per Frontline.
What anchors does the HCLL260 need at each end?
End anchors are not included. They must be rated for a two-person horizontal lifeline per Frontline's instructions; Frontline's ALPHA swivel anchors can be combined in a temporary HLL system per their listings.
How do I know the line is tensioned?
Winch until the rotating tension indicator moves freely; Frontline says that shows the necessary tension has been reached and the system is ready.
How often should the HCLL260 be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall and follow Frontline's service schedule.
Pair the Frontline HCLL260 with harnesses, SRLs and end anchors
The HCLL260 is the horizontal lifeline. Add two rated end anchors, a full-body harness and an SRL or shock-absorbing lanyard per worker for a complete system.
