Frontline QAN75-US Patriot Quadpod Confined Space System | Canada
$7,003.99

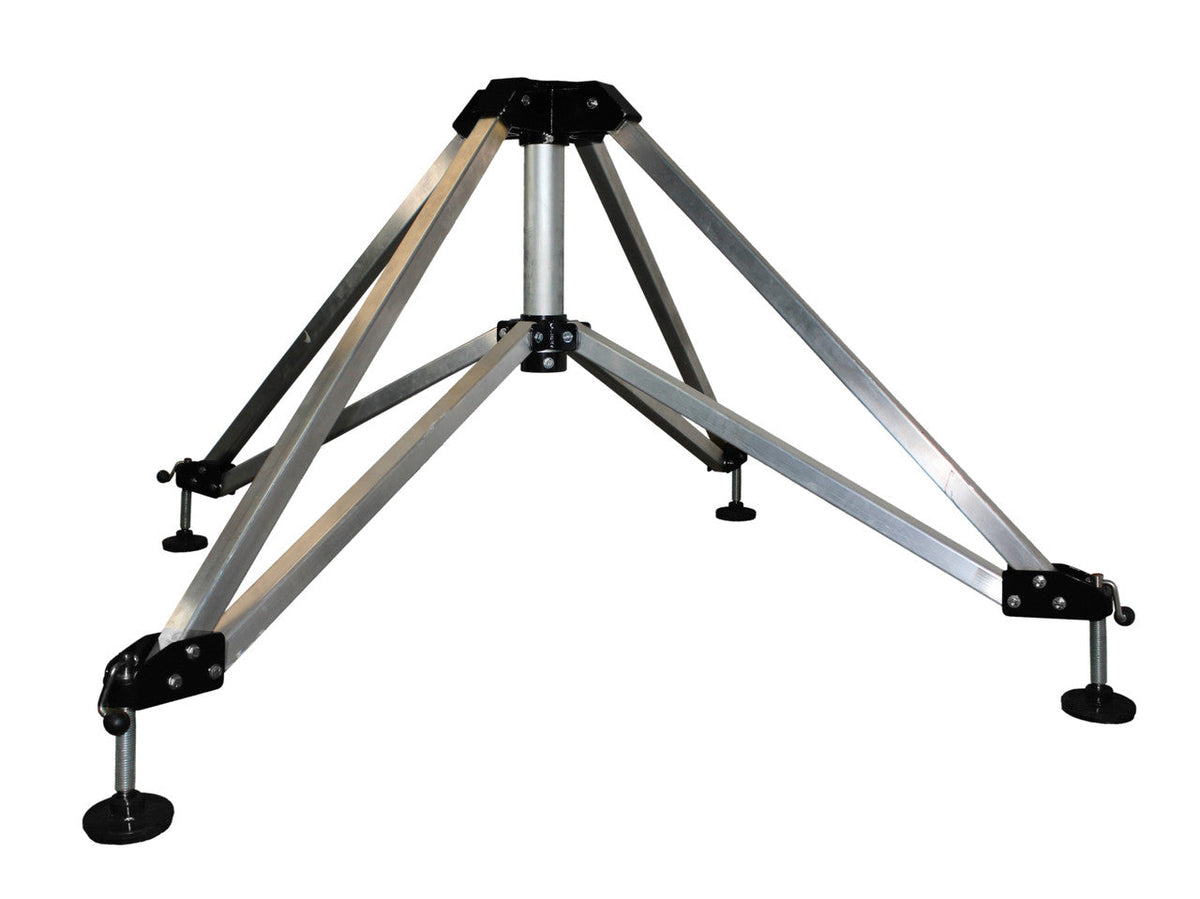

Frontline QAN75-US Patriot quadpod. The four-leg confined space quadpod from Frontline's Patriot line, for entry over larger openings. 5,000 lb minimum breaking strength, 350 lb maximum user capacity. Winch and 3-way retrieval unit sold separately (the QAN75RA-US kit bundles the 3-way).
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the QAN75-US to the US standards listed below. It is not CSA certified. If your site or province requires CSA-marked equipment, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use.
Equipment type
Confined Space Quadpod
Minimum Breaking Strength
5,000 lbs
Maximum User Capacity
350 lbs
Frontline QAN75-US Patriot quadpod key features
- Sets up in seconds by one person with no tools

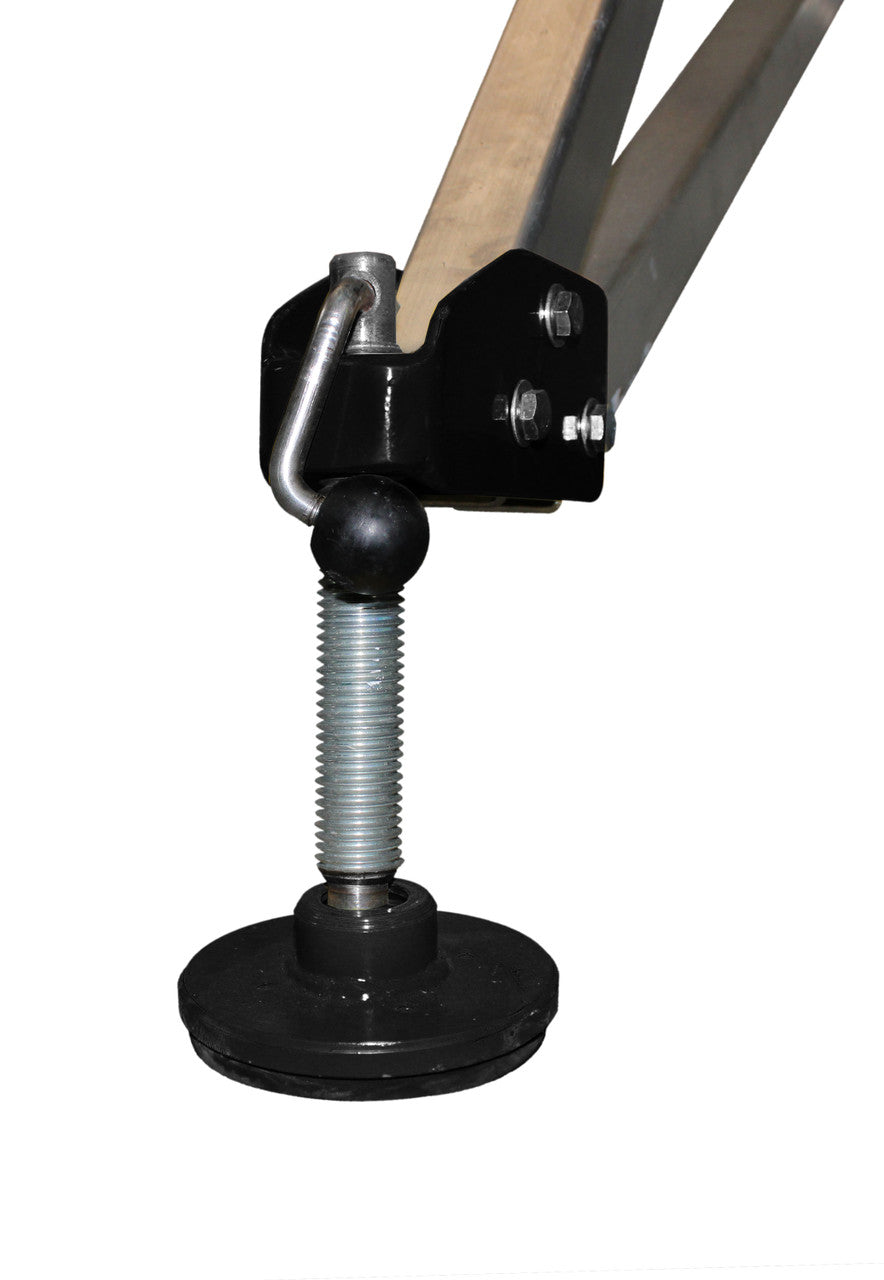

- Collapsible, with each leg independently adjustable for uneven terrain

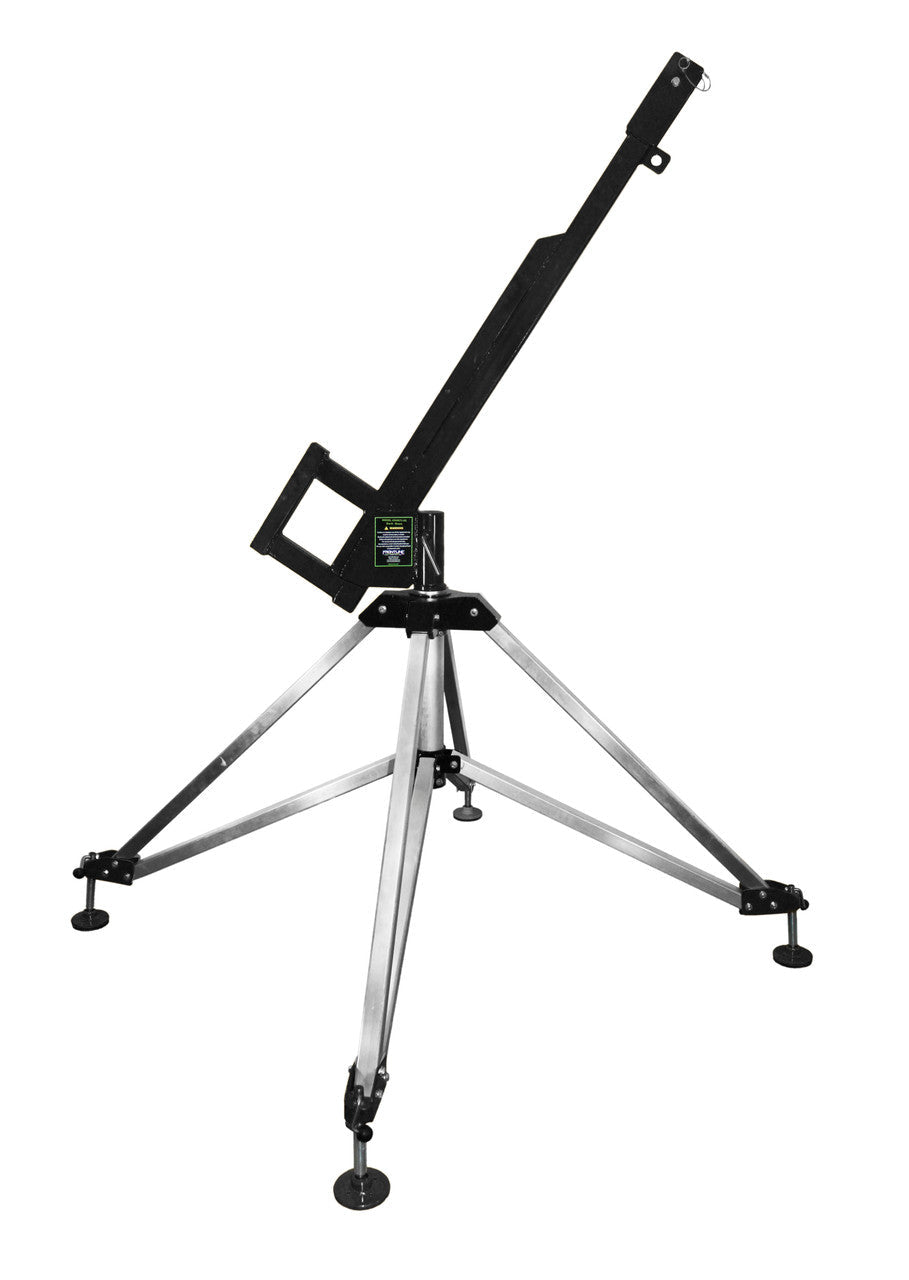

- Removable boom rotates 360° and locks in position over the entry
- Quadpod and davit components are interchangeable
- Aluminum and powder-coated steel construction with a powder-coated steel boom
- Suited to locations where a tripod is impractical
Frontline QAN75-US Patriot quadpod specifications
| Manufacturer | Frontline |
|---|---|
| Model / SKU | QAN75-US |
| Minimum Breaking Strength | 5,000 lbs |
| Maximum User Capacity | 350 lbs |
| Standards | Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.18 (per Frontline) |
Where crews use the Frontline QAN75-US Patriot quadpod
Manholes and vaults
Lower and retrieve entrants over an opening.
Tanks and pits
Permit-required confined space entry.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
Fast setup on site.
Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.
Is the Frontline QAN75-US CSA certified? Compliance in Canada
Is the Frontline QAN75-US quadpod CSA certified?
No. Frontline rates the QAN75-US to US standards (ANSI/OSHA); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What is the capacity of the Frontline QAN75-US quadpod?
Frontline lists 350 lbs.
What to pair with the Frontline QAN75-US Patriot quadpod
Pair the QAN75-US with a Patriot RAW50-US winch or RAG503W-US 3-way retrieval SRL and a full-body harness, and train the crew on inspection and rescue.
