Frontline QAN75RA-US Patriot Quadpod, 50 ft 3-Way Retrieval | Canada
$11,766.99

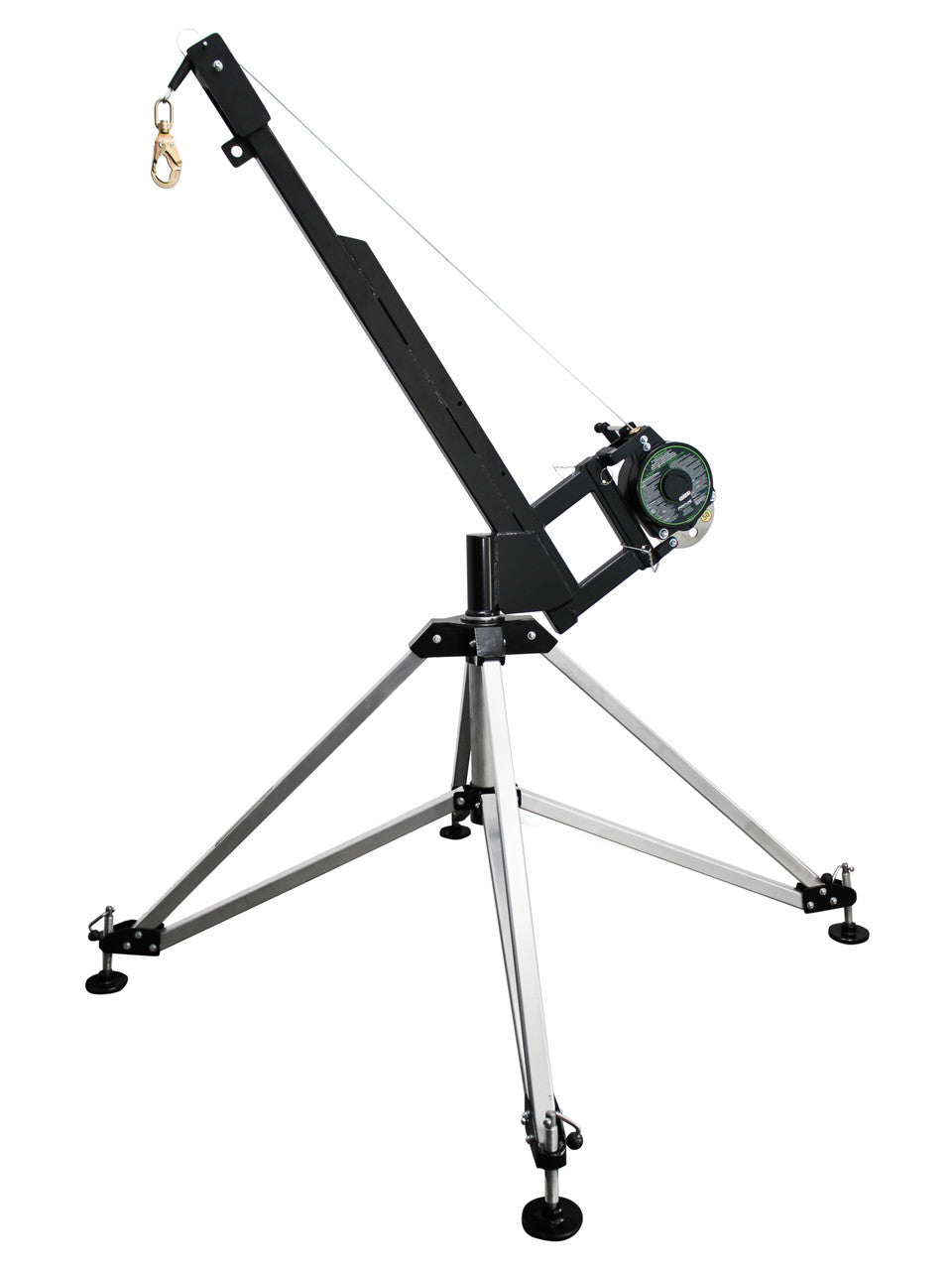

Frontline QAN75RA-US Patriot quadpod kit. The Patriot confined space quadpod sold with Frontline's 50 ft 3-way retrieval system: lower, raise and rescue, or switch to self-retracting lifeline mode. 3/16 in galvanized steel cable, 350 lb maximum user capacity.
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the QAN75RA-US to the US standards listed below. It is not CSA certified. If your site or province requires CSA-marked equipment, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use.
Equipment type
Confined Space Quadpod Kit
Lifeline Length
50'
Cable
3/16" galvanized steel
Maximum User Capacity
350 lbs
Frontline QAN75RA-US Patriot quadpod kit key features
- Quadpod sets up in seconds by one person with no tools

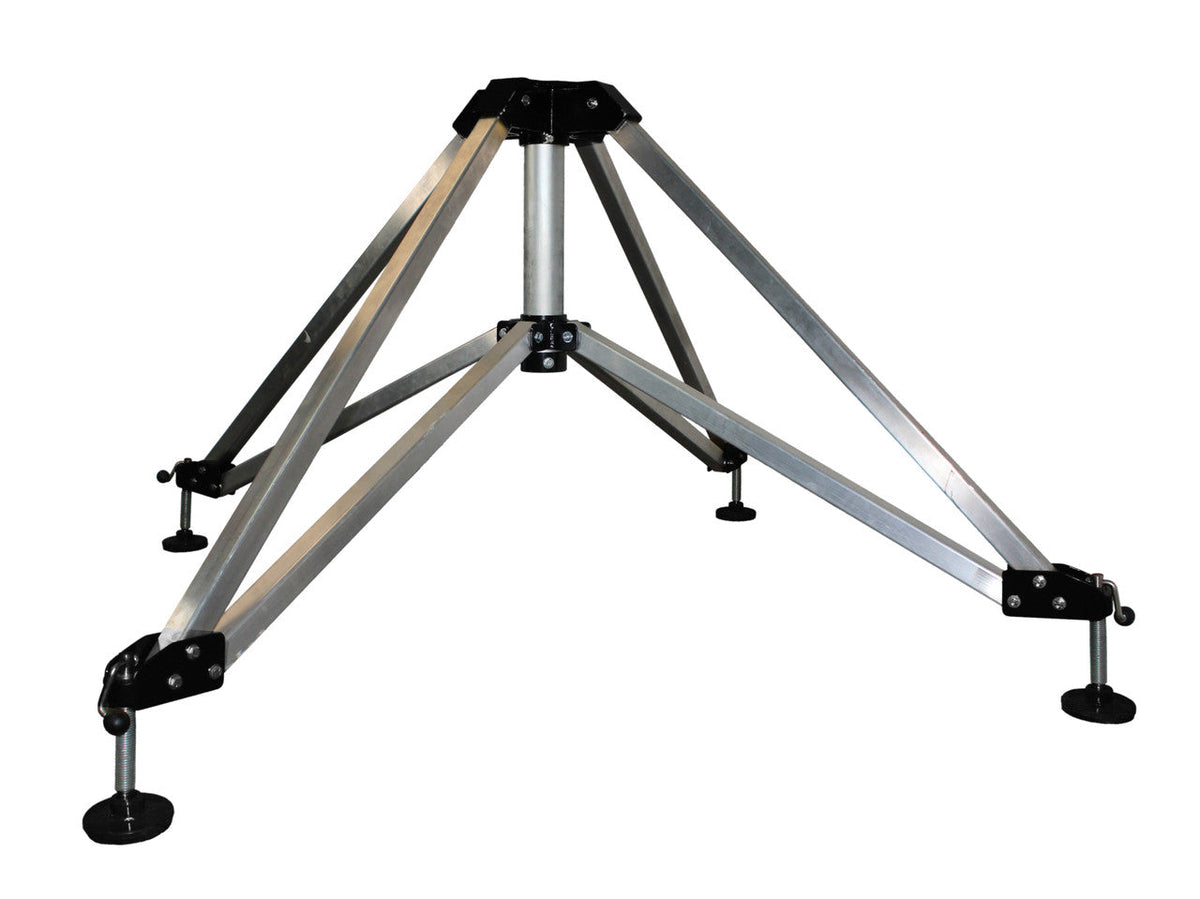

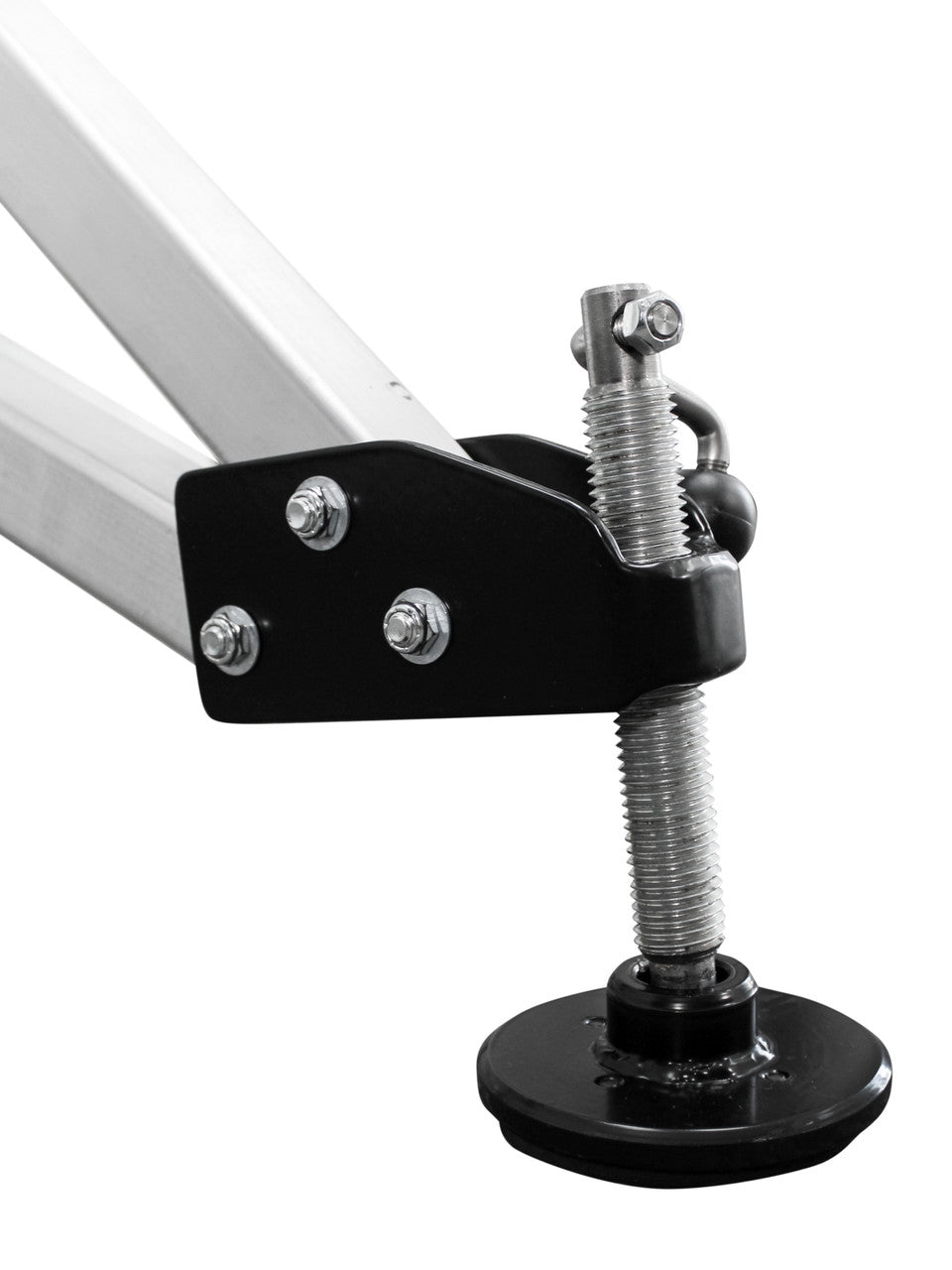

- Collapsible quadpod with independently adjustable legs for uneven terrain
- Removable boom rotates 360° and locks in any position
- Quadpod and davit components are interchangeable
- Aluminum and powder-coated steel construction with a powder-coated steel boom
- Suited to locations where a tripod is impractical

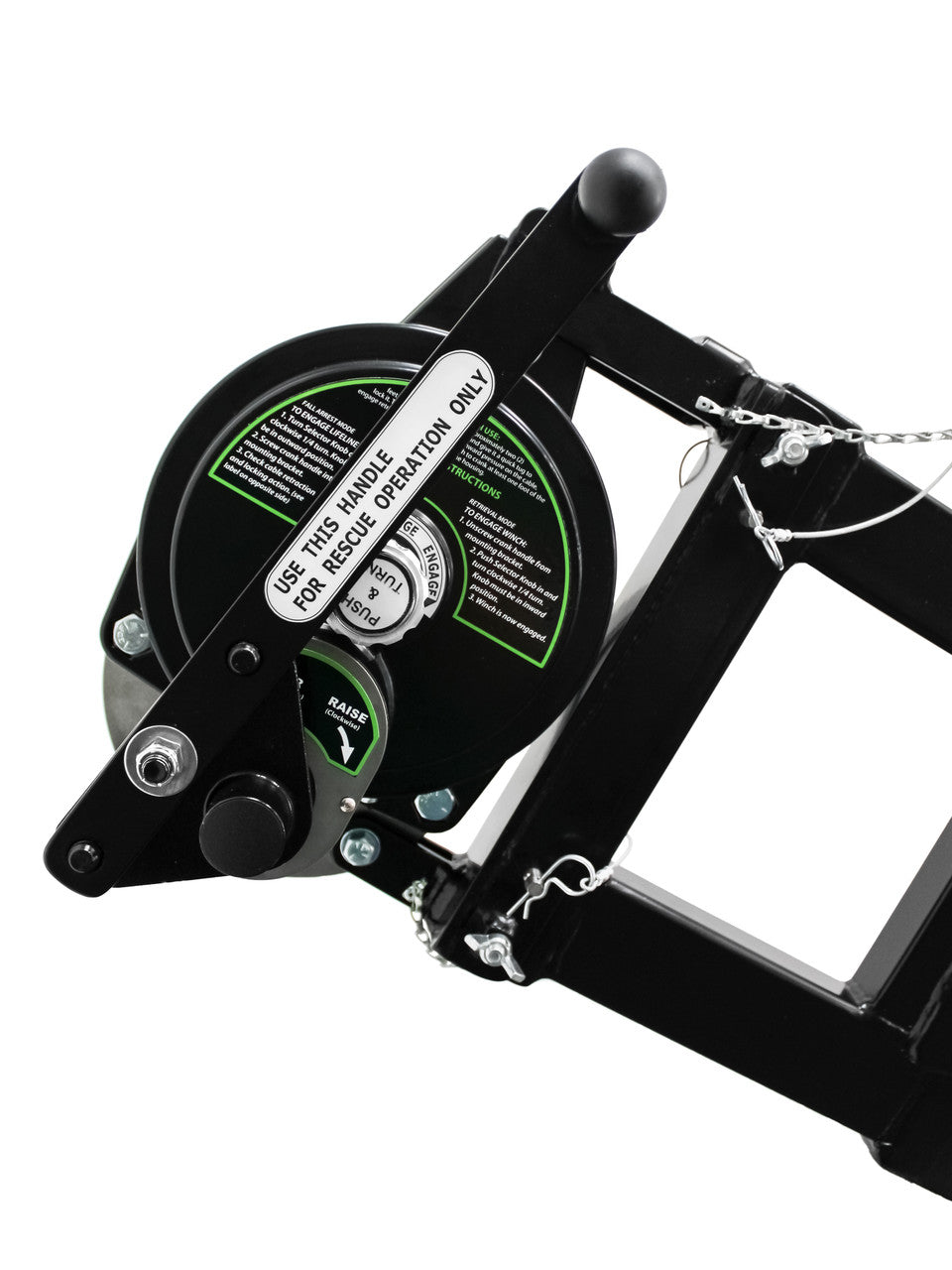

- 3-way retrieval has a weather-resistant cast aluminum housing
- Two independent braking systems: an energy-absorbing centrifugal brake that arrests a fall within 24", and a friction brake that engages when raising or lowering stops
- 3/16" galvanized steel cable with a 50' lifeline

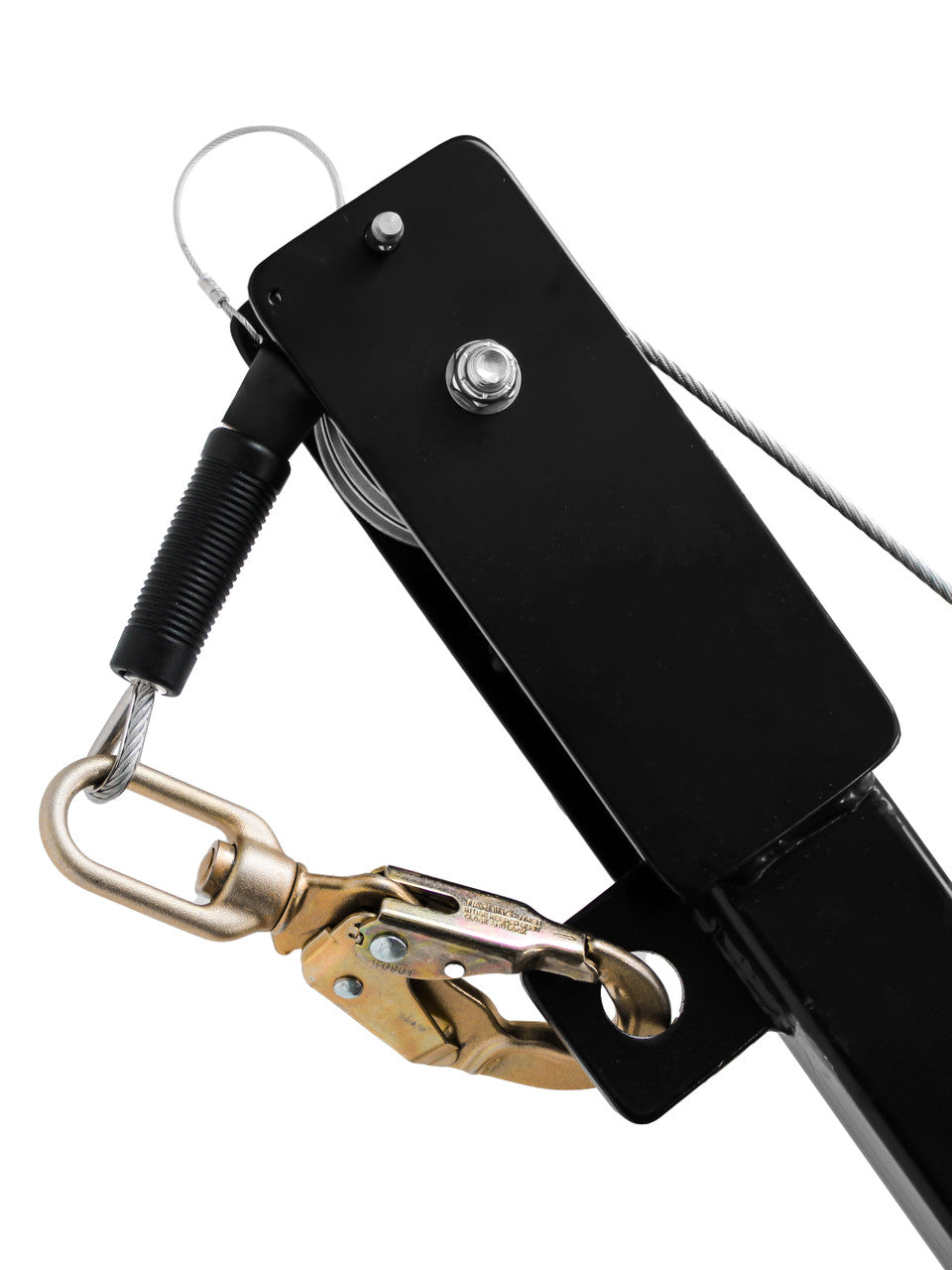

- Locking swivel snap hook with impact indicator
- Retrieval unit converts to SRL use by turning a knob
Frontline QAN75RA-US Patriot quadpod kit specifications
| Manufacturer | Frontline |
|---|---|
| Model / SKU | QAN75RA-US |
| Use | Material/personnel lowering, lifting, rescue, SRL option |
| Lifeline Length | 50' |
| Cable | 3/16" galvanized steel |
| Maximum User Capacity | 350 lbs |
| Standards | Quadpod: meets or exceeds OSHA and ANSI Z359.1, Z359.4, Z359.18. 3-Way: meets or exceeds OSHA and ANSI Z359.1, Z359.4, Z359.14 (per Frontline) |
Where crews use the Frontline QAN75RA-US Patriot quadpod kit
Manholes and vaults
Lower and retrieve entrants over an opening.
Tanks and pits
Permit-required confined space entry.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
Fast setup on site.
Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.
Is the Frontline QAN75RA-US CSA certified? Compliance in Canada
Is the Frontline QAN75RA-US kit CSA certified?
No. Frontline rates the QAN75RA-US to US standards (ANSI/OSHA); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What is the capacity of the Frontline QAN75RA-US kit?
Frontline lists 350 lbs.
What to pair with the Frontline QAN75RA-US Patriot quadpod kit
Pair the QAN75RA-US with a full-body harness with a back or shoulder D-ring, and train the crew on inspection and rescue.
