Frontline RPGCLE Leading Edge Cable SRL, 30–65 ft, Snap Hook | Canada

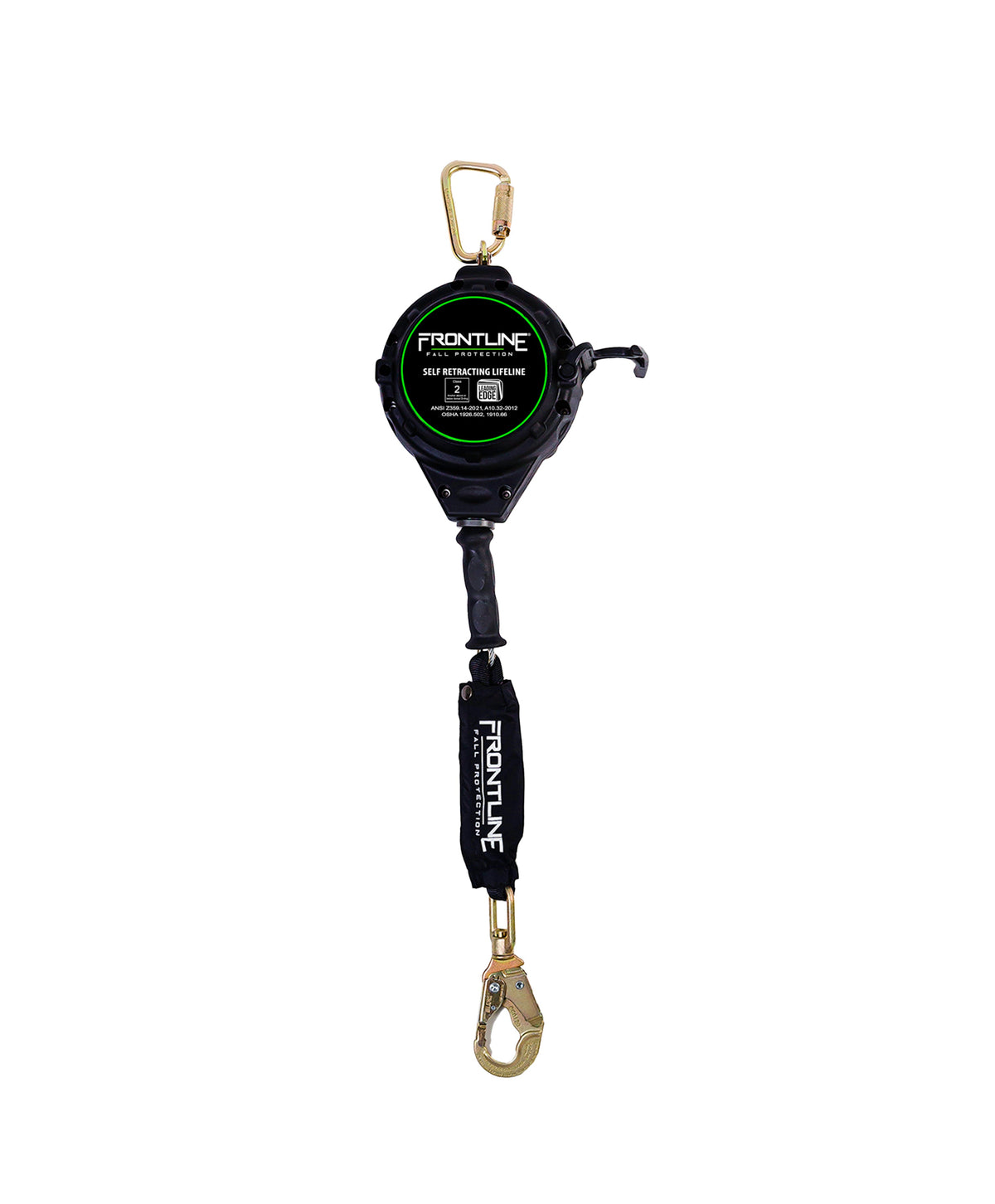

Frontline RPGCLE Leading Edge Cable SRL with Carry Handle & Tagline. Frontline's single-leg leading-edge cable self-retracting lifeline, in 30 ft, 50 ft or 65 ft. An integral shock absorber is built to keep the lifeline intact in a fall over a sharp, smooth or 90-degree edge, and the unit works for non-edge and foot-level tie-off too. It has a thermoplastic housing, a rubber (TPV) carry handle, a swivel anchorage eye with self-locking carabiner, a snap hook with impact indicator at the lifeline end and an included tagline.
Frontline RPGCLE leading edge cable SRL key features
- Built for leading-edge work: the integral shock absorber is designed to keep the lifeline intact in a fall over an edge
- Rated for sharp, smooth and 90-degree edges as well as non-edge applications

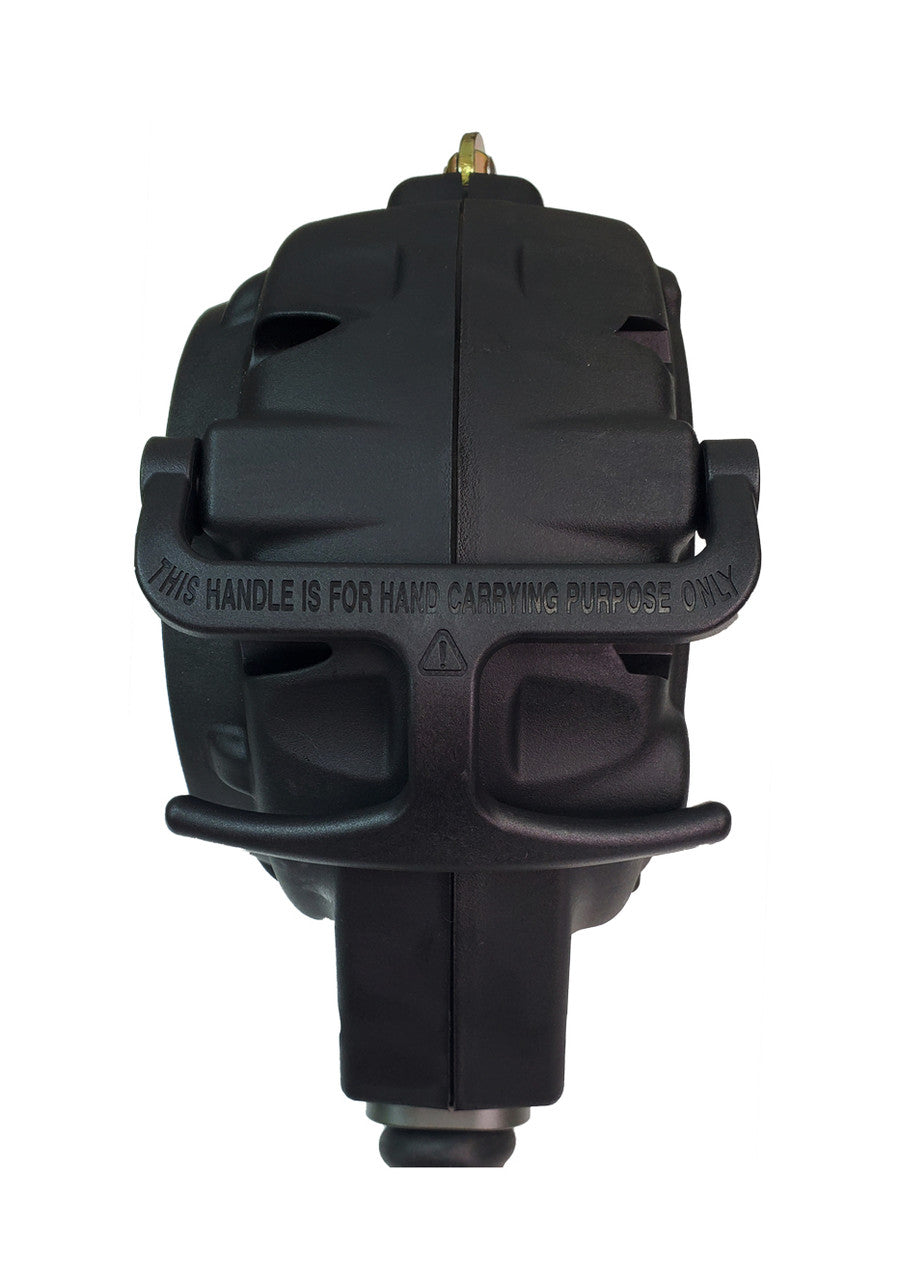

- Rubber (TPV) ergonomic carry handle
- Internal energy absorber and quick-action braking system
- Swivel anchorage eye with self-locking carabiner
- Snap hook with impact indicator at the lifeline end

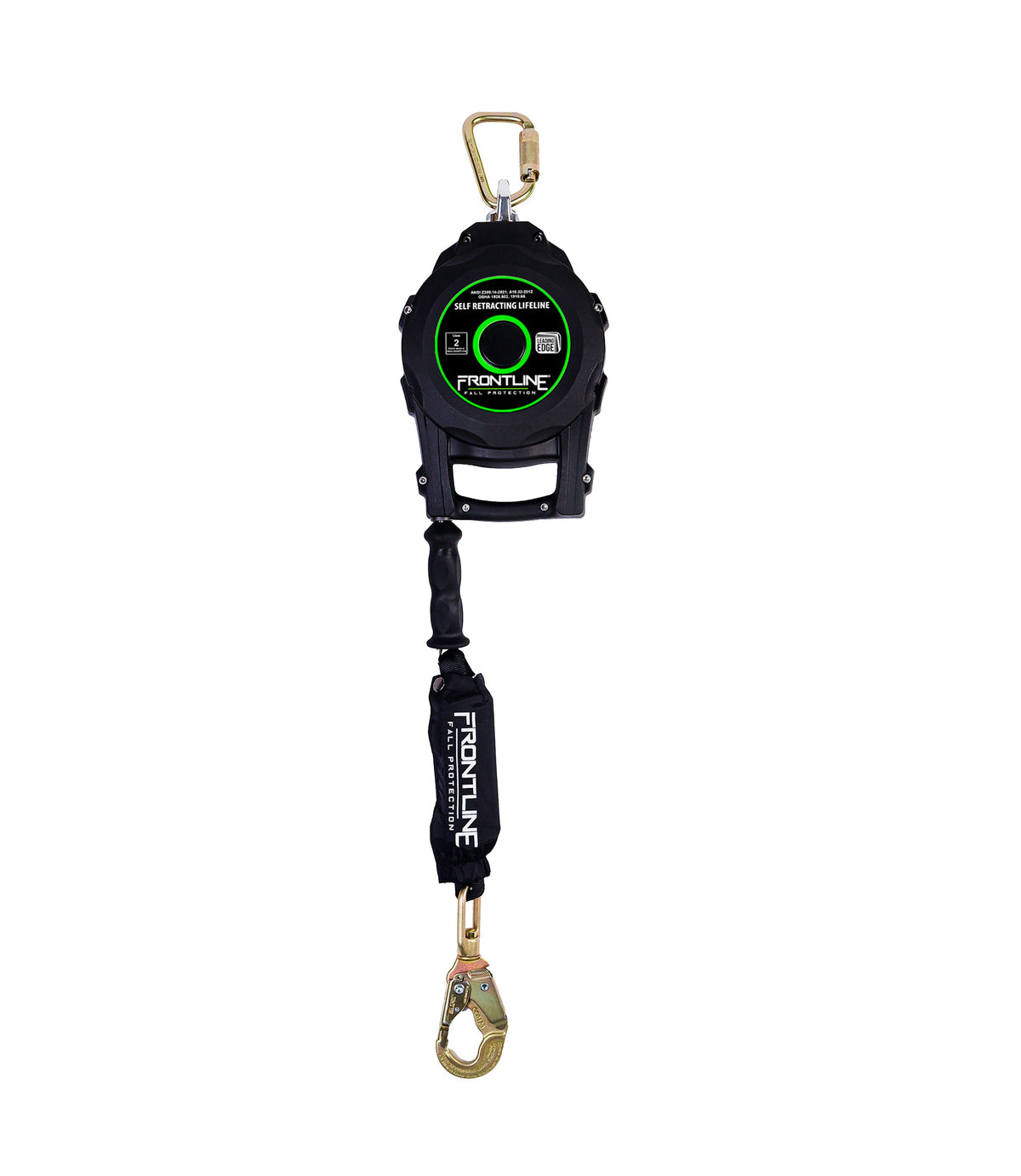

- Tagline included to control the lifeline at height
- Corrosion-resistant, high-strength components in a lightweight thermoplastic housing
Frontline RPGCLE leading edge SRL specifications
| Manufacturer | Frontline Fall Protection |
|---|---|

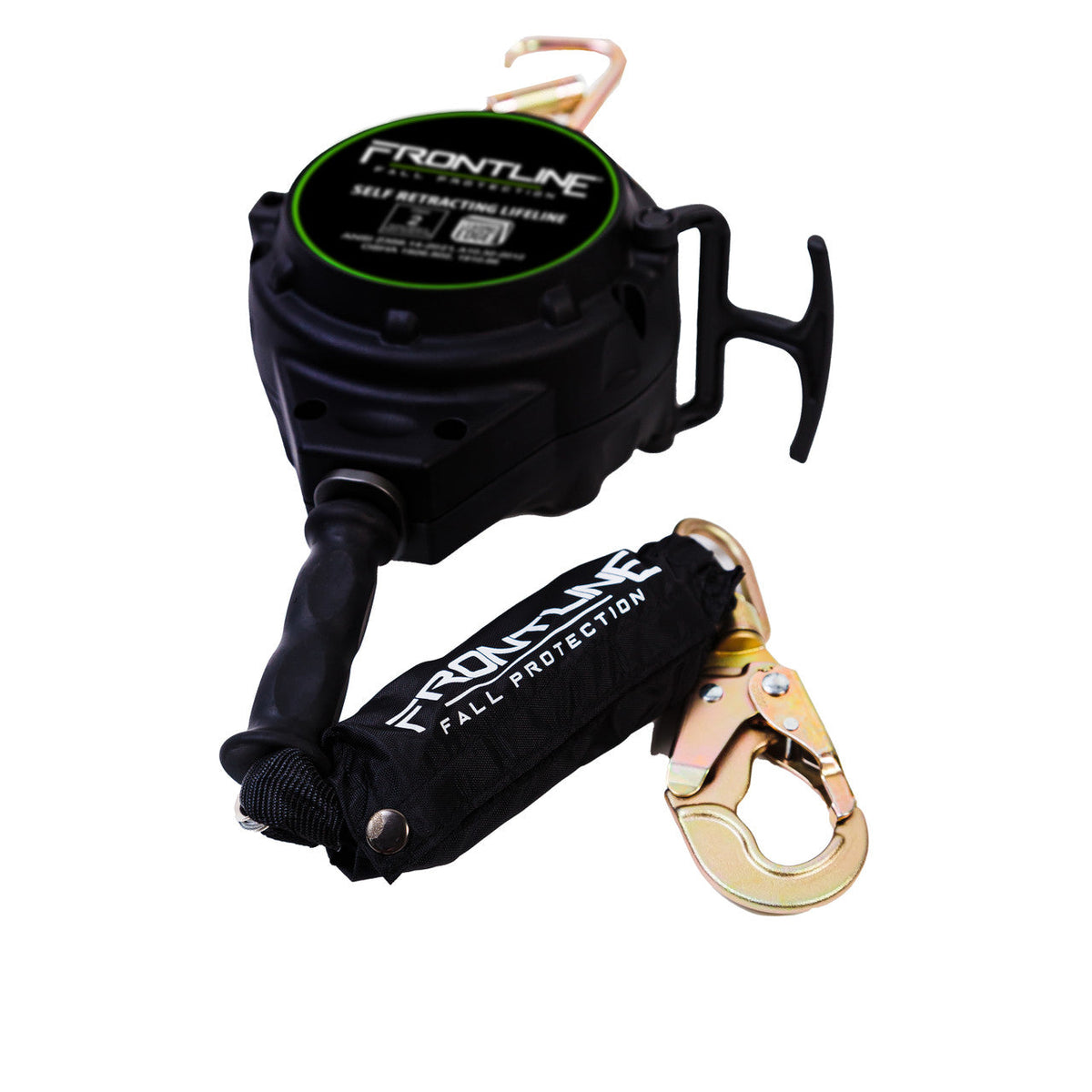

| Model / SKU | RPGCLE · 30 ft RPGC30LE (50 ft and 65 ft SKUs not published by Frontline) |
| Lifeline | Cable, 30 ft, 50 ft or 65 ft |

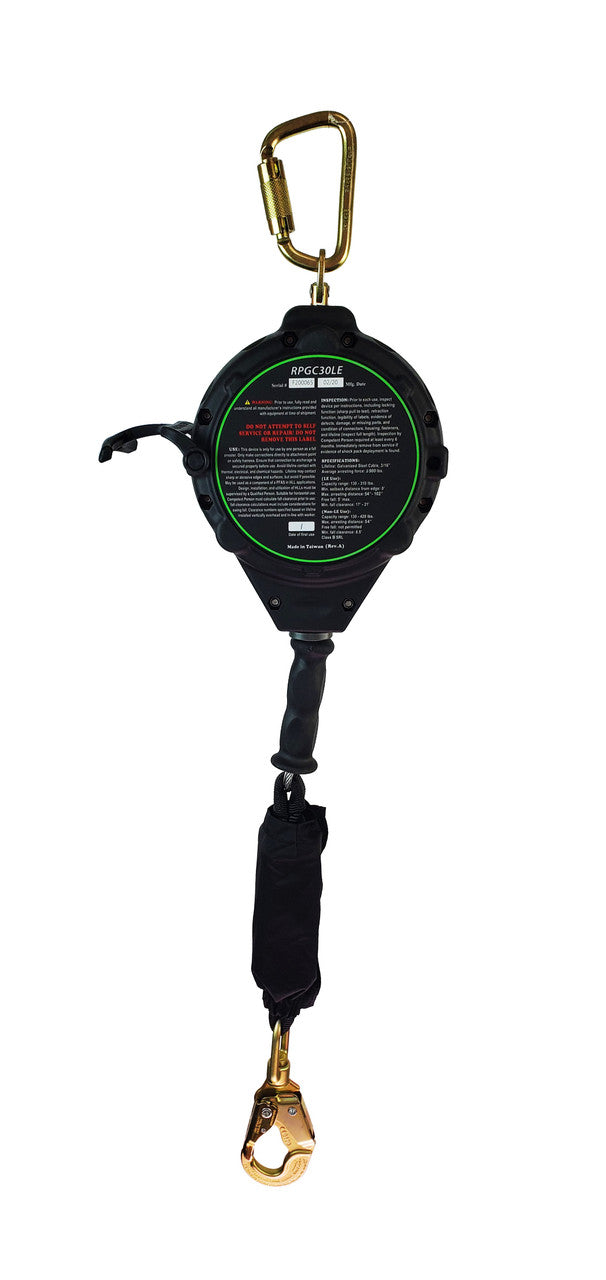

| Housing | Durable, lightweight thermoplastic |
| Connectors | Swivel anchorage eye with self-locking carabiner; snap hook with impact indicator |
| Connector strength | 5,000 lb |
| User capacity | 310 lb (141 kg) |
| Standards | Meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910 · tested by an independent ISO/IEC 17025:2017-accredited lab |
| Cable diameter / unit weight | Not published by Frontline; ask us |
Where crews use the Frontline RPGCLE leading edge SRL
Roofing at the edge
Foot-level or edge tie-off where a standard SRL is not rated for an edge fall.
Steel erection
Rated for the sharp, smooth and 90-degree edges of beams and decking.
Long horizontal reach
50 ft and 65 ft lengths cover more deck from one anchor.
Non-edge work
Frontline also rates it for overhead, non-edge applications.
Is the Frontline RPGCLE SRL CSA certified? Compliance in Canada
Is the Frontline RPGCLE leading edge SRL CSA certified?
No. Frontline rates it to ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910 with testing by an ISO/IEC 17025:2017-accredited lab. For CSA-marked SRLs see our Safety Direct range.
RPGCLE or RPGC: what is the difference on the Frontline SRL?
Both are Frontline cable SRLs with a carry handle and tagline. The RPGCLE is the leading-edge version, built for falls over an edge; the RPGC (also on FPC) is the standard overhead unit.
Which length of Frontline RPGCLE SRL should I choose?
Pick the shortest length that covers the area you work from one anchor: 30 ft, 50 ft or 65 ft. Ratings, hardware and housing are the same.
How often should the Frontline RPGCLE SRL be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall and follow Frontline's service instructions.
Pair the Frontline RPGCLE SRL with a harness and anchor
The RPGCLE is the connecting device. Add a full-body harness and a rated anchor for a complete personal fall arrest system.
