Frontline SBW01 Weld / Bolt-On Steel & Concrete Anchor, 5,000 lb | Canada
Frontline SBW01 Weld / Bolt-On Steel & Concrete Anchor, 5,000 lb | Canada. A palm-sized multi-purpose anchor that welds or bolts to most structural steel or concrete able to take the 5,000 lb load. ASTM-rated zinc-plated steel, tested for multi-direction loading so you can install and tie off in more than one direction, and reusable on its bolt-on application. Installs in minutes with minimum tools; tested by an independent ISO/IEC 17025-accredited lab.

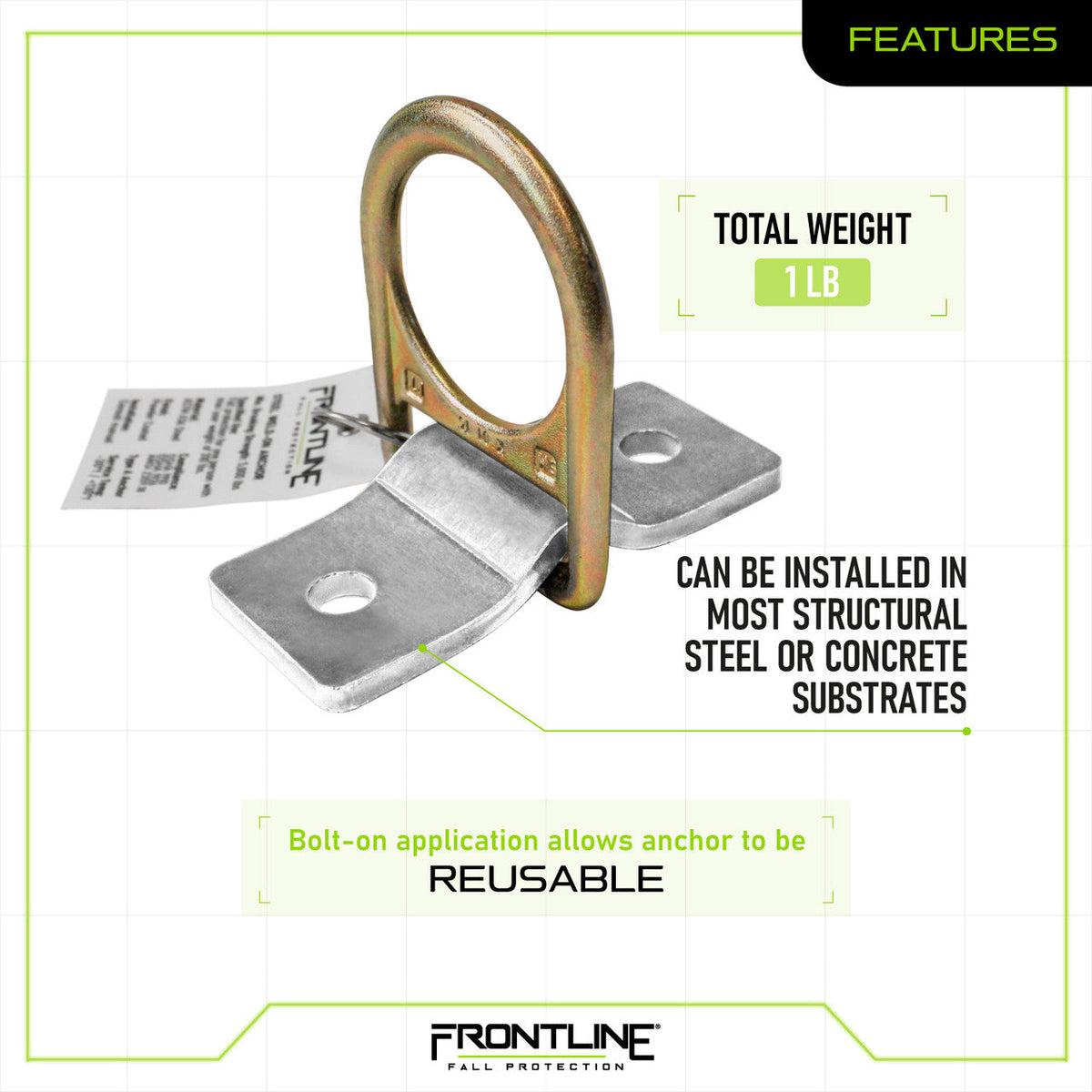

Frontline SBW01 weld or bolt-on anchor key features
- Installs in most structural steel or concrete substrates that withstand the 5,000 lb required load
- Weld it on, or bolt it on and reuse it from one location to the next
- ASTM-rated steel, zinc plated for corrosion resistance
- Tested for multi-direction loading: install and tie off in multiple directions
- Small, compact and lightweight, virtually fitting in the palm of the hand
- Installs in minutes with minimum effort and tools
Frontline SBW01 anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | SBW01 |
| Mounting | Weld-on, or bolt-on (reusable) |
| Substrate | Structural steel or concrete rated for the 5,000 lb load |
| Minimum breaking strength | 5,000 lbf (22 kN) |
| User capacity | 310 lb |

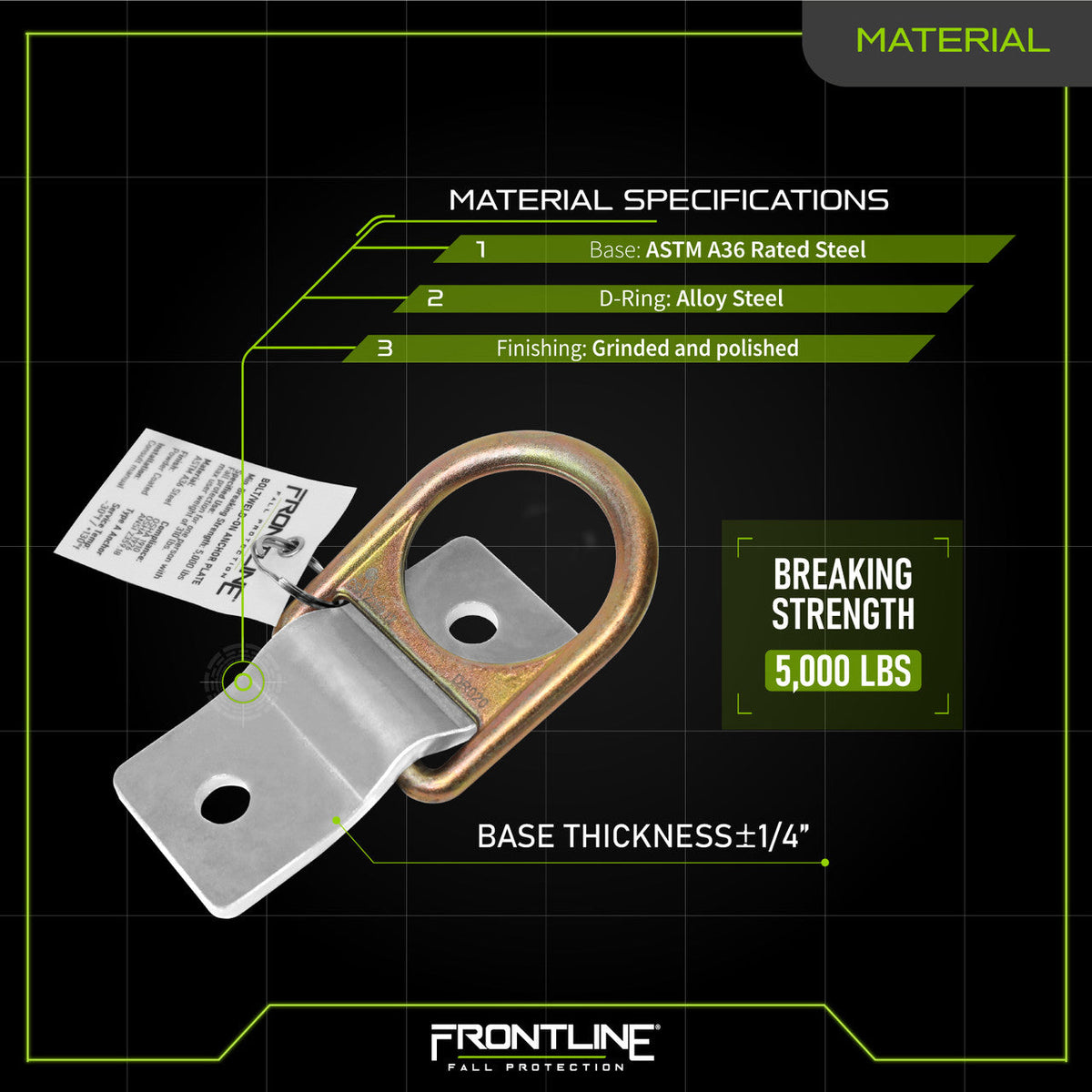

| Material | ASTM-rated steel, zinc plated |
| Loading | Tested for multi-direction loading |

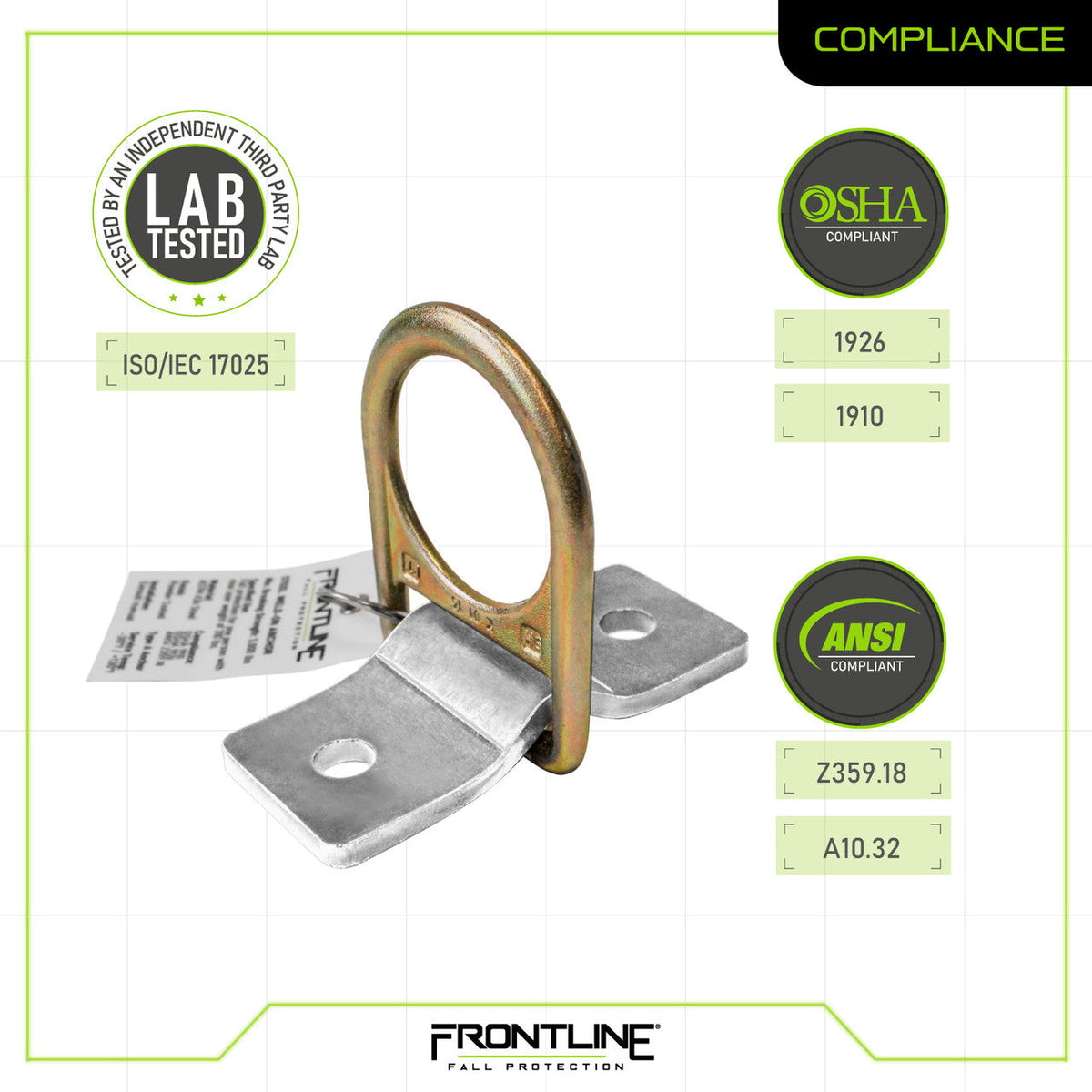

| Standards | Meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910 · tested by an ISO/IEC 17025-accredited lab |
| Weight / dimensions / bolt size | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline SBW01 anchor
Structural steel

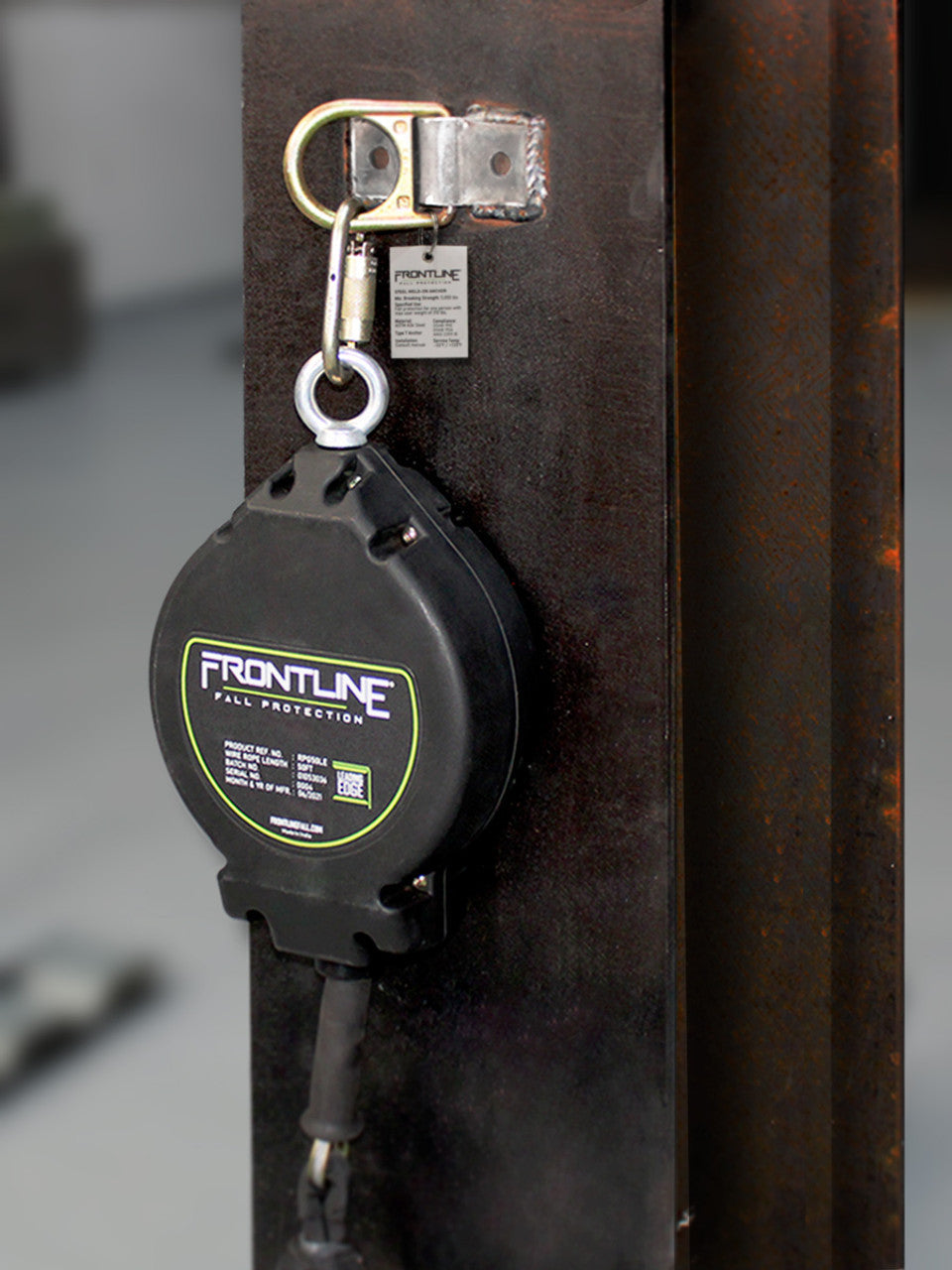

Weld a permanent D-ring anchor to a beam or column at each tie-off point.
Concrete walls and columns

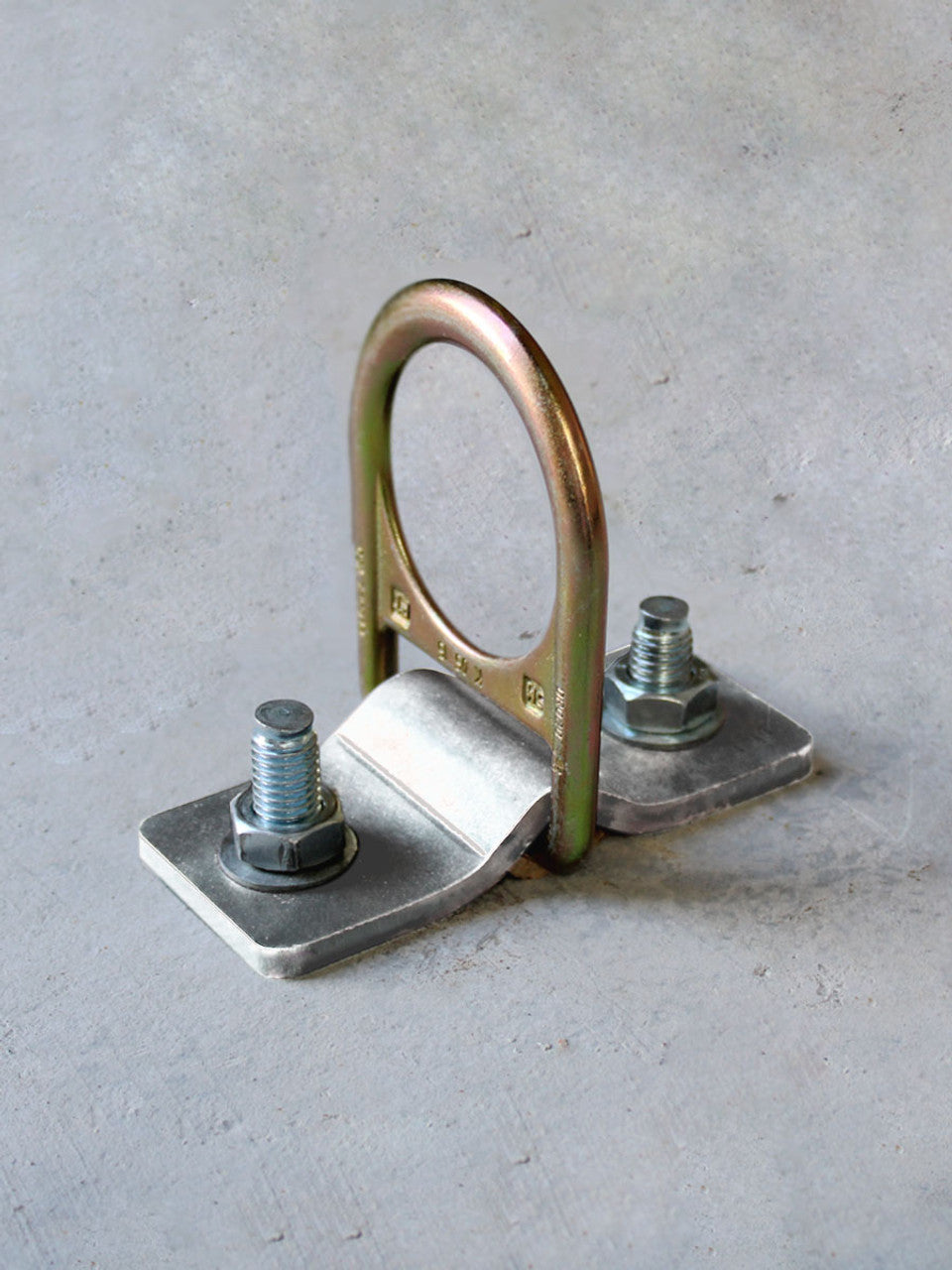

Bolt on for the job, unbolt and take it to the next one.
Plant maintenance
Low-cost fixed anchors wherever crews return to the same spot.
Multi-direction tie-off
Tested for loading in more than one direction, so one anchor can serve work on either side.
Is the Frontline SBW01 CSA certified? Compliance in Canada
Is the Frontline SBW01 CSA certified?
No. Frontline rates it to ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910 and tests it in an ISO/IEC 17025-accredited lab. For CSA-marked anchors, see our Safety Direct range.
Can the SBW01 be bolted instead of welded?

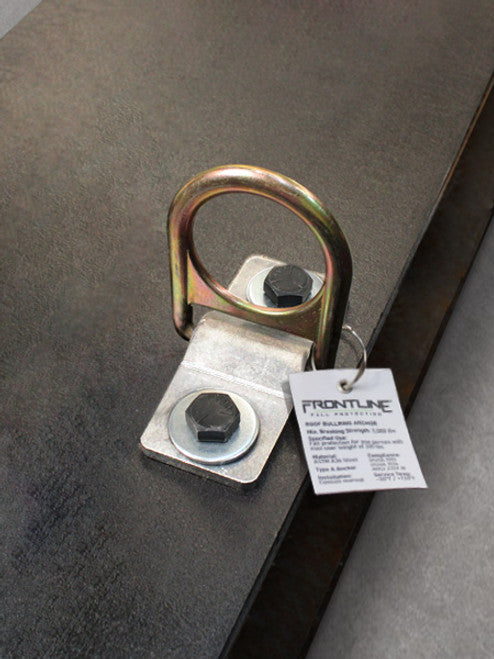

Yes. Frontline lists both: weld-on, or bolt-on, and on the bolt-on application it is reusable. Fasteners must suit the substrate and the 5,000 lb load; ask us for Frontline's instruction sheet.
What substrate does it need?
Most structural steel or concrete that can withstand the 5,000 lb required load, per Frontline. A competent person confirms the substrate.
How many workers can tie off to the SBW01?
Frontline rates the user capacity at 310 lb; treat it as a single-user anchor unless Frontline's instructions say otherwise.
How often should the SBW01 be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the weld, bolts or D-ring show damage.
Pair the Frontline SBW01 anchor with an SRL or lanyard
The SBW01 is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
