Frontline ST14SA Easy Slider Beam Anchor, 3.5–14 in I-Beam | Canada
Frontline ST14SA Easy Slider Beam Anchor, 3.5–14 in I-Beam | Canada. A removable, reusable sliding I-beam anchor that glides along the flange and trails the worker, so one tie-off covers the whole beam. Single adjustment from one side fits 3.5 in to 14 in wide flanges, 0.25 in to 1.25 in thick. Aluminum cross bar with a bronze clamp keeps it to 3.5 lb, and a 360° swivel D-ring takes an SRL or shock-absorbing lanyard for one user.

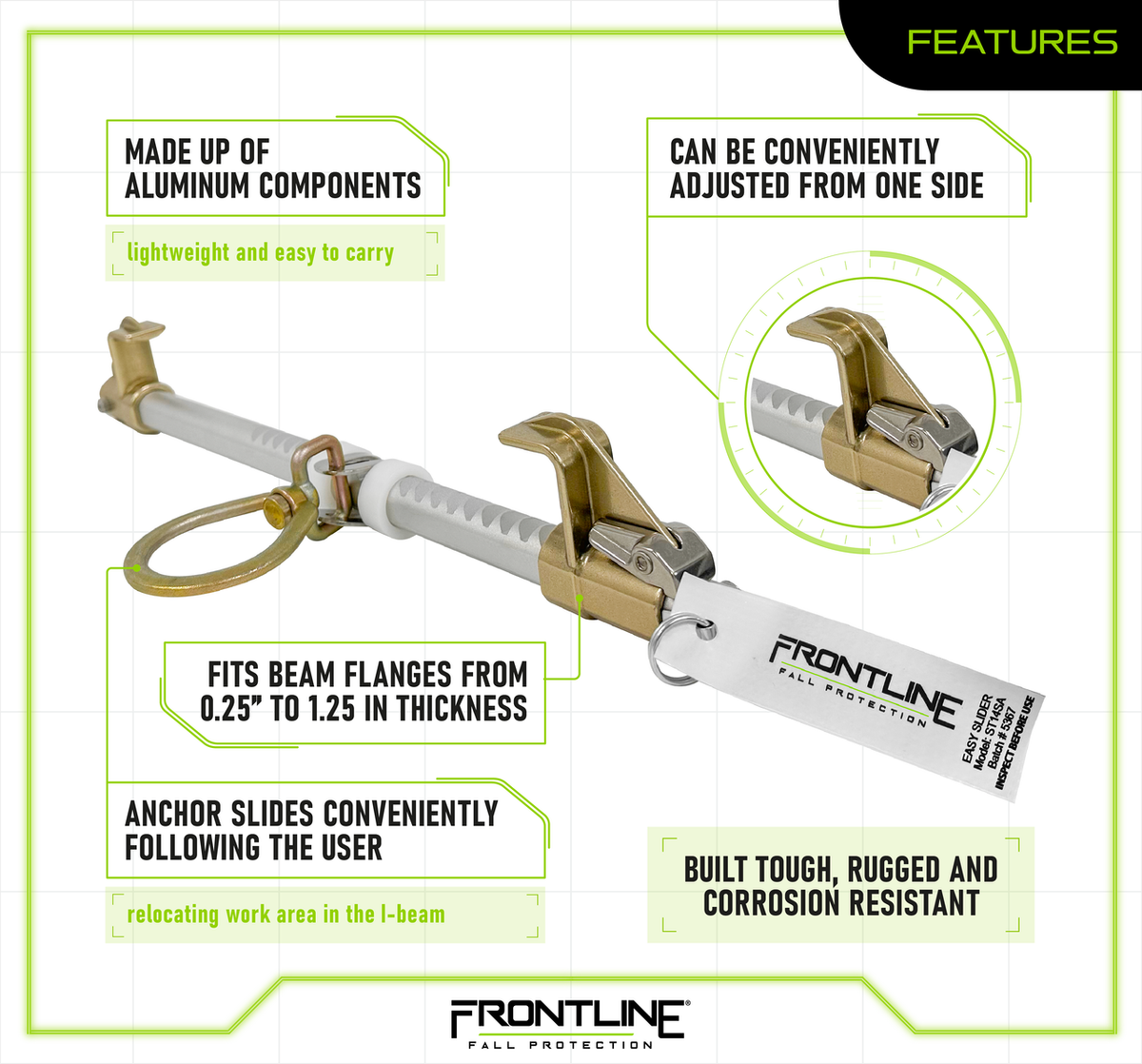

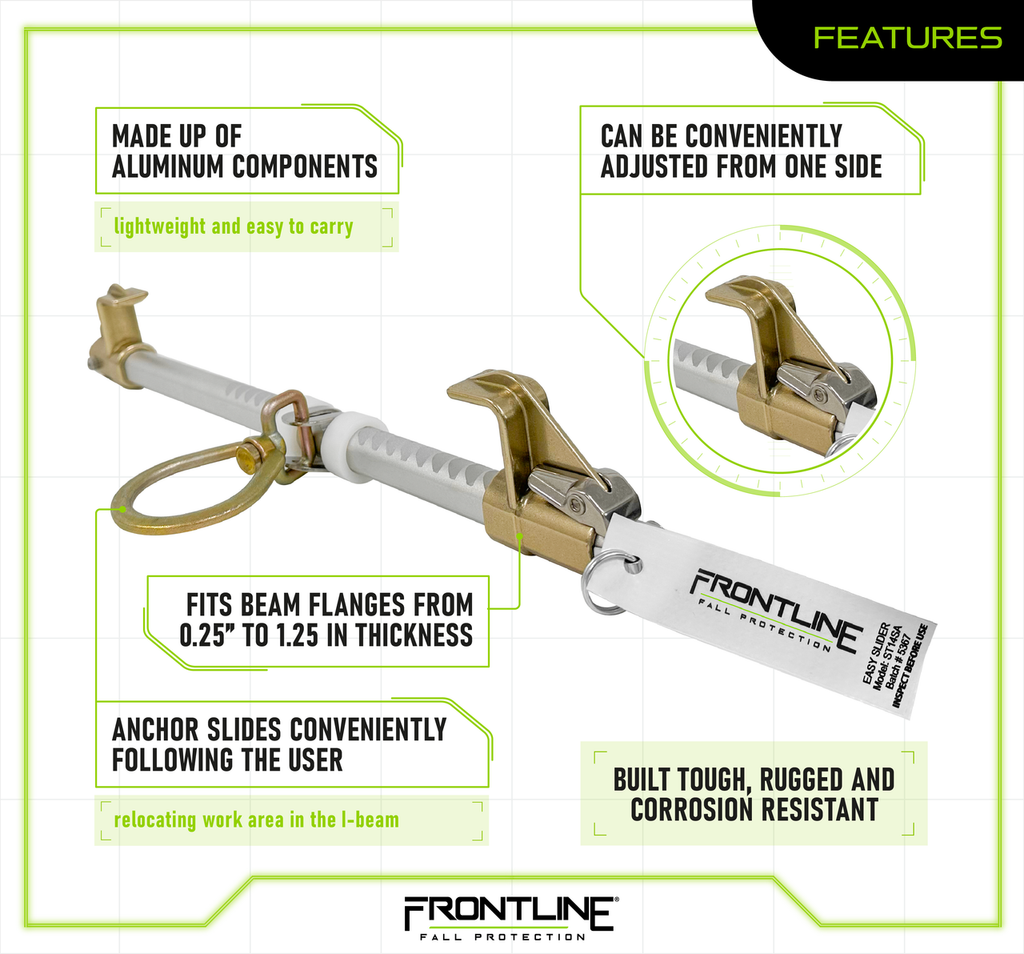

Frontline ST14SA sliding I-beam anchor key features
- Slides along the beam and follows the user as the work area moves
- Single adjustment from one side; the D-ring stays centred on the anchorage connector
- Fits I-beam flanges 3.5 in to 14 in wide and 0.25 in to 1.25 in thick
- 360° swiveling D-ring for an SRL or shock-absorbing lanyard
- Aluminum components keep it lightweight (3.5 lb) and easy to carry
- Tough, rugged and corrosion resistant: bronze clamp, stainless D-ring bracket, zinc-plated hardware
- Removable and reusable; single-user connection
Frontline ST14SA beam walker anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | ST14SA |
| Beam flange width | 3.5 in to 14 in |
| Beam flange thickness | 0.25 in to 1.25 in |
| Static tensile strength | 5,000 lbf (22 kN) |
| User capacity | 310 lb, one user |
| Unit weight | 3.5 lb |

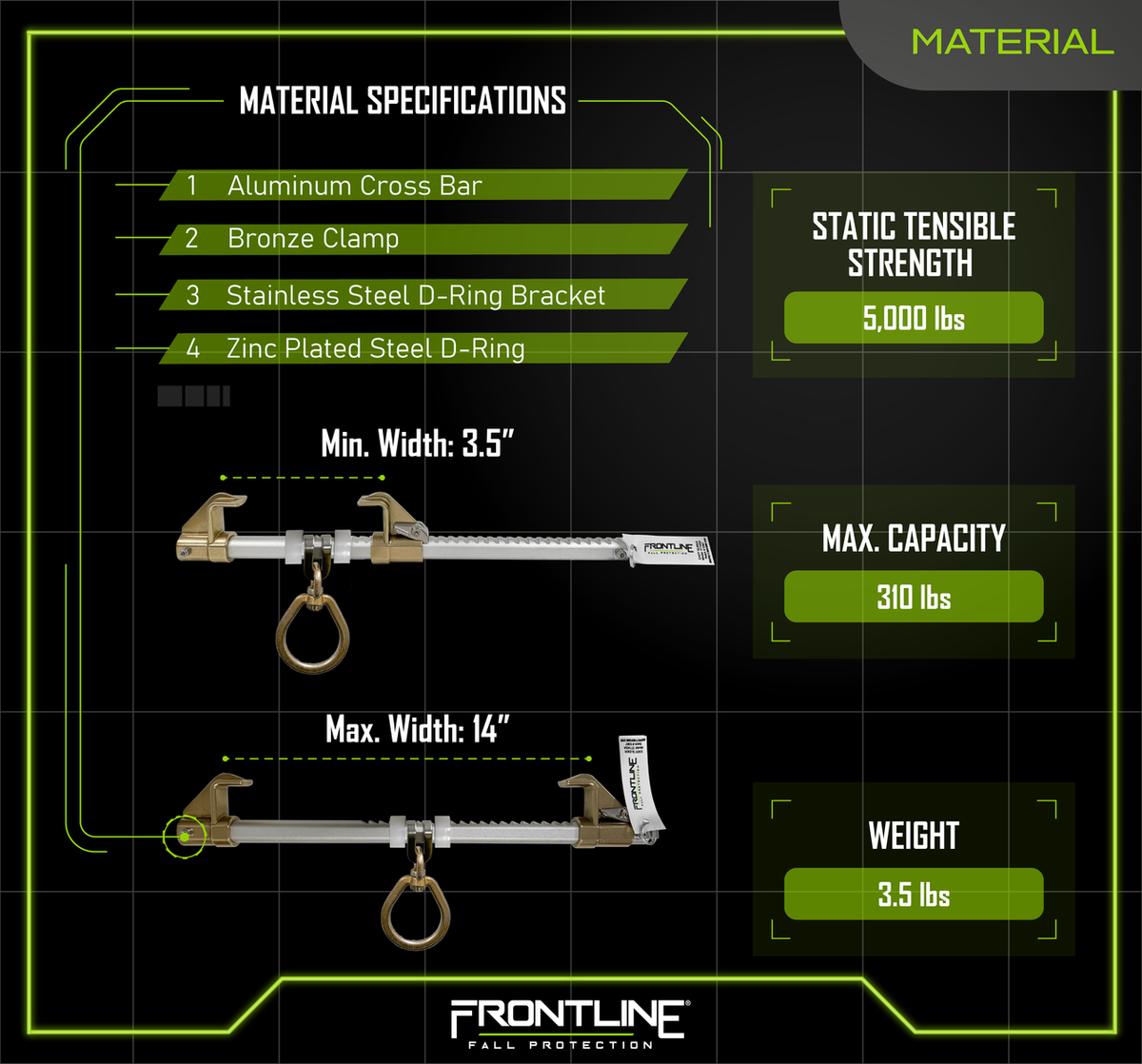

| Materials | Aluminum cross bar · bronze clamp · stainless steel D-ring bracket · zinc-plated steel D-ring, spring and hardware |
| D-ring | 360° swivel |

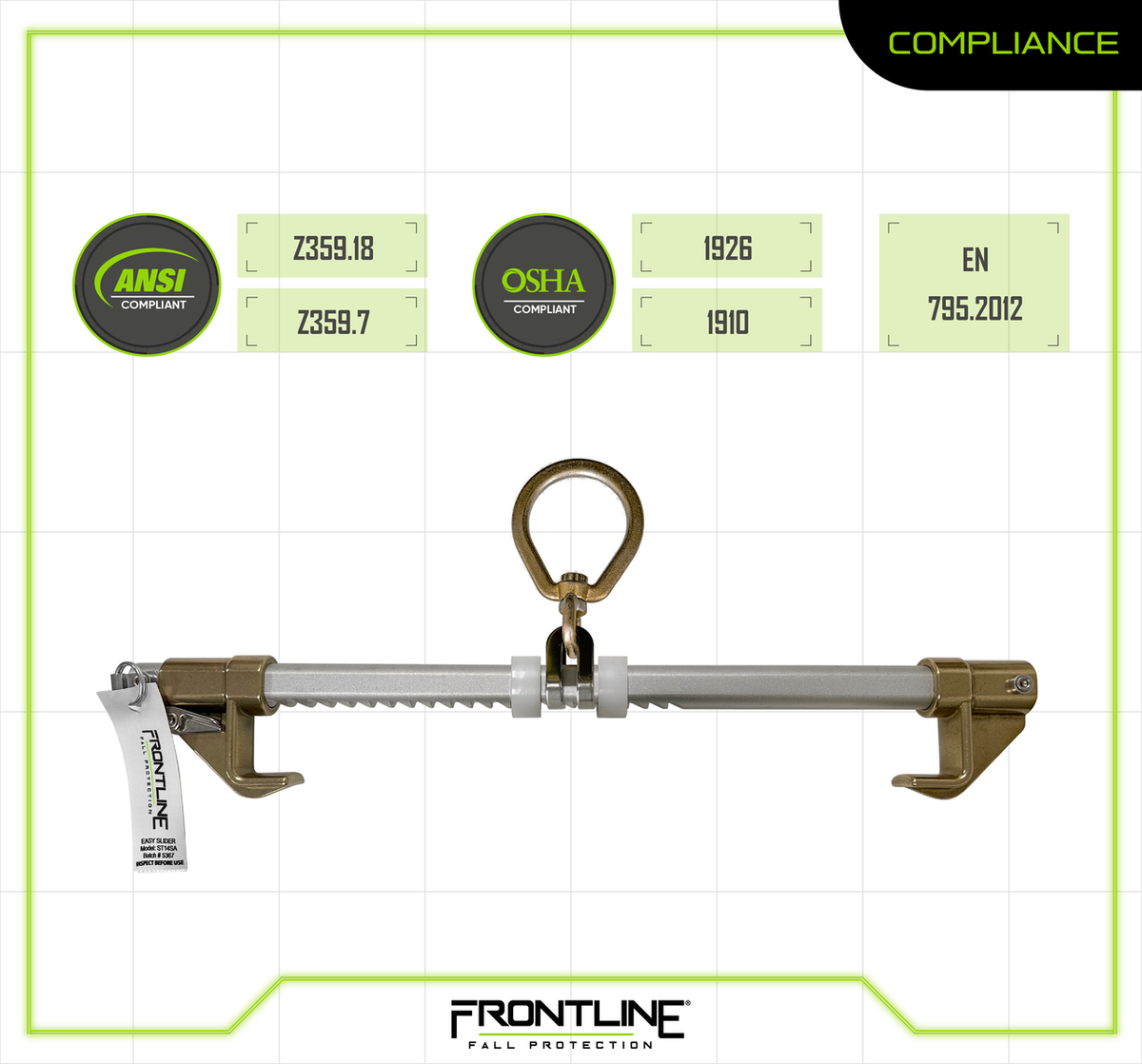

| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503 and EN 795:2012 |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline ST14SA beam anchor
Steel erection
Trailing anchor on the top flange while connecting and bolting along a beam.
Bridge and structural inspection
Move the length of a girder on one tie-off, then lift it off and move to the next.
Plant maintenance
Overhead I-beams above conveyors, tanks and process lines.
Pre-cast and mechanical
Temporary overhead anchor on a crane runway or roof beam for a single worker.
Is the Frontline ST14SA CSA certified? Compliance in Canada
Is the Frontline ST14SA CSA certified?
No. Frontline rates it to ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503 and EN 795:2012. For CSA-marked anchors, see our Safety Direct range.
What beam sizes fit the ST14SA?
I-beam flanges 3.5 in to 14 in wide and 0.25 in to 1.25 in thick, per Frontline. Measure the flange before ordering.
Does the ST14SA slide, or lock in place?
It is a trailing anchor: it glides along the beam and follows the worker. For a fixed clamp, see the Frontline ST14V vertical/horizontal fixed beam clamp.
How many workers can tie off to the ST14SA?
One. Frontline rates it for single-user connection with an SRL or a shock-absorbing lanyard.
What is the difference between the ST14SA and the ST12AH/ST18AH?
Both are Frontline aluminum sliding I-beam anchors that we stock. Check each listing's flange range and weight and pick the one that matches your beam.
Pair the Frontline ST14SA with an SRL or shock-absorbing lanyard
The ST14SA is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
