Frontline ST14V fixed beam clamp with swivel D-ring, front view
$792.99
Skip to product information
Frontline ST14V fixed beam clamp with swivel D-ring, front view
1/6

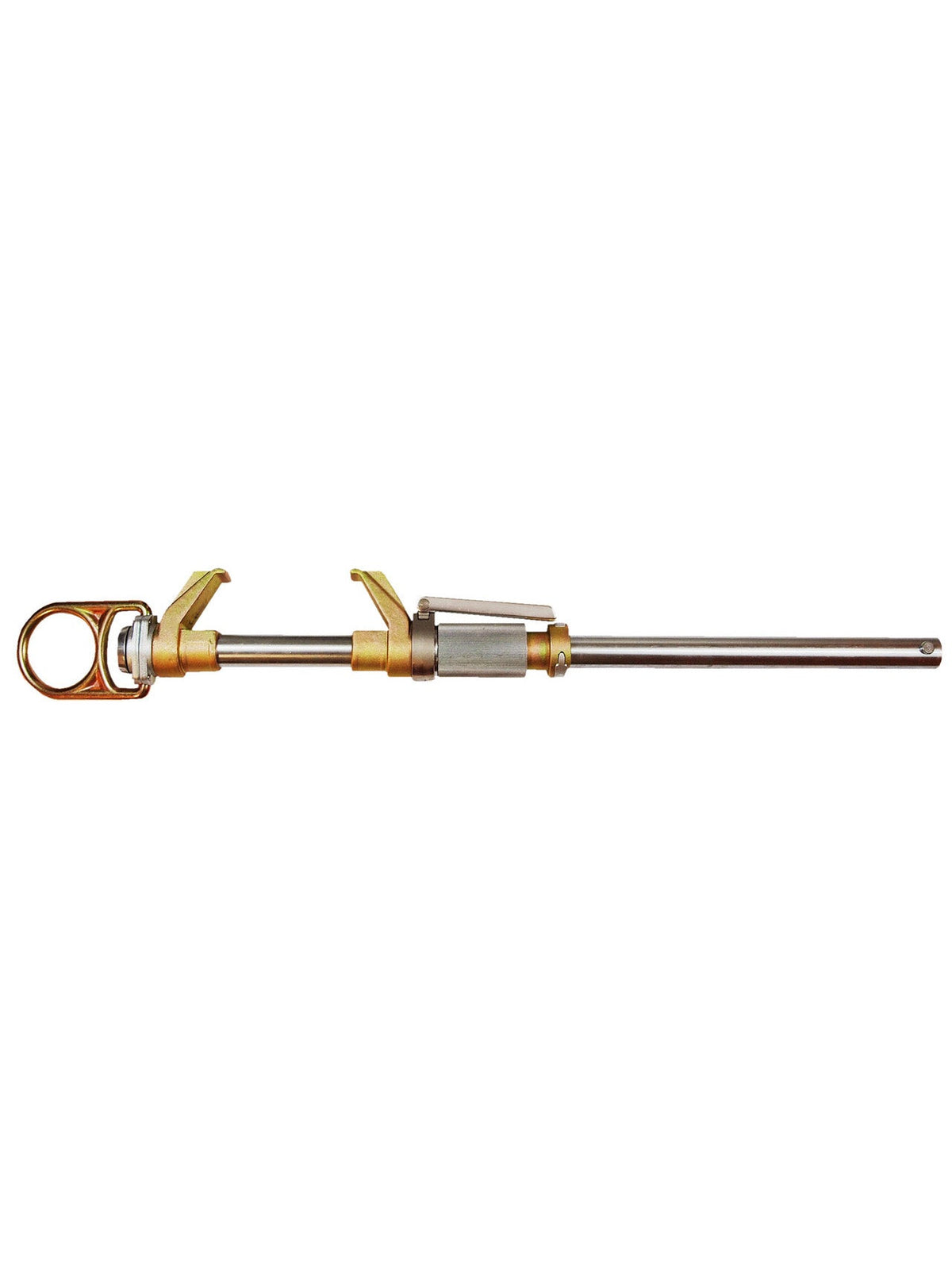

  • Frontline ST14V fixed beam clamp with swivel D-ring, front view

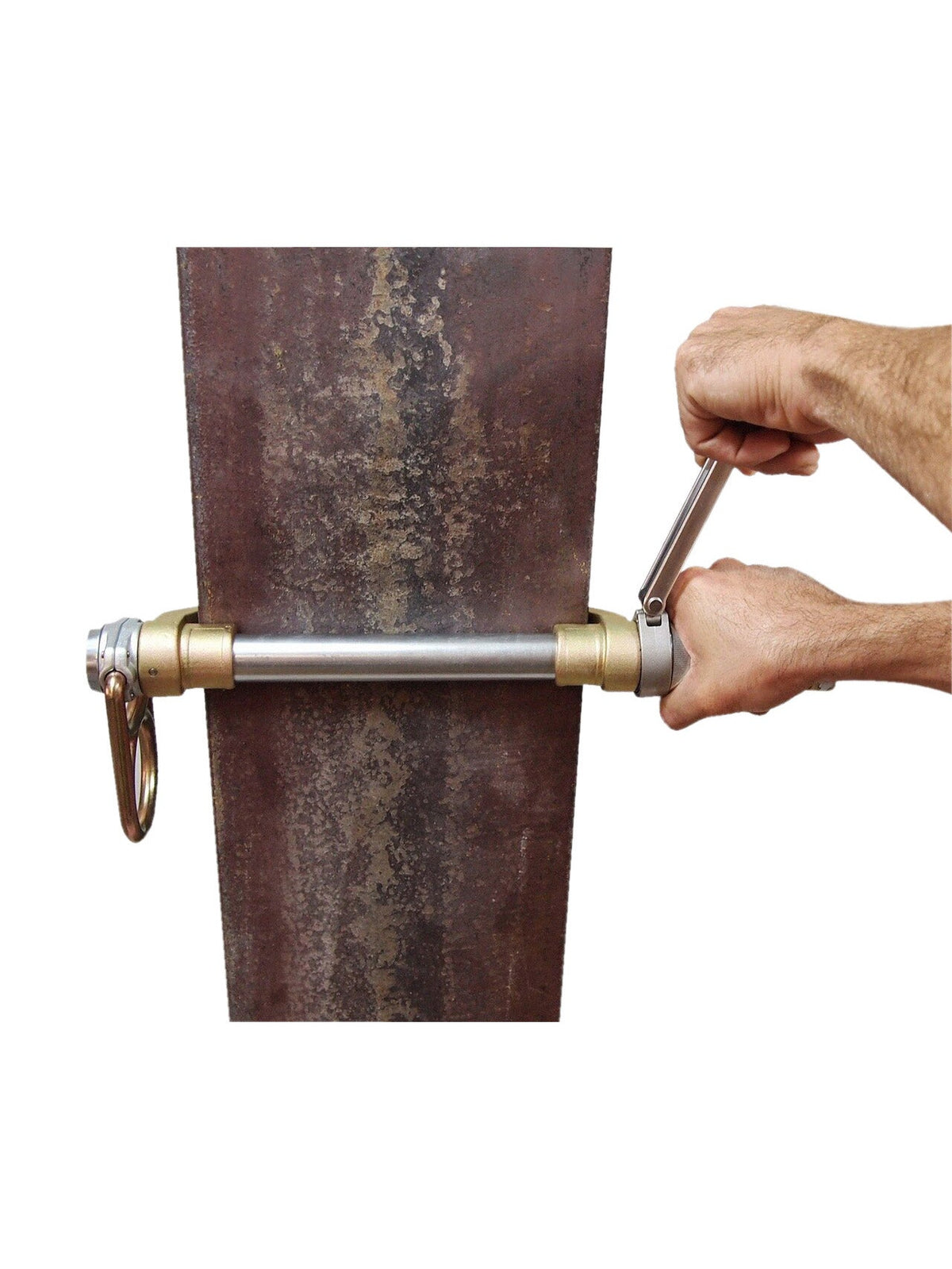

  • Frontline ST14V beam clamp, angled view of the flange hooks

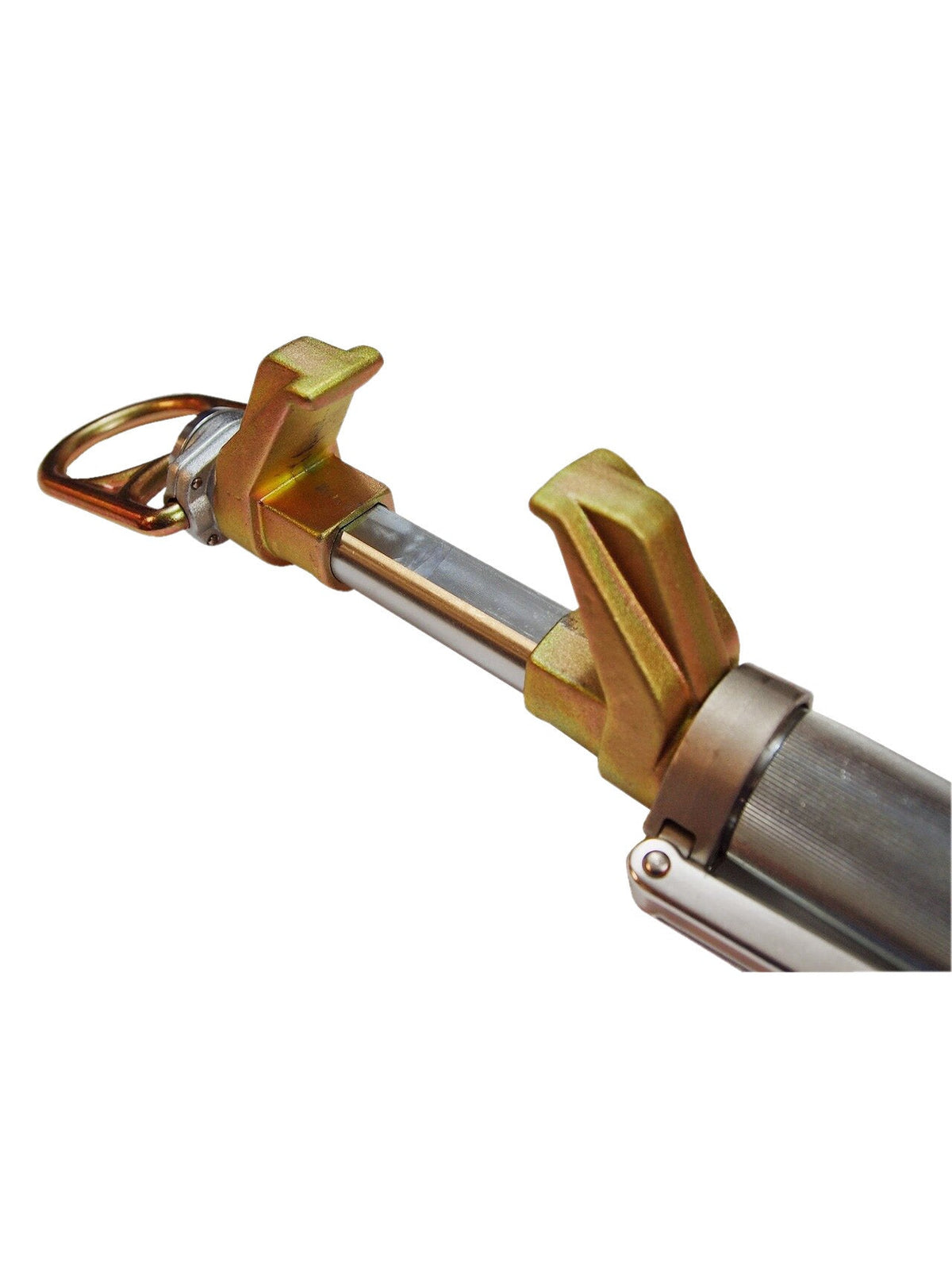

  • Frontline ST14V beam clamp, side view

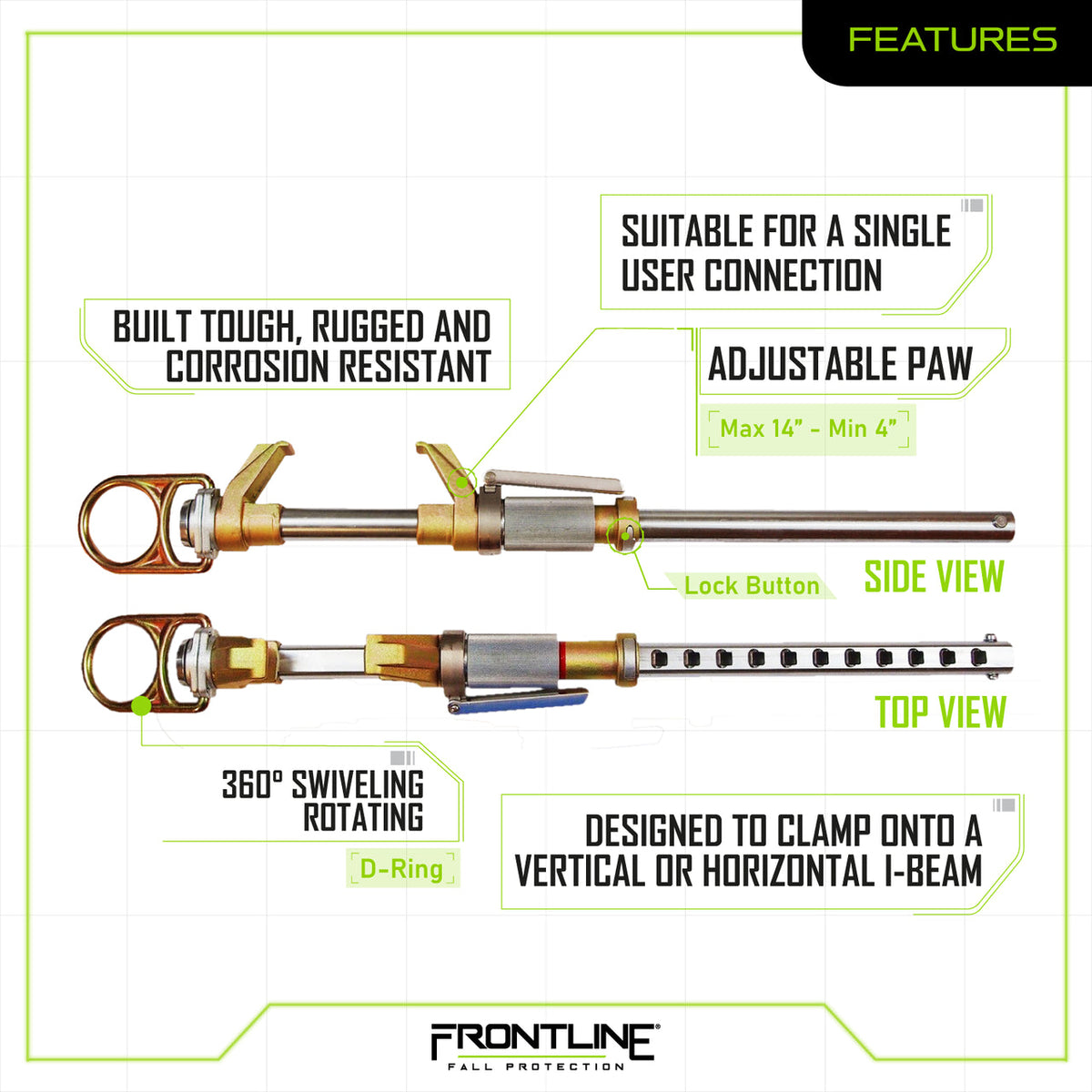

  • Frontline ST14V feature sheet

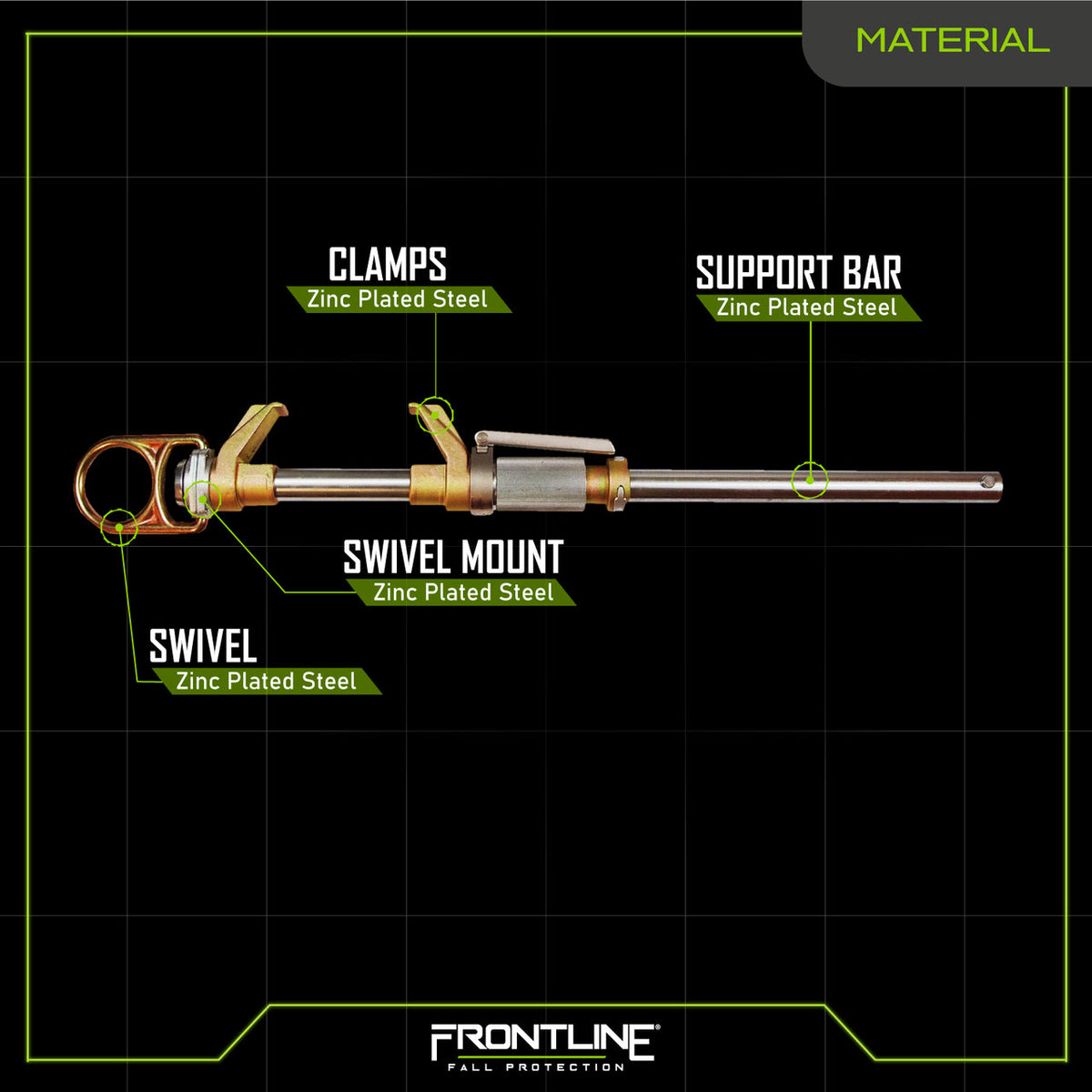

  • Frontline ST14V materials sheet, zinc-plated and stainless steel

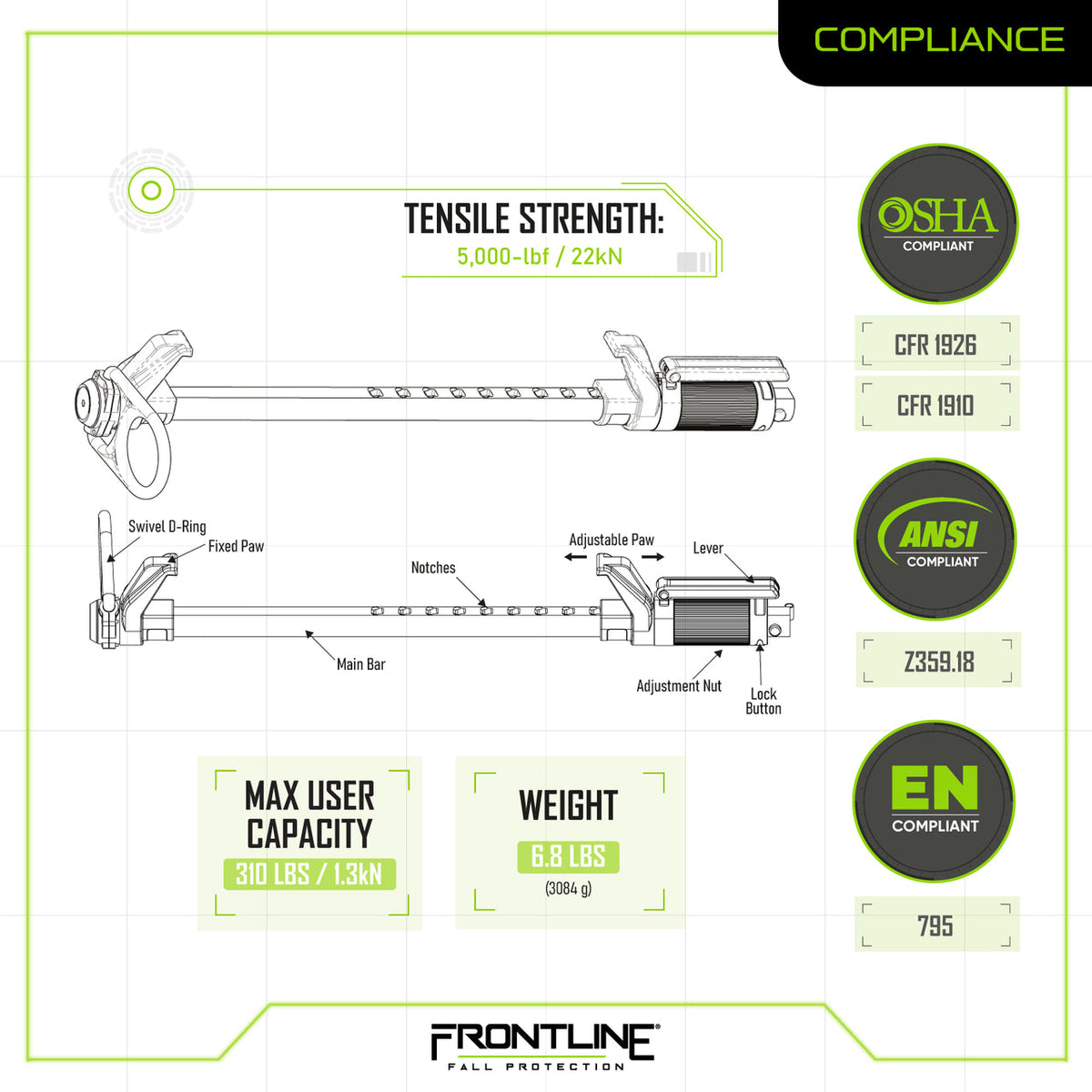

  • Frontline ST14V compliance sheet, ANSI Z359.18, OSHA and EN 795
Frontline ST14V Fixed Beam Clamp, 4–14 in I-Beam | Canada

Frontline ST14V Fixed Beam Clamp, 4–14 in I-Beam | Canada

$792.99

Frontline ST14V Fixed Beam Clamp, 4–14 in I-Beam | Canada. A fixed I-beam anchor that clamps onto a vertical or horizontal beam in seconds, no tools. Zinc-plated steel flange hooks and support bar take 4 in to 14 in wide flanges, 0.25 in to 1.25 in thick, and a stainless-mounted swivel D-ring takes an SRL or shock-absorbing lanyard for one user. 5,000 lbf (22 kN) static strength, 6.8 lb.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates this product to the OSHA and ANSI requirements listed below. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Fixed beam clamp
Flange width
4 in to 14 in
Strength
5,000 lbf (22 kN)
Standard
ANSI Z359.18 / Z359.7

Frontline ST14V fixed beam clamp key features

  • Clamps onto a vertical or horizontal I-beam to make a fixed anchor point; sets up in seconds without tools
  • Fits steel beams or columns, horizontal or vertical position
  • Beam flange width 4 in to 14 in, flange thickness 0.25 in to 1.25 in
  • Swivel D-ring for a self-retracting lifeline or shock-absorbing lanyard
  • Built tough, rugged and corrosion resistant: zinc-plated steel with a stainless steel D-ring mount
  • Rugged, compact and lightweight at 6.8 lb
  • Single-user connection; removable and reusable

Frontline ST14V beam clamp specifications

Manufacturer Frontline Fall Protection
Model / SKU ST14V
Mounting Fixed clamp, vertical or horizontal I-beam
Beam flange width 4 in to 14 in
Beam flange thickness 0.25 in to 1.25 in
Static tensile strength 5,000 lbf (22 kN)
User capacity 310 lb, one user
Unit weight 6.8 lb
Materials Zinc-plated steel swivel D-ring, support bar and flange hooks · stainless steel D-ring mount
Standards Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503 and EN 795:2012
Region Stocked in Paris, Ontario · ships Canada-wide

Where crews use the Frontline ST14V beam clamp

Structural steel

Fixed tie-off on a column or beam while bolting up, welding or decking.

Plant and industrial

Clamp to an overhead beam above tanks, conveyors and process lines for maintenance.

Bridge and inspection

Vertical or horizontal member clamp where a sliding anchor is not wanted.

Temporary lifelines

Fixed end point for a connector where the beam flange is within 4 to 14 in.

Ships from Ontario
Stocked by Fall Protection Canada in Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline ST14V CSA certified? Compliance in Canada

Is the Frontline ST14V CSA certified?

No. Frontline rates it to ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503 and EN 795:2012. For CSA-marked anchors, see our Safety Direct range.

What beam sizes fit the ST14V?

I-beam flanges 4 in to 14 in wide and 0.25 in to 1.25 in thick, per Frontline. Measure the flange before ordering.

Does the ST14V slide along the beam?

No. It is a fixed clamp. For a trailing anchor that follows the worker, see the Frontline ST14SA Easy Slider or the ST10HTK trolley.

Can it mount on a vertical beam?

Yes. Frontline lists it for vertical or horizontal I-beams, on beams or columns.

How many workers can tie off to the ST14V?

One. Frontline rates it for single-user connection with an SRL or shock-absorbing lanyard.

Pair the Frontline ST14V with an SRL or shock-absorbing lanyard

The ST14V is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
