Frontline TAN07RA-US Patriot 7 ft Tripod, 3-Way Retrieval | Canada

Frontline TAN07RA-US Patriot 7 ft Tripod, 3-Way Retrieval | Canada

$8,072.99

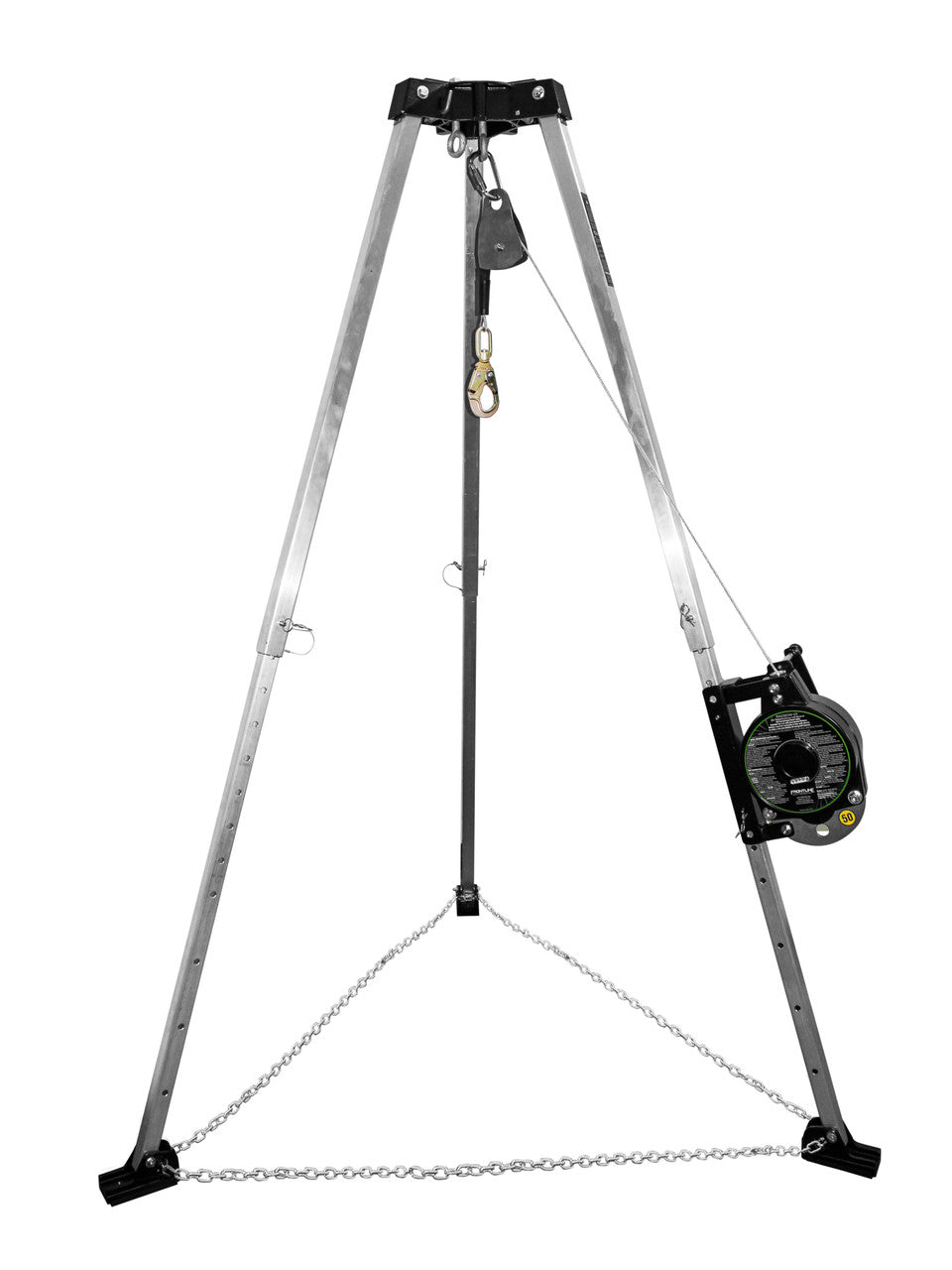

Frontline TAN07RA-US Patriot 7' Confined Space Tripod with 3-Way Retrieval System. A 7 ft aluminum confined space tripod from Frontline's Patriot line with auto-locking telescoping legs, sold with the Patriot 50 ft 3-way retrieval system that lowers, raises and rescues and switches to SRL mode with a knob. One-person setup, no tools. 350 lb maximum user capacity.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the TAN07RA-US to the OSHA and ANSI standards it meets or exceeds. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Confined Space Tripod Kit
Lifeline Length
50’
Maximum User Capacity
350 lbs

Frontline TAN07RA-US Patriot tripod system key features

  • Lightweight, highly durable aluminum tripod with auto-locking telescoping legs
  • One-person setup, no tools required

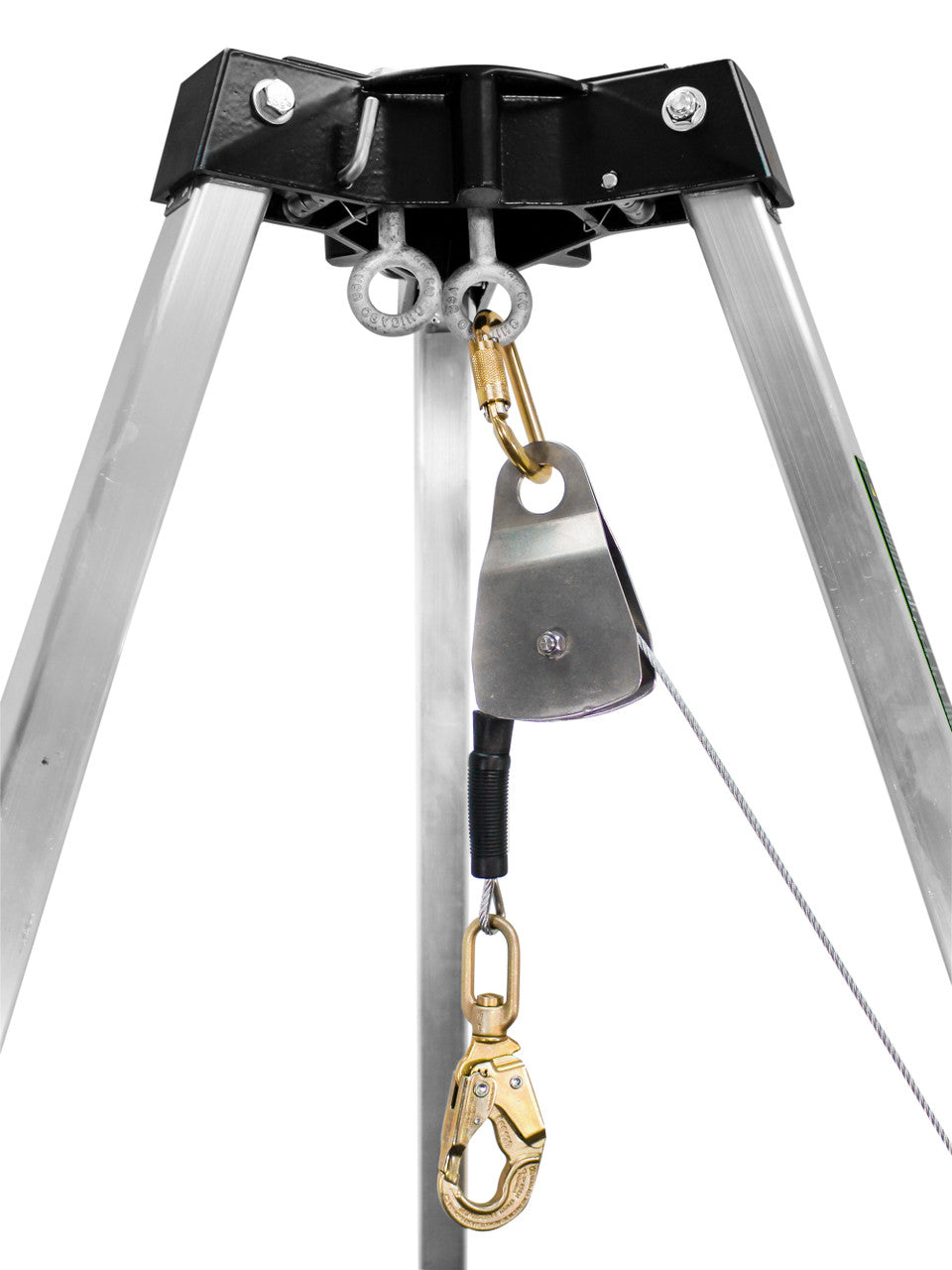

  • Cast aluminum head with two integrated locking eye bolts for pulleys or auxiliary equipment
  • Independently adjustable legs with quick-insert locking pins

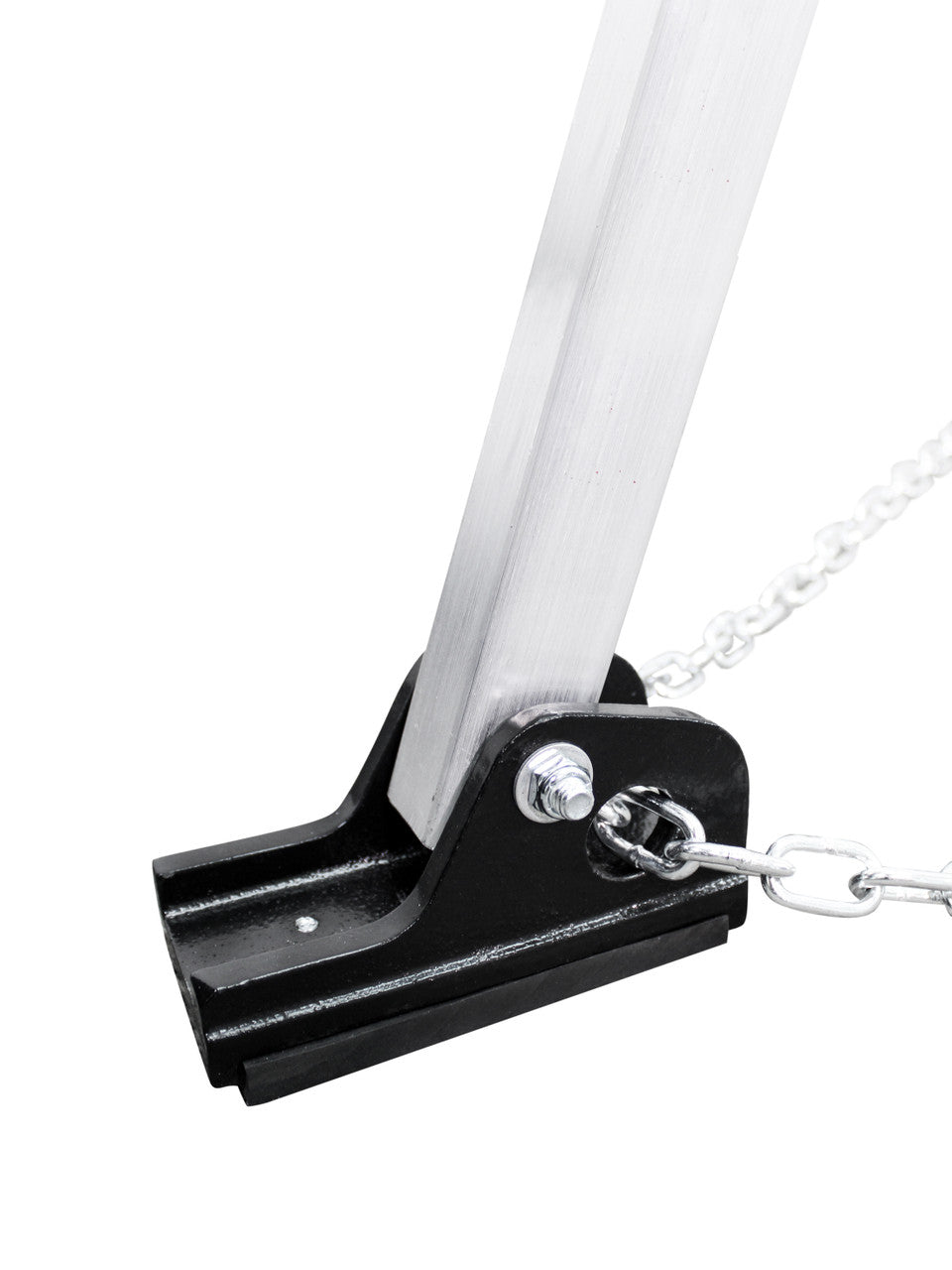

  • Anti-skid rubber feet and safety leg chains

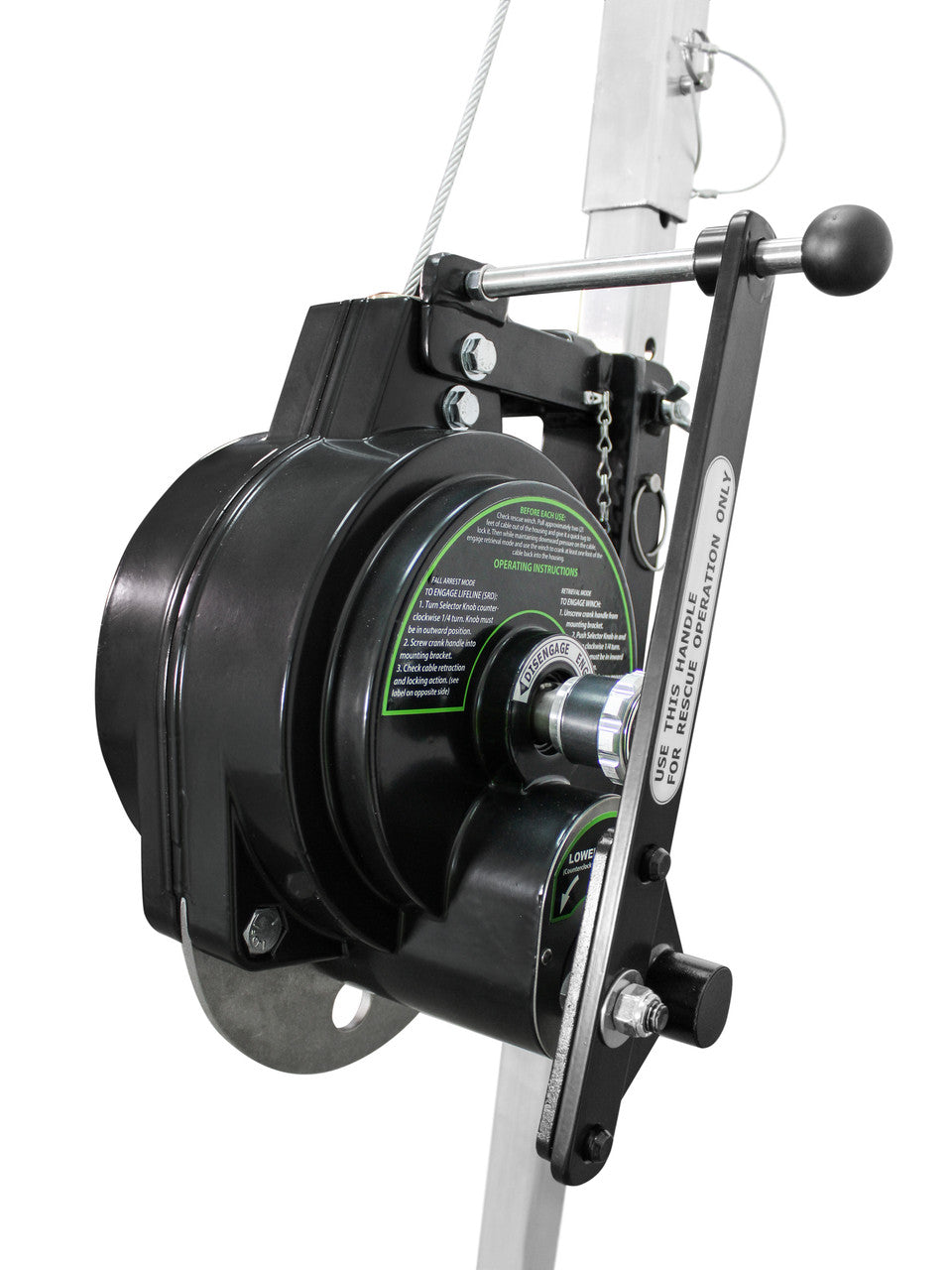

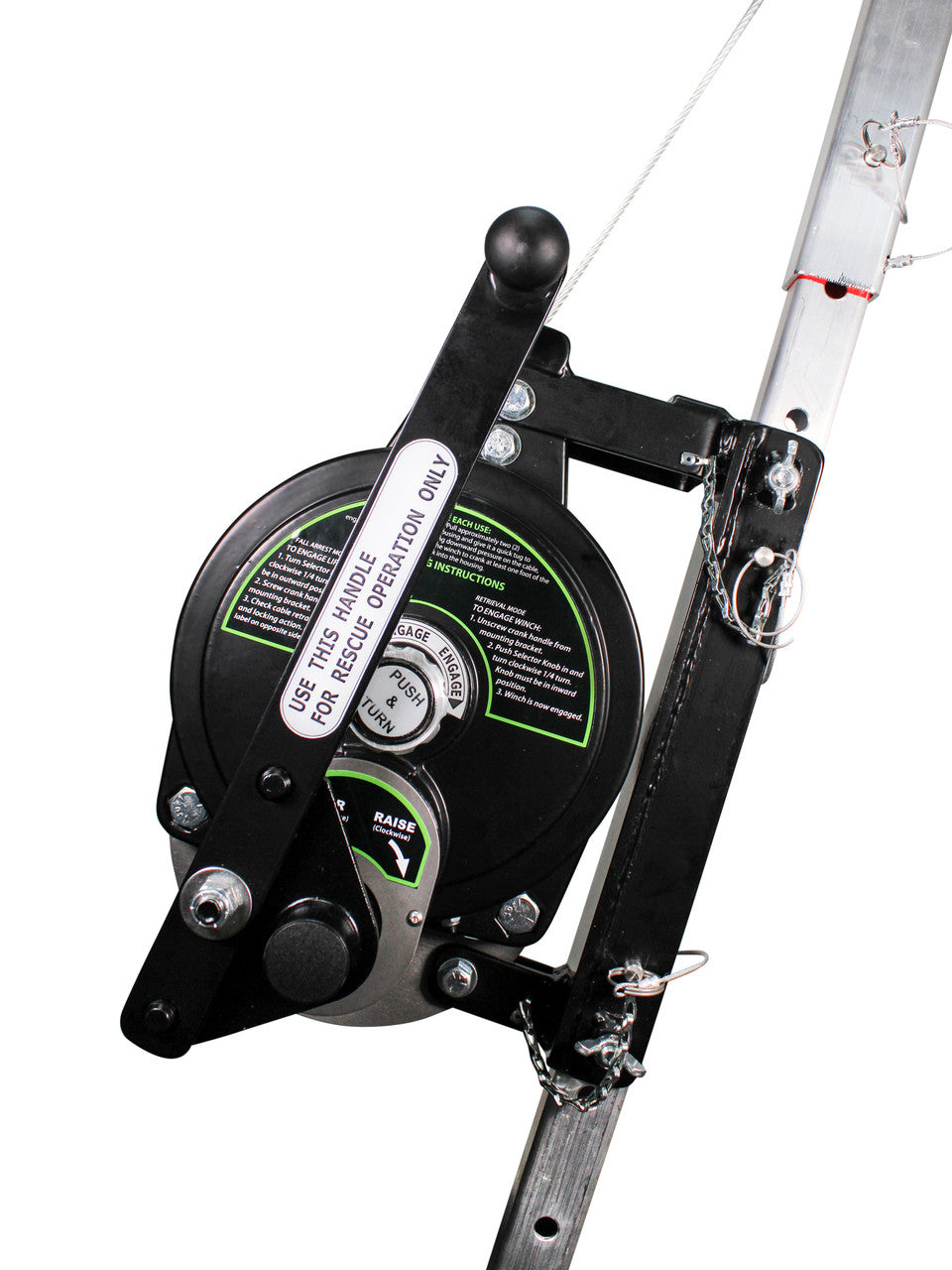

  • 3-way retrieval lowers and raises loads, rescues personnel, and acts as an SRL with a turn of a knob
  • Precision internal components in a weather-resistant cast aluminum housing
  • Two independent brakes: centrifugal brake arrests a fall within 24"; friction brake holds the load when raising or lowering stops
  • 3/16" galvanized steel cable with locking swivel snap hook and impact indicator

Frontline TAN07RA-US Patriot tripod system specifications

Manufacturer Frontline Fall Protection
Model / SKU TAN07RA-US
Included Patriot 7' aluminum tripod (TAN07-US) with Patriot 3-way retrieval system (50' 3/16" galvanized steel cable, locking swivel snap hook with impact indicator)
Use Material/Personnel Lowering, Lifting, Rescue and SRL option
Lifeline Length 50’
Maximum User Capacity 350 lbs
Tripod Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.18
3-Way Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.14
Standards Tripod: Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.18; 3-Way: Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.14

Where crews use the Frontline TAN07RA-US Patriot tripod system

Manholes and vaults

Lower and retrieve entrants over an opening.

Tanks and pits

Permit-required confined space entry.

Non-entry rescue

Bring a worker out without sending anyone in.

Utility crews

Fast one-person setup on site.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline TAN07RA-US CSA certified? Compliance in Canada

Is the Frontline TAN07RA-US system CSA certified?

No. Frontline rates the TAN07RA-US to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.

What comes with the Frontline TAN07RA-US system?

Patriot 7' aluminum tripod (TAN07-US) with Patriot 3-way retrieval system (50' 3/16" galvanized steel cable, locking swivel snap hook with impact indicator).

What is the user capacity of the Frontline TAN07RA-US?

Frontline lists 350 lbs.

What to pair with the Frontline TAN07RA-US

The TAN07RA-US is one part of a personal fall arrest system. Pair it with a full-body harness with a back or shoulder D-ring and an anchor rated for the load, and train the crew on inspection and rescue.
