Frontline MEGApod tripod with winch and 3-way SRL
$6,913.99
Skip to product information
Frontline MEGApod tripod with winch and 3-way SRL
1/5

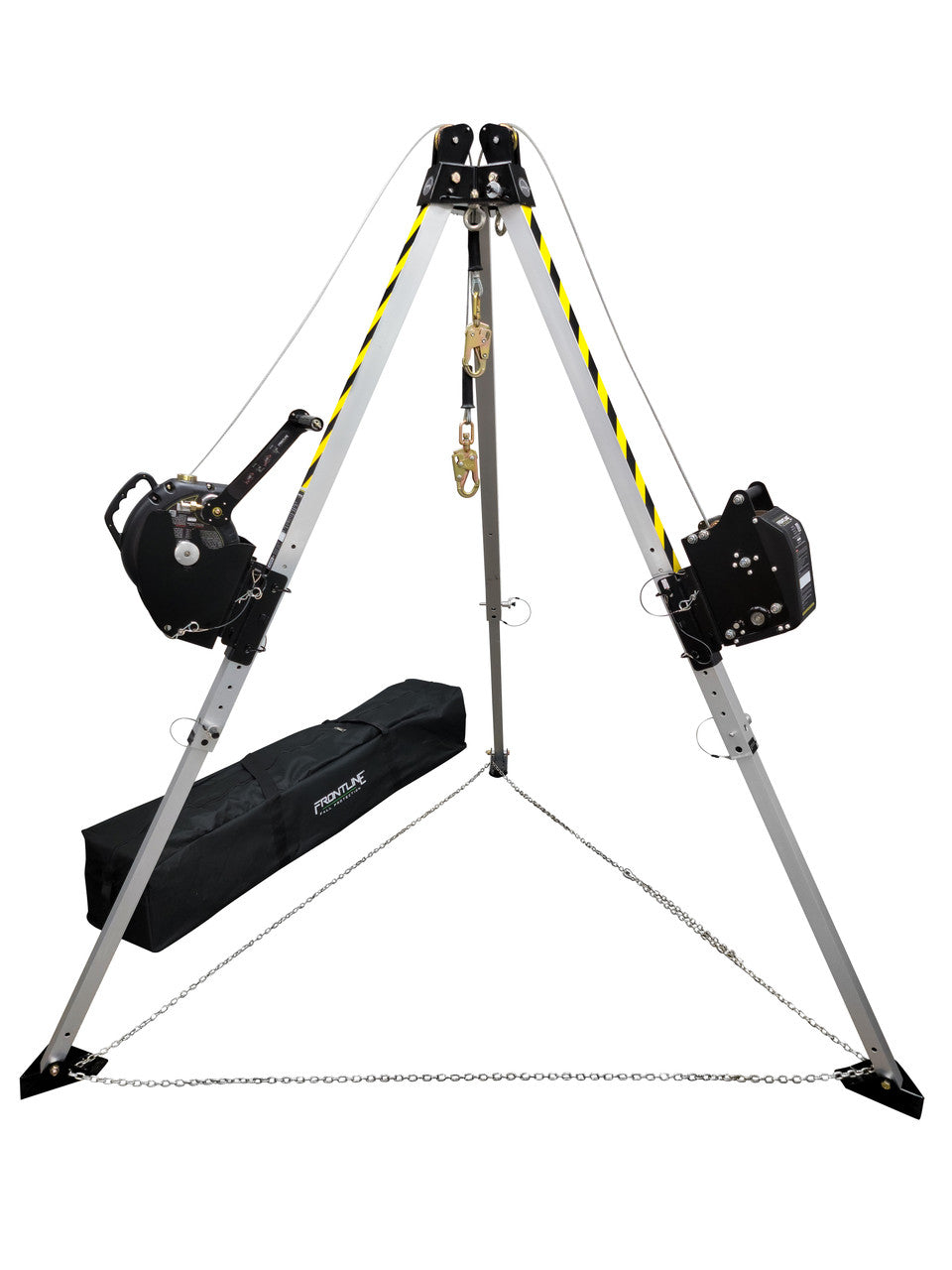

  • Frontline MEGApod tripod with winch and 3-way SRL

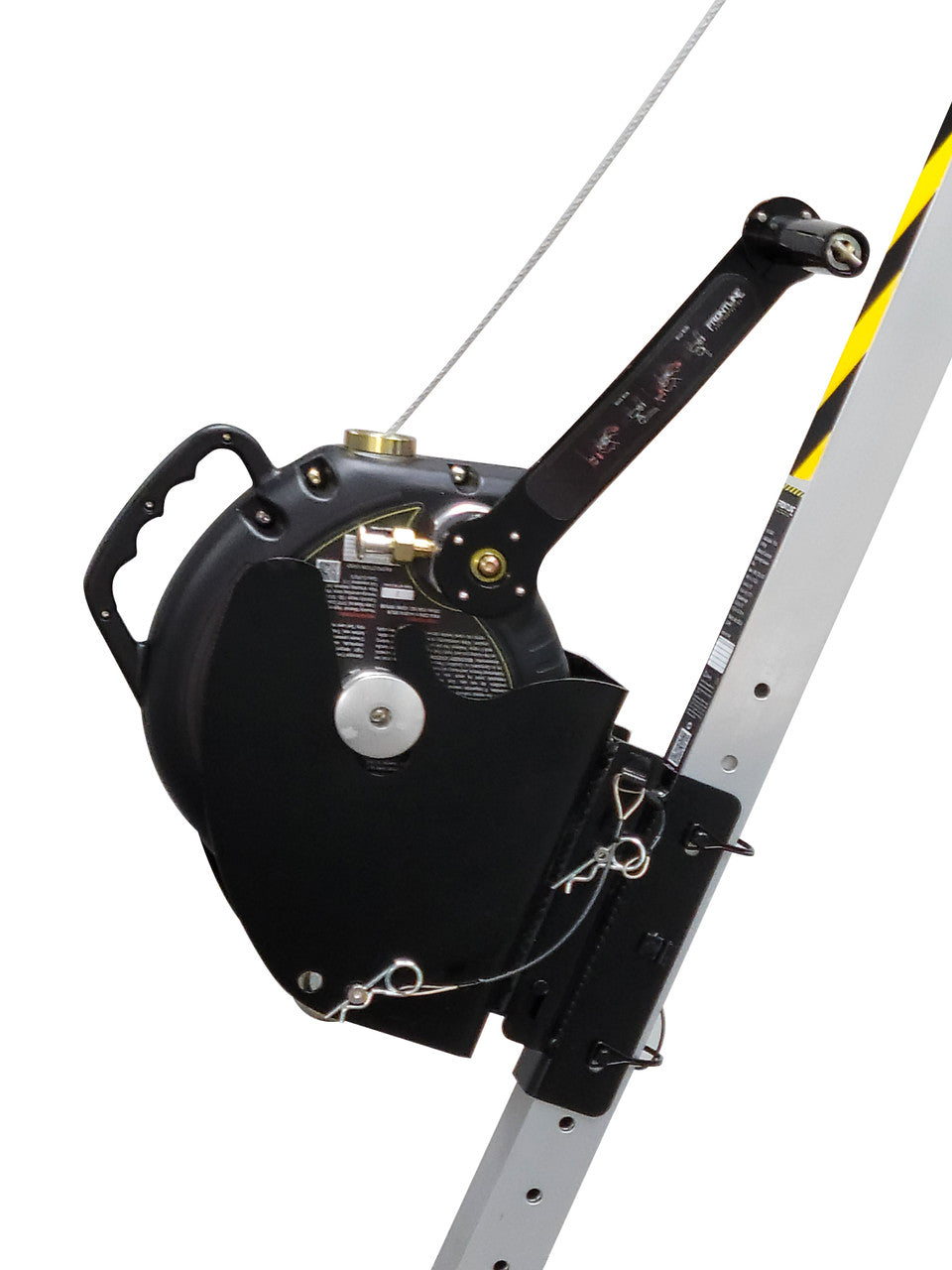

  • Frontline MEGApod kit RUW60 winch and RPG603W 3-way SRL on the legs

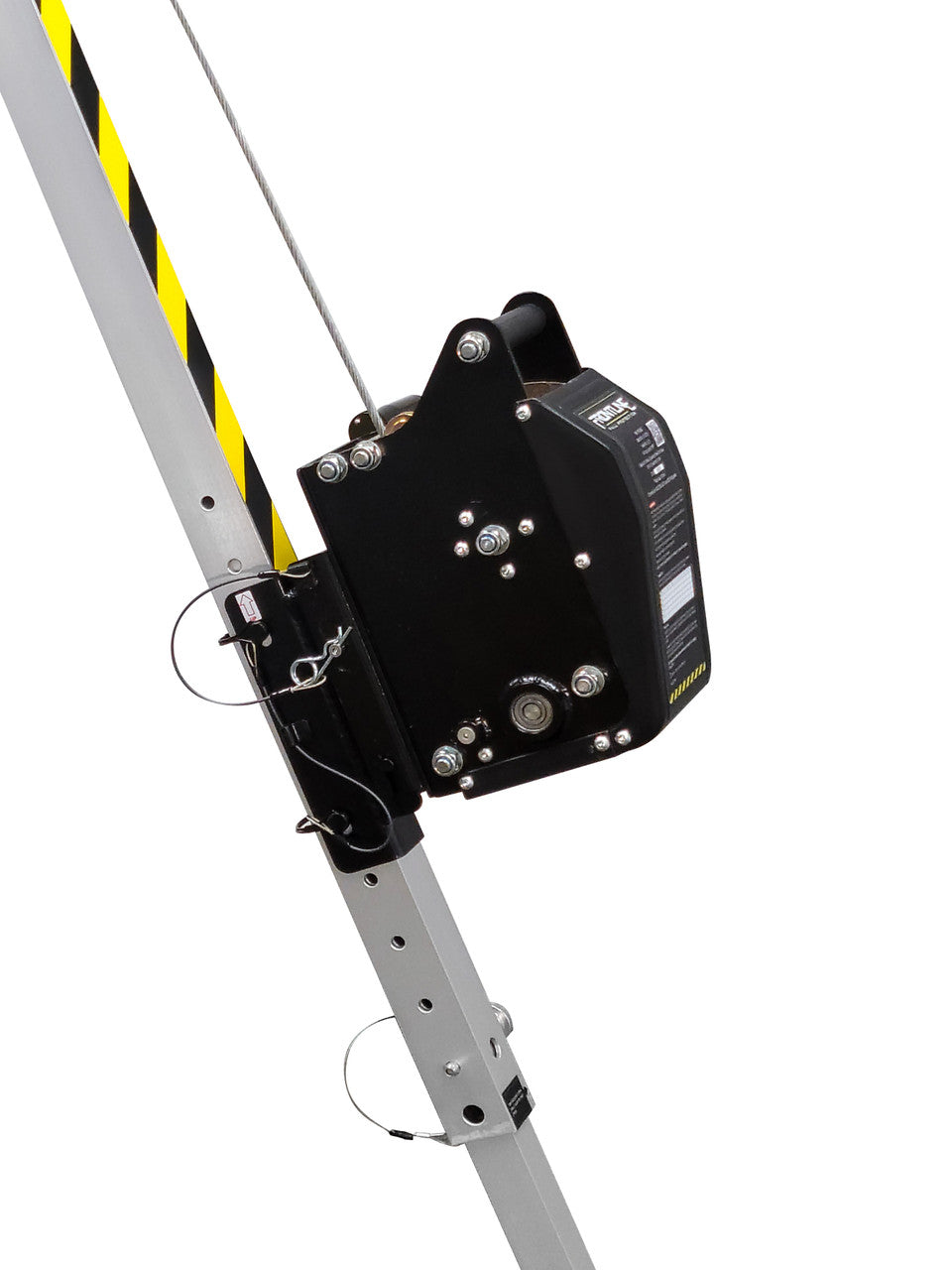

  • Frontline RPG603W 3-way SRL mounted on the MEGApod tripod

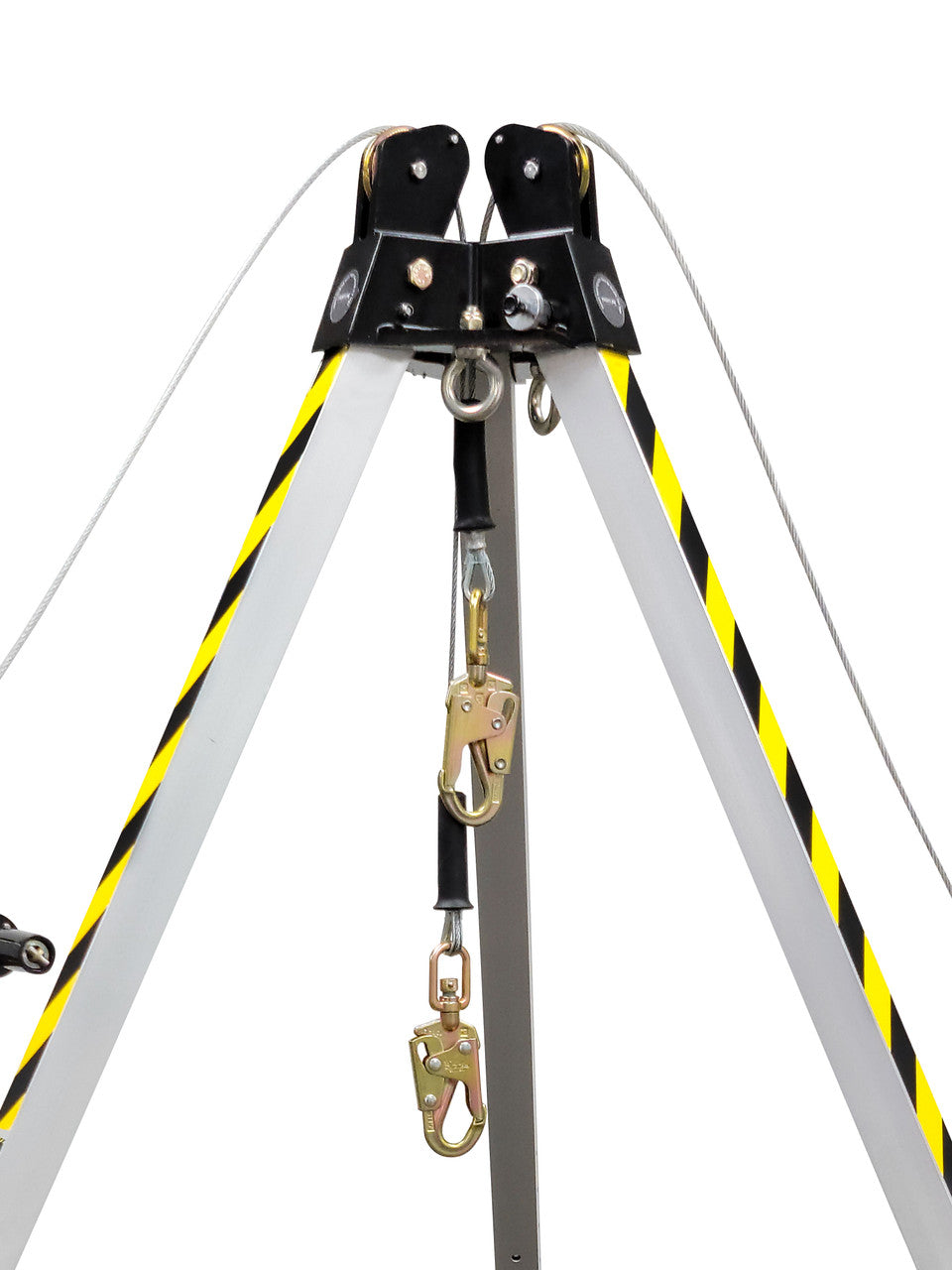

  • Frontline MEGApod tripod head and double pulley

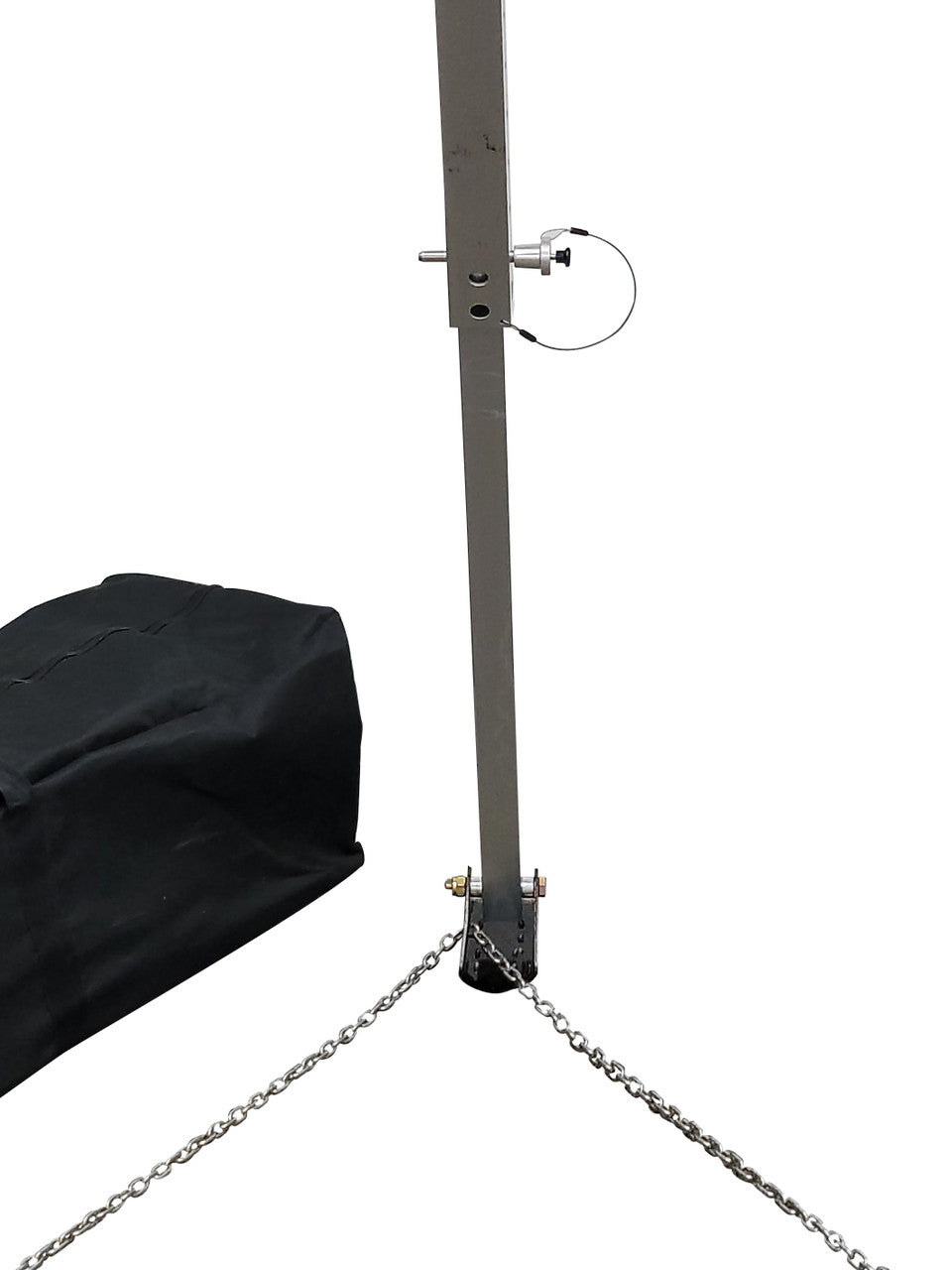

  • Frontline MEGApod tripod leg and safety shoe
Frontline TAN10RURP MEGApod 10 ft Tripod, Winch & 3-Way SRL | Canada

Frontline TAN10RURP MEGApod 10 ft Tripod, Winch & 3-Way SRL | Canada

$6,913.99

Frontline TAN10RURP MEGApod Confined Space 10' Aluminum Tripod with 60' Winch and 3-Way SRL. The complete 10 ft confined space entry and non-entry rescue kit: the MEGApod 10 ft aluminum tripod, the RUW60 60 ft winch and the RPG603W 60 ft 3-way SRL, with a storage and carry bag. One person can set it up without tools. 310 lb maximum lifting load.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the TAN10RURP to the OSHA and ANSI standards it meets or exceeds. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Tripod, winch and 3-way SRL kit
Tripod height
10 ft
Winch / SRL
60 ft / 60 ft
Max lifting load
310 lb

Frontline TAN10RURP MEGApod 10 ft tripod kit key features

  • Aluminum tripod: light, portable, set up by one person without tools
  • Cast aluminum head with a built-in double pulley so the winch and retrieval cables pass independently
  • Sliding telescopic legs for inner and outer height adjustment
  • Safety shoes with rubber soles for flat surfaces and spiked edges for slippery ones
  • Safety chain and 2 auxiliary eye bolts for winch and/or 3-way overhead anchorage
  • MEGApod storage and carry bag
  • RUW60 winch: 60 ft of 15/64 in galvanized steel wire rope, built-in shock absorption
  • RUW60 mounting plate with two pin-locking bolts to fix it to a tripod leg
  • Swivelling steel snap hook on the winch line for the harness connection
  • RPG603W 3-way SRL: 60 ft of 3/16 in galvanized steel wire rope with built-in shock absorption
  • RPG603W retractable mode for fall protection while moving, winch mode to lower, raise or retrieve a worker
  • Side locking pin switches the RPG603W between modes in seconds; swivelling steel snap hook

Frontline TAN10RURP MEGApod 10 ft tripod kit specifications

Manufacturer Frontline Fall Protection
Model / SKU TAN10RURP
Contents MEGApod 10 ft tripod, safety chain, safety shoes, 2 auxiliary eye bolts, RPG603W 60 ft 3-way SRL, RUW60 60 ft winch with mounting plate, storage and carry bag
Tripod material Aluminum, cast aluminum head
Tripod height 10 ft
Winch lifeline 60 ft galvanized steel wire rope, 15/64 in
SRL lifeline 60 ft galvanized steel wire rope, 3/16 in
Shock absorption Built into SRL and winch
Maximum lifting load 310 lb
Standards Meets or exceeds OSHA and ANSI standards (per Frontline)
Weight / leg spread Not published by Frontline; ask us

Where crews use the Frontline TAN10RURP MEGApod kit

Manholes and vaults

Lower and retrieve entrants over a manhole or vault.

Tanks and pits

Permit-required confined space entry where 10 ft of head height helps.

Non-entry rescue

Bring a worker out without sending anyone in.

Utility crews

One-person setup from the carry bag.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline TAN10RURP CSA certified? Compliance in Canada

Is the Frontline TAN10RURP MEGApod kit CSA certified?

No. Frontline states it meets or exceeds OSHA and ANSI standards; no CSA rating is published. For CSA-marked equipment see our Safety Direct range.

What comes in the Frontline TAN10RURP MEGApod kit?

Tripod, safety chain and shoes, 2 eye bolts, the RPG603W 3-way SRL, the RUW60 winch with plate and a carry bag.

TAN10RURP or TAN07RURP: which MEGApod kit do I need?

Same winch and 3-way SRL; the TAN10RURP has the 10 ft tripod, the TAN07RURP the 7 ft one. Pick by the head height your opening needs.

How much can the Frontline TAN10RURP kit take?

Frontline lists a maximum lifting load of 310 lb.

Pair the Frontline TAN10RURP kit with a full-body harness

The TAN10RURP covers the tripod, winch and fall arrest. Add a full-body harness with a back or shoulder D-ring for the entrant, and train the crew on your rescue plan.
