Frontline TRR38 SecuRail Vertical Ladder Trolley | Canada

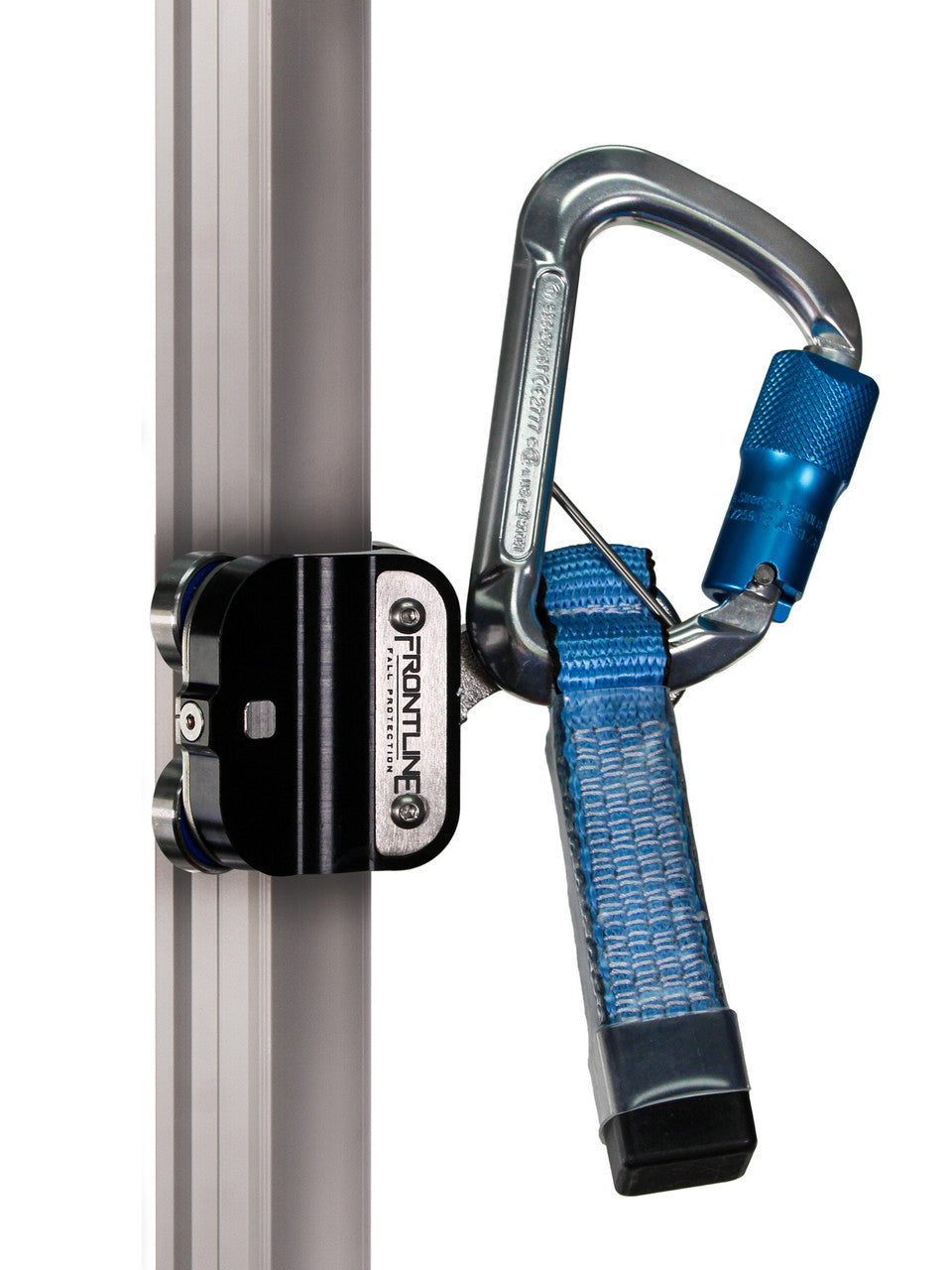

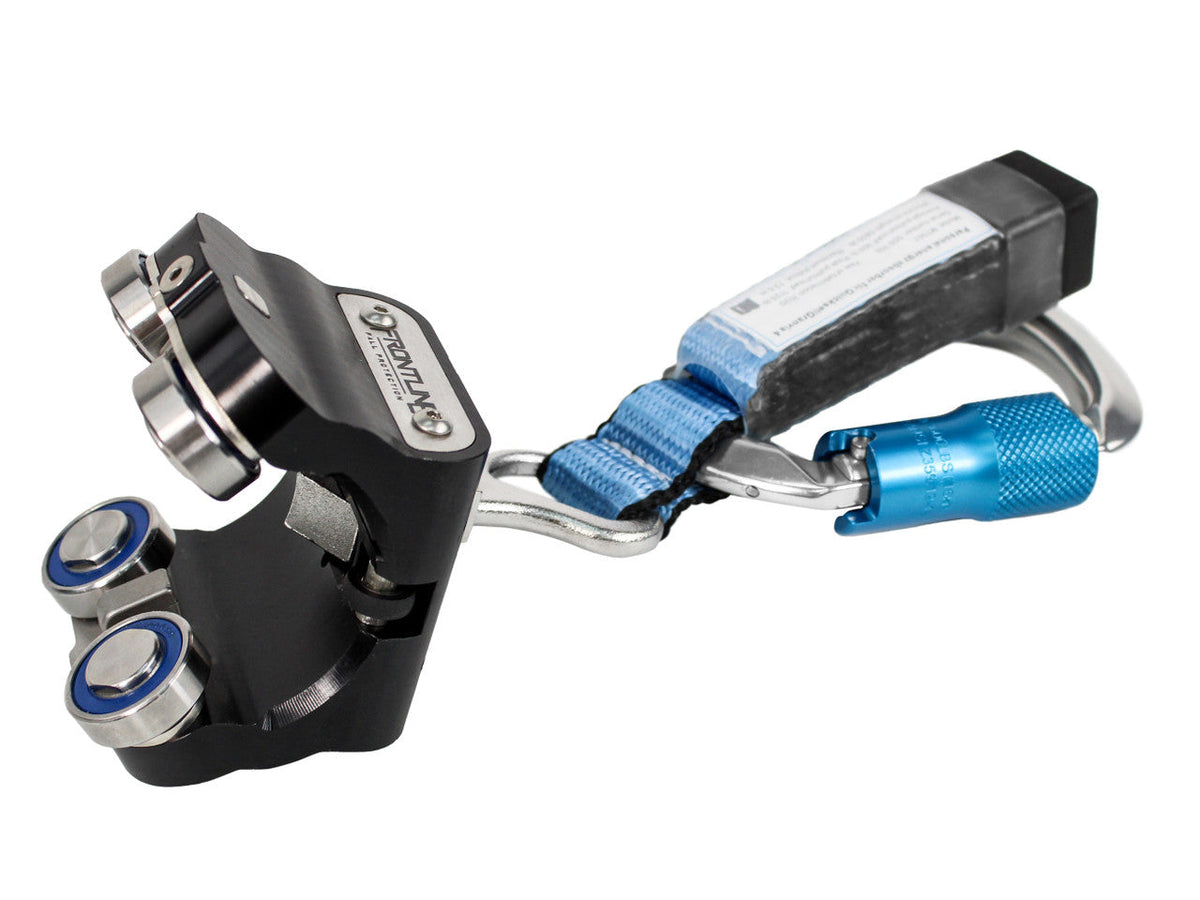

Frontline TRR38 SecuRail Vertical Ladder Trolley. The trolley that rides the Frontline SecuRail vertical ladder rail. Its rollers follow the climber up and down the ladder, it locks instantly on the rail if a fall happens, and its integrated energy absorber reduces fall forces and free-fall distance. An anti-inversion mechanism keeps it the right way up, the climber can connect at the end of each track section, and it comes with a high-strength ANSI-rated carabiner. For climbers from 110 to 310 lb.
Frontline TRR38 vertical ladder trolley key features

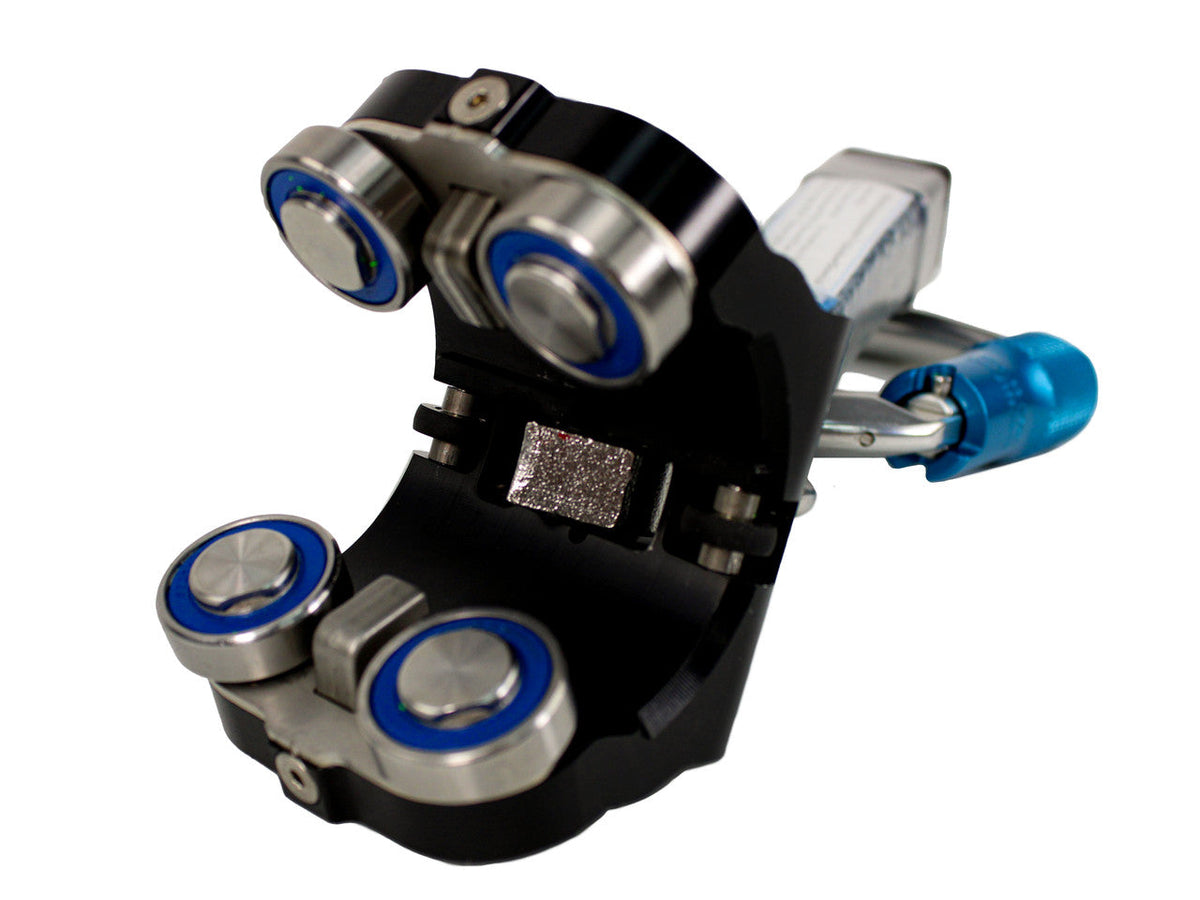

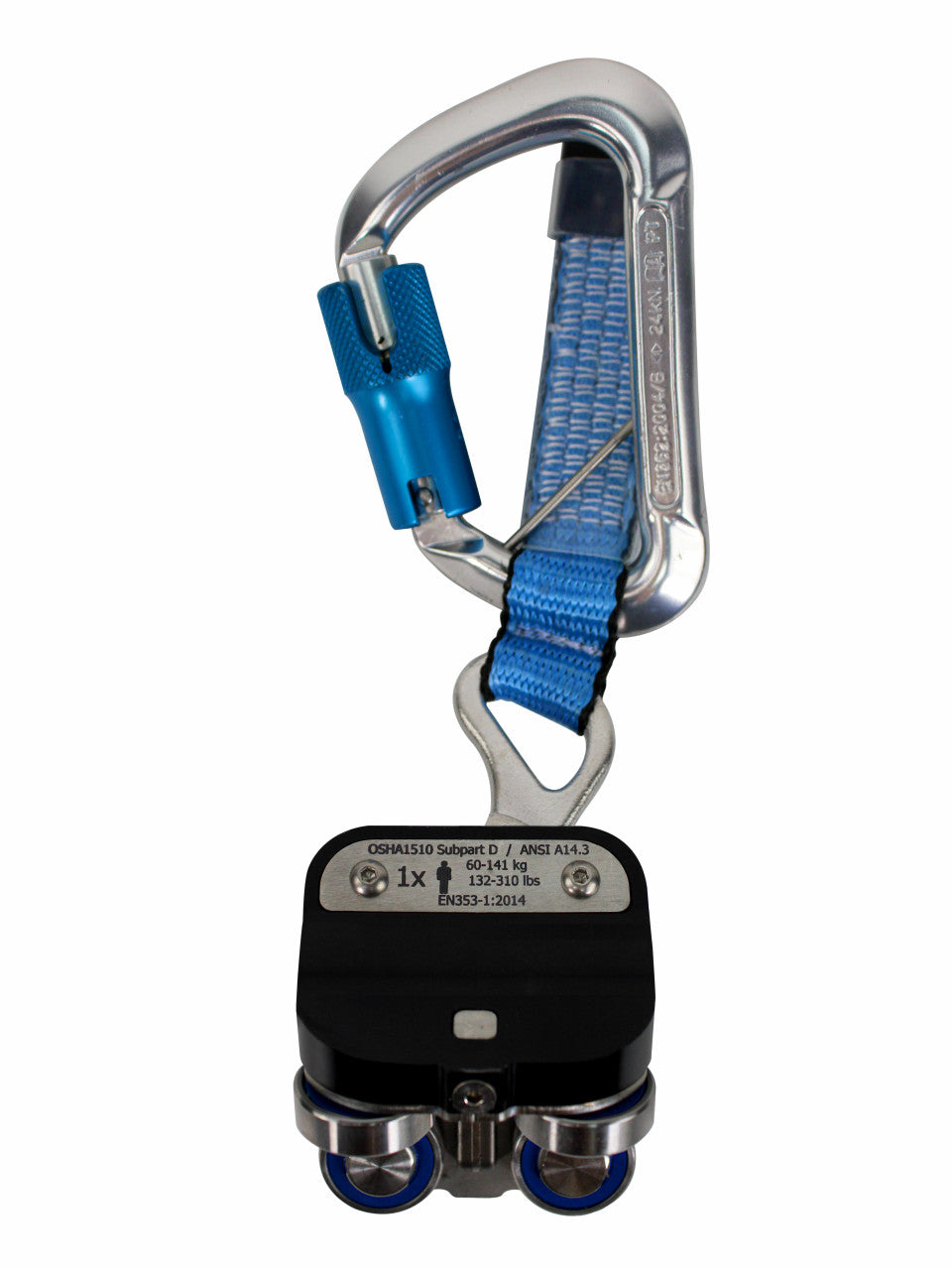

- Rollers follow the climber smoothly up or down the ladder
- Locks instantly on the SecuRail rail if a fall occurs

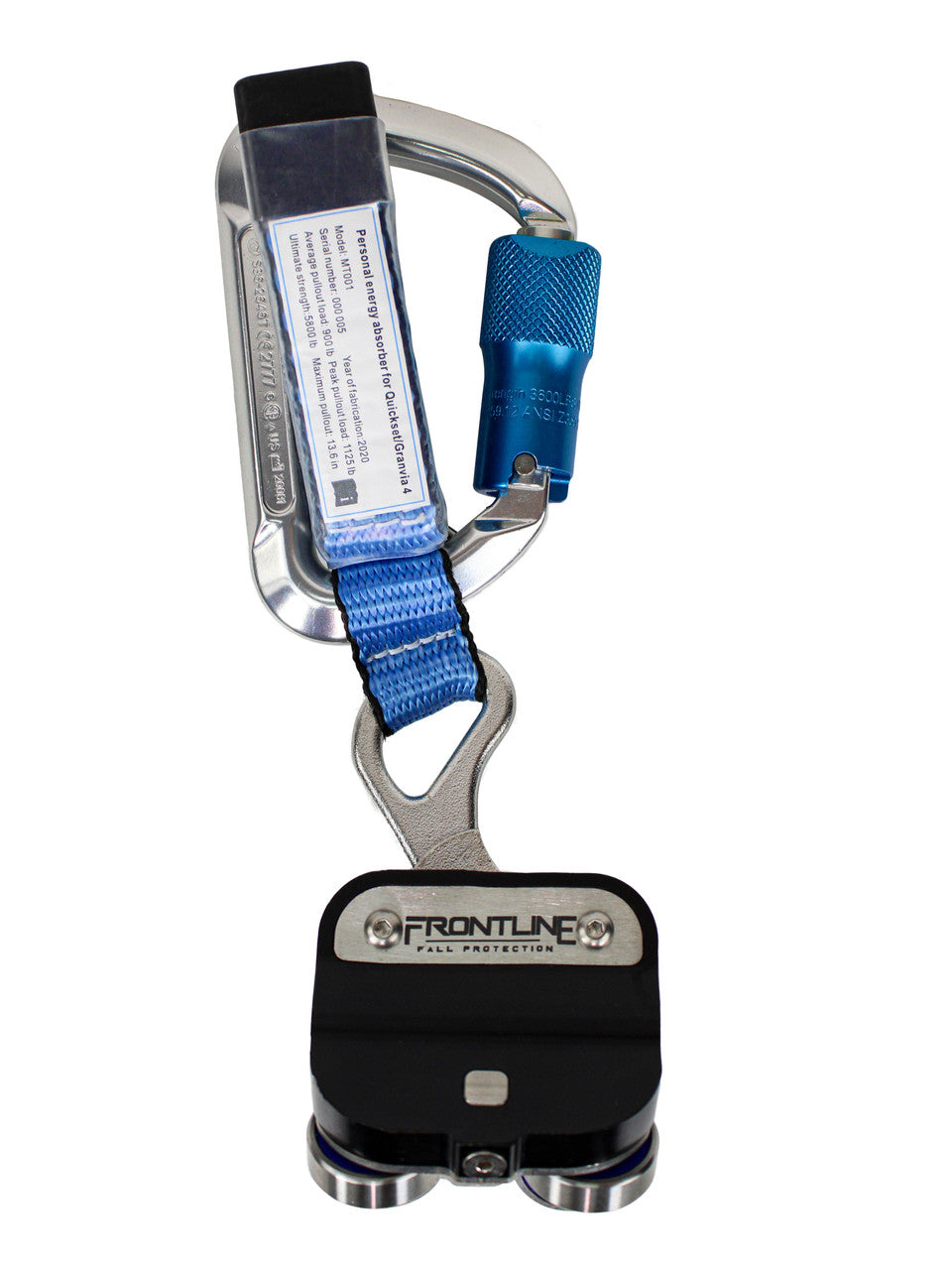

- Integrated energy absorber reduces fall forces and free-fall distance
- Anti-inversion mechanism
- Connect safely at the end of each track section
- High-strength ANSI-rated carabiner included
Frontline TRR38 SecuRail trolley specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | TRR38 |
| Fits | Frontline SecuRail vertical rail system |
| User capacity | 110 to 310 lb |
| Trolley breaking strength | 3,330 lb |
| Energy absorber | Integrated |
| Connector | ANSI-rated carabiner, 5,395 lb breaking strength |
| Trolley standards | Meets or exceeds ANSI A14.3, OSHA 1910.29 Subpart D and EN 353-1:2017 |
| Connector standards | Meets or exceeds ANSI and OSHA standards |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where climbers use the Frontline TRR38 rail trolley
Fixed roof access ladders
The climber's connection to a SecuRail rail on the ladder.
Retrofitted ladders
Pairs with the SecuRail Pro rail clamped to an existing ladder.
Repeated climbs
Stays on the climber's harness from bottom to top and back.
Is the Frontline TRR38 trolley CSA certified? Compliance in Canada
Is the Frontline TRR38 CSA certified?
No. Frontline states it meets or exceeds ANSI A14.3, OSHA 1910.29 Subpart D and EN 353-1:2017. For CSA-marked fall protection, see our Safety Direct range.
Which rail does the TRR38 fit?
The Frontline SecuRail vertical rail system, such as the VLRS SecuRail Pro rail we stock.
Is it included with the SecuRail Pro rail?
No, the rail and the trolley are sold separately. Order one trolley per climber.
What weight range is it rated for?
110 to 310 lb.
Pair the Frontline TRR38 trolley with the SecuRail Pro rail
Mount the VLRS SecuRail Pro rail on the ladder and connect the TRR38 to the front attachment of a full body harness. Send us your ladder height and we will quote the full system. Contact Fall Protection Canada.
