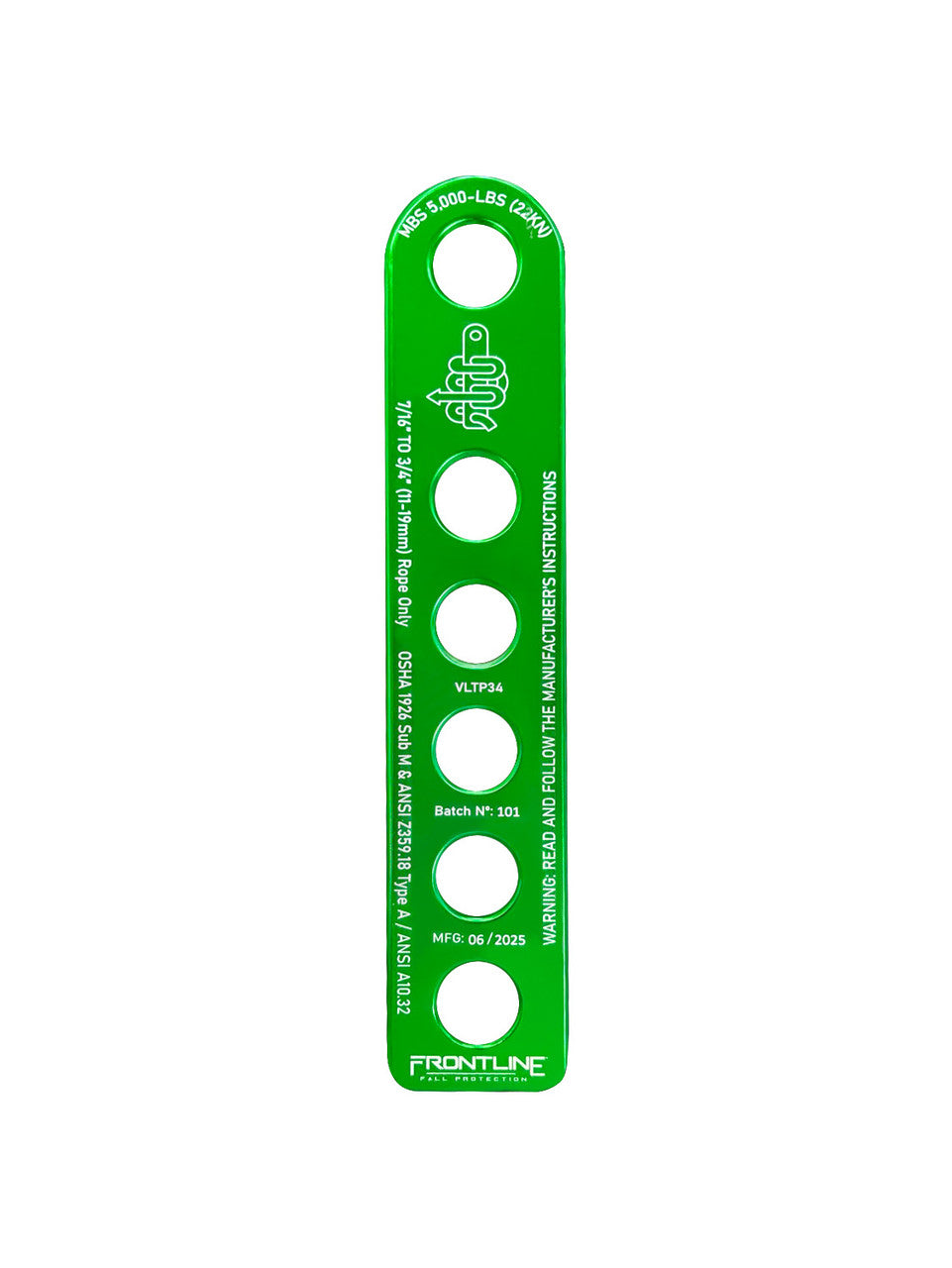

  • Frontline VLTP34 rope termination plate

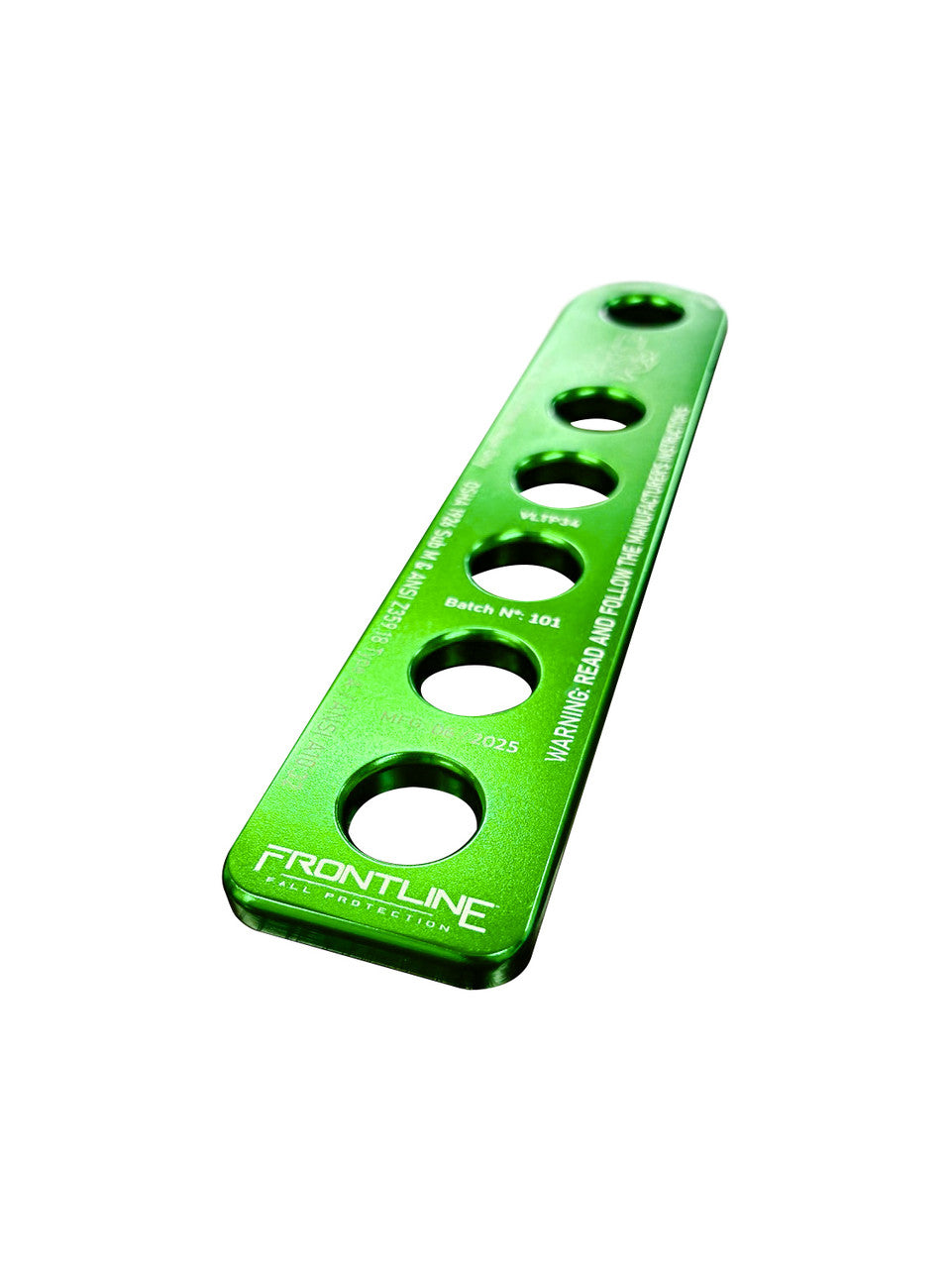

  • Frontline VLTP34 anodized aluminum termination plate, side view

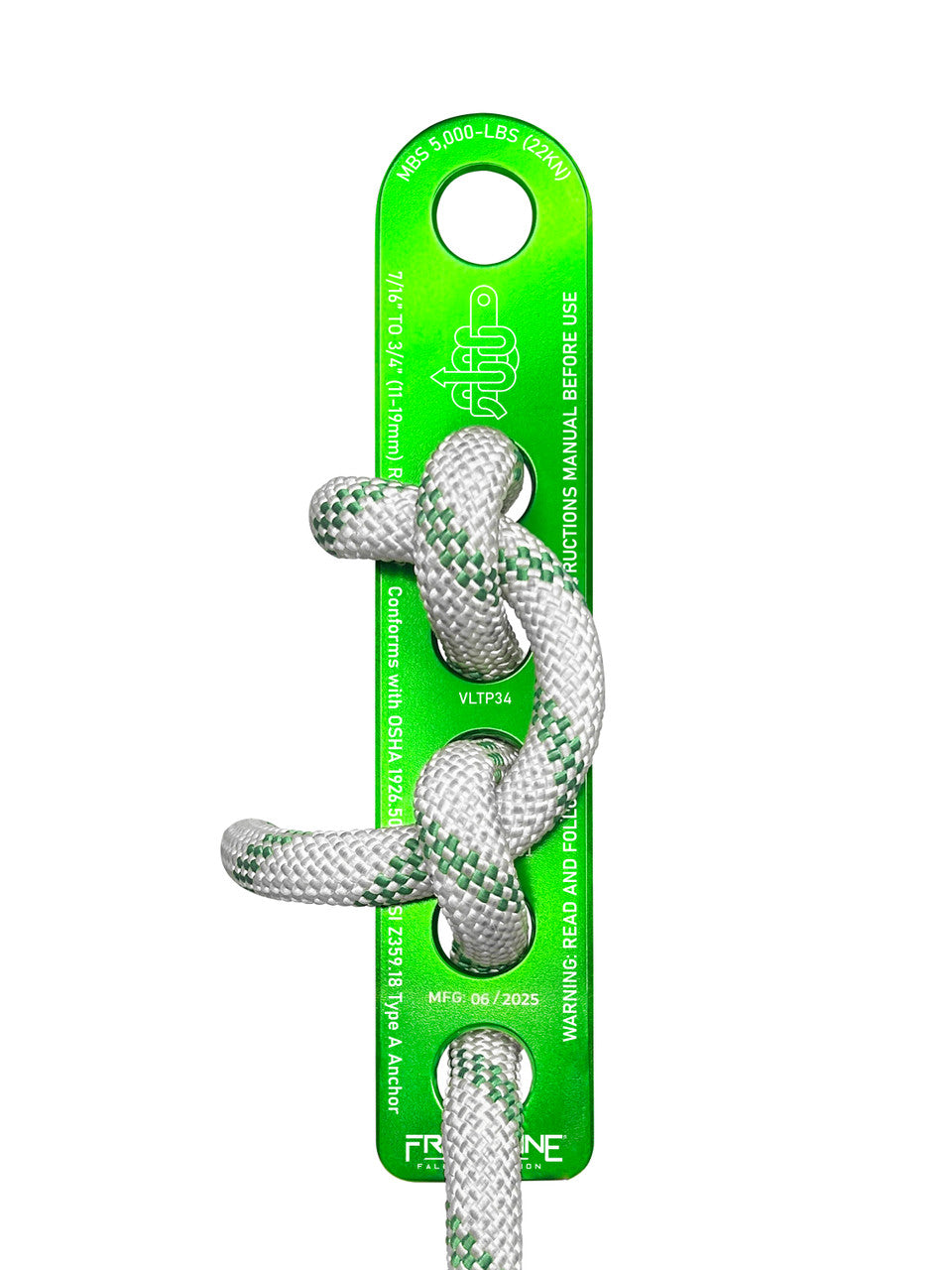

  • Frontline VLTP34 rope termination plate with rope tied

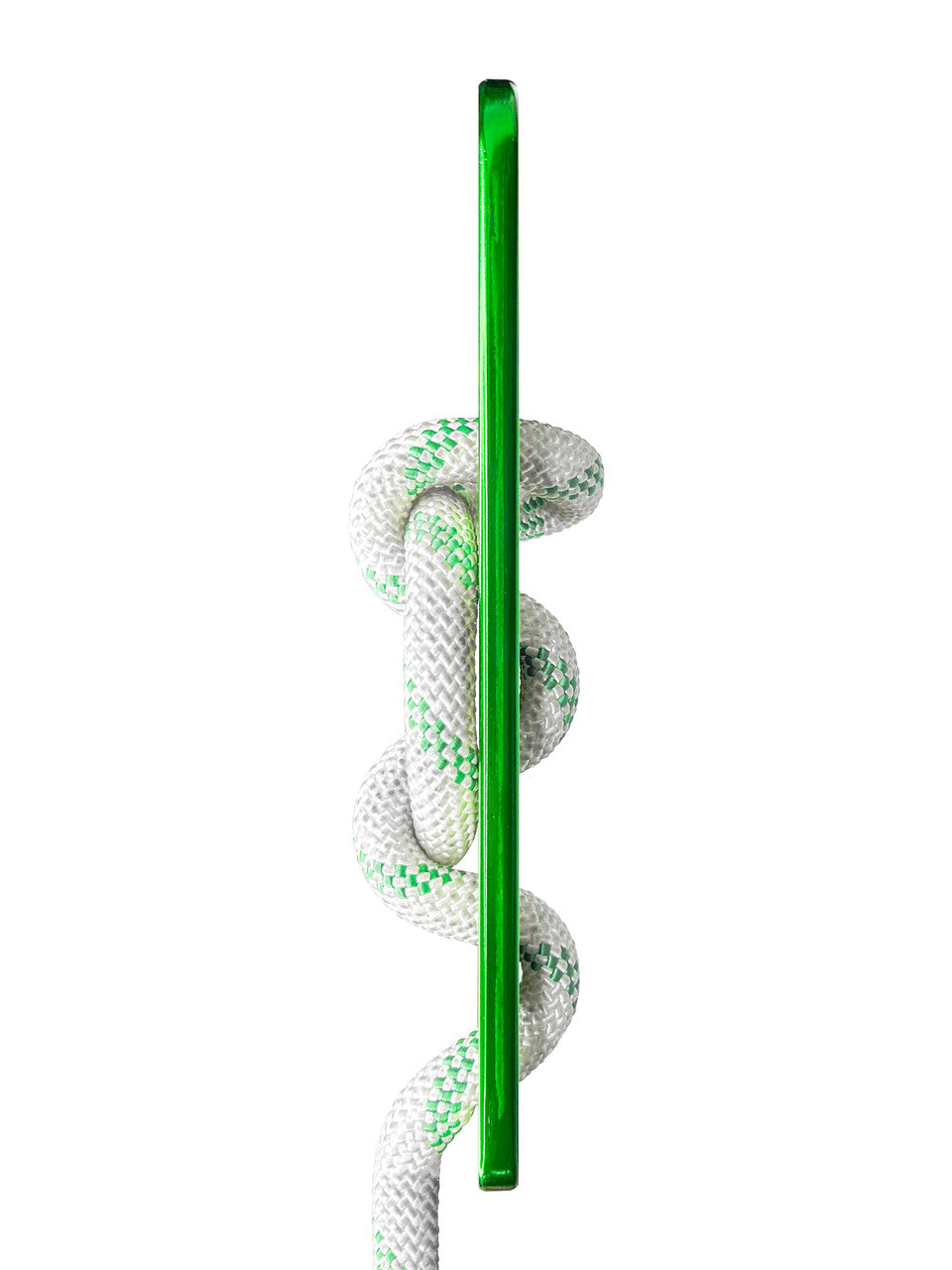

  • Frontline VLTP34 termination plate detail
Frontline VLTP34 Rope Termination Plate, 5/8-3/4 in | Canada

Frontline VLTP34 Rope Termination Plate, 5/8-3/4 in | Canada

$108.99

Frontline VLTP34 Rope Termination Plate. Frontline's anodized aluminum connector that terminates a rope and couples it to another connector in a fall protection, work positioning, rope access or rescue system. 5,000 lbf (22 kN) static tensile strength; fits three-strand rope from 5/8 to 3/4 in and kernmantle rope from 7/16 to 3/4 in. Easy to tie and to untie after use.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the VLTP34 to OSHA 1926, OSHA 1910 and ANSI Z359.18-2017 Type A / ANSI A10.32. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Rope termination plate
Strength
5,000 lbf (22 kN)
Rope
3-strand 5/8 to 3/4 in
Standard
ANSI Z359.18 Type A

Frontline VLTP34 rope termination plate key features

  • Lightweight anodized aluminum
  • Interface between a rope and a fall protection, positioning, rope access or rescue system
  • Easy to tie, and easy to untie after use
  • Installs as shown in Frontline's user instructions
  • Fits three-strand and kernmantle rope

Frontline VLTP34 rope termination plate specifications

Manufacturer Frontline Fall Protection
Model / SKU VLTP34
Material Anodized aluminum
Static tensile strength 5,000 lbf (22 kN)
Three-strand rope 5/8 to 3/4 in
Kernmantle rope 7/16 to 3/4 in
Standards Meets or exceeds OSHA 1926, OSHA 1910 and ANSI Z359.18-2017 Type A / ANSI A10.32
Weight / dimensions Not published by Frontline; ask us

Where crews use the Frontline VLTP34 termination plate

Vertical lifelines

Terminate a rope lifeline at the anchor end.

Rope access

Couple a working rope to a connector.

Rescue systems

A quick, untieable rope termination.

Work positioning

Connect a positioning rope to the system.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline VLTP34 CSA certified? Compliance in Canada

Is the Frontline VLTP34 rope termination plate CSA certified?

No. Frontline rates it to OSHA 1926, OSHA 1910 and ANSI Z359.18-2017 Type A / ANSI A10.32; no CSA rating is published.

What rope sizes fit the Frontline VLTP34 termination plate?

Three-strand rope from 5/8 to 3/4 in, and kernmantle rope from 7/16 to 3/4 in.

How strong is the Frontline VLTP34 rope termination plate?

Frontline lists a static tensile strength of 5,000 lbf (22 kN).

How do I install the Frontline VLTP34 on my rope?

Tie it as shown in Frontline's user instruction manual; it unties easily after use.

Pair the Frontline VLTP34 with a vertical lifeline and anchor

The VLTP34 terminates a rope. Use it with a rated anchor, a vertical lifeline, a rope grab and a full-body harness, installed per Frontline's instructions.
