Frontline WDJ50 Window / Door Jamb Anchor, 22–50 in Non-Penetrating | Canada. A non-penetrating anchor point set up from inside the building: compress the WDJ50 between the vertical sides of a door or window frame, 22 in to 50 in wide, and tie off to the heavy-duty D-ring for work on the facade, balcony or window line. Non-skid protective pads keep the finishes intact, there is no drilling and no tools, and it comes with its own Frontline carry bag. ASTM-rated powder-coated steel, 5,000 lb (23 kN).

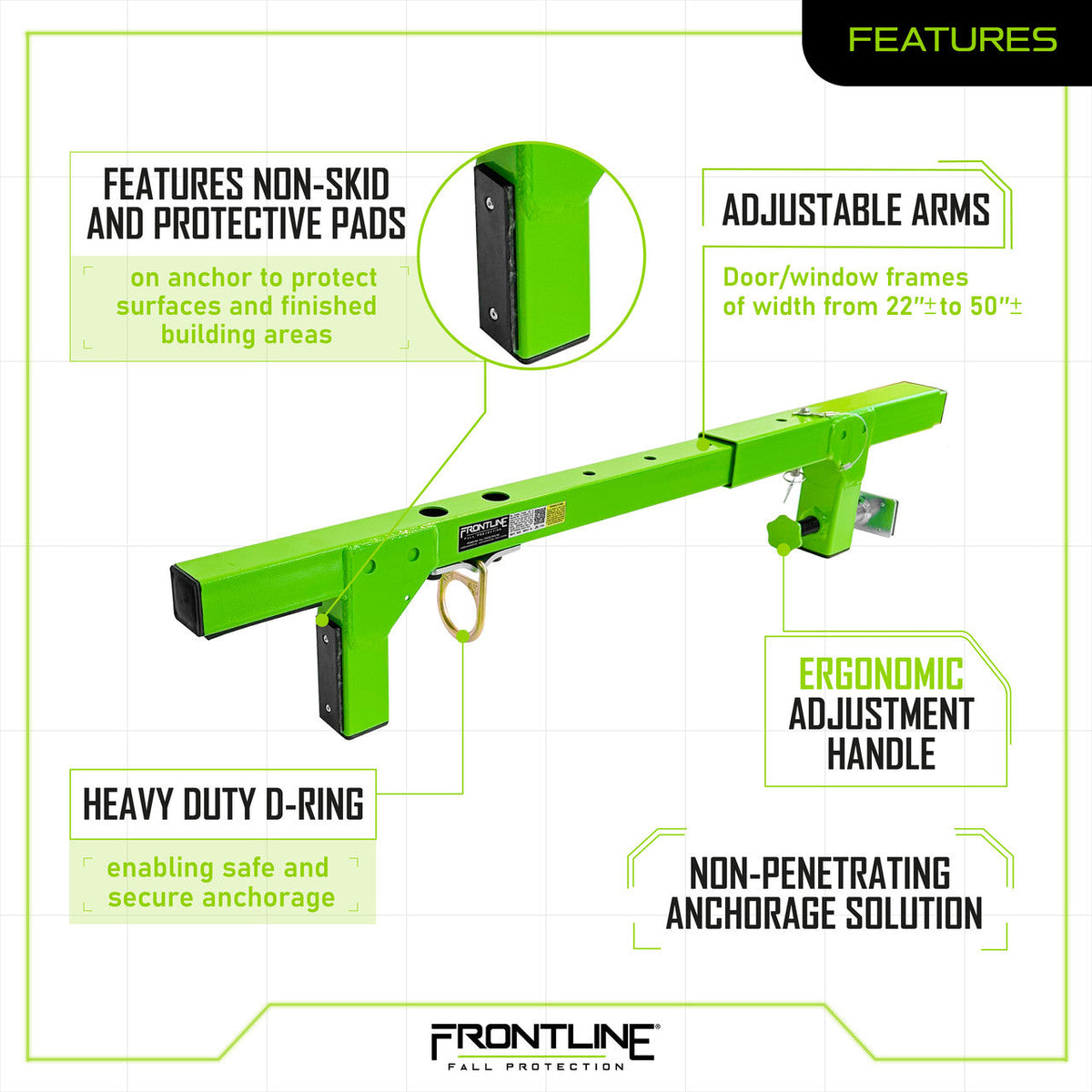

Frontline WDJ50 window and door jamb anchor key features

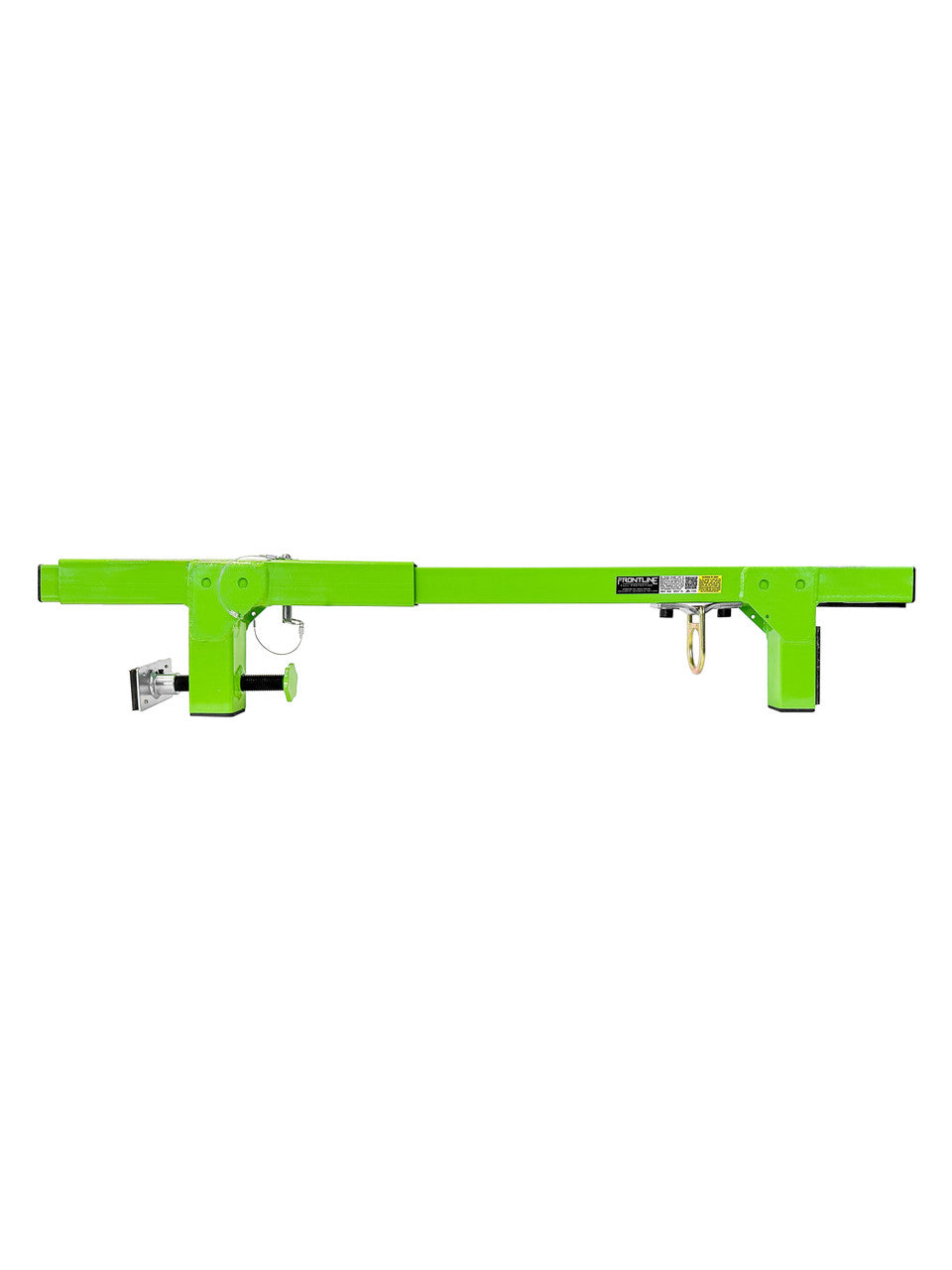

- Adjustable arms fit door or window frames from 22 in to 50 in wide
- Non-skid protective pads conserve the building's surfaces and finished areas

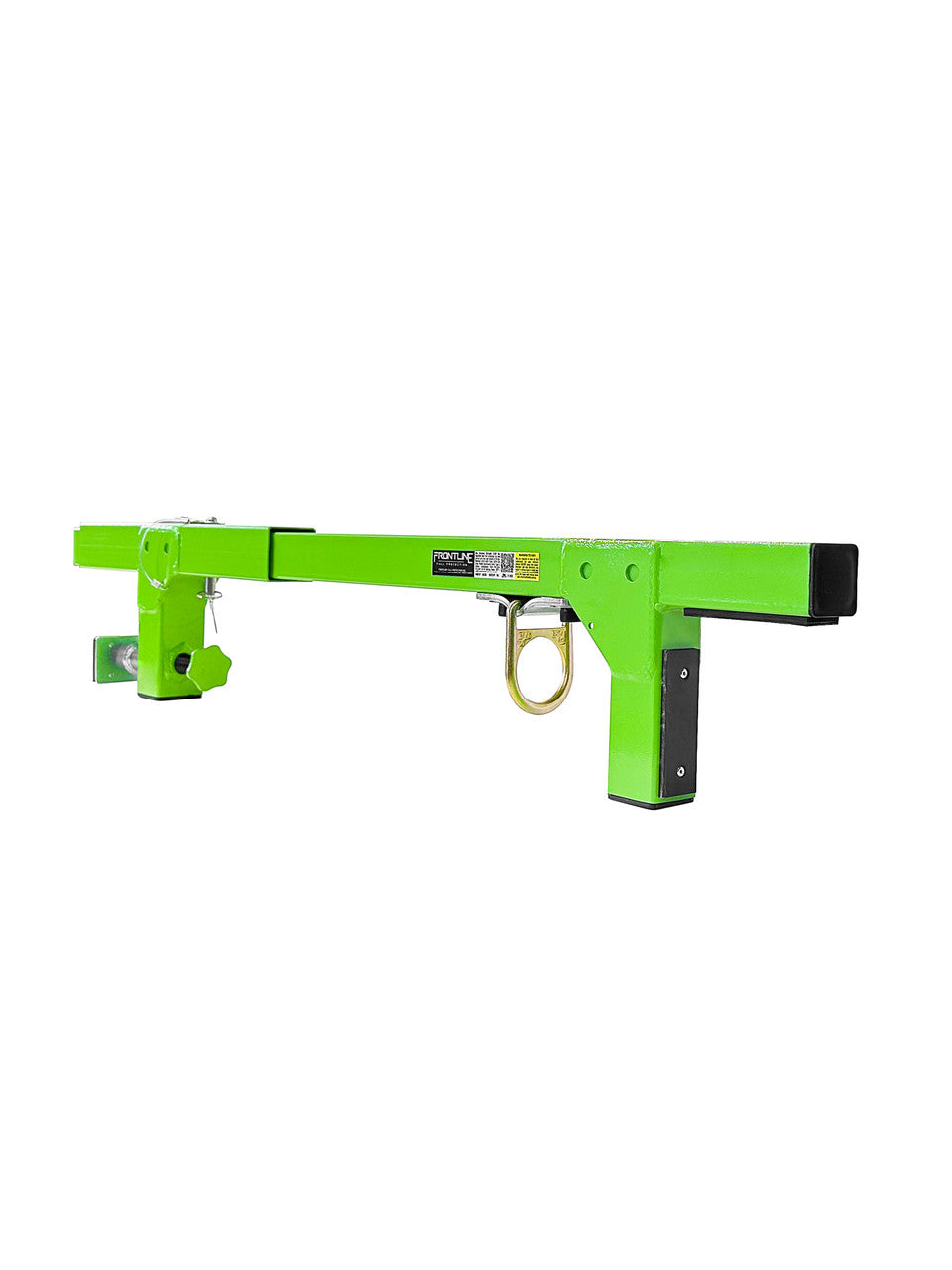

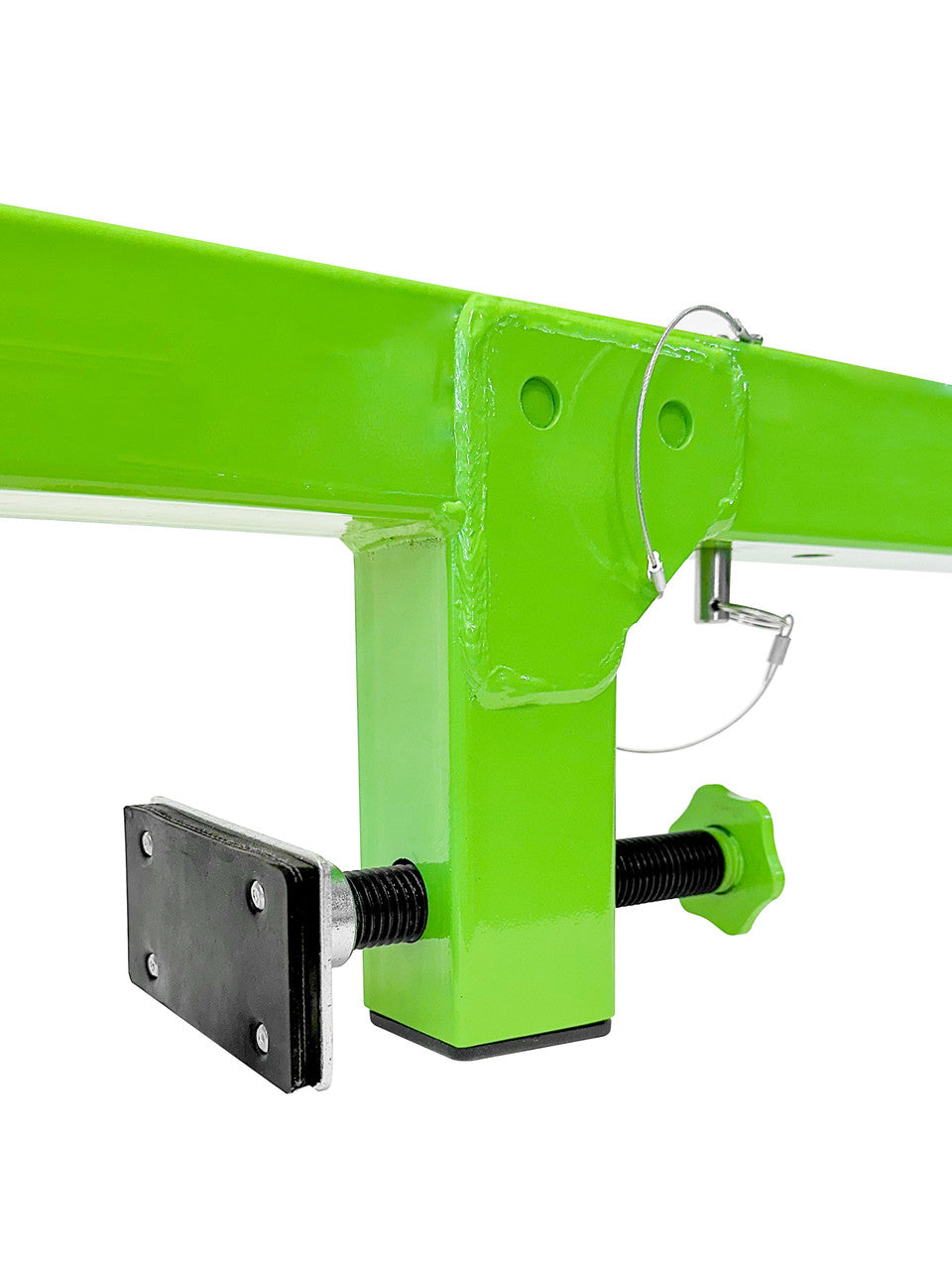

- Ergonomic adjustment handle for a snug fit between the jambs
- Sets up in seconds with no tools and no drilling
- Non-penetrating anchorage: nothing left in the frame

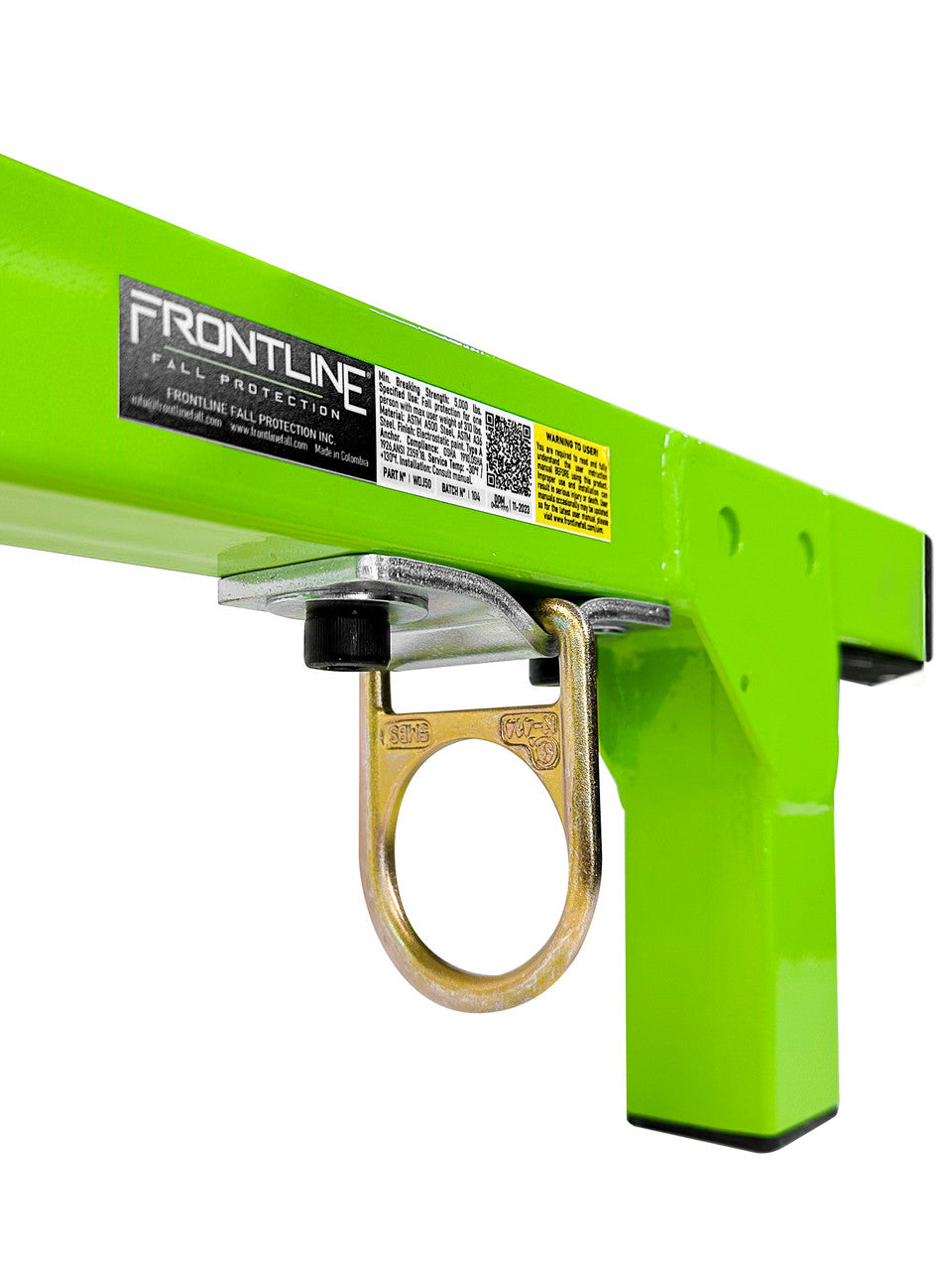

- Heavy-duty D-ring anchorage point
- ASTM-rated steel with a powder coating for corrosion resistance

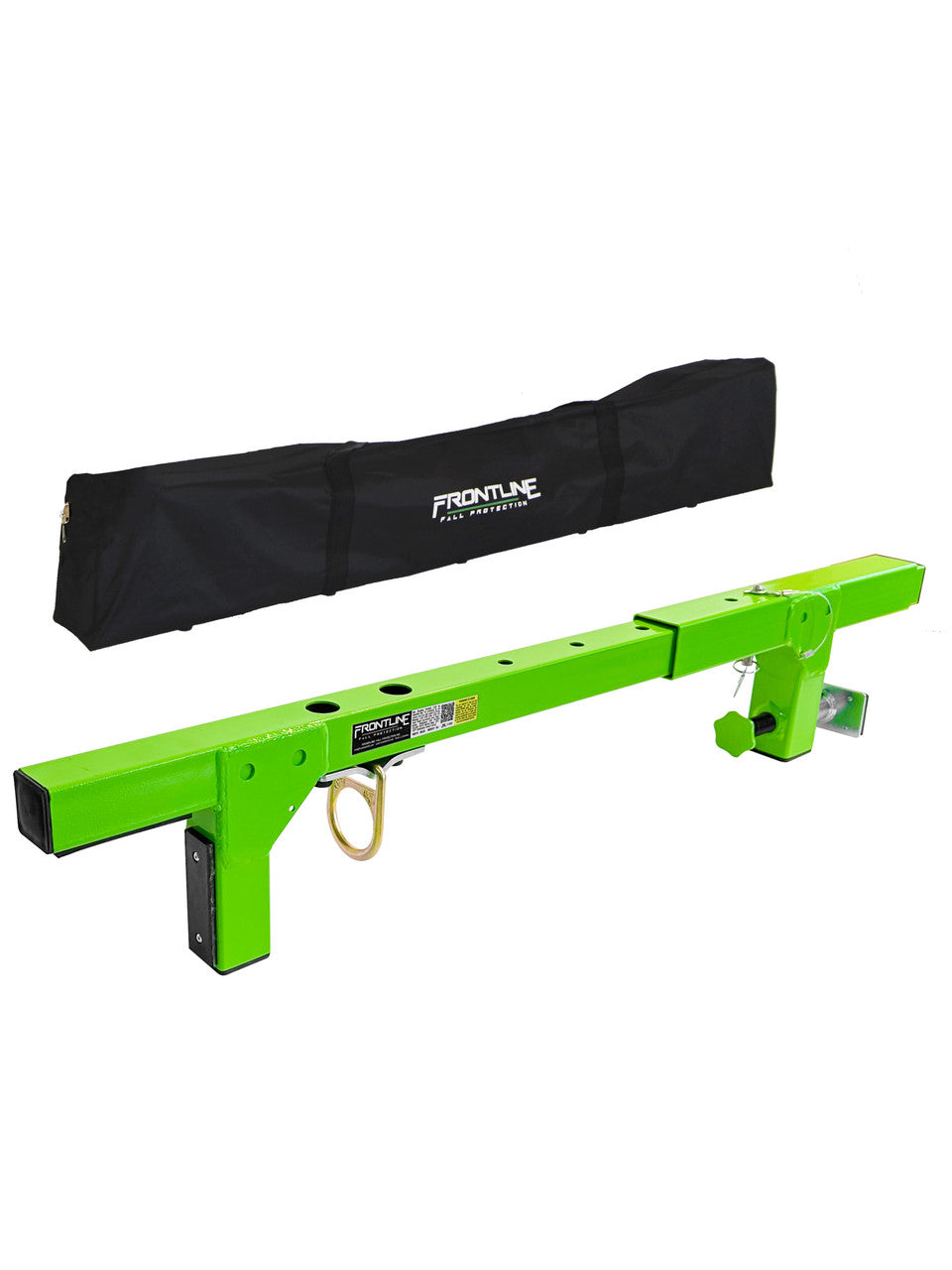

- Portable for transport, storage and use; Frontline-branded carry bag included
Frontline WDJ50 jamb anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | WDJ50 |
| Mounting | Compression between the vertical sides of a door or window frame |
| Opening width | 22 in to 50 in |
| Minimum breaking strength | 5,000 lb (23 kN) |
| User capacity | 310 lb |

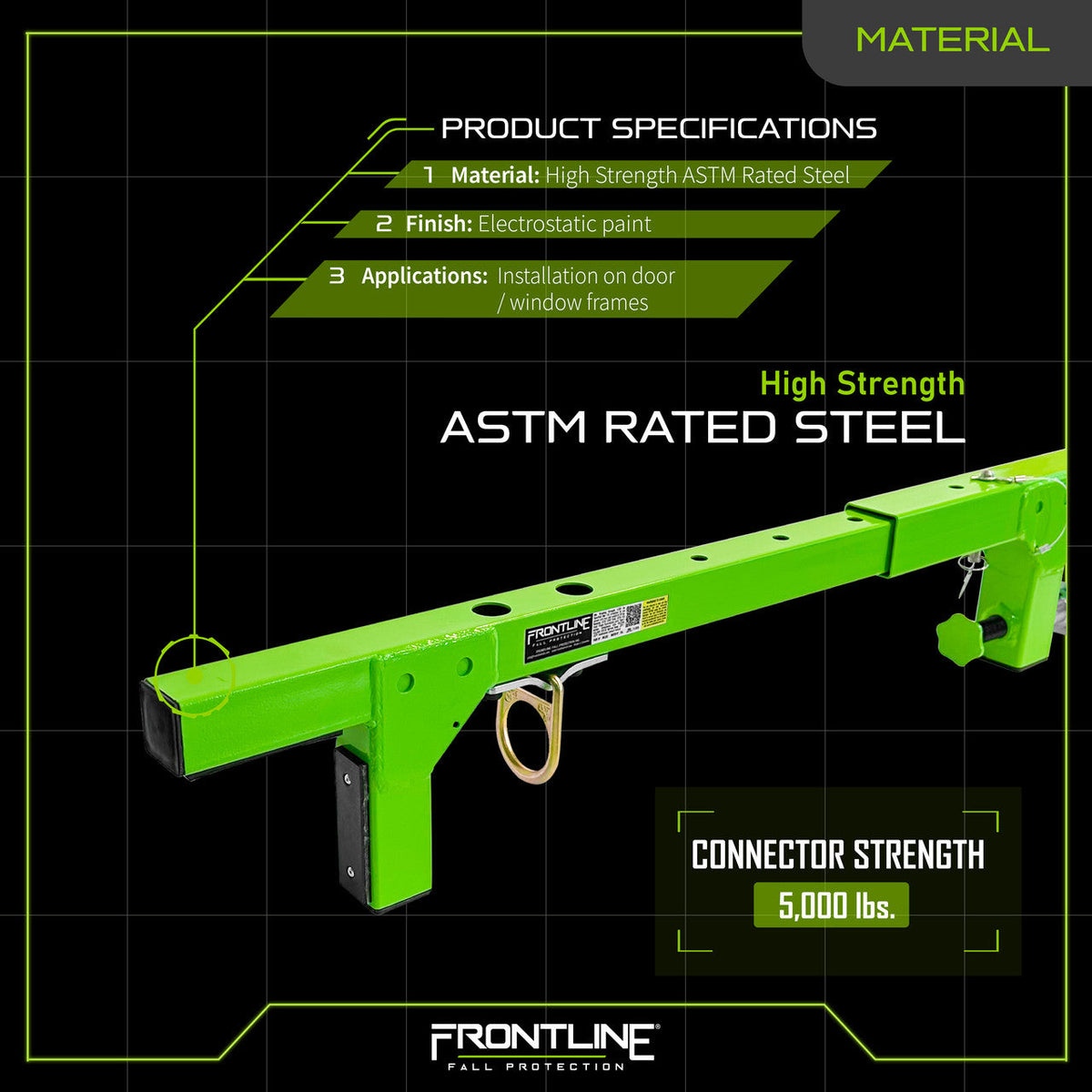

| Material | ASTM-rated steel, powder coated |
| Included | Frontline carry bag |

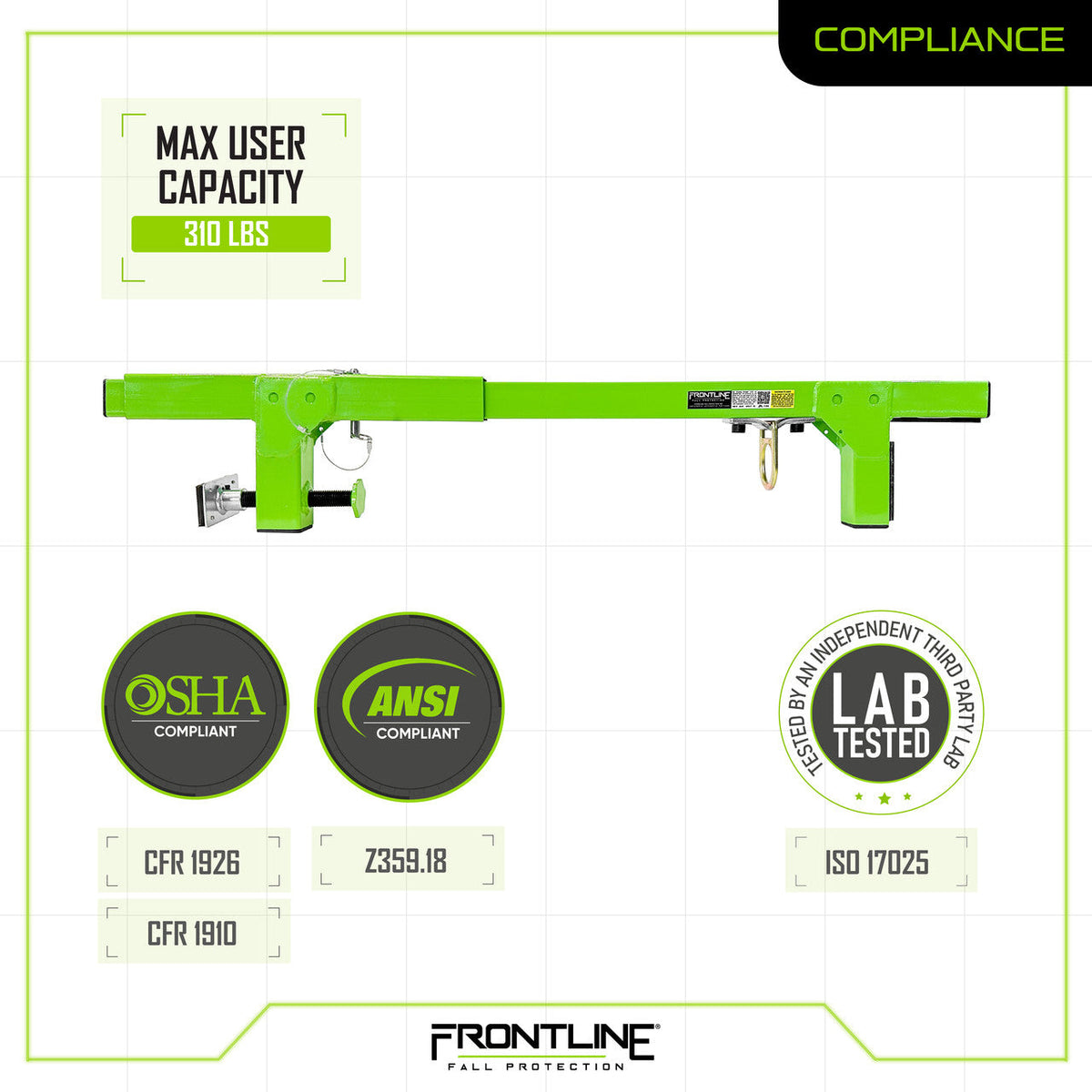

| Standards | Meets or exceeds OSHA 1926 Subpart M, OSHA 1910 and ANSI Z359.18-2017 |
| Unit weight | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline WDJ50 jamb anchor
Window and glazing
Anchor inside the opening while setting glass or frames from the exterior edge.
Balcony and railing work
Tie-off through the patio door for restraint at the slab edge.
Facade and cladding
Interior anchor for crews working the window line of a high-rise.
Restoration
Heritage and finished interiors where drilling an anchor is not an option.
Is the Frontline WDJ50 CSA certified? Compliance in Canada
Is the Frontline WDJ50 CSA certified?
No. Frontline rates it to OSHA 1926 Subpart M, OSHA 1910 and ANSI Z359.18-2017. For CSA-marked anchors, see our Safety Direct range.
What opening sizes fit the WDJ50?
Door or window frames from 22 in to 50 in wide, per Frontline. Measure the clear opening between the vertical jambs.
Does the WDJ50 damage the frame?
It is non-penetrating and uses non-skid protective pads to protect the finishes. The frame and wall must still be sound enough to take the load; confirm with a competent person.
How many workers can tie off to the WDJ50?
Frontline rates the user capacity at 310 lb; treat it as a single-user anchor unless Frontline's instructions say otherwise.
How often should the WDJ50 be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the arms, pads or D-ring are damaged.
Pair the Frontline WDJ50 anchor with an SRL or lanyard
The WDJ50 is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard (or a restraint lanyard) for a complete system.
