Malta Dynamics A6103 Beam Walker Super Slider I-Beam Anchor | Canada

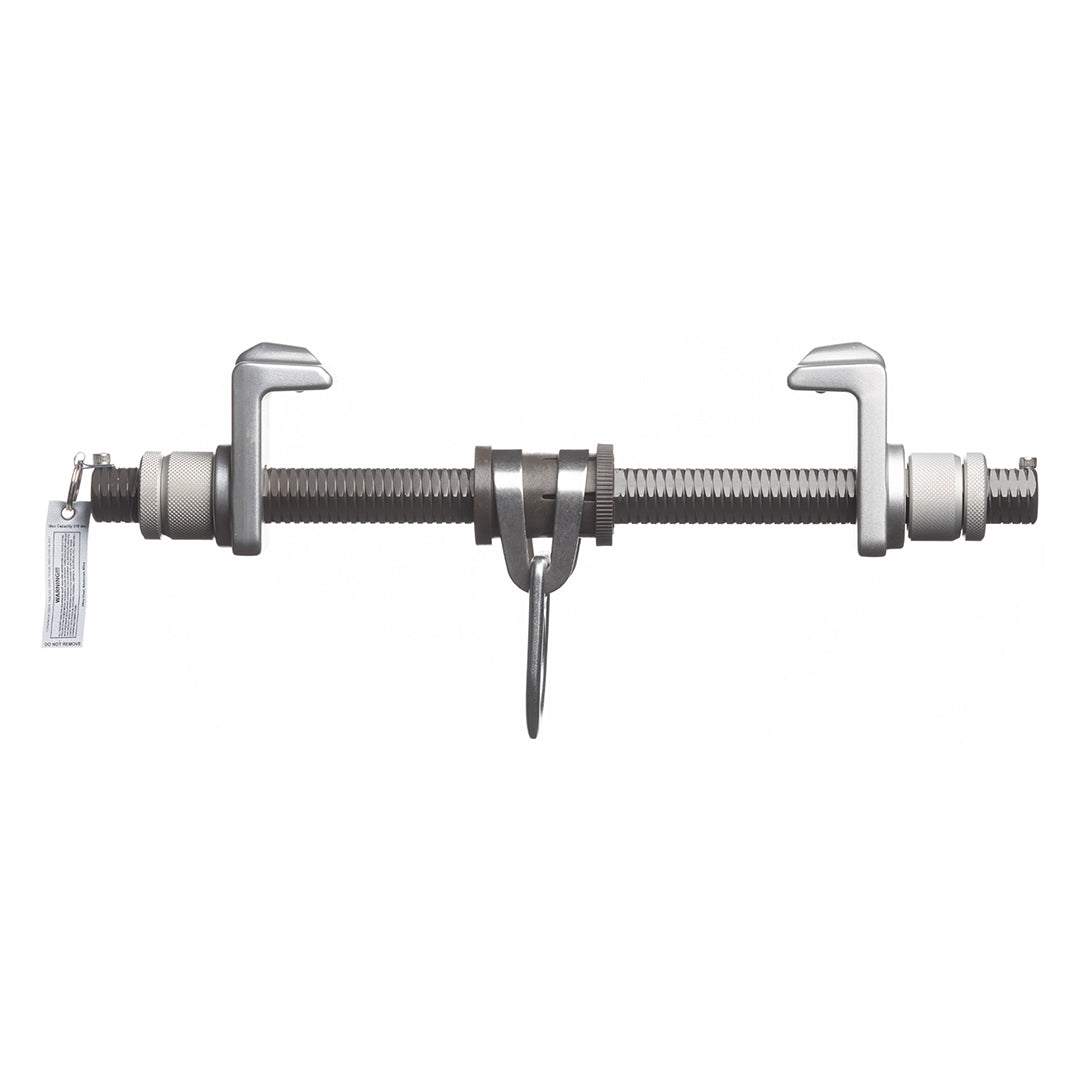

Malta Dynamics A6103 / A6104 Beam Walker Super Slider, sliding beam anchor. A fall arrest anchor that clamps over the top flange of a steel I or H beam and slides along it. The A6103 fits flanges 3.5 to 14 in. wide and the A6104 fits 3.5 to 24 in. Malta Dynamics lists it for fall protection, rope access and work positioning.
Malta Dynamics A6103 Beam Walker Super Slider key features
- Mounts on the top flange of steel I or H beams and slides along the beam
- Two sizes: A6103 for 3.5 to 14 in. flanges, A6104 for 3.5 to 24 in. flanges
- Fits flange thickness from 0.5 to 1 in.
- Breaking strength 5,000 lbf (22 kN)

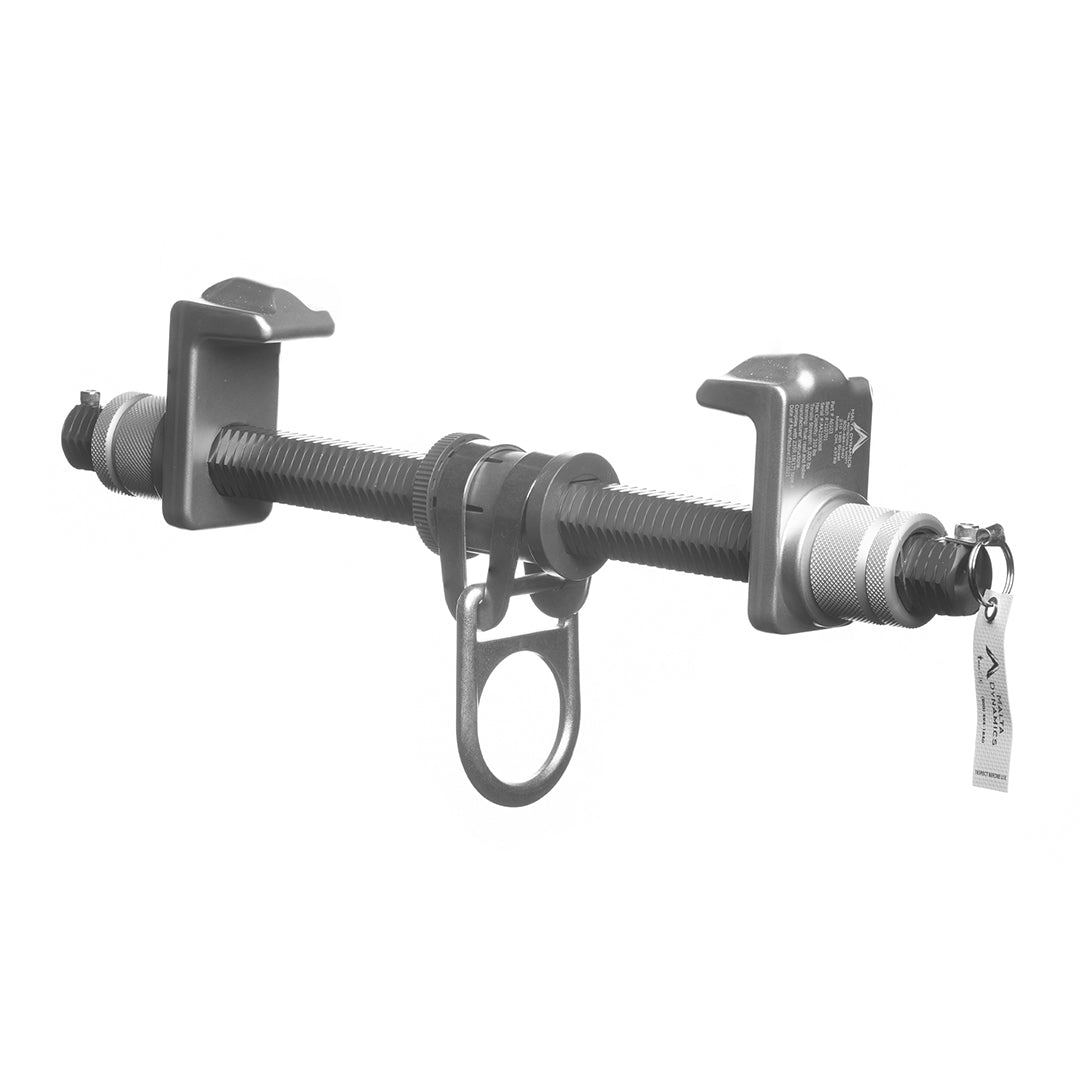

- Adjustable hook with latch handle and ratchet teeth that seat against the flange
- For fall protection, rope access and work positioning
Malta Dynamics A6103 / A6104 beam anchor specifications
| Manufacturer | Malta Dynamics |
|---|---|
| Model / SKU | A6103 (3.5-14 in.), A6104 (3.5-24 in.) |
| Beam flange width | 3.5 to 14 in. (A6103); 3.5 to 24 in. (A6104) |
| Beam flange thickness | 0.5 to 1 in. |
| Breaking strength | 5,000 lbf / 22 kN |
| Anchor type | Steel anchor |
| Weight | Malta Dynamics lists both 7.2 lb (3.35 kg) and 3.81 lb; ask us |
| Standards | ANSI Z359.18-2017, ANSI A10.32-12, OSHA 1926.502, OSHA 1910.66 |
| Structure requirement | Flange must hold a 5,000 lbf static load or meet the OSHA 1926.502 safety factor of two |
When to use the Malta Dynamics Beam Walker Super Slider
Steel erection
Tie off to a structural beam and slide with the work.
Plant maintenance
Anchor to overhead I-beams in mills, warehouses and plants.
Rope access
Malta Dynamics lists the anchor for rope access work.
Work positioning
Set a mobile anchor point along a beam for positioning tasks.
Is the Malta Dynamics A6103 CSA certified? Compliance in Canada
Is the Malta Dynamics A6103 Beam Walker CSA certified?
No. Malta Dynamics rates it to ANSI Z359.18-2017, ANSI A10.32-12 and OSHA, not CSA. For CSA-marked gear see our Safety Direct range.
A6103 or A6104: which Malta Dynamics size fits my beam?
Measure the flange width. The A6103 fits 3.5 to 14 in.; the A6104 fits 3.5 to 24 in. Both fit 0.5 to 1 in. flange thickness.
How do you install the Malta Dynamics Beam Walker slider?
Push in the latch, set both hooks over the flange edges, slide the adjustable hook snug, then pull back to seat the ratchet teeth. See the manual.
What beam strength does the Malta Dynamics A6103 need?
The flange must hold a 5,000 lbf static load, or meet the OSHA 1926.502 safety factor of two, as checked by a qualified person.
Pair the Malta Dynamics A6103 with an SRL and a harness
The Beam Walker Super Slider is the anchorage connector. Add a self-retracting lifeline or energy-absorbing lanyard and a full-body harness to complete the system.
