Malta Dynamics C5010 18" D-Ring Extender — Dorsal Connection Extension | Canada
HARNESS ACCESSORYANSI Z359 / OSHA · NOT CSAMODEL C5010

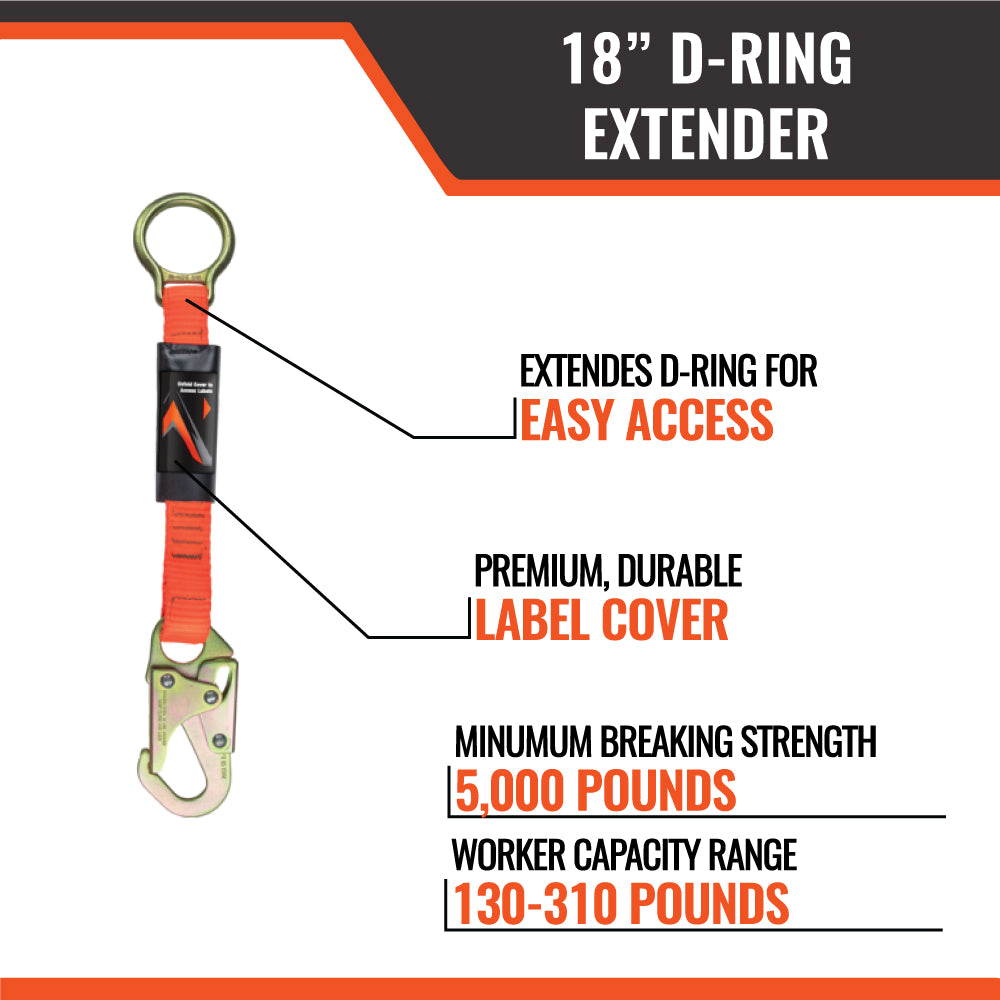

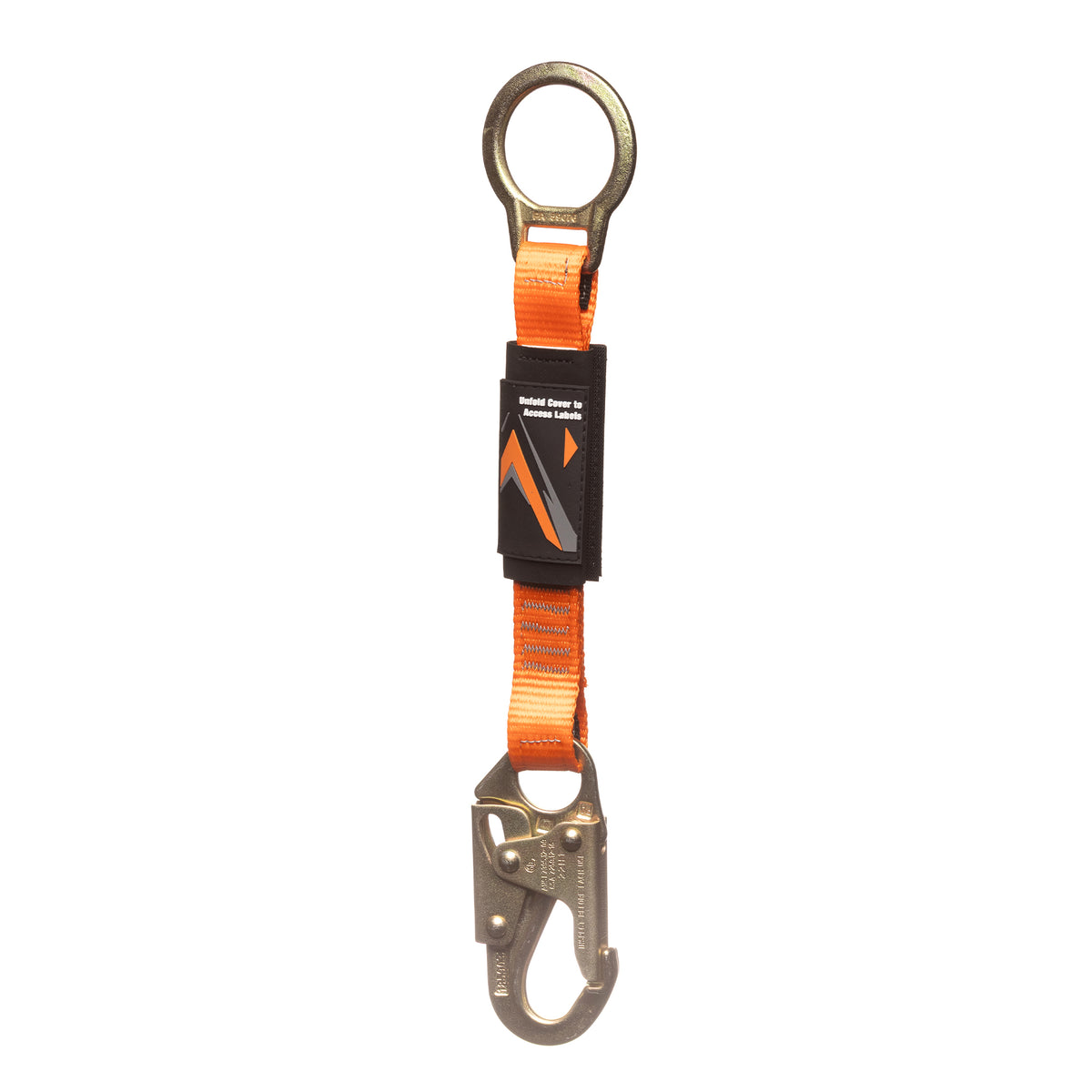

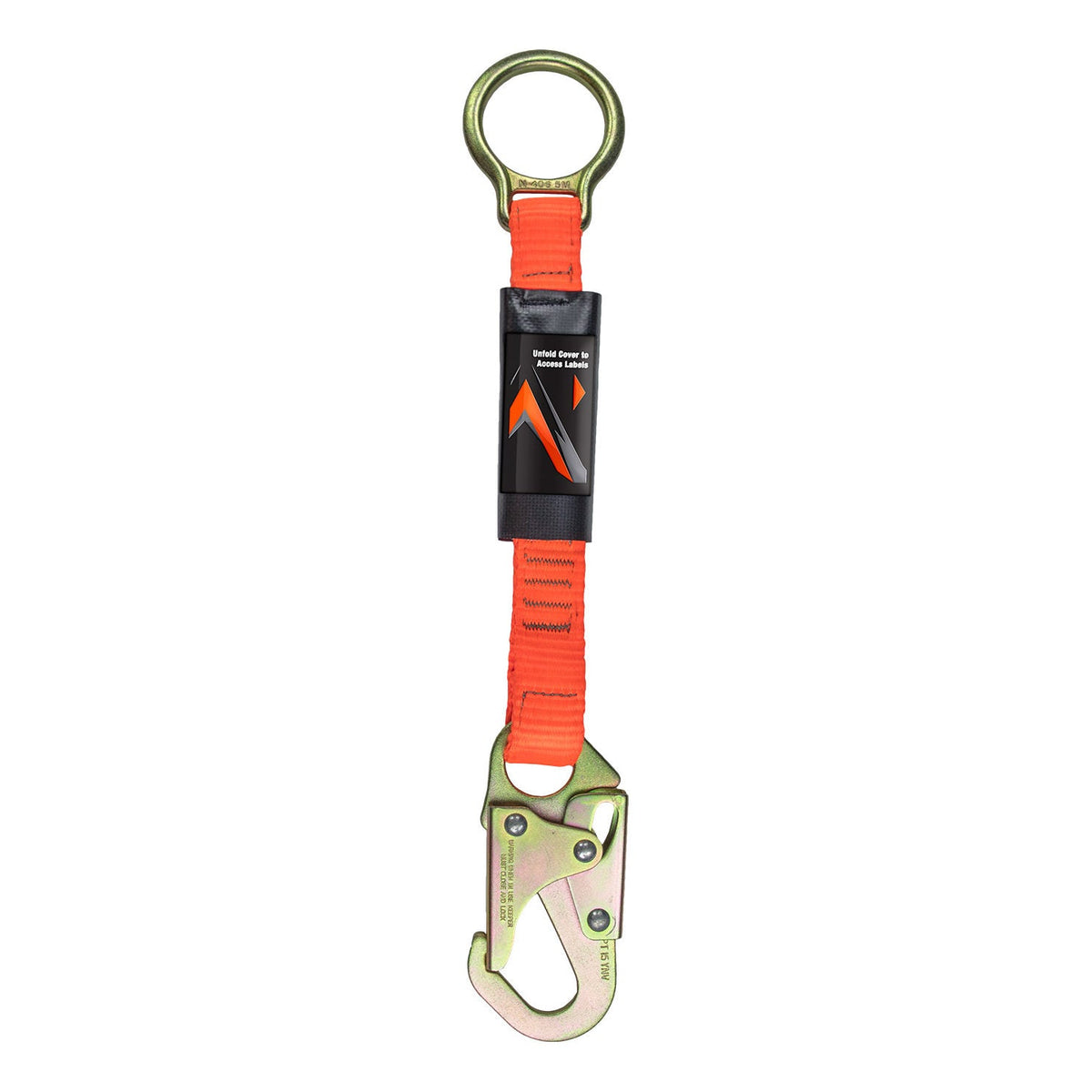

The Malta Dynamics 18" D-Ring Extender adds length to a harness dorsal D-ring so workers can connect and release lanyards more easily. The snap hook attaches to the harness dorsal D-ring and the O-ring becomes the new connection point. Built from strong polyester webbing and galvanized-steel hardware, with a 5,000 lb (22.2 kN) minimum tensile strength; ANSI rated 130-310 lb. For fall arrest or restraint only — not for leading-edge/foot-level tie-off.
Malta Dynamics C5010 18 in D-ring extender key features
Malta Dynamics C5010 18 in D-ring extender specifications
| Model | C5010 |
| Length | 18" |
| MBS | 5,000 lb (22.2 kN) |
| Capacity | 130-310 lb |

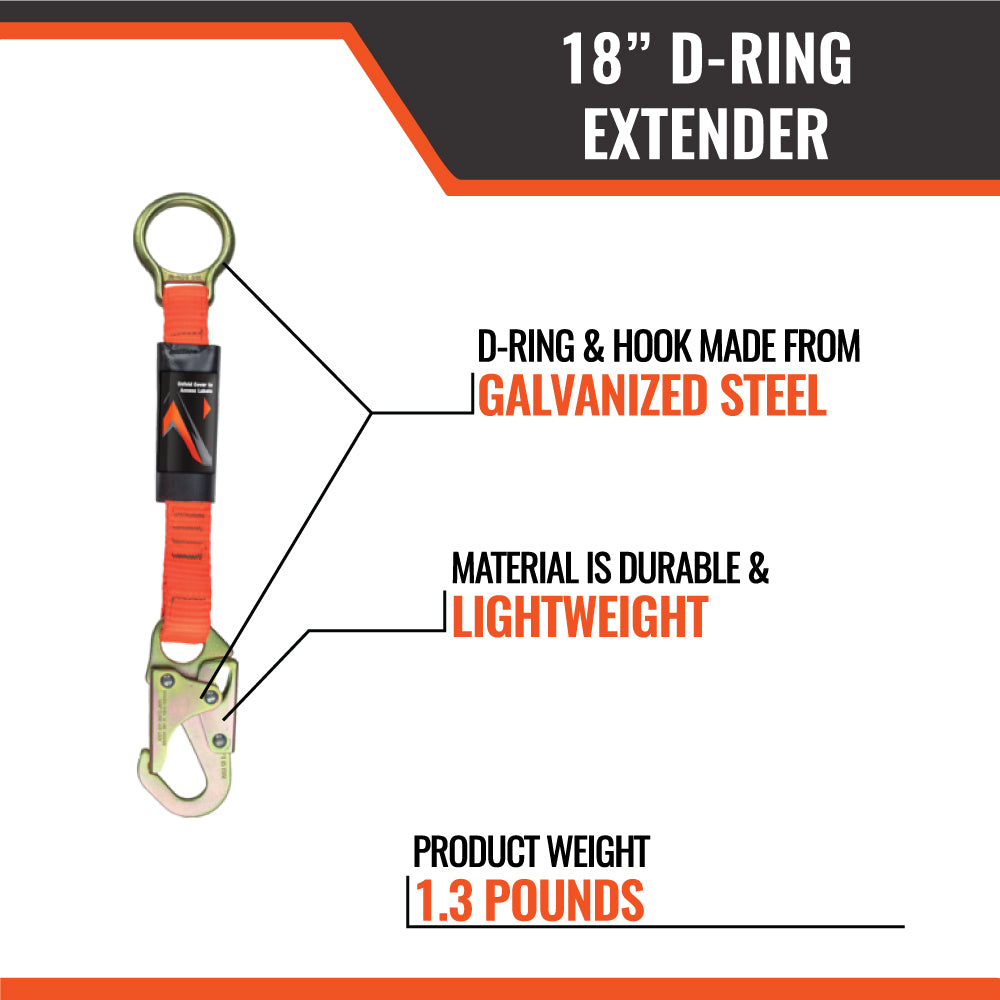

| Material | Polyester webbing, galvanized steel hardware |
| Standards | ANSI, OSHA |
| Brand | Malta Dynamics |
CERTIFICATION — ANSI Z359 / OSHA · NOT CSA
Malta Dynamics lists this product as meeting ANSI Z359 and OSHA 1910/1926 requirements. It is not CSA Z259 certified. If your site or jurisdiction requires CSA-marked fall protection, see our Safety Direct collection; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use.
Malta Dynamics C5010 18 in D-ring extender FAQ for Canadian sites
Is the Malta Dynamics C5010 CSA certified for Canadian sites?
No. Malta Dynamics lists the C5010 as meeting ANSI Z359 and OSHA 1910/1926 requirements; it is not CSA Z259 certified. Many Canadian sites accept ANSI/OSHA-rated equipment, but confirm with your site safety officer and provincial OHS authority before use. If your site requires the CSA mark, see our Safety Direct collection.
What is the Malta Dynamics C5010 D-ring extender for?

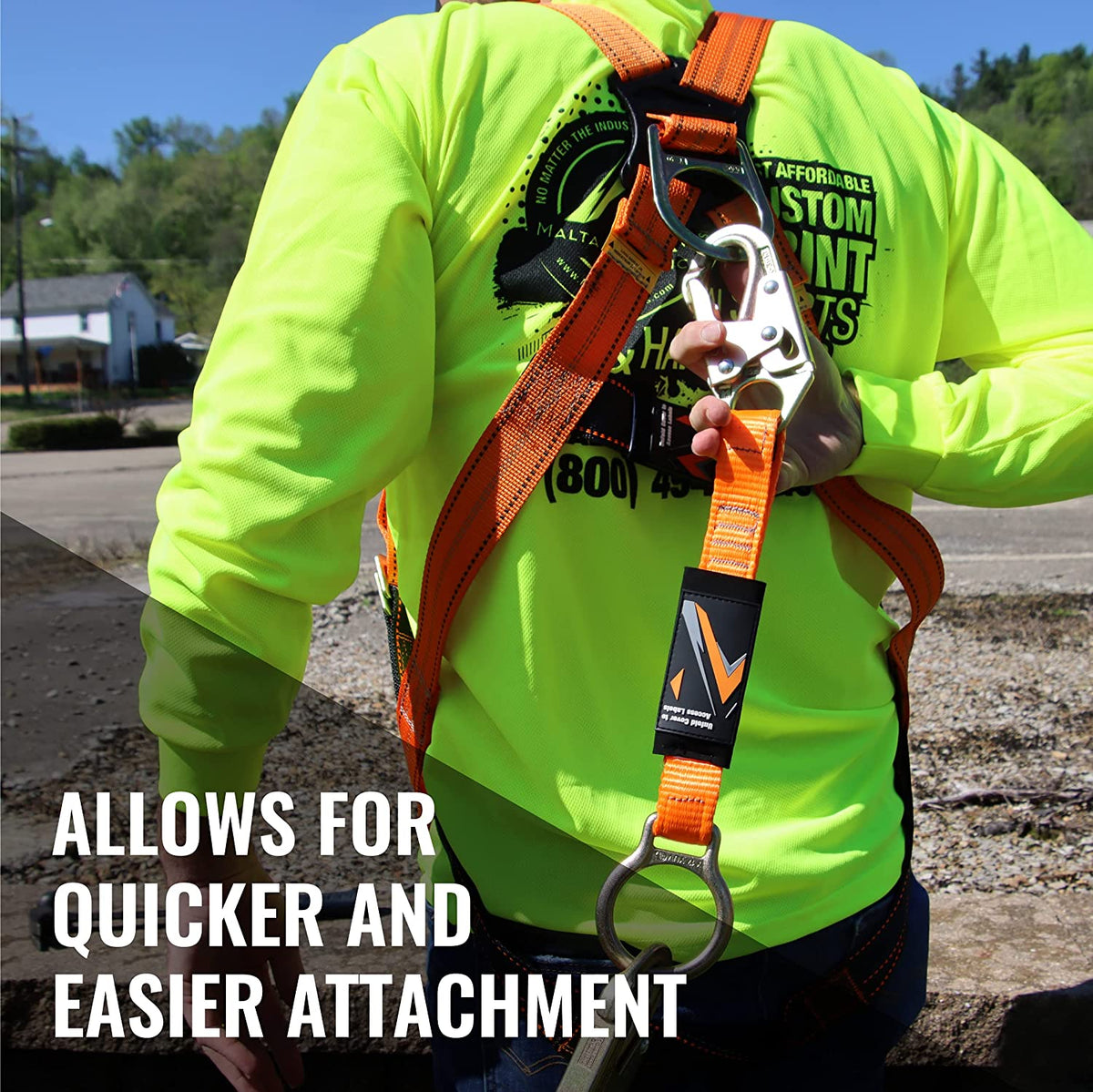

It adds 18" of reach to the harness dorsal D-ring so a worker can attach and release a lanyard more easily without help. The O-ring on the extension becomes the connection point.
Does the C5010 D-ring extender affect fall clearance?
Yes — the extender adds to your potential free-fall distance, so include its length when calculating fall clearance and deceleration distance.
When should the Malta Dynamics C5010 extender not be used?
It is not suitable for leading-edge or foot-level tie-off, work positioning, suspension, or rescue. Use it only for fall arrest or restraint with compatible components limiting arrest forces to 1,800 lb or less.
How often should the Malta Dynamics C5010 be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall or if the inspection finds deformation, cuts, corrosion or other damage.
