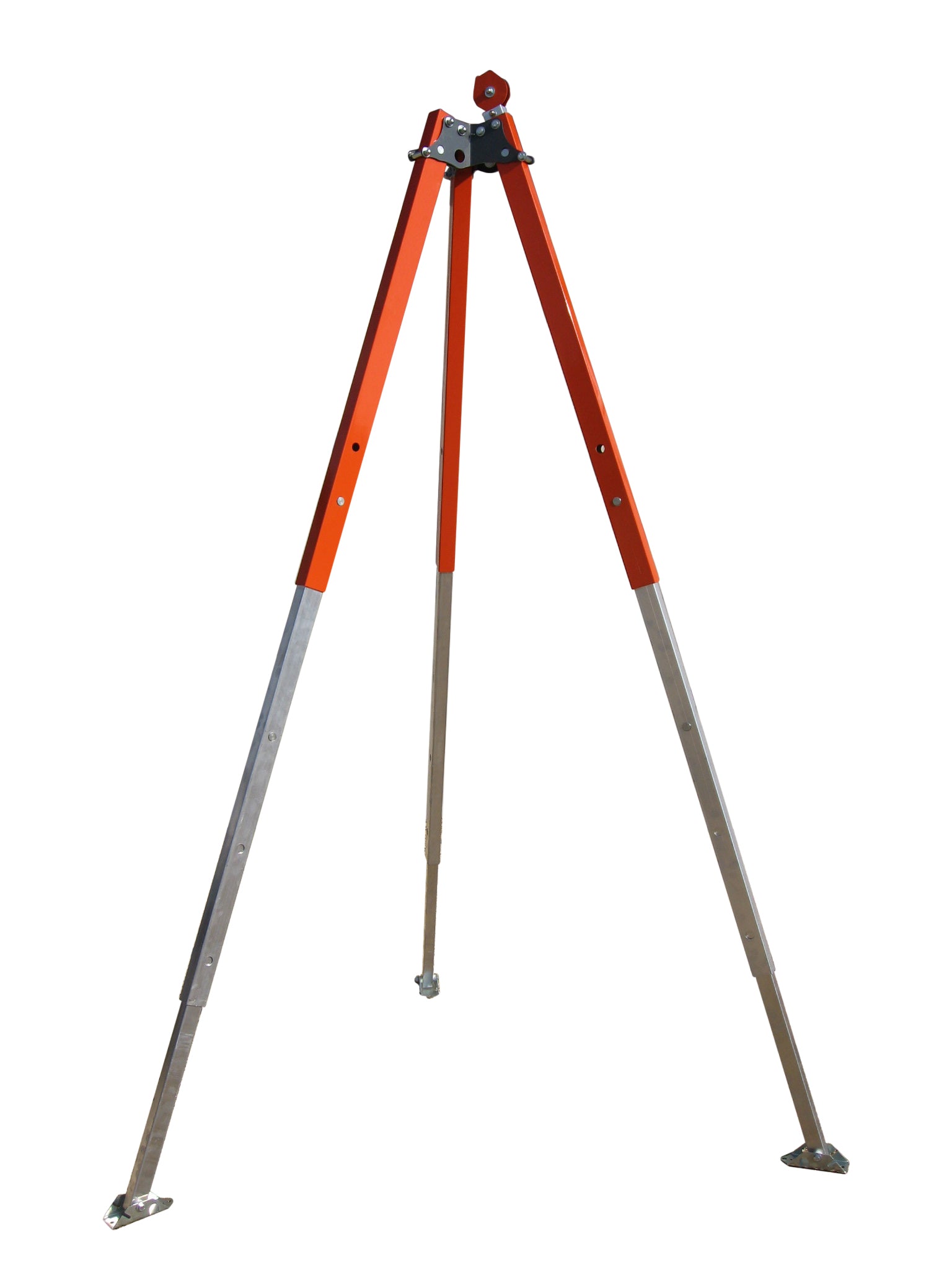

Safety Direct 3-Stage Collapsible Confined Space Tripod
3-Stage Collapsible Confined Space Tripod
CSA Z1006 requires mechanical retrieval capability over every vertical confined space entry in Canada, and CSA Z259.2.3 requires that rescue equipment be pre-positioned before entry begins. A collapsible aluminum tripod is the anchor structure that makes both requirements possible — it places a rated overhead anchor at the entry point without fixed construction.
The Safety Direct 3-Stage Collapsible Tripod is the structural component of a confined space entry/retrieval program. Use it as a standalone anchor over an entry point, or pair it with a man-rated retrieval winch or SRL to build a complete system.
Why a Collapsible Tripod
- CSA-compliant overhead anchor. Provides a rated anchor point directly over the entry opening — where harnessing a worker to a permanent structure isn't possible.
- 3-stage collapse. Transports in a service van and sets up at the next entry point in minutes.
- Height options for every entry. 7 ft for standard manholes and small vessels; 10 ft for larger openings and greater cable clearance.
- Pairs with any man-rated winch or SRL. Modular design lets you match retrieval equipment to the specific entry.
Product Overview
The 3-stage aluminum tripod is the anchor structure for confined space entry. Each leg telescopes to the working height, locks into position, and plants on the ground around the entry opening. A connection point at the apex accepts a rated retrieval winch, SRL, or personal fall arrest system.
This is the tripod only — add a retrieval winch or SRL separately (see our confined space kit if you'd rather buy the combined bundle).
Key Features
- 3-stage collapsible aluminum construction
- Available in 7 ft or 10 ft working heights
- Rated apex anchor for man-rated retrieval equipment
- Leg locks to maintain set height under load
- Designed for CSA Z1006 confined space entry programs
- Pairs with separately-sold retrieval winch or SRL
Specifications
| Attribute | Detail |
|---|---|
| Type | 3-stage collapsible aluminum tripod |
| Height Options | 7 ft, 10 ft |
| Apex Anchor | Rated for man-rated retrieval equipment |
| Primary Standards | CSA Z259.2.3 (rescue), CSA Z1006 (confined space) |
| Country of Origin | Canada (Safety Direct Ltd.) |
Available Configurations & Pricing
| SKU | Height | MSRP (CAD) |
|---|---|---|
| BTT30012 | 7 ft 3-Stage Collapsible Tripod | $1,973.90 |
| BTT30014 | 10 ft 3-Stage Collapsible Tripod | $2,407.20 |
CSA Compliance
This tripod supports a CSA Z1006-compliant confined space entry program and provides the anchor capability required by CSA Z259.2.3 rescue planning. Pair with a man-rated winch (CSA Z259.2.3) to satisfy both standards end-to-end.
What Else You Need for a Complete Confined Space Program
- Man-rated retrieval winch (see our Safety Direct winch listing) or retrieval SRL
- CSA Z259.10 full-body harness for the entrant
- Gas monitor, ventilation, and communication equipment (not sold here)
- Written entry permit and rescue plan per CSA Z1006
Equip Your Confined Space Program
Pair this tripod with a man-rated winch, SRL, and compliant harness to complete your CSA Z1006 entry system.
