N274 - Aluminum Self-Locking
$17.95
Skip to product information

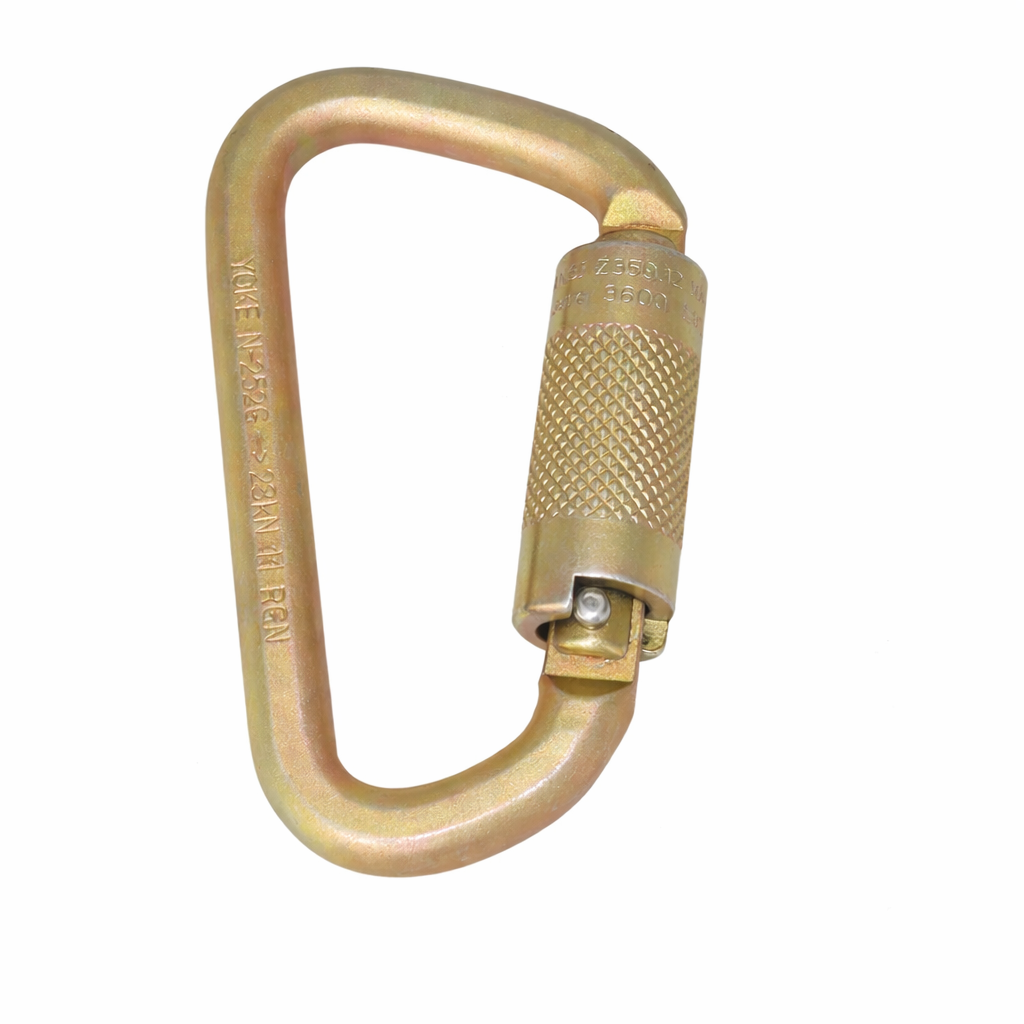

Safety Direct Carabiners — Steel & Aluminum (Canada)
$17.95
CSA Z259.12 · Gate Strength to 3,600+ lbf
Safety Direct Carabiners — Steel & Aluminum
Complete lineup of CSA Z259.12-certified connecting carabiners for Canadian fall protection systems. Steel and aluminum options with captive-eye, auto-lock, and triple-lock variants.
Key Features
- CSA Z259.12-16 certified — all models meet or exceed the 16 kN (3,600 lbf) minimum gate-strength requirement for Canadian fall protection connectors.
- Steel + aluminum options — choose steel for abrasion and strength, aluminum for weight reduction on long harness-to-anchor configurations.
- Captive-eye and standard models — captive-eye pin prevents roll-out when connected to an energy absorber or D-ring.
- Auto-locking + triple-lock gates — eliminate accidental gate opening during dynamic movement.
- Gate openings from 17 mm to 50 mm (1.96") — select based on the anchor or D-ring diameter you need to clear.
Specifications
| Standard | CSA Z259.12-16 Class 1 Connectors |
|---|---|
| Min. Gate Strength | ≥ 16 kN (3,600 lbf) |
| Materials | Zinc-plated steel, stainless steel, 7075-T6 aluminum |
| Gate Openings | 17 mm – 50 mm (0.67" – 1.96") |
| Gate Types | Auto-lock, triple-lock, captive-eye |
SKUs & Pricing
| Item No. | Description | MSRP (CAD) |
|---|---|---|
| N247G US | Large Steel Carabiner, 3,600 lb gate | $48.00 |
| N248G | 24 mm Gate Steel Carabiner | $44.10 |
| N250G | Small Steel Carabiner | $45.40 |
| N251G | 17 mm Steel Carabiner | $26.20 |
| N252G | Steel Carabiner — Captive Eye Pin, 3,600 lb gate (0.78" opening) | $44.10 |
| N258-G | Steel Gate-Rated Carabiner, 29 mm | $46.80 |
| N259/2 | Scaffold Carabiner 2-1/8" opening — 32 kN | $110.10 |
| N261-G | Steel Captive-Eye Carabiner, 3,600 lb gate (0.79" opening) | $44.10 |
| N274 | Aluminum Self-Locking Carabiner | $17.95 |
| N2853G | Aluminum Carabiner, 3,600 lb gate | $55.45 |
| N2855G | Aluminum Captive-Eye Carabiner, 3,600 lb gate (0.86" opening) | $37.40 |
| N2859G-TRCP US | Rescue Carabiner — Triple-Lock with Captive Pin | $48.00 |
| N2868G-CP | Aluminum Carabiner, 3,600 lb gate, Captive-Eye Pin (1.96" opening) | $75.75 |
CSA Compliance
All Safety Direct carabiners are certified to CSA Z259.12-16 — Connecting Components for Personal Fall-Arrest Systems (PFAS). This standard mandates a minimum gate strength of 16 kN (3,600 lbf) for Canadian fall protection connectors — substantially higher than the ANSI/OSHA minimum. Required for all Canadian federal and provincial work at heights.
Need Help Selecting the Right Model?
Our team helps Canadian safety managers, contractors, and industrial buyers configure compliant fall protection systems daily.
Browse Fall Protection Hardware
