Safety Direct Confined Space Tripod + Winch Kit
Confined Space Tripod + Winch Kit
Confined space entry in Canada is governed by CSA Z1006 and triggers a rescue requirement under CSA Z259.2.3. Entry cannot begin until a documented rescue plan is in place and mechanical retrieval capability is positioned at the entry point. A tripod with a man-rated retrieval winch is the industry-standard solution for vertical-entry confined spaces — manholes, vessels, tanks, vaults, and pits.
The Safety Direct Tripod + Winch Kit is a complete entry/retrieval system supplied as a single SKU: a 3-stage collapsible tripod plus a 60 ft retrieval winch with galvanized cable and mounting bracket. Deploy at the entry point, winch the entrant in, and retrieve them mechanically if an emergency occurs.
Why a Tripod + Winch Entry System
- CSA Z1006 confined space compliance. Vertical entry requires mechanical advantage for retrieval — a rescuer cannot lift an incapacitated entrant from above by hand.
- CSA Z259.2.3 rescue capability. Pre-positioned retrieval equipment satisfies the documented on-site rescue requirement.
- Man-rated retrieval. The winch is rated to lift a suspended worker, not just materials — critical compliance distinction.
- Fast deployment. 3-stage collapsible design sets up in minutes and breaks down for transport between sites.
Product Overview

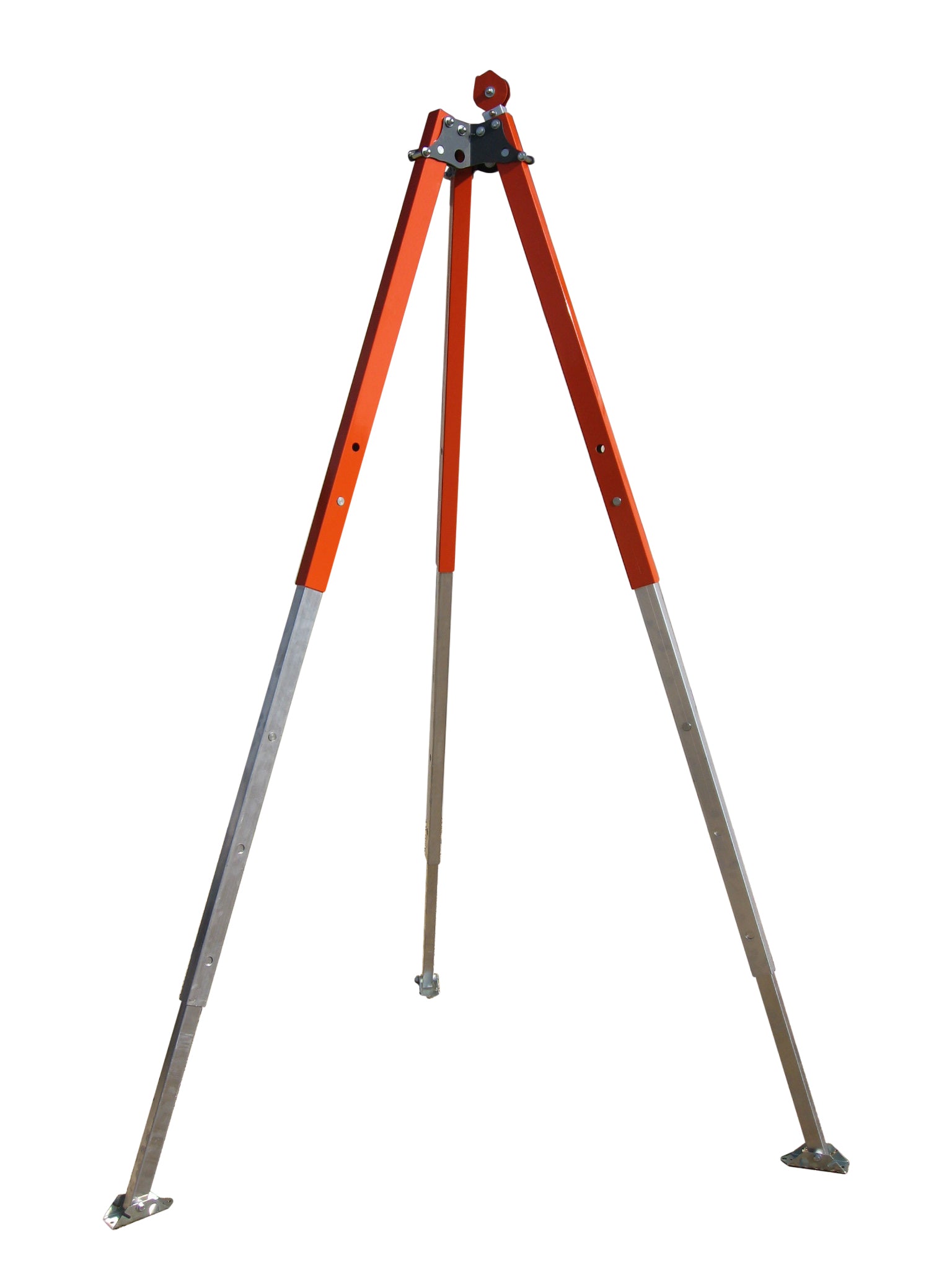

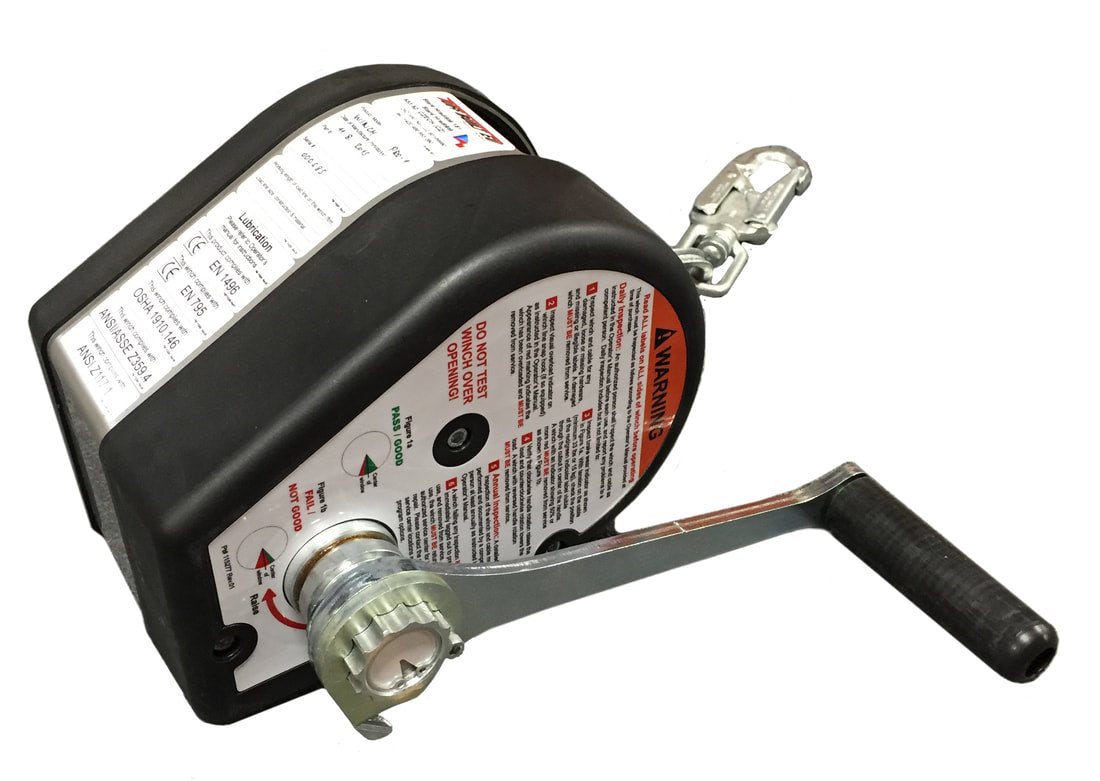

This kit combines a 3-stage collapsible aluminum tripod with a 60 ft steel retrieval winch pre-mounted to the tripod leg. The entrant descends and works in the space while connected to the winch cable through their dorsal D-ring. If an emergency occurs, the attendant at the surface can mechanically retrieve the entrant without entering the space themselves — which is the central safety principle of confined space rescue.
Available in 7 ft and 10 ft tripod heights. Select the height based on the entry opening and the clearance required above it for worker movement and cable deflection.
Key Features
- Pre-assembled tripod + winch + mounting bracket — one purchase, one part number
- 3-stage collapsible tripod for transport and storage
- 60 ft man-rated retrieval winch included
- Available in 7 ft or 10 ft tripod heights
- Meets CSA Z1006 confined space entry and CSA Z259.2.3 rescue requirements
- Supplied complete — no field assembly of components
Specifications
| Attribute | Detail |
|---|---|
| Tripod Type | 3-stage collapsible aluminum |
| Tripod Height Options | 7 ft, 10 ft |
| Winch Cable Length | 60 ft |
| Winch Rating | Man-rated (personnel retrieval) |
| Primary Standards | CSA Z259.2.3 (rescue), CSA Z1006 (confined space) |
| Supporting Standard | CSA Z259.12 (connectors) |
| Country of Origin | Canada (Safety Direct Ltd.) |
Available Configurations & Pricing
| SKU | Configuration | MSRP (CAD) |
|---|---|---|
| BTT20004 | 7 ft Kit — 3-Stage Tripod + 60 ft Winch + Bracket | $5,639.85 |
| BTT20005 | 10 ft Kit — 3-Stage Tripod + 60 ft Winch + Bracket | $6,073.20 |
CSA Compliance
This kit is intended to satisfy:
- CSA Z259.2.3 — Descent Control Devices and rescue equipment
- CSA Z1006 — Confined space management (Canadian standard for vertical entry)
- CSA Z259.12 — Connecting components supplied with the kit
Confined space entry programs require written procedures, trained attendants, and a documented rescue plan. This kit is the retrieval equipment — pair it with the rest of your program.
What Else You Need for a Complete Confined Space Program
- CSA Z259.10 full-body harness with dorsal and sternal attachment for the entrant
- CSA Z259.2.2 personal SRL if secondary fall protection is required at the surface
- Gas monitor, ventilation, and communication equipment (not sold here)
- Written entry permit and rescue plan specific to the space
- Trained entrant, attendant, and rescuer per CSA Z1006
Equip Your Confined Space Program
Pair this kit with harnesses, SRLs, and anchors to satisfy CSA Z1006 and Z259.2.3 end-to-end.
