Frontline ST10HTK Aluminum Beam Trolley Anchor, 3–10 in I-Beam | Canada

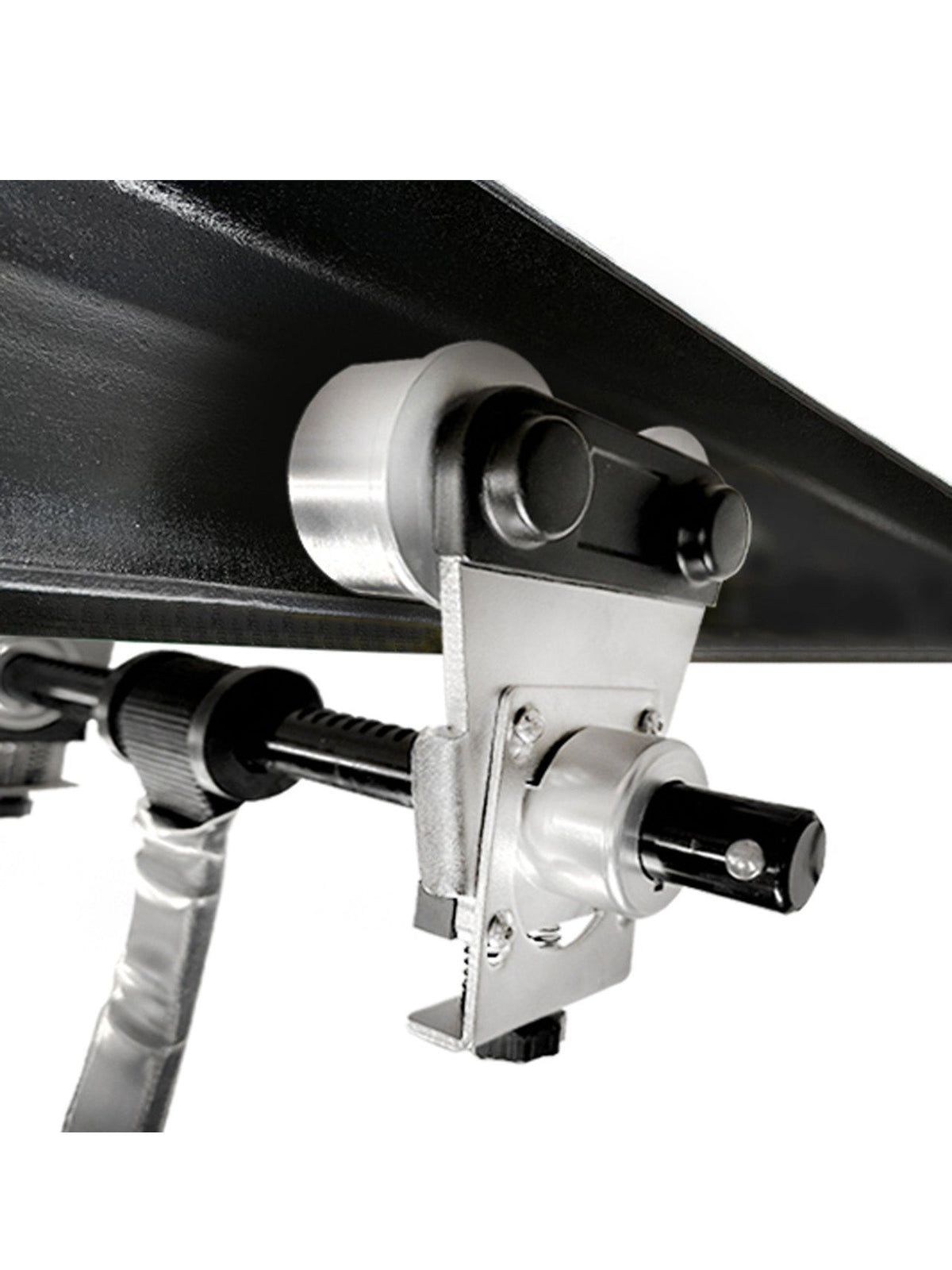

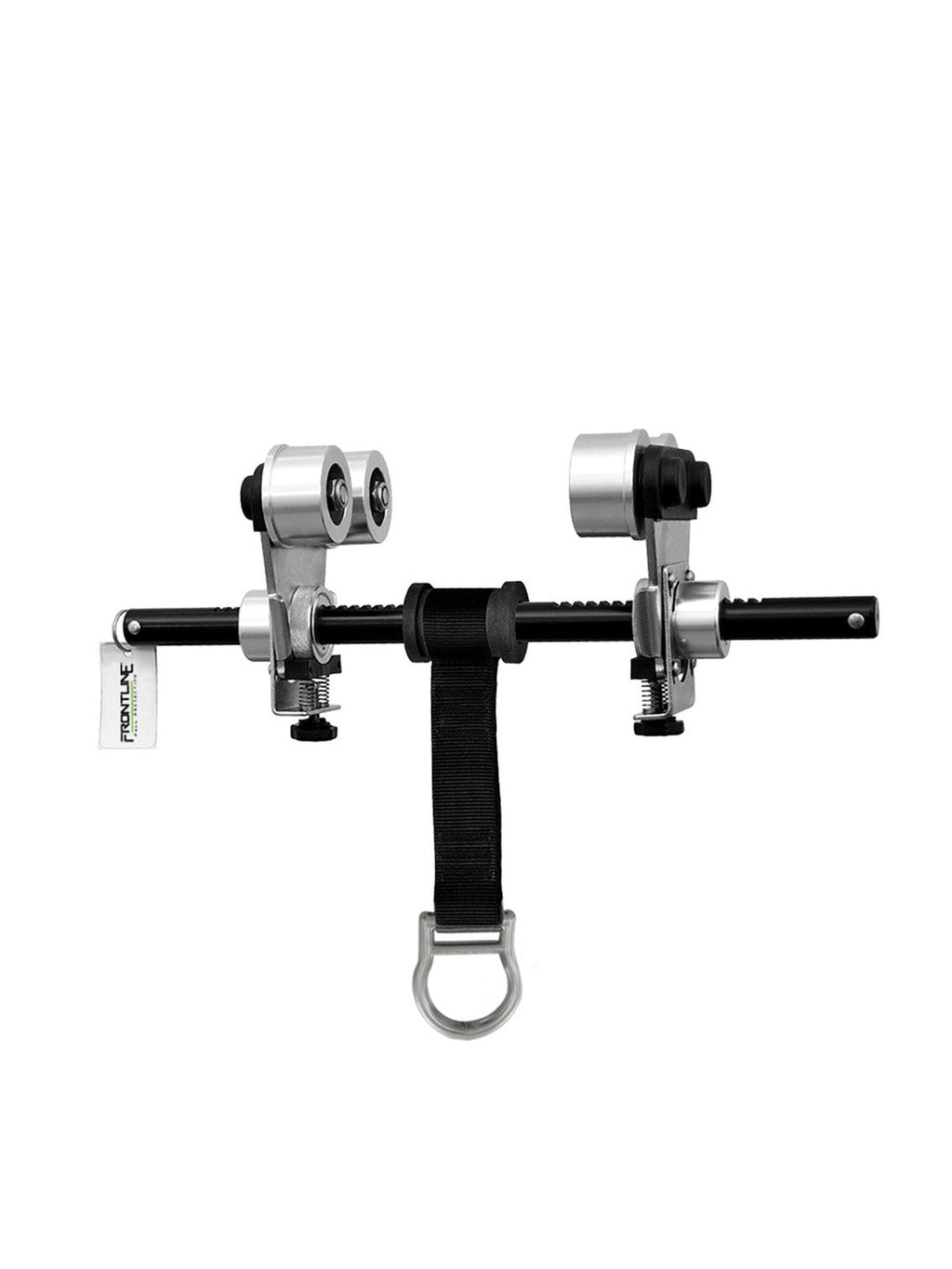

Frontline ST10HTK Aluminum Beam Trolley Anchor, 3–10 in I-Beam | Canada. A removable, reusable rolling I-beam anchor: aluminum rollers glide along the flange and follow the worker, and the D-ring sits centred on the connector so it tracks smoothly. Adjusts from both sides to 3 in to 10 in wide flanges up to 1 in thick, with a 360° swivel D-ring that pivots 180° to avoid side loading. Single user, SRL or shock-absorbing lanyard, 5,000 lbf (22 kN), 9.2 lb.

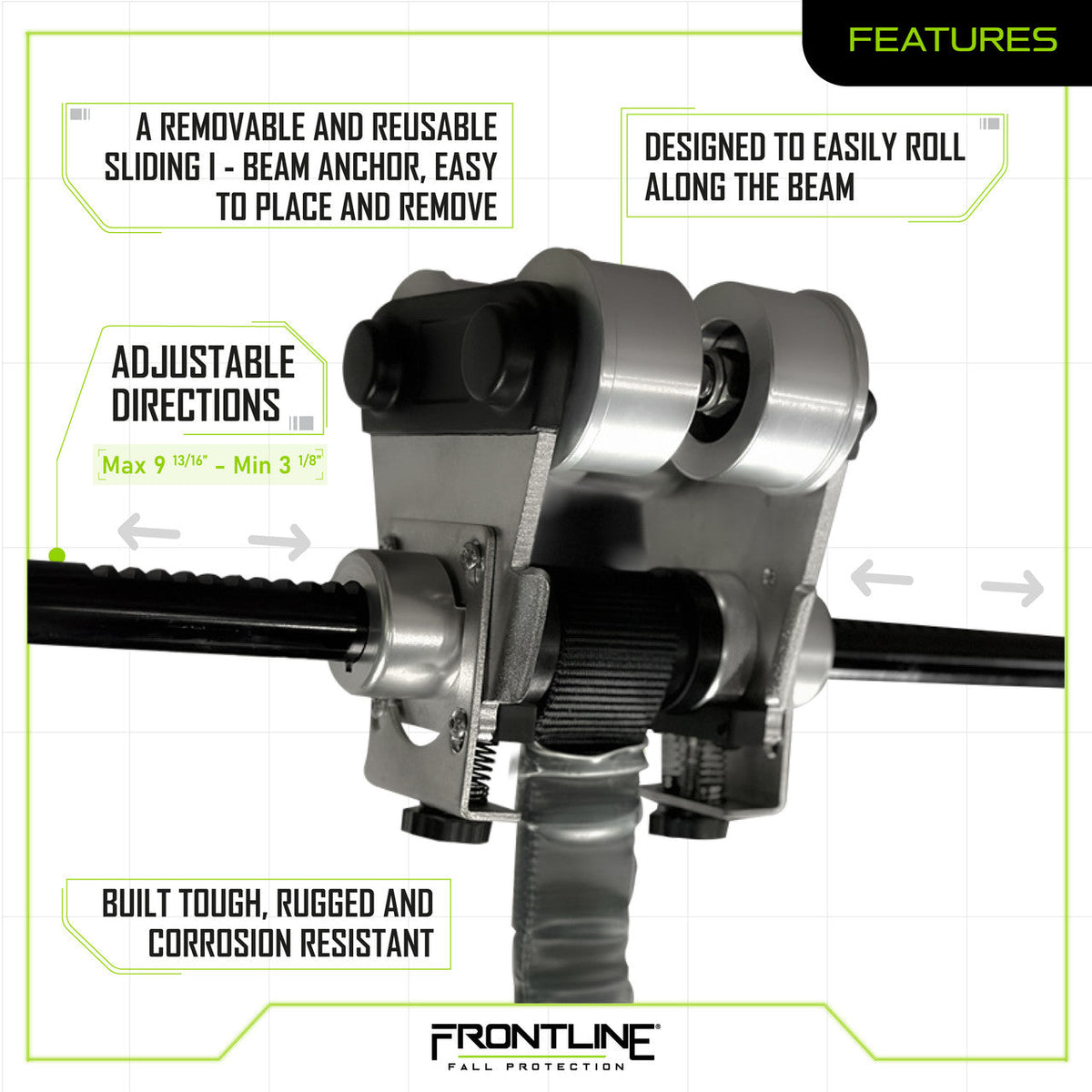

Frontline ST10HTK beam trolley anchor key features

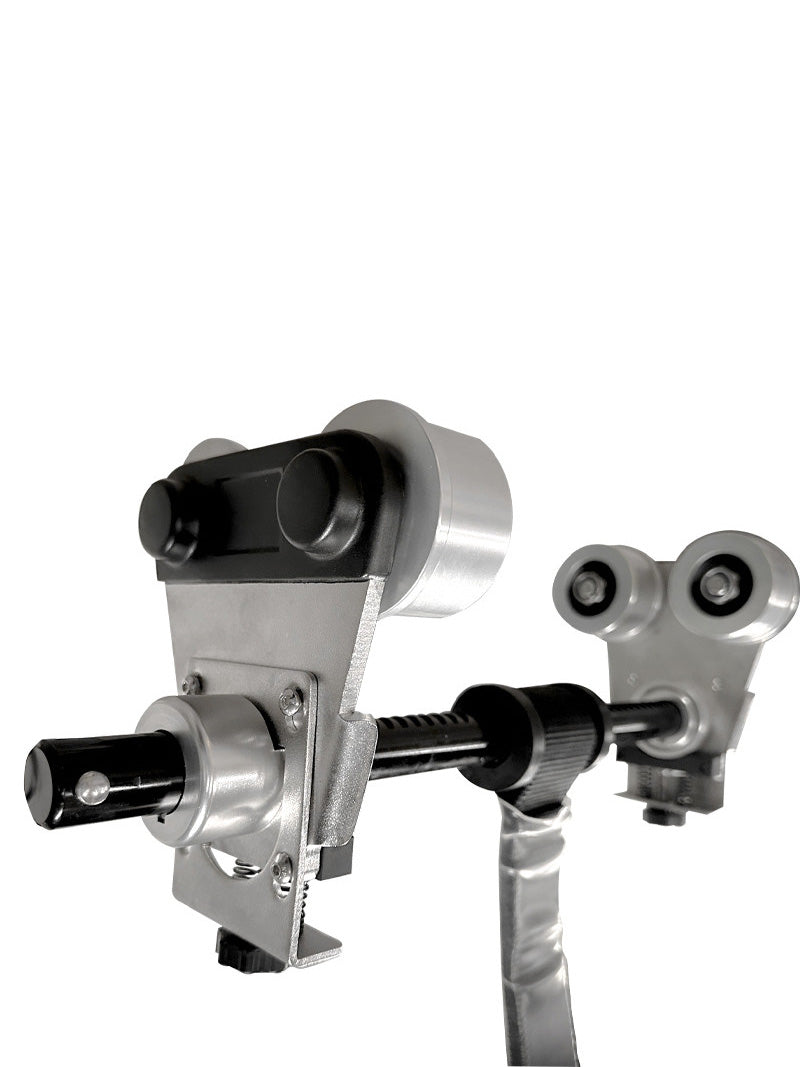

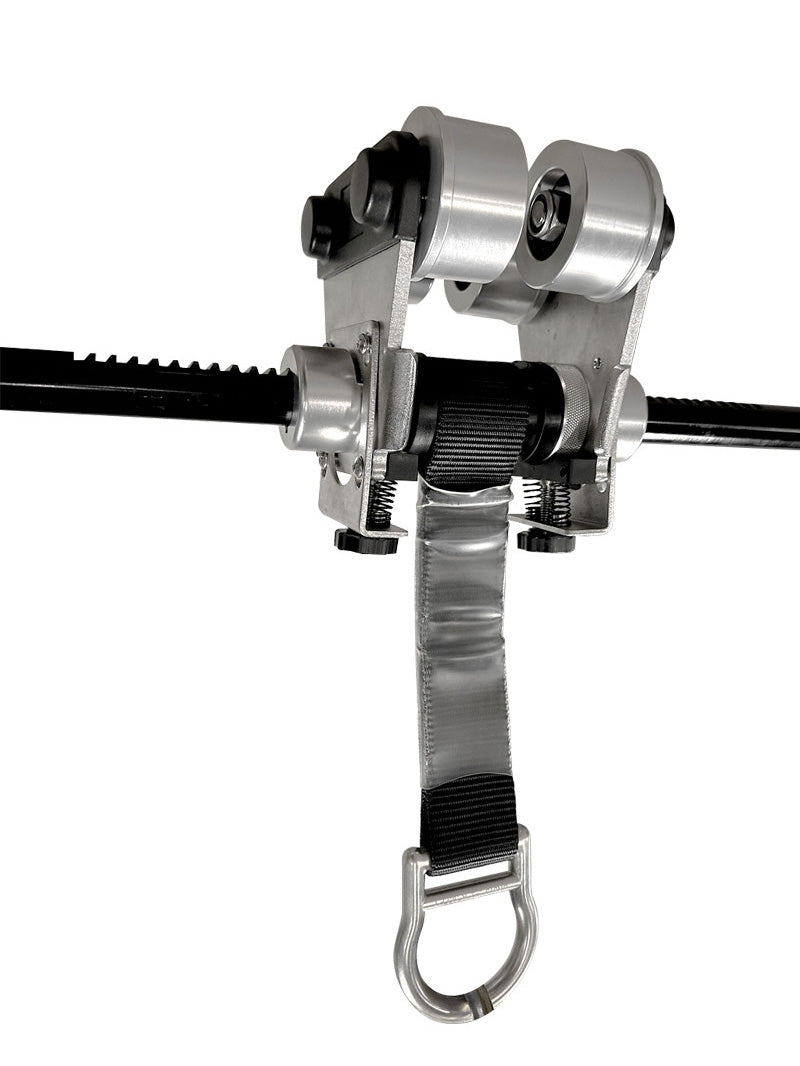

- Rollers give smooth, productive and safe movement along the I-beam, following the user

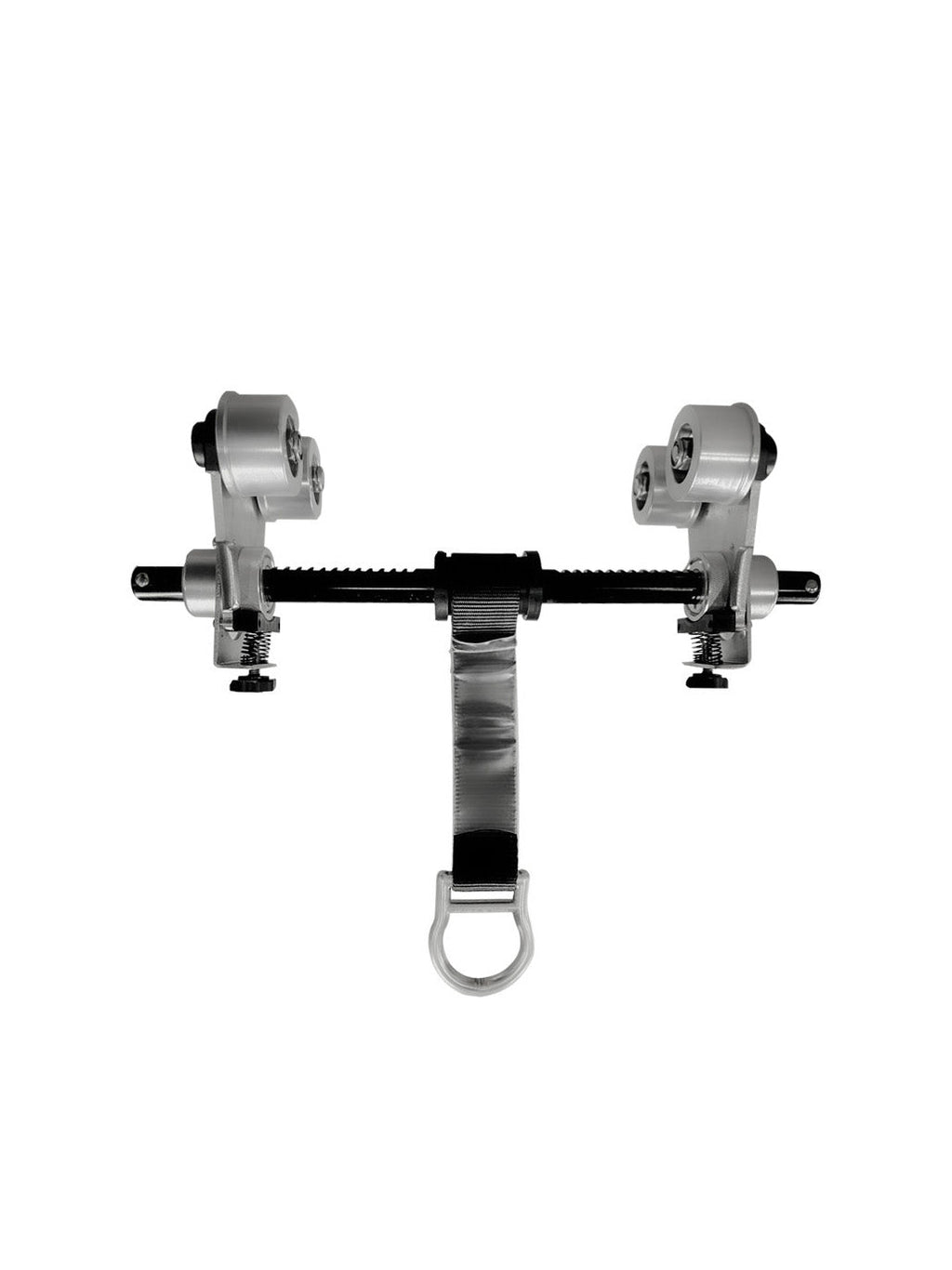

- D-ring centred on the anchorage connector for easy sliding on beam flanges; adjusts from both sides

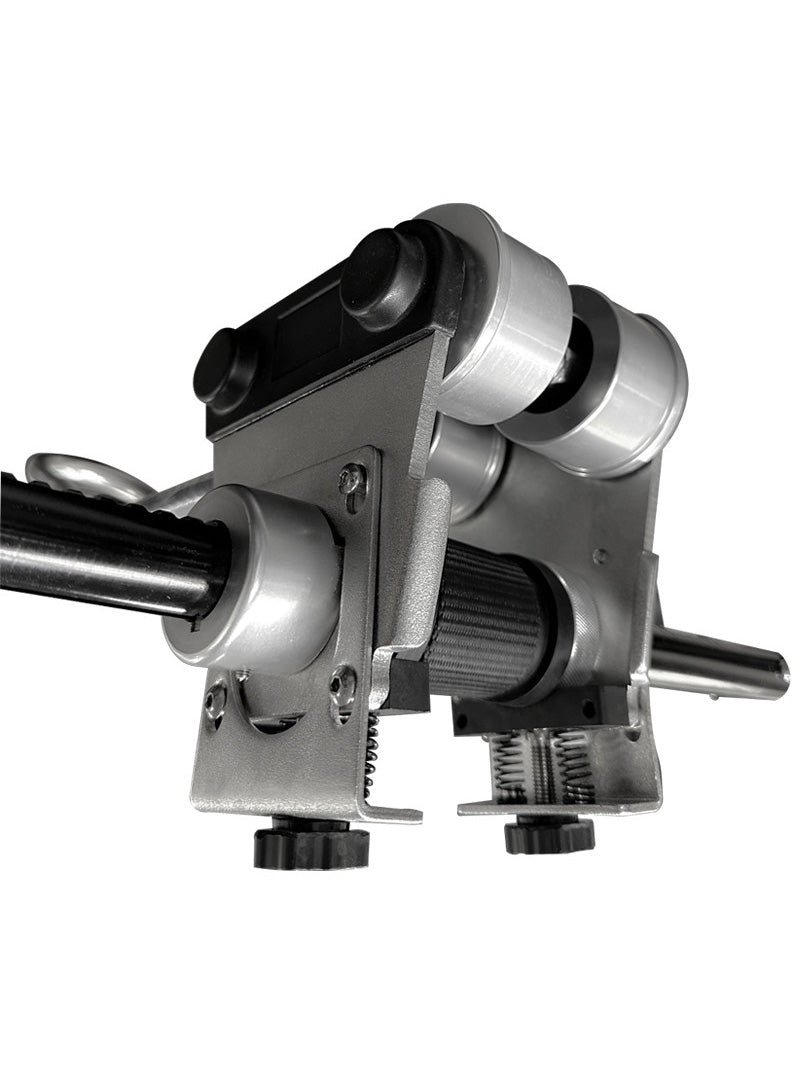

- Swivelling D-ring rotates 360° and pivots 180° side to side to help avoid side loading and accidental disengagement
- Beam flange width 3 in to 10 in, flange thickness up to 1 in

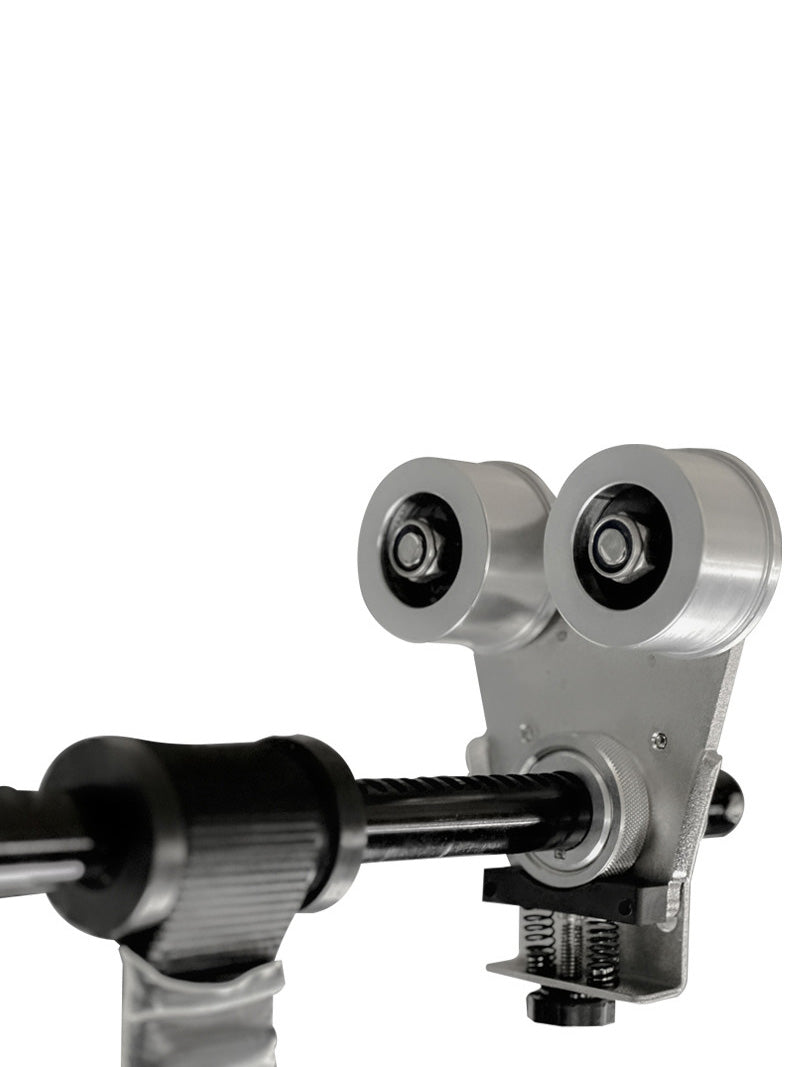

- Aluminum cross bar and rollers keep it light and easy to carry around the work area
- Built tough, rugged and corrosion resistant for long service, job after job
- Single-user connection with a self-retracting lifeline or shock-absorbing lanyard; removable and reusable
Frontline ST10HTK trolley anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | ST10HTK |
| Mounting | Rolling trolley on the I-beam flange, two-side adjustment |
| Beam flange width | 3 in to 10 in |
| Beam flange thickness | Up to 1 in |
| Static tensile strength | 5,000 lbf (22 kN) |
| User capacity | 310 lb, one user |
| Unit weight | 9.2 lb |
| D-ring | 360° swivel, 180° pivot |
| Materials | Aluminum cross bar and rollers · polyester webbing · zinc-plated swivel · stainless steel spring and hardware |
| Standards | Meets or exceeds ANSI Z359.18, OSHA 1910.140, OSHA 1926.502 and EN 795:2012 |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline ST10HTK trolley anchor
Crane runways and monorails
Rolls the length of the beam so the worker never has to re-anchor.
Steel erection
Trailing anchor on the top flange while connecting and bolting along a beam.
Bridge and structural inspection
Cover a whole girder on one tie-off, then lift it off and move to the next.
Plant maintenance
Overhead I-beams above conveyors, tanks and process lines, 3 to 10 in flanges.
Is the Frontline ST10HTK CSA certified? Compliance in Canada
Is the Frontline ST10HTK CSA certified?
No. Frontline rates it to ANSI Z359.18, OSHA 1910.140, OSHA 1926.502 and EN 795:2012. For CSA-marked anchors, see our Safety Direct range.
What beam sizes fit the ST10HTK?
I-beam flanges 3 in to 10 in wide and up to 1 in thick, per Frontline. Measure the flange before ordering.
Trolley or slider: which one?
The ST10HTK rolls on aluminum rollers, so it follows the worker with the least drag; the ST14SA Easy Slider glides on the flange and covers wider beams (3.5 to 14 in). Both trail the user.
How many workers can tie off to the ST10HTK?
One. Frontline rates it for single-user connection with an SRL or a shock-absorbing lanyard.
Is the ST10HTK reusable?
Yes. Frontline lists it as removable and reusable, easy to place and remove. Inspect before each use and retire it after any fall.
Pair the Frontline ST10HTK with an SRL or shock-absorbing lanyard
The ST10HTK is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
