Frontline STM10K-SA 10K anchor swivel
$122.99
Skip to product information
Frontline STM10K-SA 10K anchor swivel
1/3

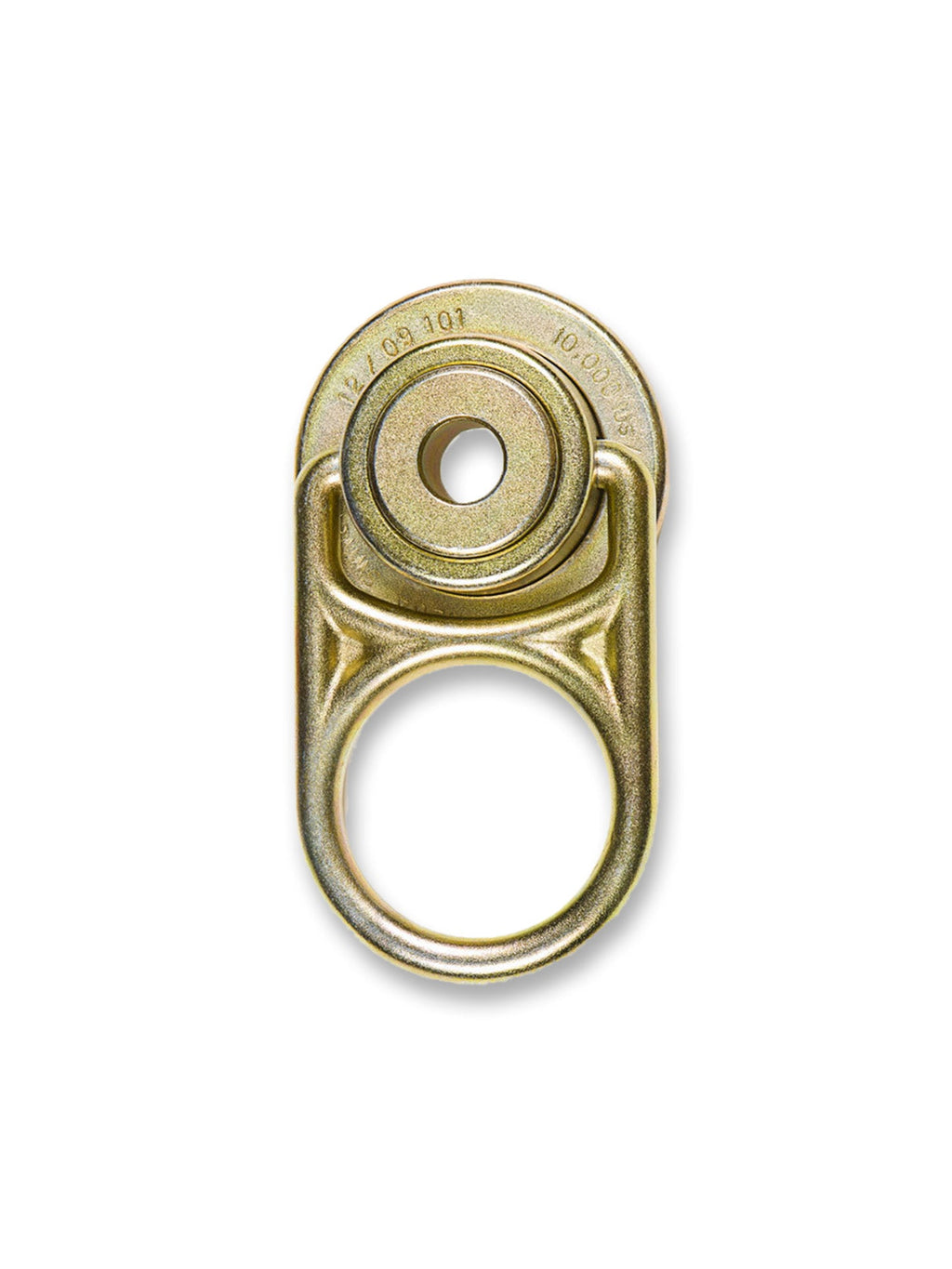

  • Frontline STM10K-SA 10K anchor swivel

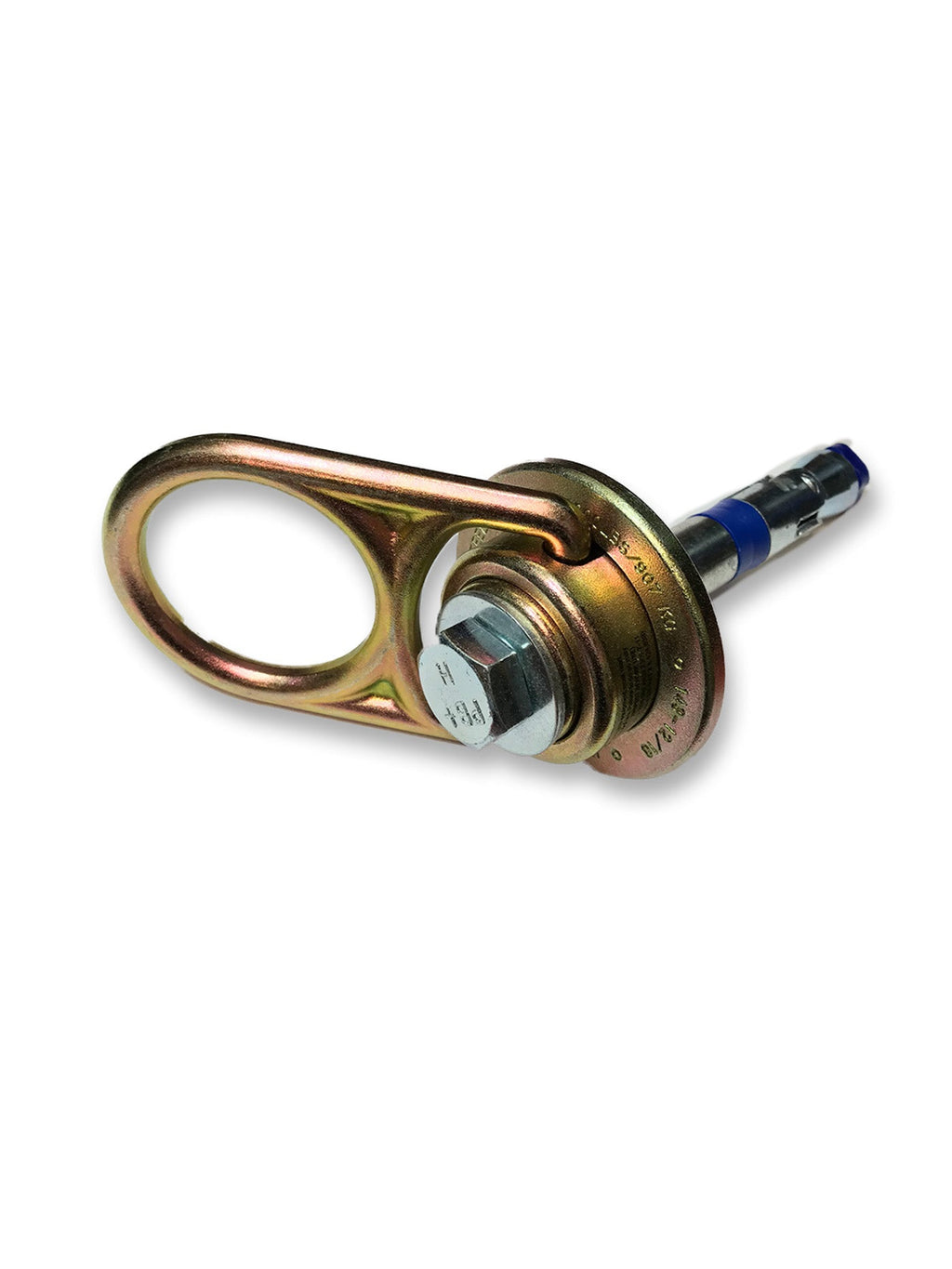

  • Frontline STM10K-SA 10K anchor swivel, view 2

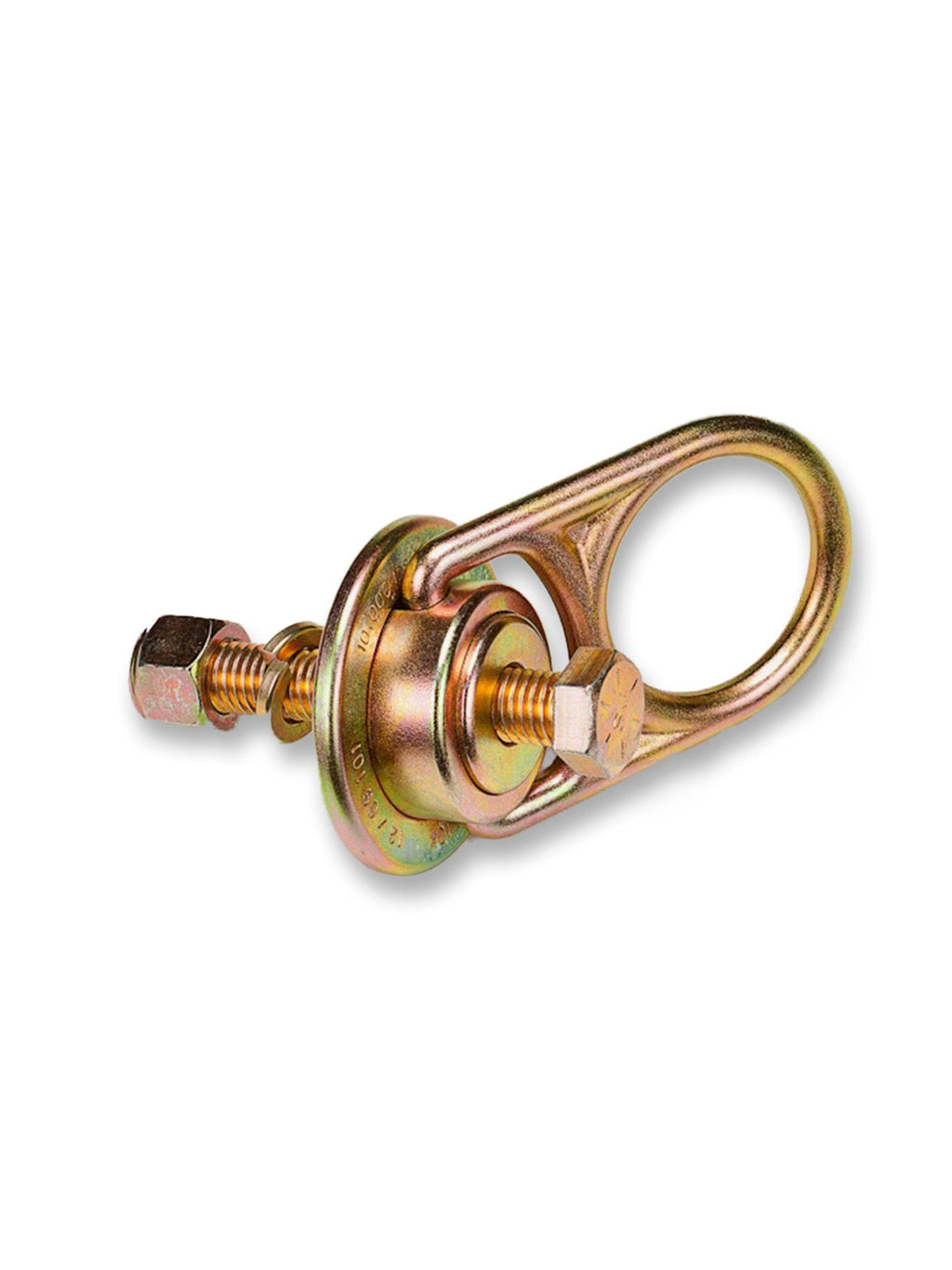

  • Frontline STM10K-SA 10K anchor swivel, view 3
Frontline STM10K-SA 10K Anchor Swivel, 5/8 in (Swivel Only) | Canada

Frontline STM10K-SA 10K Anchor Swivel, 5/8 in (Swivel Only) | Canada

$122.99

Frontline STM10K-SA 10K Steel Yellow Zinc Plated Anchor Swivel 5/8" (Swivel Only). A yellow zinc plated 10K anchor swivel (swivel only) for concrete and steel, with separate installation kits available. Its swivel ring lets the D-ring rotate 360 degrees and flip 180 degrees, and a patent-pending key-lock design keeps the D-ring seated under heavy loads; it is intended for rescue, lifting, hoisting and tie-back uses.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the STM10K-SA to the OSHA and ANSI standards it meets or exceeds. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Steel Anchor
Tensile Strength
10,000 lbf / 44 kN
Working Load
2,000 lbs
Single User Maximum Capacity
310 lbs

Frontline STM10K-SA 10K anchor swivel key features

  • Compliant with ANSI Z359.18, ANSI Z359.7, OSHA 1926.502 and OSHA 1910.66
  • Tensile strength: 10,000 lbf / 44 kN
  • Working load: 2,000 lbs
  • Single-user maximum capacity: 310 lbs
  • Weight: 1.2 lbs
  • Anchor swivel only; bolts and weld-on puck not included
  • Heavy-gauge heat-treated alloy steel with reinforced bridge, D-ring and locking caps
  • D-ring rotates 360° and flips 180°

Frontline STM10K-SA 10K anchor swivel specifications

Manufacturer Frontline Fall Protection
Model / SKU STM10K-SA
Included Anchor swivel only; bolts and weld-on puck are not included
Tensile Strength 10,000 lbf / 44 kN
Working Load 2,000 lbs
Single User Maximum Capacity 310 lbs
Weight 1.2 lbs
Bolt size (from title) 5/8"
Standards ANSI Z359.18, ANSI Z359.7, OSHA 1926.502, OSHA 1910.66

Where crews use the Frontline STM10K-SA 10K anchor swivel

Structural steel

Bolt-on or weld-on tie-off on steel members.

Overhead tie-off

Install vertically, horizontally or overhead.

Temporary HLL ends

Use with other approved anchors in an HLL.

Rescue and rigging

Rescue, lifting, hoisting and tie-back points.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline STM10K-SA CSA certified? Compliance in Canada

Is the Frontline STM10K-SA swivel CSA certified?

No. Frontline rates the STM10K-SA to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.

What comes with the Frontline STM10K-SA swivel?

Anchor swivel only; bolts and weld-on puck are not included.

What is the user capacity of the Frontline STM10K-SA?

Frontline lists 310 lbs.

What to pair with the Frontline STM10K-SA

The STM10K-SA is one part of a personal fall arrest system. Pair it with a self-retracting lifeline or shock-absorbing lanyard and an anchor rated for the load, and train the crew on inspection and rescue.
