Frontline STM585K MEGA Swivel 5K Steel Anchor | Canada

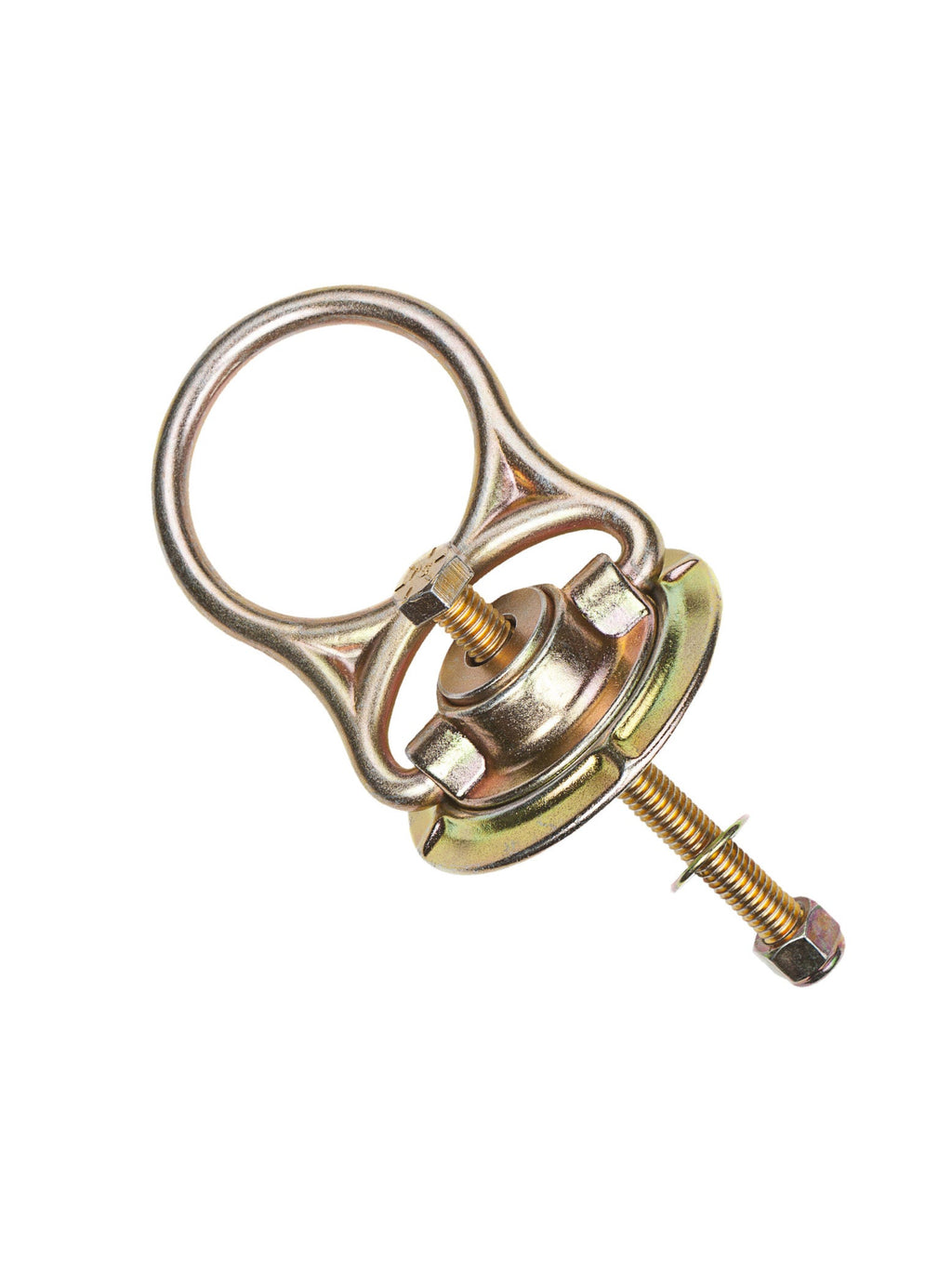

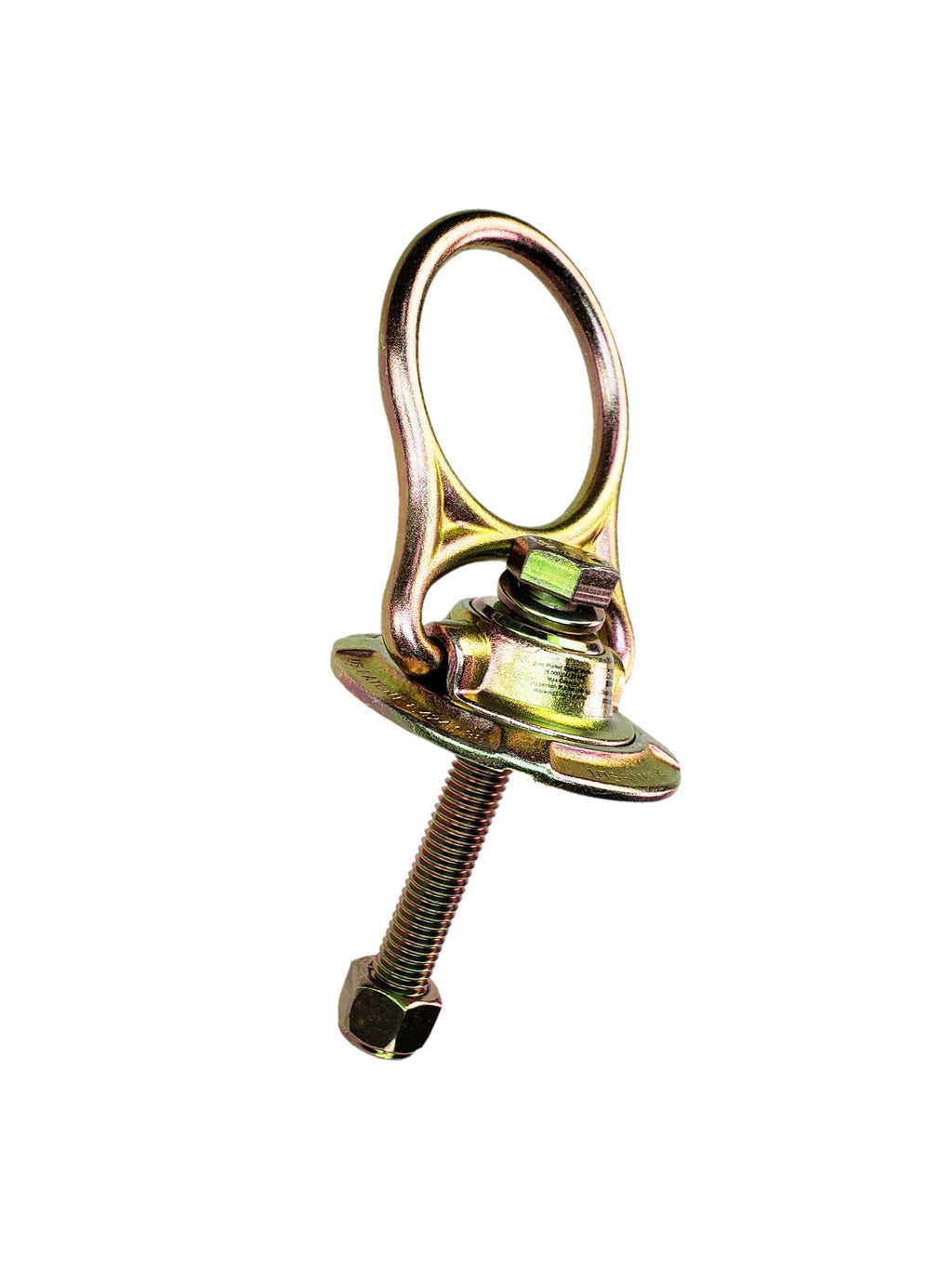

Frontline STM585K MEGA Swivel 5k Steel Anchor. A reusable bolt-on steel anchor whose D-ring swivels 360 degrees and flips 180 degrees. It is made of heavy-gauge heat-treated alloy steel with a reinforced bridge, D-ring and locking caps, and a patent-pending key lock keeps the D-ring seated under heavy loads. It can be used vertically, horizontally or overhead for fall protection, rescue, lifting, hoisting and tie-back.
Frontline STM585K MEGA Swivel 5K steel anchor key features

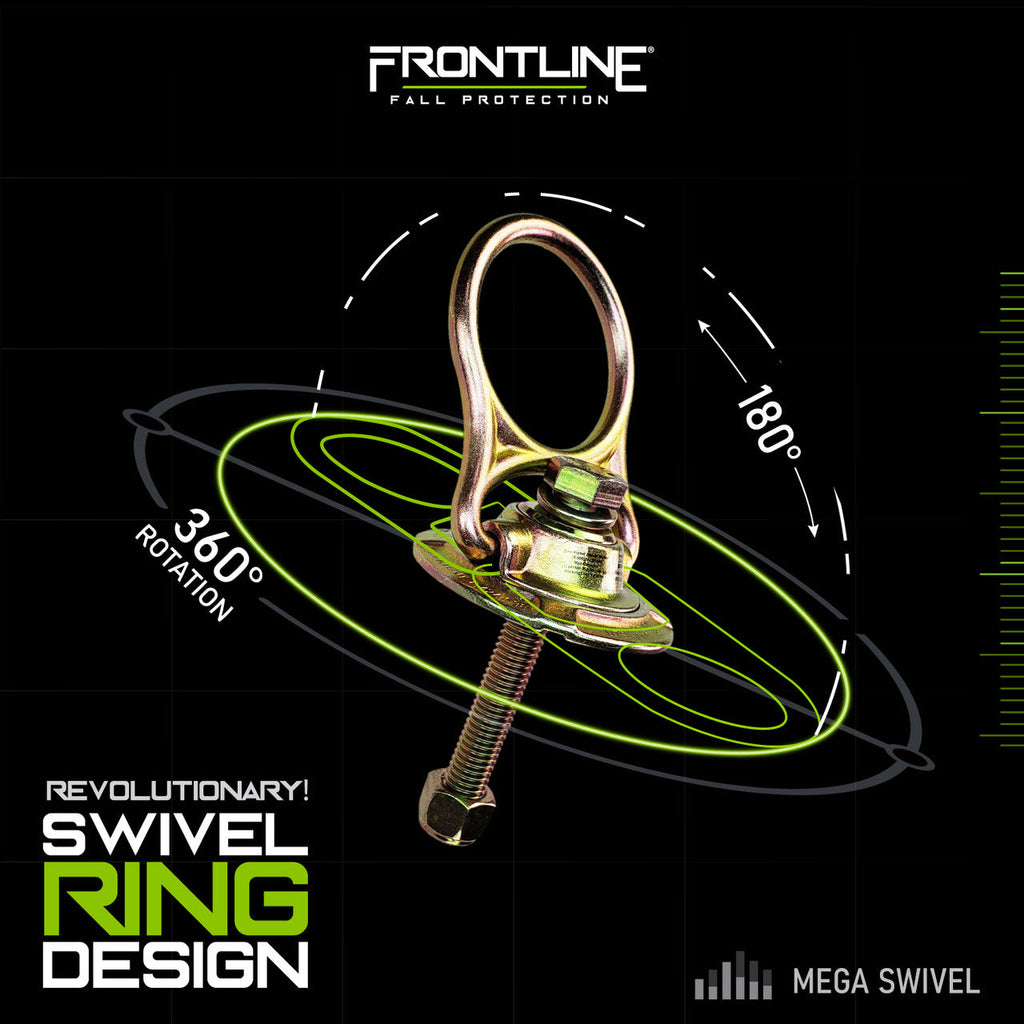

- D-ring rotates 360° and pivots 180° side to side, helping avoid side loading and accidental disengagement
- Suitable for permanent and temporary installations on steel
- Can be used as a single-user anchor point or as part of a temporary horizontal lifeline system
- Built to last through repeated jobs; reusable, with a replaceable bolt when moving to a new work area
- Bolt included, ready to use
Frontline STM585K MEGA Swivel 5K steel anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | STM585K |

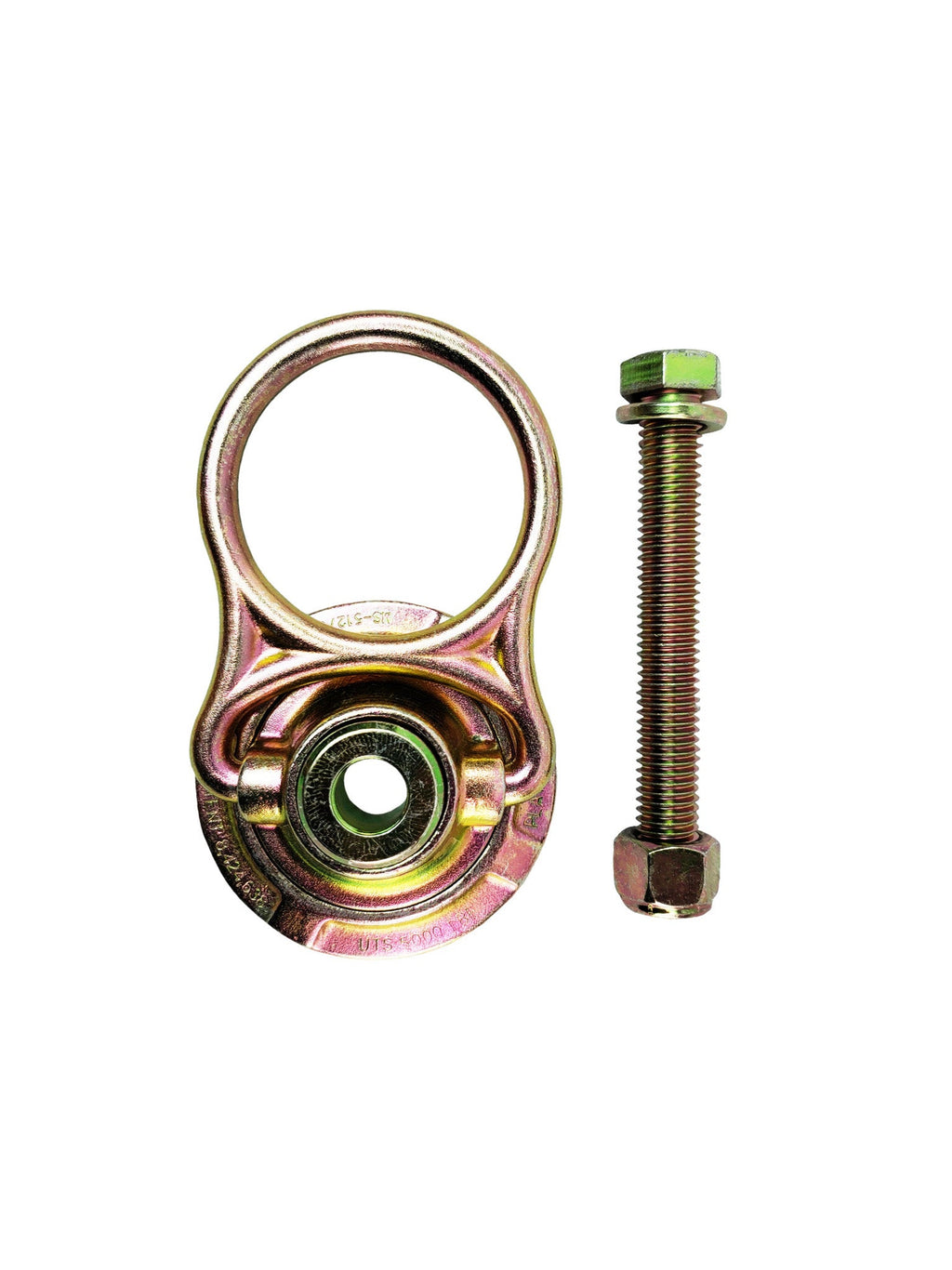

| Included | STM585K swivel anchor with bolt included. Replacement bolt: STM585KRB |
| Static Tensile Strength | 5,000 lbf / 22 kN |
| User Maximum Capacity | 310 lbs |
| Product Weight | 1.2 lbs |
| Components | Zinc Plated Steel |
| Standards | meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012 (no CSA or Cal-OSHA mention) |
Where crews use the Frontline STM585K MEGA Swivel 5K steel anchor
Structural steel
Bolt-on or weld-on tie-off on steel members.
Overhead tie-off
Install vertically, horizontally or overhead.
Temporary HLL ends
Use with other approved anchors in an HLL.
Rescue and rigging
Rescue, lifting, hoisting and tie-back points.
Is the Frontline STM585K CSA certified? Compliance in Canada
Is the Frontline STM585K anchor CSA certified?
No. Frontline rates the STM585K to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.
What comes with the Frontline STM585K anchor?
STM585K swivel anchor with bolt included. Replacement bolt: STM585KRB.
What is the user capacity of the Frontline STM585K?
Frontline lists 310 lbs.
What to pair with the Frontline STM585K MEGA Swivel 5K steel anchor
The STM585K is one part of a personal fall arrest system. Pair it with a self-retracting lifeline or shock-absorbing lanyard and an anchor rated for the load, and train the crew on inspection and rescue.
