Frontline STM585K-SS MEGA Swivel 360° Stainless Steel 5K Steel Anchor | Canada

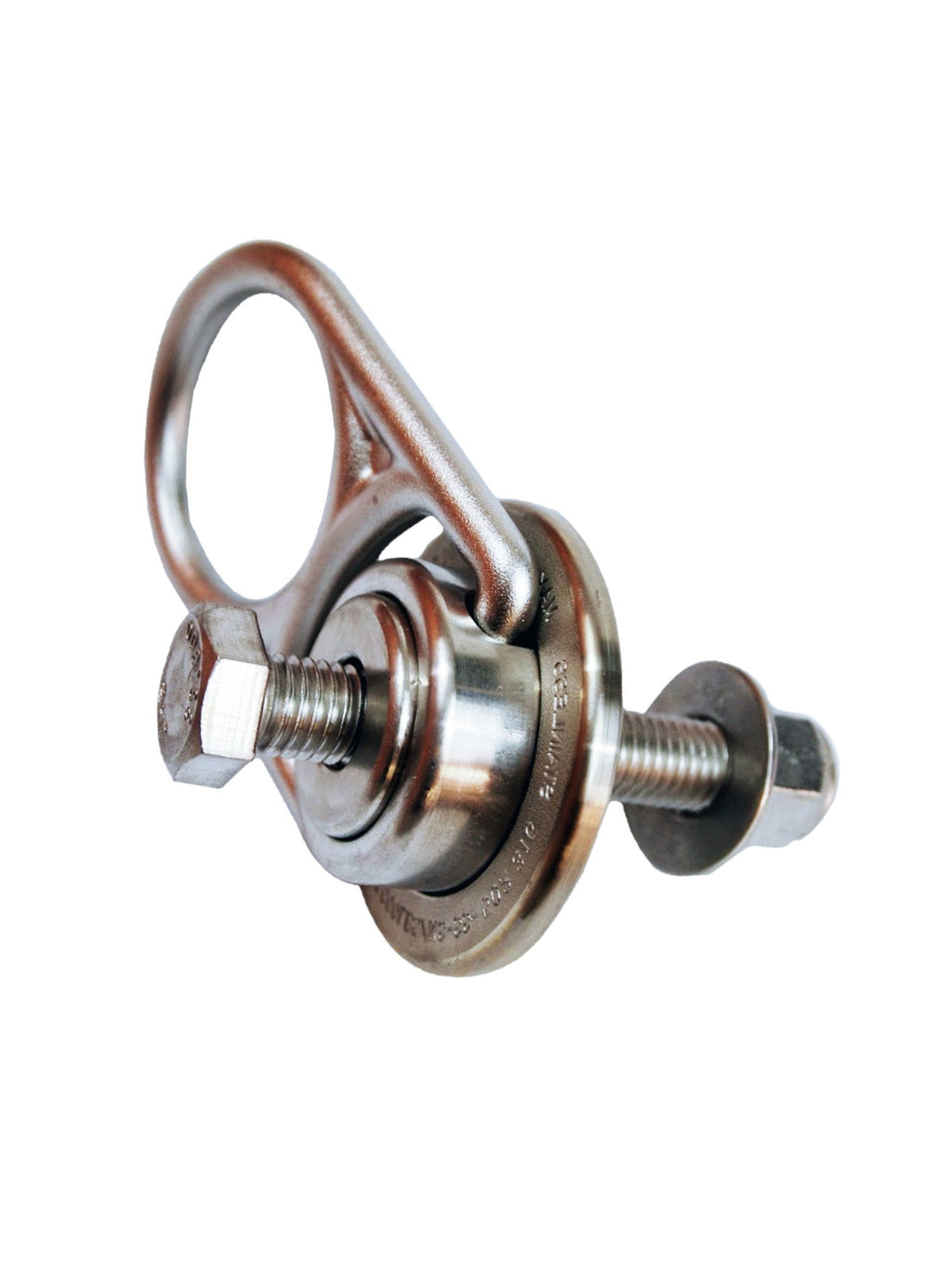

Frontline STM585K-SS MEGA Swivel stainless 5K steel anchor. A reusable stainless steel tie-off for steel: the D-ring rotates 360° and flips 180° side to side to help avoid side loading. Heavy-gauge stainless steel, a reinforced bridge, D-ring and locking caps give it its strength, and a key lock design keeps the D-ring seated in its swivel housing under heavy loads. The bolt replaces easily when you move to the next work area.
Frontline STM585K-SS stainless MEGA Swivel anchor features
- D-ring rotates 360° and pivots 180° side to side to help avoid side loading or accidental disengagement
- For permanent and temporary installations on steel
- Single-user anchor, or combine with other approved anchors as part of a temporary horizontal lifeline
- Stainless steel for exterior use and corrosion resistance
- Bolt included, ready to use out of the bag; replacement bolt STM585K-SSRB
Frontline STM585K-SS stainless steel anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | STM585K-SS |
| Static tensile strength | 5,000 lbf / 22 kN |
| User maximum capacity | 310 lb |
| Product weight | 1.2 lb |
| Material | Stainless steel |
| Replacement bolt | STM585K-SSRB |
| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012 (per Frontline); not CSA |
| Region | Fall Protection Canada, Paris, Ontario · ships Canada-wide |
Where crews use the Frontline STM585K-SS stainless steel anchor
Structural steel
Vertical, horizontal and overhead tie-off.
Exterior and coastal
Stainless steel resists corrosion outdoors.
Rescue and tie-back
Rescue, lifting, hoisting and tie-back use.
Frontline STM585K-SS stainless anchor questions answered
Is the bolt included with the STM585K-SS?

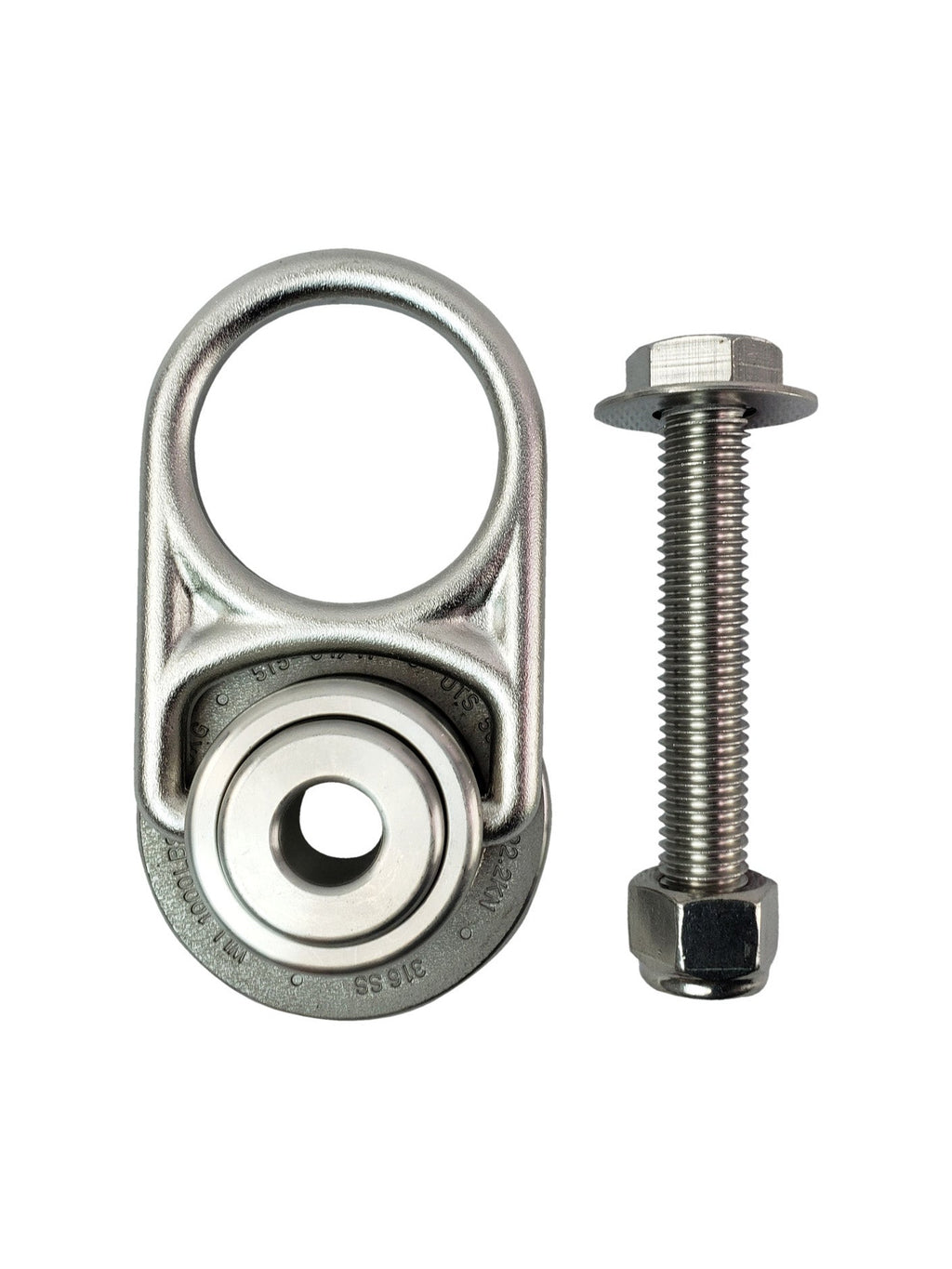

Yes. The anchor ships with its bolt; the replacement bolt is STM585K-SSRB.
How much does the STM585K-SS hold?
Frontline rates it at 5,000 lbf (22 kN) static tensile strength, for one user up to 310 lb.
Is the Frontline STM585K-SS CSA certified?
No. It meets ANSI Z359.18 and OSHA per Frontline; it is not CSA certified.
Pair the Frontline STM585K-SS anchor with an SRL or lanyard
Connect a self-retracting lifeline or shock-absorbing lanyard and a full-body harness. Questions on sizing or quantities? Contact Fall Protection Canada.
