Standing Seam 100' Horizontal Lifeline Kit – 4 SSRA1 Anchors + 2 SSRA3 Plates | Non-Penetrating | Canada
SSRA HLL 100 ft Horizontal Lifeline Kit — Standing Seam Metal Roof Fall Protection
CSA Z259.16 — Complete Horizontal Lifeline SystemMulti-Worker Coverage • Up to 4 Workers • 100 ft Span
The Complete Horizontal Lifeline Solution for Standing Seam Metal Roofs — No Penetrations, No Compromises
The SSRA HLL 100 ft Horizontal Lifeline Kit is the most capable temporary multi-worker fall protection system available for standing seam metal roofs. Built around four SSRA1 non-penetrating standing seam anchors and two SSRA3 anchor plates, the system deploys a Malta Dynamics HLL3001 100-foot, 4-person kernmantle horizontal lifeline across the full length of a commercial roof slope — without drilling a single hole.
Where single-anchor SRL kits protect one worker within a fixed radius, the SSRA HLL system establishes a continuous fall arrest corridor up to 100 feet long. Workers clip directly to the lifeline rope and travel freely along the full span — making it the system of choice for large commercial metal roofing projects, solar installations, and any application where crews need to move laterally across a roof rather than around a fixed anchor point.
SSRA1 Standing Seam Anchor — Non-Penetrating, 22.2 kN
Machined from solid 6061-T6 aluminum with twelve stainless steel cup-point set screws in six opposing pairs, the SSRA1 clamps directly to the standing seam profile without drilling, welding, or penetrating the panel. Weighing just 4.5 lbs (2.0 kg), it is the world's lightest anchor rated to 5,000 lbs (22.2 kN) and has been ultimate-failure tested to 14,500 lbs — nearly three times the maximum OSHA/ANSI threshold. Four SSRA1s are included in this kit to provide a complete four-point mounting platform for the SSRA3 plates and lifeline system.

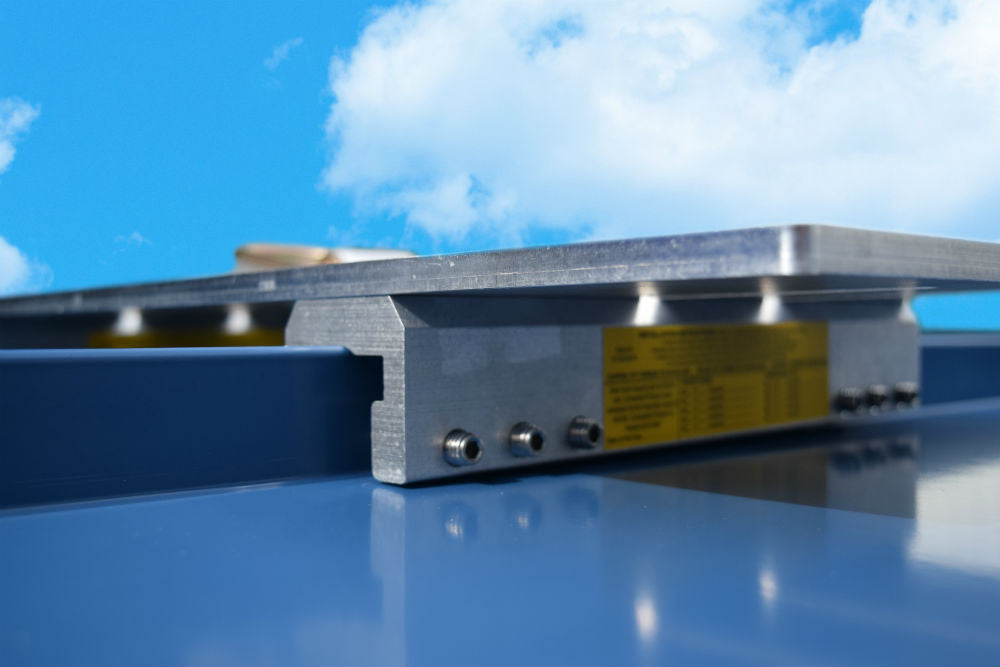

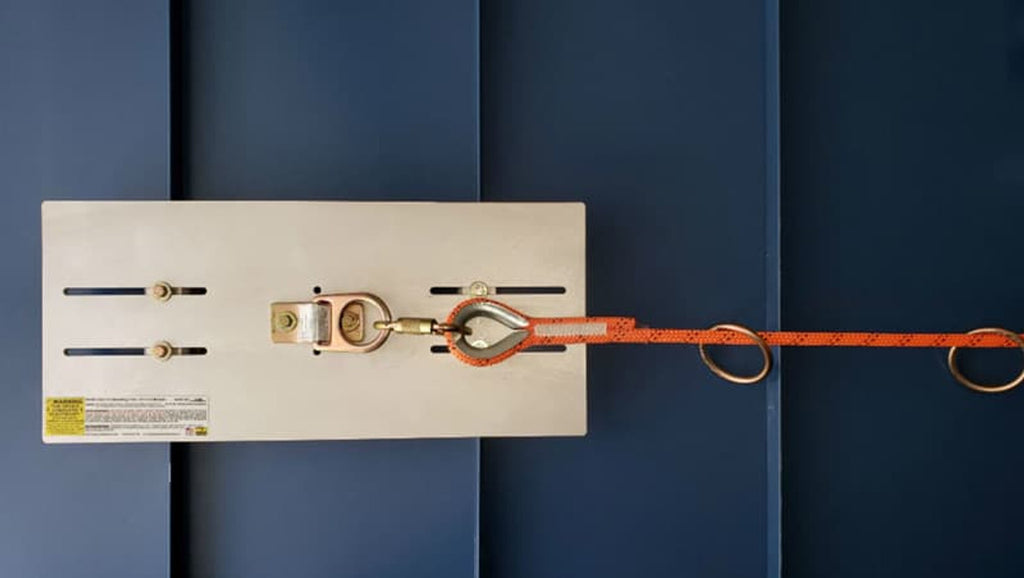

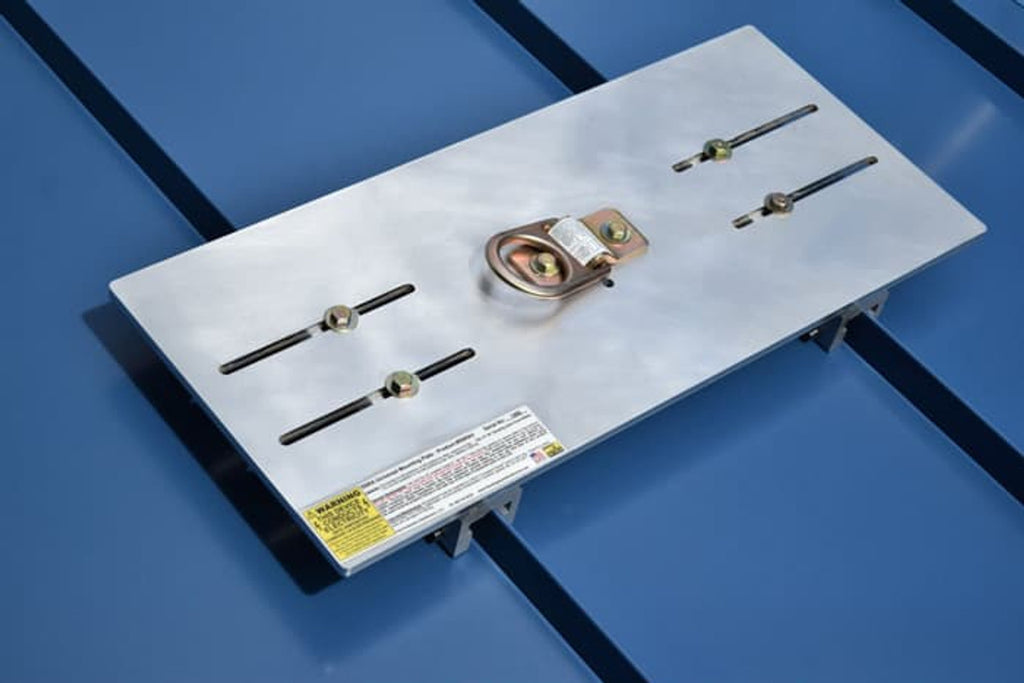

SSRA3 Anchor Plates — Terminal HLL Mounting Points
Two SSRA3 anchor plates serve as the end-point foundation for the horizontal lifeline, each accepting two SSRA1 anchors for a four-point connection base. Fabricated from 6061-T6 aluminum and independently tested to a 10,000 lb (44.5 kN) impact load, the SSRA3 plates distribute fall arrest forces across two seam attachment points at each end of the lifeline — providing a rock-solid, low-profile mounting platform that requires no penetrations and no roof modifications.
Malta Dynamics HLL3001 — 100 ft 4-Person Kernmantle Rope HLL
The HLL3001 is a 100-foot, 4-person rated kernmantle rope horizontal lifeline with integrated line tensioner, carabiners, cross arm straps, and a storage bag. Kernmantle construction provides excellent strength-to-weight ratio, high abrasion resistance, and consistent performance in wet and freezing conditions — all critical on Canadian metal roofing projects. Workers attach directly to the lifeline via their SRL or connecting lanyard and travel the full 100-foot span without repositioning the anchor system.
One System, Full Span, Full Compliance
Every component in this kit is pre-matched and rated as a complete active fall protection system under CSA Z259.16. No engineering review, no secondary sourcing, no compatibility questions. Deploy the system, tension the lifeline, connect workers, and cover the full roof run. The kit ships complete with all hardware — tensioner, carabiners, O-rings, cross arm straps, and storage bag — so there are no additional components to source before hitting the roof.

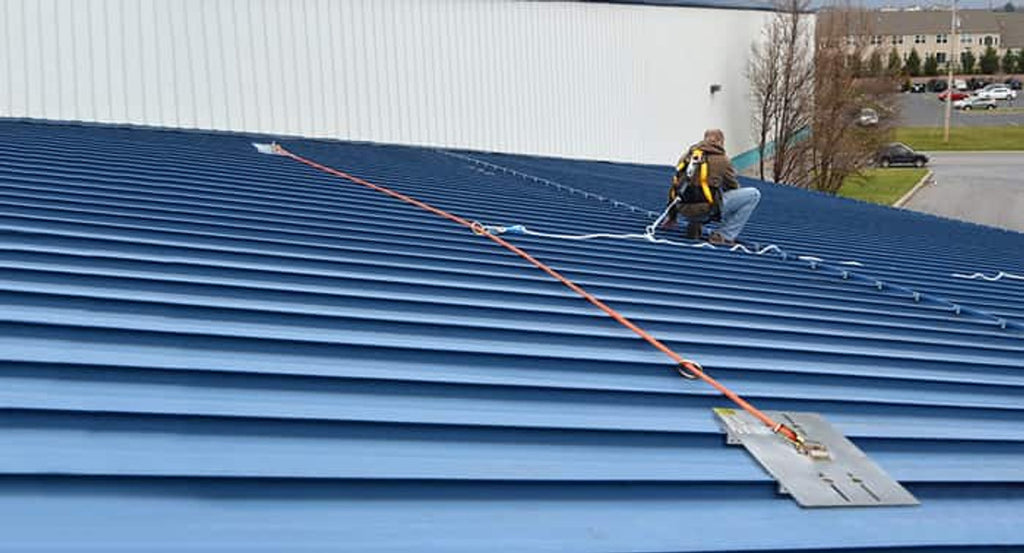

Why a Horizontal Lifeline Changes Large-Roof Operations
On a 100-foot commercial standing seam roof, a single-anchor SRL system forces workers to stop, disconnect, relocate the anchor, reconnect, and re-tension every time they move beyond their working radius. On a full-day installation or maintenance shift, this can cost hours of productive time. The SSRA HLL system eliminates that entirely — workers clip to the rope at the start of the shift and travel the full 100-foot span freely, stopping only when the task is done. Four workers can be connected simultaneously, each protected at any position along the line. For commercial metal roofing crews, it's the difference between a job that runs on schedule and one that doesn't.

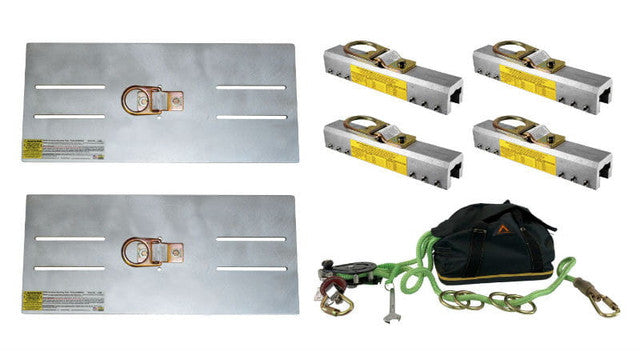

Complete Kit Contents
- 4 × SSRA1 Standing Seam Roof Anchors
- 2 × SSRA3 Anchor Plates
- 1 × Malta Dynamics HLL3001 — 100 ft Kernmantle Rope Lifeline
- 1 × Line Tensioner
- 2 × Carabiners
- 4 × O-Rings
- 2 × 6 ft Cross Arm Straps
- 1 × Storage Bag
SSRA HLL 100 ft Horizontal Lifeline Kit — Full Specifications
| Kit Name | SSRA HLL 100 ft Horizontal Lifeline Kit |
| Anchor | SSRA1 Standing Seam Roof Anchor × 4 (CSA Z259.15) |
| Anchor Material | 6061-T6 Aluminum body, 304 stainless steel set screws |
| Anchor Load Rating | 5,000 lbs (22.2 kN) per anchor |
| Anchor Ultimate Test Load | 14,500 lbs |
| Anchor Weight | 4.5 lbs (2.0 kg) per anchor |
| Set Screw Count | 12 stainless steel per anchor (six opposing pairs) |
| Anchor Plates | SSRA3 × 2 (6061-T6 Aluminum) |
| Anchor Plate Test Load | 10,000 lbs (44.5 kN) per plate |
| HLL Rope | Malta Dynamics HLL3001 — Kernmantle Construction |
| HLL Length | 100 feet (30.5 m) |
| HLL Capacity | 4 workers simultaneously |
| HLL End Connectors | 2 × Carabiners (included) |
| Tensioning | Integrated line tensioner (included) |
| Attachment Accessories | 2 × 6 ft Cross Arm Straps, 4 × O-Rings |
| System Standard | CSA Z259.16 — Active Fall Protection System |
| Seam Compatibility | 95%+ of standing seam profiles (T-seam, snap-lock, bulb, trapezoidal rib) |
| Panel Material | 22-gauge and 24-gauge steel only — not for aluminum, zinc, or copper |
| Installation Tools Required | Torque wrench, basic hand tools |
| Anchor Corrosion Resistance | Non-corrosive aluminum body and stainless hardware throughout |
| Warranty | Lifetime Life Saving Warranty (SSRA1 anchors) |
| Country of Stock | Canada — no cross-border delays |
Material & Profile Compatibility — Read Before Ordering
- The SSRA1 is approved for 22-gauge and 24-gauge steel standing seam panels only
- Not compatible with aluminum, zinc, copper, or other soft-metal roofing systems
- Do not install on curved, tapered, or batten-seam profiles
- Panel compatibility does not confirm structural suitability — a qualified person must verify the roof seam's structural capacity prior to use as an anchorage point for fall arrest
- For premium painted or coated panels (Kynar, PVDF, factory finishes), the SSRA1 Nylon-Tipped variant is recommended to prevent surface marking from cup-point set screws
Who Needs the SSRA HLL System on Canadian Job Sites
Commercial Metal Roofing Contractors — Large Roof Runs
New standing seam installations on commercial and industrial buildings where crews work across 60- to 200-foot roof spans. The 100-foot HLL eliminates anchor repositioning for the duration of the shift. One system setup, full-span coverage, full crew connected simultaneously.
Solar Installation Teams — Utility & Commercial Arrays
Commercial and utility-scale solar installation on standing seam metal roofs where large crews need lateral freedom across the full array footprint. The SSRA HLL lets multiple installers work the array simultaneously without competing for anchor positions or disconnecting to reposition.
Industrial Maintenance & Inspection Crews
Recurring maintenance, inspection, and repair on large standing seam industrial facilities. The temporary deployment capability means the system goes up at the start of the shift and comes down at the end — no permanent hardware, no roof penetrations, no ongoing maintenance commitments.
General Contractors — Multi-Trade Roof Access
Projects where multiple trades need simultaneous roof access — mechanical, electrical, roofing, and envelope contractors. The 4-person HLL3001 capacity allows different crews to work the same roof span concurrently, each fully protected, without multiple anchor systems cluttering the roof.
Safety Managers & Equipment Coordinators
Specifying compliant HLL systems for metal roofing projects under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, or Quebec CNESST. The kit is a single-SKU procurement for a complete CSA Z259.16 system — no component matching, no secondary supplier coordination required.
Equipment Rental Operations
Rental companies and multi-site operations serving metal roofing contractors across Canada. One SKU covers 95%+ of standing seam profiles in the market. The storage bag keeps all components together for organized check-out, check-in, and post-use inspection of every piece.
SSRA HLL vs. Single-Anchor SRL Systems — Side-by-Side
| Feature | SSRA HLL 100 ft Lifeline Kit | Single-Anchor SRL Kit (30 ft) | Single-Anchor SRL Kit (6 ft) |
|---|---|---|---|
| Maximum workers connected simultaneously | 4 workers | 1 worker | 1 worker |
| Lateral coverage span | 100 ft (30.5 m) corridor | 30 ft radius circle | 6 ft radius circle |
| Anchor repositioning per shift | None — one setup, full span | Minimal (1–2 per shift) | Frequent (10–20+ per shift) |
| Full commercial roof run from one setup | Yes — up to 100 ft | Partial — depends on roof length | No |
| Workers travel laterally along span | Yes — free movement along full rope | No — radial around fixed anchor | No — radial around fixed anchor |
| Non-penetrating anchor | Yes — SSRA1 (× 4) | Yes — SSRA1 | Yes — SSRA1 |
| Voids roof warranty | No | No | No |
| Ideal crew size | 2–4 workers | 1–2 workers | 1 worker |
| Best application | Large commercial roofs, multi-trade access, solar arrays | Full-slope single-worker coverage | Localized tasks near anchor |
| CSA Z259.16 system | Yes | Yes | Yes |
When This System Is the Right Choice — and When It Isn't
✓ Use When:
- The roof is standing seam steel (22- or 24-gauge)
- Multiple workers need simultaneous fall protection on the same roof slope
- The roof run exceeds 30 feet and workers need to travel the full length
- Penetrating the roof panel is prohibited by warranty or building owner
- The project requires temporary deployment with zero permanent modifications
- Anchor repositioning during the shift needs to be eliminated
- A CSA Z259.16 compliant system is required without engineering consultation
✗ Consider Alternatives When:
- Only one worker needs protection — the SRL Pro Kit (30 ft) is lighter and faster to deploy
- The roof is not steel standing seam — use appropriate anchors for shingle, flat, or concrete substrates
- The roof run is under 30 feet — a single-anchor SRL system provides sufficient coverage
- Adequate fall clearance below the HLL cannot be confirmed — calculate clearance before deployment
- Work requires vertical descent or rope access — a separate vertical lifeline system is required
- The panel is aluminum, zinc, or copper — the SSRA1 is not approved for soft metals
HLL Clearance Distance — Confirm Before Deployment
Horizontal lifeline systems require adequate fall clearance below the line to arrest a fall before the worker contacts a lower level. The minimum clearance below a horizontal lifeline accounts for: sag in the rope under load (typically 1–2 ft), free-fall distance, deceleration distance, connecting lanyard or SRL extension, worker height below the D-ring, and a safety margin. The exact clearance calculation depends on the HLL configuration, worker weight, and system components — and must be performed by a qualified person before the system is deployed. See our Fall Protection Clearance Distance Guide for the full calculation method.
Building a Complete Metal Roofing Safety Program
The SSRA HLL system covers up to four workers across a 100-foot span from one setup. For larger facilities, multi-slope roofs, or projects requiring both horizontal and vertical access, expand your metal roof safety program with complementary equipment:
Workers connecting to the SSRA HLL system still require a CSA Z259.10 full-body harness and a CSA Z259.12 rated connecting component (snap hook, carabiner, or SRL). These are not included in the HLL kit — they are purchased separately per worker. If you need a complete per-worker kit alongside the HLL system, see the Standing Seam SRL Pro Kit for a pre-matched harness and SRL combination.
Canadian-Stocked. Commercial-Grade. Ready When the Season Opens.
Commercial metal roofing season in Canada is a compressed window. Equipment sourced from US warehouses means customs holds, brokerage fees, and lead times that don't align with project start dates. The SSRA HLL 100 ft Horizontal Lifeline Kit ships from Canadian inventory — no border friction, no currency surprises, no back-order guesswork. The complete system arrives job-ready when your crew needs it.
Ships from Canada • Built for Canadian Commercial Roofing
All components stocked in Canada. CSA Z259.16 certified for legal compliance on every Canadian job site. Transparent CAD pricing with no brokerage surprises. The professional-grade horizontal lifeline system trusted by commercial roofing contractors across Ontario, Alberta, British Columbia, and Quebec.
Compliant under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, Quebec CNESST, and all other Canadian provincial OHS fall protection requirements.
Frequently Asked Questions — SSRA HLL 100 ft Horizontal Lifeline Kit
How many workers can be connected to the SSRA HLL system at one time?
The Malta Dynamics HLL3001 is rated for up to four workers simultaneously. Each worker attaches to the horizontal lifeline rope via their own CSA Z259.12 rated connecting component — typically a snap hook on a shock-absorbing lanyard or an SRL. The SSRA1 anchors and SSRA3 plates are rated to handle multi-worker fall arrest loads. Harnesses and connecting hardware are not included in the kit and must be sourced per worker — see our fall protection kits for pre-matched individual systems.
Does this kit require workers to bring their own harnesses and lanyards?
Yes. The SSRA HLL 100 ft Kit is the anchor and lifeline system only — it establishes the horizontal fall arrest corridor across the roof. Each worker connecting to the system still requires their own CSA Z259.10 full-body harness and a CSA Z259.12 rated connecting component (shock-absorbing lanyard or SRL). These are purchased separately. If you need a complete per-worker system alongside the HLL, see the Standing Seam SRL Pro Kit for a pre-matched individual harness and 30 ft cable SRL.
Is this system CSA compliant for use on Canadian job sites?
Yes, fully. The SSRA1 anchors meet CSA Z259.15 (Anchorage Connectors). The SSRA3 anchor plates are tested to 10,000 lbs per plate. The Malta Dynamics HLL3001 is rated as a complete horizontal lifeline component under CSA Z259.16 (Design of Active Fall Protection Systems). All connecting hardware included in the kit meets CSA Z259.12. The system satisfies fall protection requirements under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, Quebec CNESST, and all other Canadian provincial OHS codes without modifications or engineering review.
What standing seam profiles does the SSRA1 fit?
The SSRA1's patented body geometry fits over 95% of standing seam profiles in commercial production today, including T-seam (double lock), bulb seam, snap-lock, and trapezoidal rib profiles — covering over 500 individual panel profiles tested. The anchor is approved for 22-gauge and 24-gauge steel panels only. It is not compatible with aluminum, zinc, copper, or other soft-metal roofing. Do not install on curved, tapered, or batten-seam profiles. If you have an unusual or non-standard seam profile, contact us with the panel manufacturer and seam dimensions for a compatibility confirmation before ordering.
Does the SSRA1 anchor damage the standing seam panels or void the roof warranty?
No. The SSRA1 is a non-penetrating anchor — it clamps to the standing seam profile using twelve stainless steel set screws torqued against the seam geometry without drilling through the panel. The weathertight barrier of the roof system remains completely intact. Most standing seam panel manufacturers explicitly permit non-penetrating clamp-type anchors. For premium Kynar, PVDF, or factory-painted panels where even surface marking from cup-point set screws is a concern, the SSRA1 Nylon-Tipped variant uses soft-tip set screws that protect coated finishes without sacrificing load rating.
How do I calculate fall clearance for the horizontal lifeline?
Horizontal lifeline clearance calculations are more complex than single-anchor systems because the rope sags under load — the sag distance at mid-span increases the effective fall distance. The total clearance required accounts for: rope sag under fall arrest load (varies by rope tension and span), free-fall distance, connecting lanyard or SRL extension, worker height below the dorsal D-ring, deceleration distance, and a minimum safety margin. This calculation must be performed by a qualified person before deployment. See our Fall Protection Clearance Distance Guide for the full method, or contact us for assistance.
Can the SSRA HLL system be used on a permanent basis?
The SSRA HLL system is designed and marketed as a temporary horizontal lifeline — deployed for the duration of a project or maintenance operation and removed when work is complete. The non-penetrating SSRA1 anchor can be installed and removed repeatedly without damaging the roof, making it ideal for recurring maintenance applications. For permanent horizontal lifeline installations on standing seam roofs, a permanently engineered and anchored system is typically required — contact us to discuss permanent HLL options for your facility.
What tools are needed to install the SSRA HLL system?
Installation requires a torque wrench (to apply the specified set screw torque to the SSRA1 anchors) and basic hand tools. No drilling, welding, or power tools are required. The SSRA3 anchor plates connect to the SSRA1 anchors using the included hardware. The HLL3001 rope is tensioned using the included line tensioner. A typical installation by an experienced crew takes under 30 minutes from unboxing to a tensioned, worker-ready horizontal lifeline.
