Concrete and Steel 10k Lbs Reusable Anchor Plate | Canada
ANCHOR PLATEANSI/OSHA · 10,000 LBMODEL COP02-10K

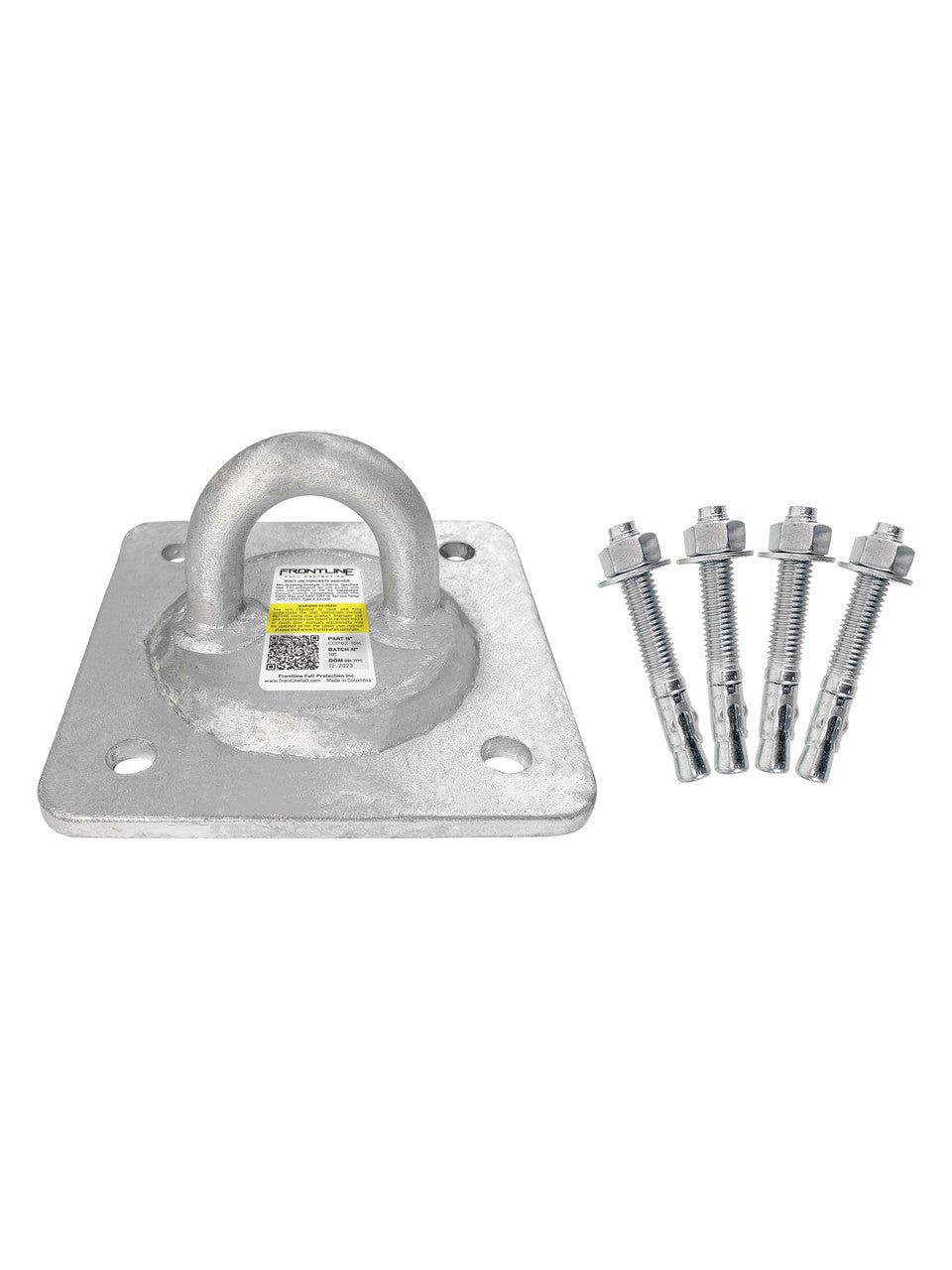

The Frontline COP02-10K Concrete and Steel 10,000 lb Reusable Anchor Plate is a bolt-on fall arrest anchor for concrete walls, ceilings, columns and structural steel. The hot-dip galvanized ASTM-rated steel plate has four pre-drilled holes and ships with its concrete anchor bolts, installs quickly with minimal tools in a horizontal or vertical position, and can be moved from job to job as a temporary anchor or left in place as a permanent one. Minimum breaking strength 10,000 lb; one user from 130 to 310 lb.
Frontline COP02-10K anchor plate key features
Frontline COP02-10K reusable anchor plate specifications
| Model | COP02-10K |
| Anchor type | Bolt-on concrete and steel anchor plate, temporary or permanent |
| Material | ASTM-rated steel, hot-dip galvanized |
| Minimum breaking strength | 10,000 lb |
| User capacity | 130 to 310 lb, one user |
| Mounting | Four pre-drilled holes; concrete anchor bolts included; horizontal or vertical |
| Substrate | Cured concrete or structural steel |
| Weight | About 5 lb |
| Standards | Meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910 (Frontline) |
| Brand | Frontline Fall Protection |
CERTIFICATION — ANSI/OSHA · NOT CSA
Frontline lists the COP02-10K as meeting or exceeding ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910. It is not CSA Z259 certified. Many Canadian sites accept ANSI/OSHA-rated anchorage connectors; confirm with your authority having jurisdiction before use, and if your site specifies a CSA-marked anchor, ask us before ordering.
Frontline COP02-10K anchor plate questions answered
Is the Frontline COP02-10K anchor plate CSA certified?
No. It is built to ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910. Check with your authority having jurisdiction whether an ANSI/OSHA anchorage connector is accepted on your site; if you need a CSA-marked anchor, contact us and we will point you to one.
What comes in the box with the anchor plate?
The galvanized plate and the concrete anchor bolts for its four pre-drilled holes. When you re-set the plate in concrete, use new wedge bolts; the used ones must be replaced.
Can I mount it on steel instead of concrete?
Yes. Frontline rates the plate for cured concrete or steel structures, in a horizontal or vertical position.
Is it a temporary or a permanent anchor?
Either. Leave it bolted in place as a permanent tie-off, or unbolt it and move it to the next job.
How many workers can tie off to one plate?
One. The plate has a 10,000 lb minimum breaking strength and a user capacity of 130 to 310 lb including tools.
Does it need inspection before use?
Yes. Inspect the plate, bolts and substrate before every use and have a competent person inspect it on a schedule. Remove it from service after any fall or if it shows damage, deformation or corrosion.
