FallTech 7078C Tradesman Pro 3D Construction Harness | CSA Z259.10

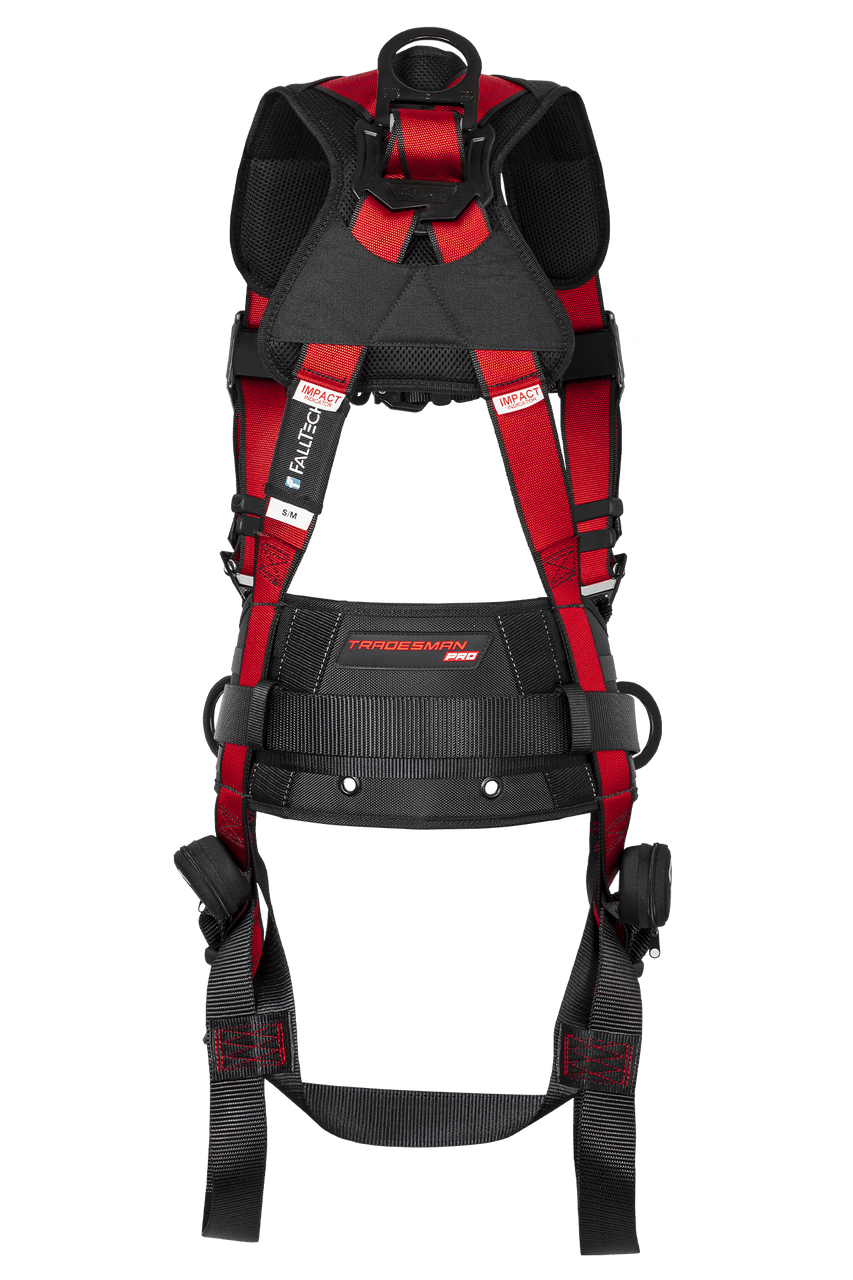

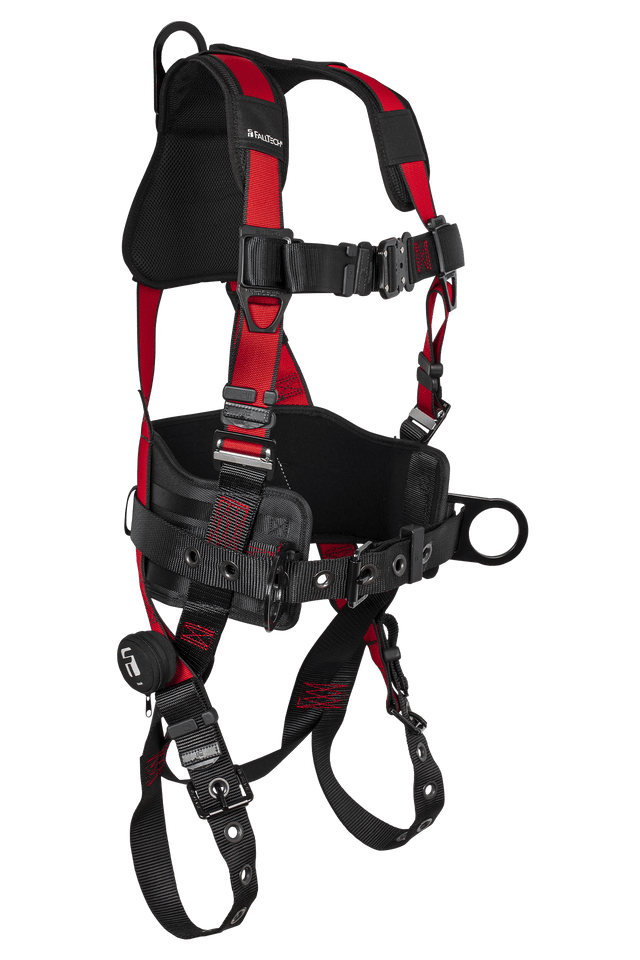

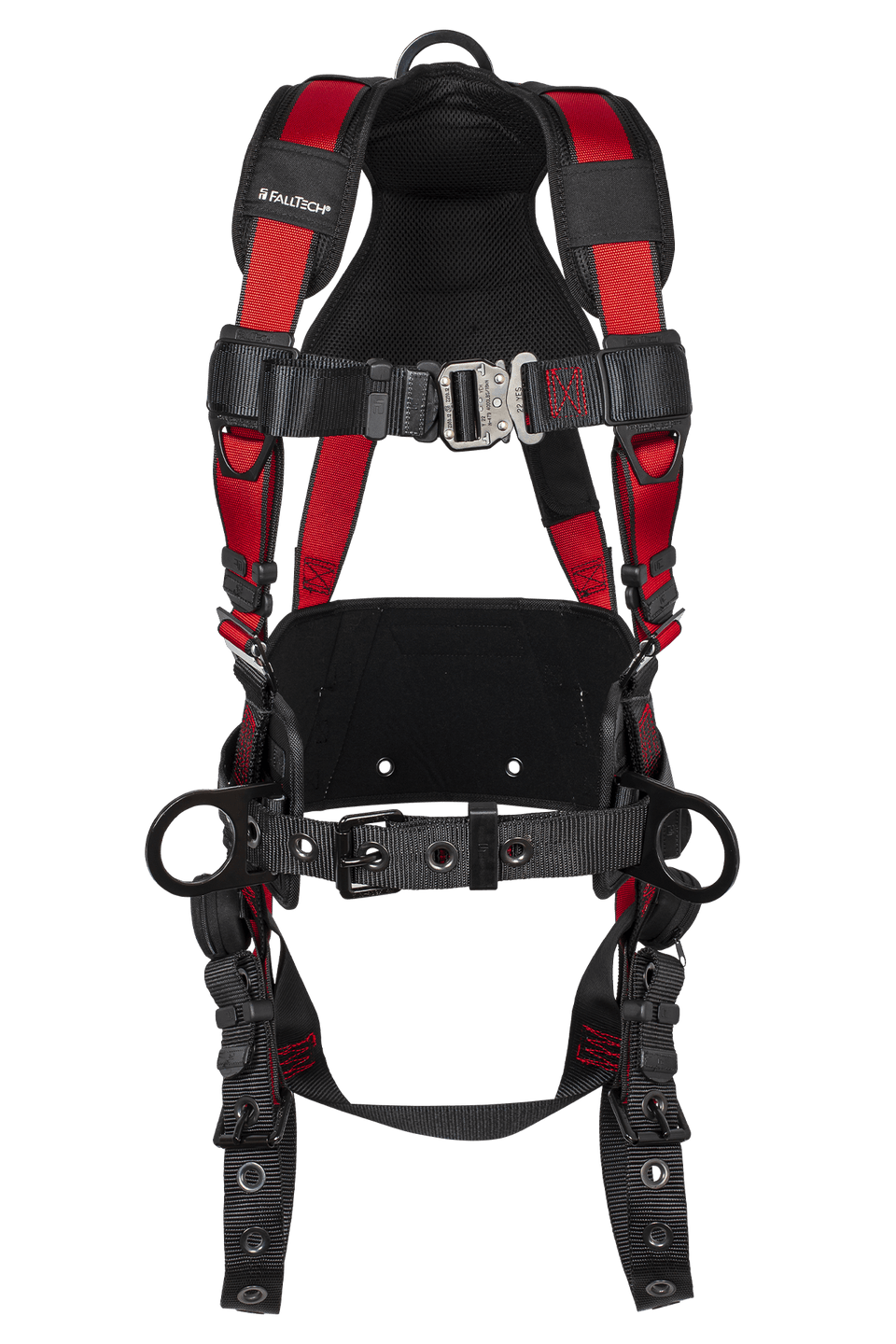

FallTech 7078C Tradesman Pro 3D Construction Belted Full Body Harness
CSA Z259.10-2018 Class APThe FallTech 7078C Tradesman Pro is a CSA Z259.10-2018 Class AP construction belted harness built for Canadian tradespeople who need hip D-ring positioning and a rugged integrated tool belt. If your crew works structural steel, formwork, or commercial roofing, this is the mid-range workhorse that balances comfort, durability, and price.
Overview
The FallTech 7078C Tradesman Pro 3D Construction Belted Full Body Harness delivers three-point D-ring connectivity (one dorsal, two hip) with an integrated waist belt designed to support heavy tool loads without folding or sagging. Certified to CSA Z259.10-2018 Class AP and ANSI Z359.11-2021, it meets both Canadian and American fall protection standards. The Tradesman Pro line sits in FallTech's mid-range, making it an ideal choice for contractors outfitting crews who need more than a basic 1D harness but don't require the premium features of the FT-One or FT-Iron lines.
Key Features
3D Configuration with Hip D-Rings
Dorsal D-ring for fall arrest plus two hip D-rings for positioning and work restraint. Enables connection to positioning lanyards while maintaining fall arrest capability.
V-Slot Locking D-Ring Plate
Minimizes D-ring slippage and ensures the dorsal attachment stays centred on your back where it belongs—critical for proper fall arrest geometry.
Heavy-Duty Waist Pads
Integrated belt supports extreme tool and equipment loads without folding. Workers can carry tool bags, pouches, and materials directly on the harness belt.
Dorsal SRL Tunnel
Dedicated attachment tunnel allows fast, hassle-free connection of single or twin personal SRLs without fumbling with the D-ring alignment.
Tri-Layer Padded Shoulder Yoke
Three-layer integrated shoulder padding distributes load across the shoulders for all-day comfort on long shifts.
Suspension Trauma Relief Straps
Included trauma straps allow a suspended worker to stand in the harness after a fall, reducing the risk of suspension trauma while awaiting rescue.
Technical Specifications
| CSA Certification | CSA Z259.10-2018 Class AP (Full Body Harness with Positioning) |
| ANSI Certification | ANSI Z359.11-2021 |
| OSHA Compliance | OSHA 1926.502 and 1910.66 |
| ANSI Weight Capacity | 130–310 lbs (59–141 kg) |
| OSHA Weight Capacity | 130–425 lbs (59–193 kg) |
| D-Ring Configuration | 3D — 1 dorsal, 2 hip (positioning) |
| Harness Class | AP (Fall Arrest + Positioning) |
| Chest Buckle | Quick-connect with visual indicators |
| Leg Buckles | Tongue buckle (quick-adjust) |
| Webbing | Polyester; 5,000 lb min. static strength |
| Hardware | Plated alloy steel, all-black low-profile finish |
| D-Ring Strength | Plated alloy steel; 5,000 lb min. static strength |
| Buckle/Adjuster Strength | Plated alloy steel; 3,372 lb min. static strength |
| Static Strength | 3,600 lb min. |
| Available Sizes | XS, S/M, L/XL, 2XL/3XL |
| Trauma Relief | Fully adjustable suspension trauma relief straps (included) |
CSA Certification Details
CSA Z259.10-2018 Class AP — What It Means
Class AP certification means this harness is approved for both fall arrest (Class A) and work positioning (Class P). The dorsal D-ring handles vertical fall arrest loads, while the hip D-rings allow connection to positioning lanyards for hands-free work at height. This dual classification is required for Canadian construction workers who need to lean into their work—formwork, structural connections, and edge work where restraint positioning is necessary. Canadian provincial OHS codes (Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, Quebec CNESST) all require CSA Z259.10 certification for harnesses used on jobsites.
Applications
- Commercial and residential construction
- Structural steel erection and ironwork
- Formwork and concrete placement at height
- Commercial roofing (flat and low-slope)
- Industrial maintenance and facility work
- Bridge and infrastructure construction
- Any Canadian jobsite requiring CSA Z259.10 Class AP fall protection
How to Choose the Right Harness
The 7078C sits between the budget FallTech 7016 Contractor 1D and the premium FT-Iron/FT-One lines. Choose the 7078C if you need hip D-rings for positioning work and an integrated tool belt—features the 7016 doesn't offer. If you need a lighter, non-belted option with quick-connect buckles for faster donning, consider the FallTech 8141 FT-Iron 1D. For crews that primarily need fall arrest only (no positioning), a Class A 1D harness may be sufficient and more cost-effective.
Compliance & Standards
Primary: CSA Z259.10-2018 Class AP (Full Body Harness — Fall Arrest + Positioning)
Also Certified: ANSI Z359.11-2021, OSHA 1926.502, OSHA 1910.66
Provincial Coverage: Meets requirements under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, and Quebec CNESST for harness selection and use on Canadian construction and industrial jobsites.
Frequently Asked Questions
Shipping & Availability
The FallTech 7078C ships from Canada to all provinces and territories. Standard shipping timelines apply. For bulk orders or crew outfitting, contact Fall Protection Canada for volume pricing and expedited shipping options.
