FallTech 7451A Rotating D-Ring Concrete Anchor | OSHA 1926.502

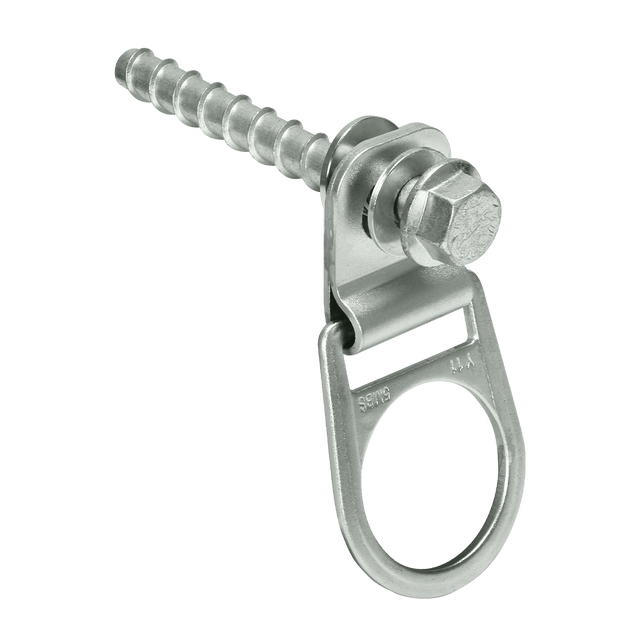

FallTech 7451A Rotating D-Ring Concrete Anchor with Concrete Screw
Stainless Steel • 360° RotationThe FallTech 7451A is a rotating D-ring anchor designed for temporary or permanent installation in cured concrete. The stainless steel anchoring plate resists corrosion in outdoor and high-moisture environments, while the precision-cut bushing provides full 360-degree D-ring rotation—allowing workers to move freely around the anchor point without twisting their lanyard or SRL.
Overview
The FallTech 7451A Rotating D-Ring Concrete Anchor combines a stainless steel base plate with a plated alloy steel D-ring that rotates a full 360 degrees. Installation uses a concrete screw into cured concrete—no epoxy cure times or specialty anchor systems required. The reusable design means both the anchoring plate and D-ring can be removed and reinstalled at new locations. The 5,000 lb minimum static strength D-ring meets OSHA requirements for fall arrest anchorage. This anchor fills a critical gap for Canadian concrete contractors, parking structure maintenance crews, and industrial facility workers who need anchor points on concrete surfaces.
Key Features
360° D-Ring Rotation
Precision-cut bushing allows the D-ring to rotate freely through 360 degrees. Workers can move around the anchor point in any direction without twisting their connecting device.
Stainless Steel Anchoring Plate
Corrosion-resistant stainless steel plate for outdoor installations exposed to rain, snow, and temperature cycling. Suitable for permanent or long-term temporary installations.
Concrete Screw Installation
Self-tapping concrete screw for fast installation into cured concrete. No epoxy, no cure time, no specialty anchor systems. Drill, drive, connect.
Reusable Design
Both the anchoring plate and D-ring are reusable. Remove the concrete screw to relocate the anchor to a new position. Reduces cost per installation over time.
5,000 lb D-Ring Strength
Plated alloy steel D-ring rated at 5,000 lb minimum static strength. Compatible with lanyards, SRLs, and lifeline connectors.
Temporary or Permanent Use
Install as a temporary anchor for a specific job, or leave in place as a permanent anchor point for ongoing maintenance access on concrete structures.
Technical Specifications
| Product Type | Rotating D-ring concrete anchor |
| OSHA Compliance | OSHA 1926.502 and 1910.66 |
| CSA Status | VERIFY — not explicitly listed on FallTech product page. Confirm with FallTech Canada. |
| Anchoring Plate Material | Stainless steel |
| D-Ring Material | Plated alloy steel; 5,000 lb min. static strength |
| D-Ring Rotation | 360° (precision-cut bushing) |
| Installation Method | Concrete screw (self-tapping, into cured concrete) |
| Substrate | Cured concrete |
| Reusable | Yes — both plate and D-ring |
| Temporary/Permanent | Suitable for both temporary and permanent installation |
Anchor Standards & Compliance
Important: CSA Status Pending Verification
The FallTech 7451A product page lists OSHA 1926.502 and 1910.66 compliance. CSA Z259.15 (Anchorage Connectors) certification was not explicitly stated on the manufacturer's page at time of listing. Fall Protection Canada is verifying CSA status with FallTech's Canadian representative. For Canadian jobsites, concrete anchors must meet CSA Z259.15 or be rated by a professional engineer. Contact us for the latest certification status before specifying this anchor for Canadian projects.
Applications
- Concrete slab and deck construction
- Parking structure maintenance and repair
- Bridge and overpass concrete work
- Industrial facility maintenance on concrete surfaces
- Rooftop HVAC and mechanical equipment access (concrete pads)
- Permanent anchor point installation for ongoing maintenance access
How to Choose the Right Anchor
The 7451A is purpose-built for cured concrete. For steel beams and structural members, the FallTech C7372 choker anchor wraps around any structural member and is CSA Z259.15 certified. For wood roof decking, the FallTech 7410 hinged roof anchor nails into the structure. For standing seam metal roofs, see our SSRA1 Standing Seam Roof Anchor. Browse the full anchor collection to compare options.
Compliance & Standards
OSHA: Meets OSHA 1926.502 and 1910.66 requirements for anchorage connectors.
CSA: CSA Z259.15 certification status pending verification with FallTech Canada. Contact Fall Protection Canada for current status.
Note: Canadian provincial OHS codes require anchor points to meet CSA Z259.15 or be rated by a professional engineer for fall arrest loads (minimum 22.2 kN / 5,000 lbs per person). Concrete substrate must be structurally sound and able to support the required loads.
Frequently Asked Questions
Shipping & Availability
The FallTech 7451A ships from Canada to all provinces and territories. Standard shipping timelines apply. Contact Fall Protection Canada for bulk orders and project pricing.
