Frontline COM345K MEGA Swivel 5K Concrete Anchor | Canada

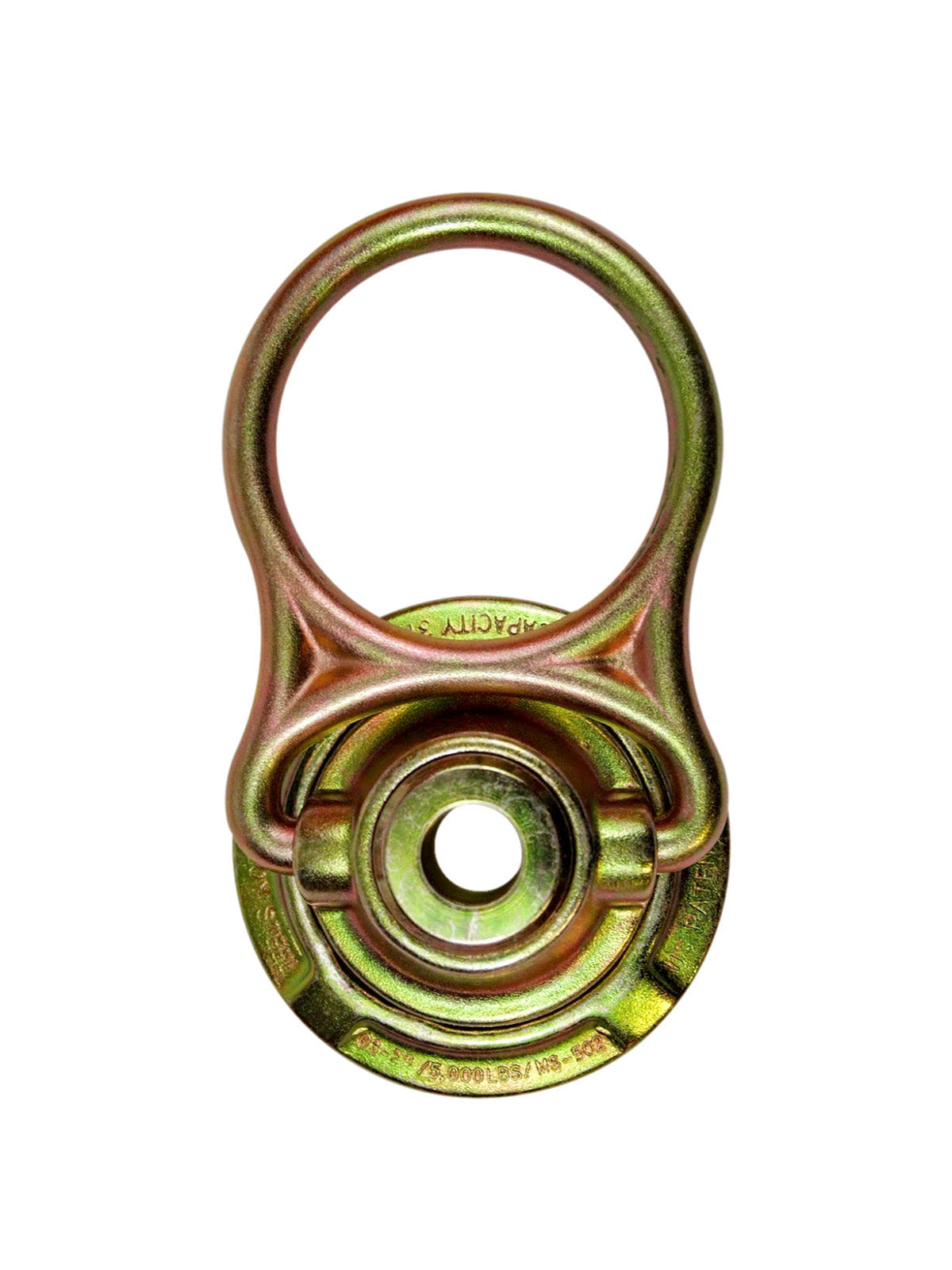

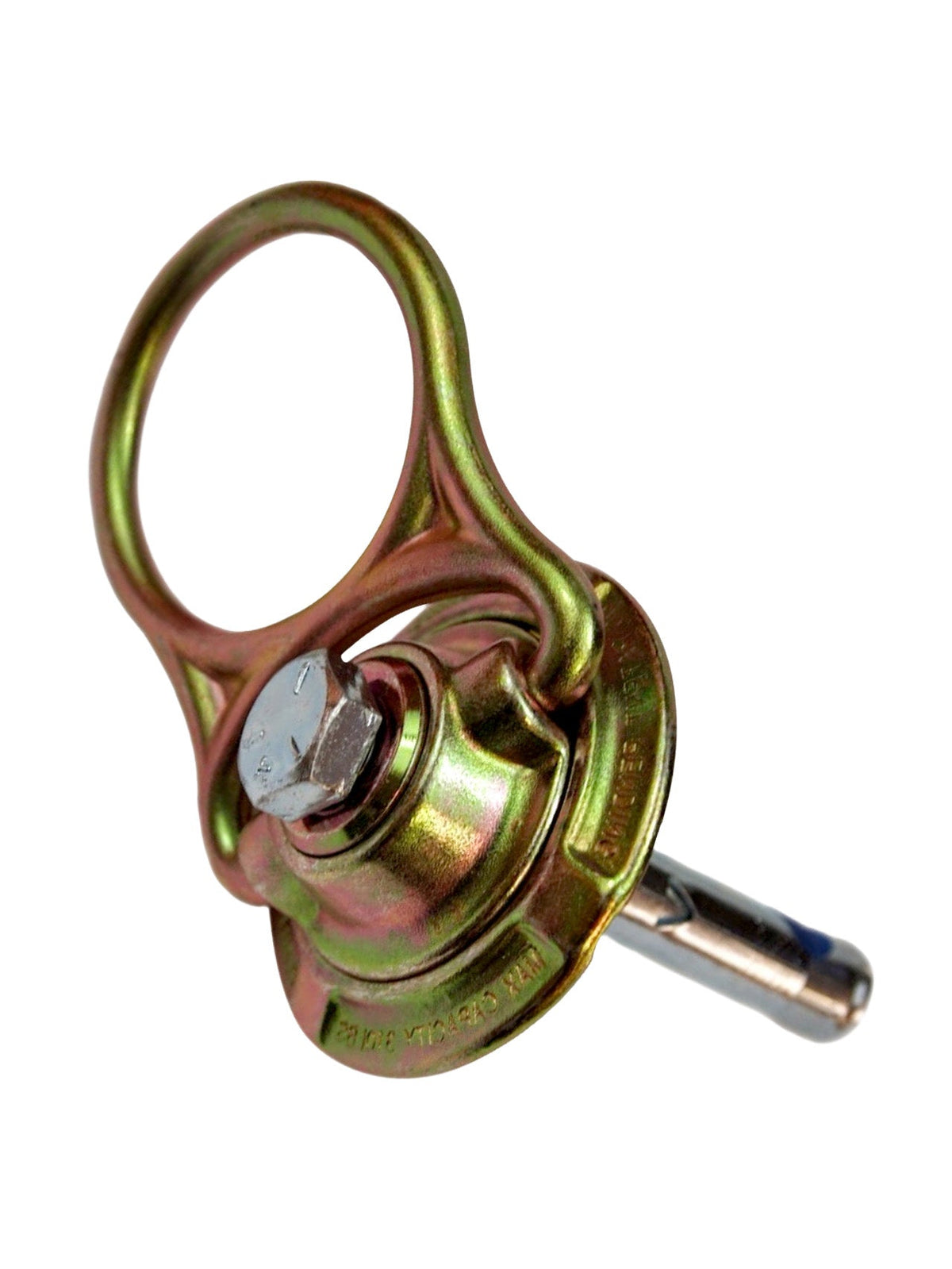

Frontline COM345K MEGA Swivel 5k Concrete Anchor. A reusable 5k swivel concrete anchor whose D-ring rotates 360 degrees and flips 180 degrees, made from heavy-gauge heat-treated alloy steel with a reinforced bridge, D-ring and locking caps. A patent-pending key lock keeps the D-ring seated under heavy loads, and the bolt is replaceable when moving to a new work area; it suits vertical, horizontal and overhead use for fall protection, rescue, lifting, hoisting and tie-back in concrete.
Frontline COM345K MEGA Swivel 5K concrete anchor key features
- Anchor rotates 360° and pivots 180° side-to-side, helping avoid side loading and accidental disengagement
- Suitable for permanent and temporary concrete installations
- Can be used as a single-user anchor or as part of a temporary horizontal lifeline system with other approved anchors
- Built for durability across repeated jobs

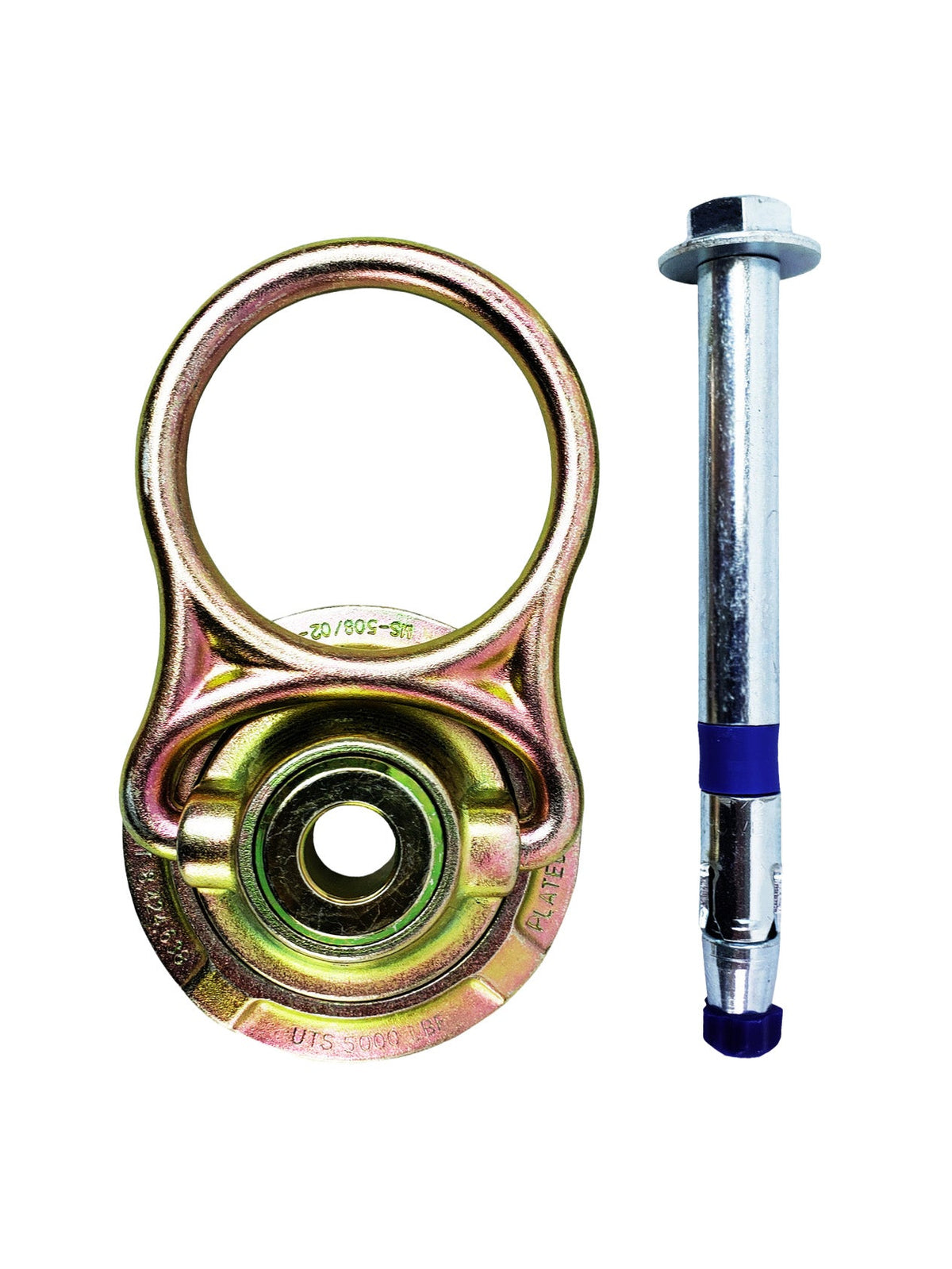

- Bolt included, ready to use out of the package
Frontline COM345K MEGA Swivel 5K concrete anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | COM345K |
| Included | Anchor with bolt |
| Static Tensile Strength | 5,000-lbf/22kN |
| User Maximum Capacity | 310 lbs |
| Product Weight | 1.2 lbs |
| Application | Concrete Anchorage |
| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012 |
Where crews use the Frontline COM345K MEGA Swivel 5K concrete anchor
Concrete decks and slabs
Tie off on cured concrete walls, columns and decks.
Overhead and wall use
Install vertically, horizontally or overhead.
Temporary HLL ends
Use as an end anchor with other approved anchors.
Move job to job
Reusable: fit a new bolt at each new location.
Is the Frontline COM345K CSA certified? Compliance in Canada
Is the Frontline COM345K anchor CSA certified?
No. Frontline rates the COM345K to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.
What comes with the Frontline COM345K anchor?
Anchor with bolt.
What is the user capacity of the Frontline COM345K?
Frontline lists 310 lbs.
What to pair with the Frontline COM345K MEGA Swivel 5K concrete anchor
The COM345K is one part of a personal fall arrest system. Pair it with a self-retracting lifeline or shock-absorbing lanyard and an anchor rated for the load, and train the crew on inspection and rescue.
