Frontline DAN75RA-US Patriot davit system
$10,482.99
Skip to product information
Frontline DAN75RA-US Patriot davit system
1/5
  • Frontline DAN75RA-US Patriot davit system
  • Frontline DAN75RA-US Patriot davit system, view 2
  • Frontline DAN75RA-US Patriot davit system, view 3
  • Frontline DAN75RA-US Patriot davit system, view 4
  • Frontline DAN75RA-US Patriot davit system, view 5
Frontline DAN75RA-US Patriot Davit, 50 ft 3-Way Retrieval | Canada

Frontline DAN75RA-US Patriot Davit, 50 ft 3-Way Retrieval | Canada

$10,482.99

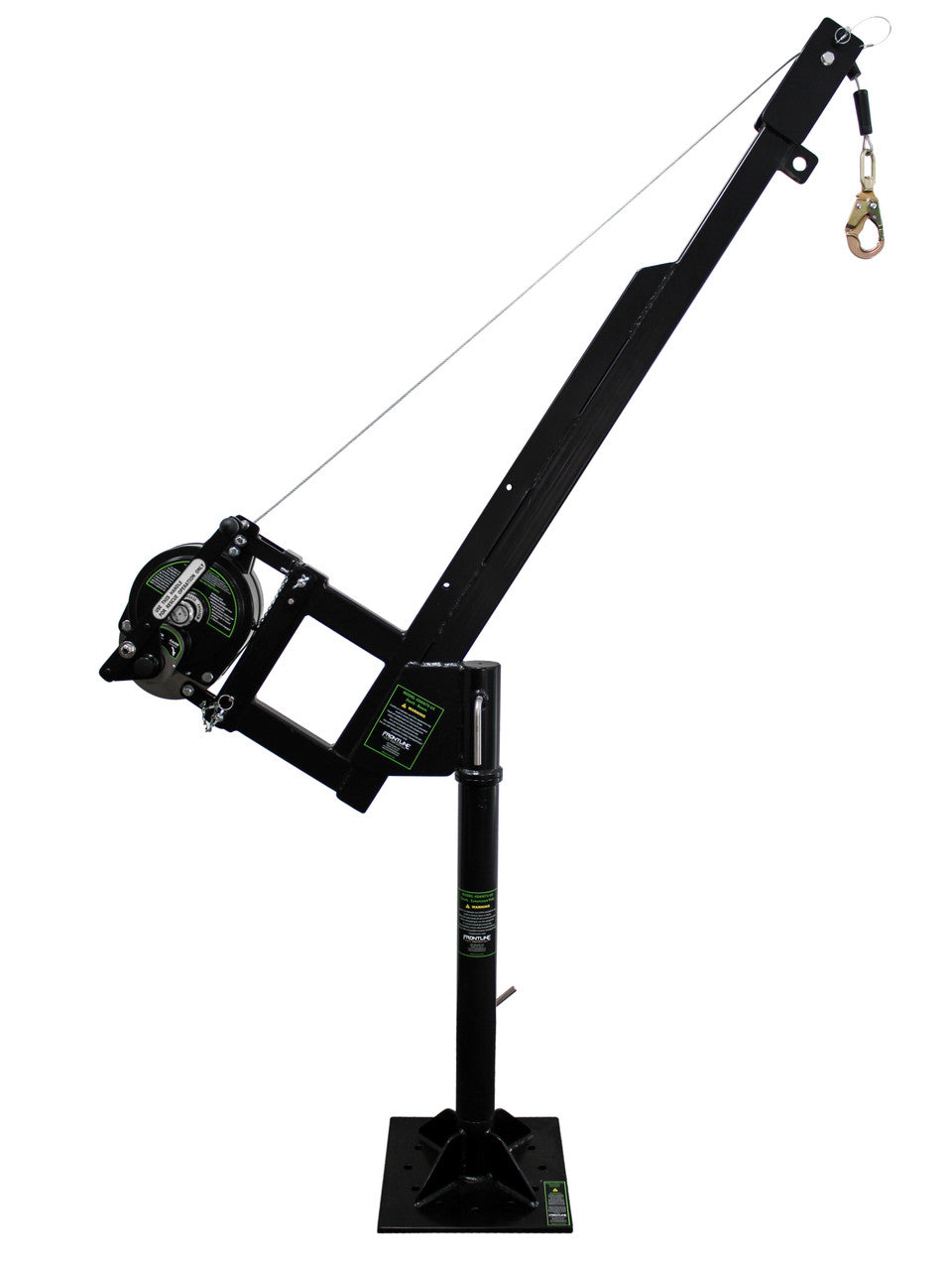

Frontline DAN75RA-US Patriot Confined Space Davit with 50' 3-Way Retrieval System. A confined space davit from Frontline's Patriot line with its 50 ft 3-way retrieval system: powder-coated steel, a removable boom that rotates 360° and locks in place, 89 in overall height and 26 in reach. The base mounts to steel flooring, concrete or a truck bed. 350 lb maximum user capacity.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the DAN75RA-US to the OSHA and ANSI standards it meets or exceeds. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Confined Space Davit Kit
Material
powder coated steel
Overall Height
89"
Reach
26"

Frontline DAN75RA-US Patriot davit system key features

  • Powder-coated steel davit construction
  • Base mounts to steel flooring, concrete or the back of a truck; well suited to tank entry or over-the-edge work
  • One-person setup in seconds
  • Removable boom rotates 360° and locks in any position
  • Two connection points for devices, a 3-way retrieval or a winch option
  • 89" overall height with 26" reach

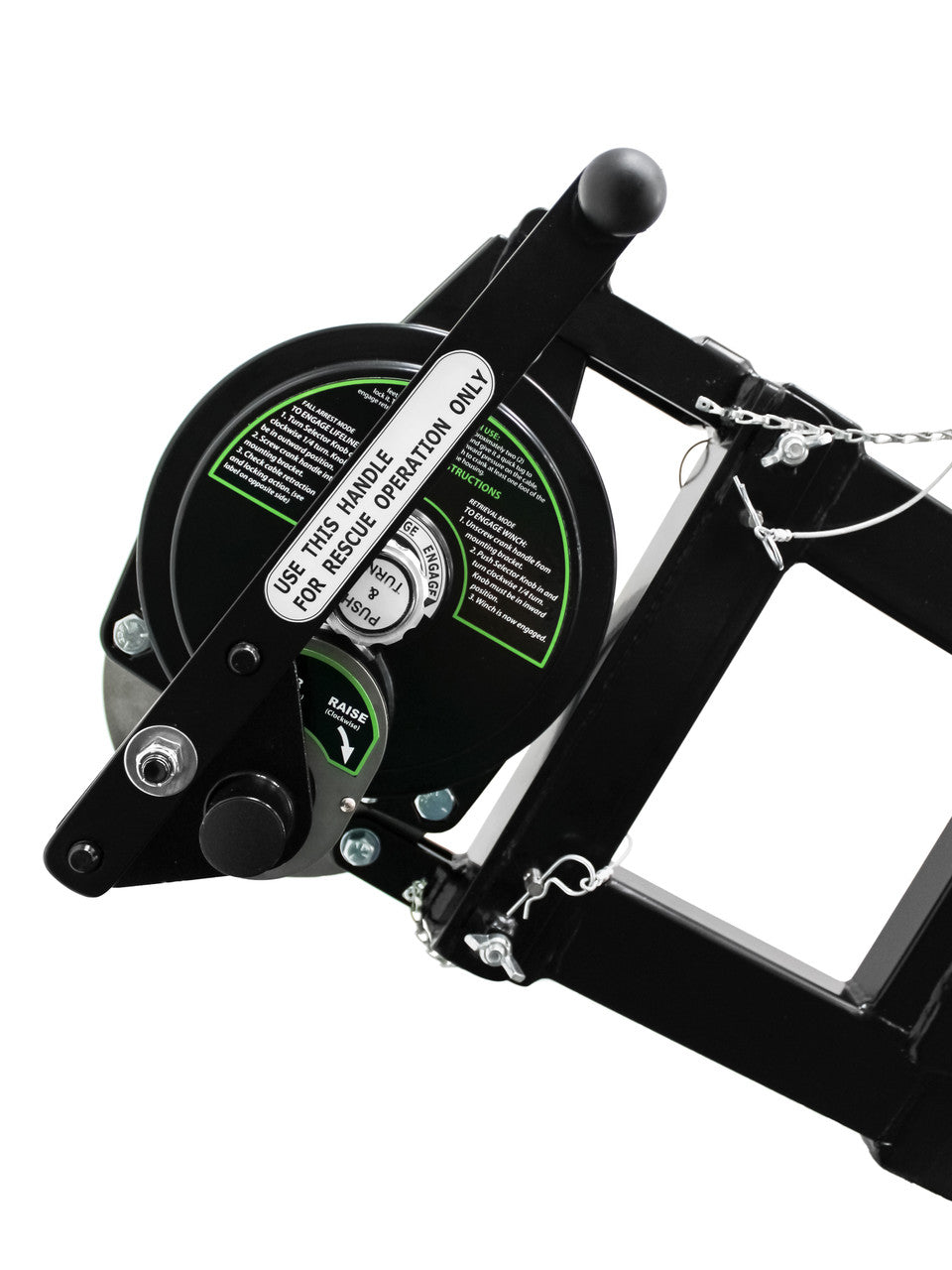

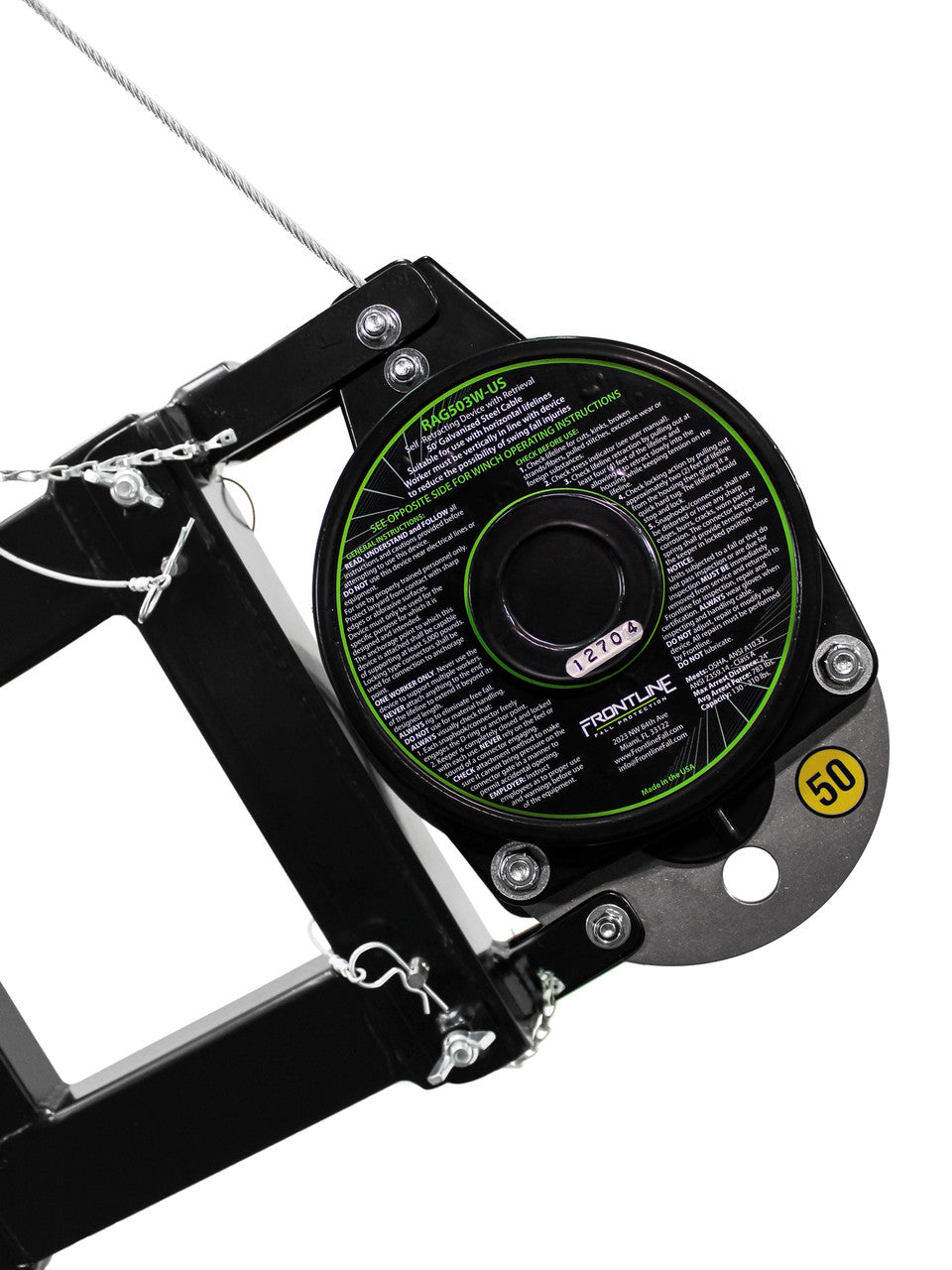

  • 3-way retrieval lowers, raises and rescues personnel and converts to a self-retracting device with a turn of a knob
  • Weather-resistant cast aluminum retrieval housing with precision internal components
  • Energy-absorbing centrifugal brake arrests a fall within 24"; friction brake holds the load when raising or lowering stops

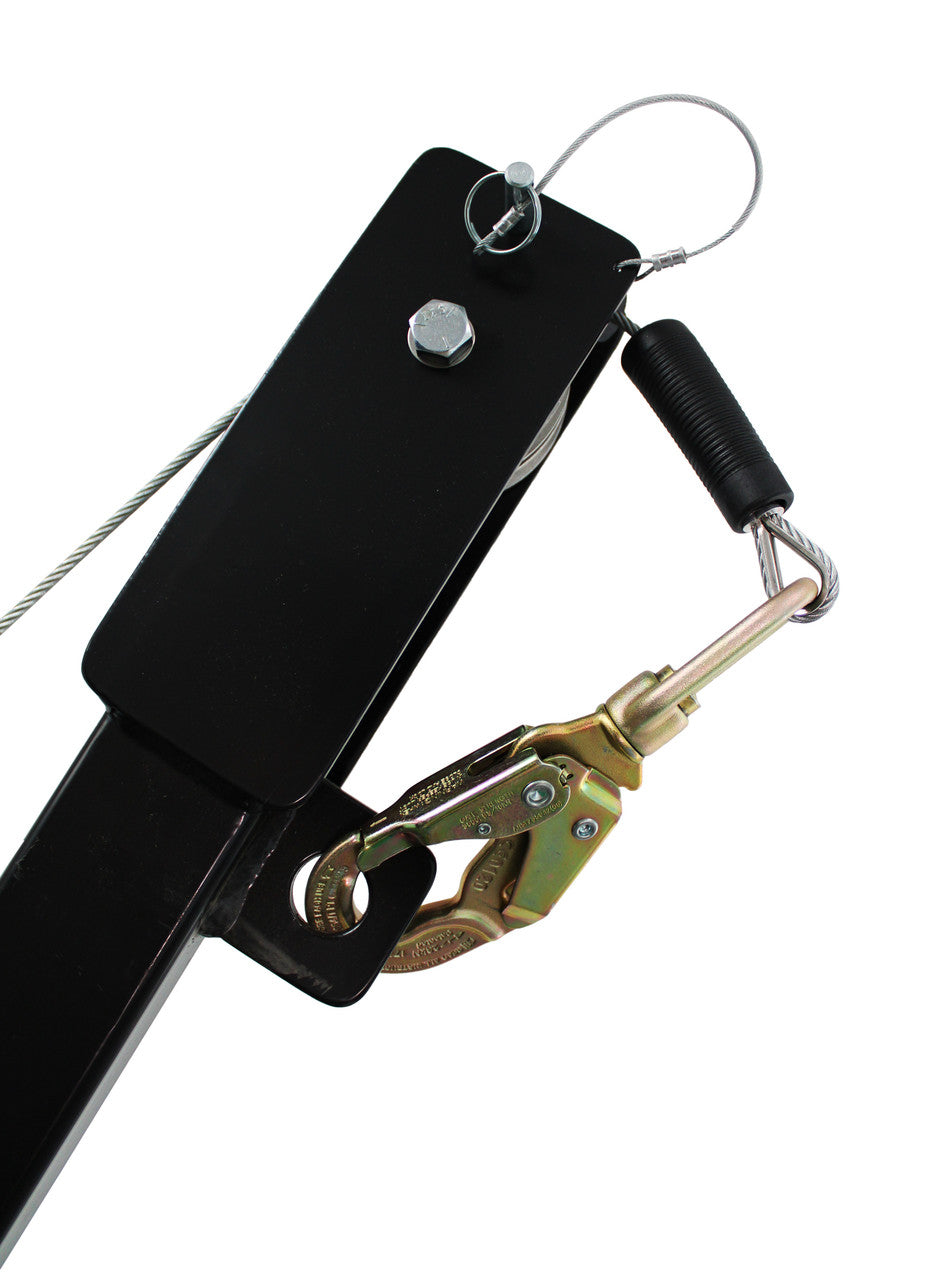

  • 3/16" galvanized steel cable with locking swivel snaphook with impact indicator

Frontline DAN75RA-US Patriot davit system specifications

Manufacturer Frontline Fall Protection
Model / SKU DAN75RA-US
Included Patriot confined space davit (DAN75-US) with Patriot 50' 3-way retrieval system (3/16" galvanized steel cable, locking swivel snaphook with impact indicator)
Material powder coated steel
Overall Height 89"
Reach 26"
Boom Rotation 360°
Lifeline Length 50'
Minimum Breaking Strength 5,000 lbs
Maximum User Capacity 350 lbs
Standards Meets or exceeds OSHA, ANSI Z359.1, ANSI Z359.4, ANSI Z359.18

Where crews use the Frontline DAN75RA-US Patriot davit system

Manholes and vaults

Lower and retrieve entrants over an opening.

Tanks and pits

Permit-required confined space entry.

Non-entry rescue

Bring a worker out without sending anyone in.

Utility crews

Fast one-person setup on site.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline DAN75RA-US CSA certified? Compliance in Canada

Is the Frontline DAN75RA-US system CSA certified?

No. Frontline rates the DAN75RA-US to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.

What comes with the Frontline DAN75RA-US system?

Patriot confined space davit (DAN75-US) with Patriot 50' 3-way retrieval system (3/16" galvanized steel cable, locking swivel snaphook with impact indicator).

What is the user capacity of the Frontline DAN75RA-US?

Frontline lists 350 lbs.

What to pair with the Frontline DAN75RA-US

The DAN75RA-US is one part of a personal fall arrest system. Pair it with a full-body harness with a back or shoulder D-ring and an anchor rated for the load, and train the crew on inspection and rescue.
