Frontline GUS-FXD fixed guardrail system
Safety Green / 5 ft
$456.99
Skip to product information
Frontline GUS-FXD fixed guardrail system
1/6

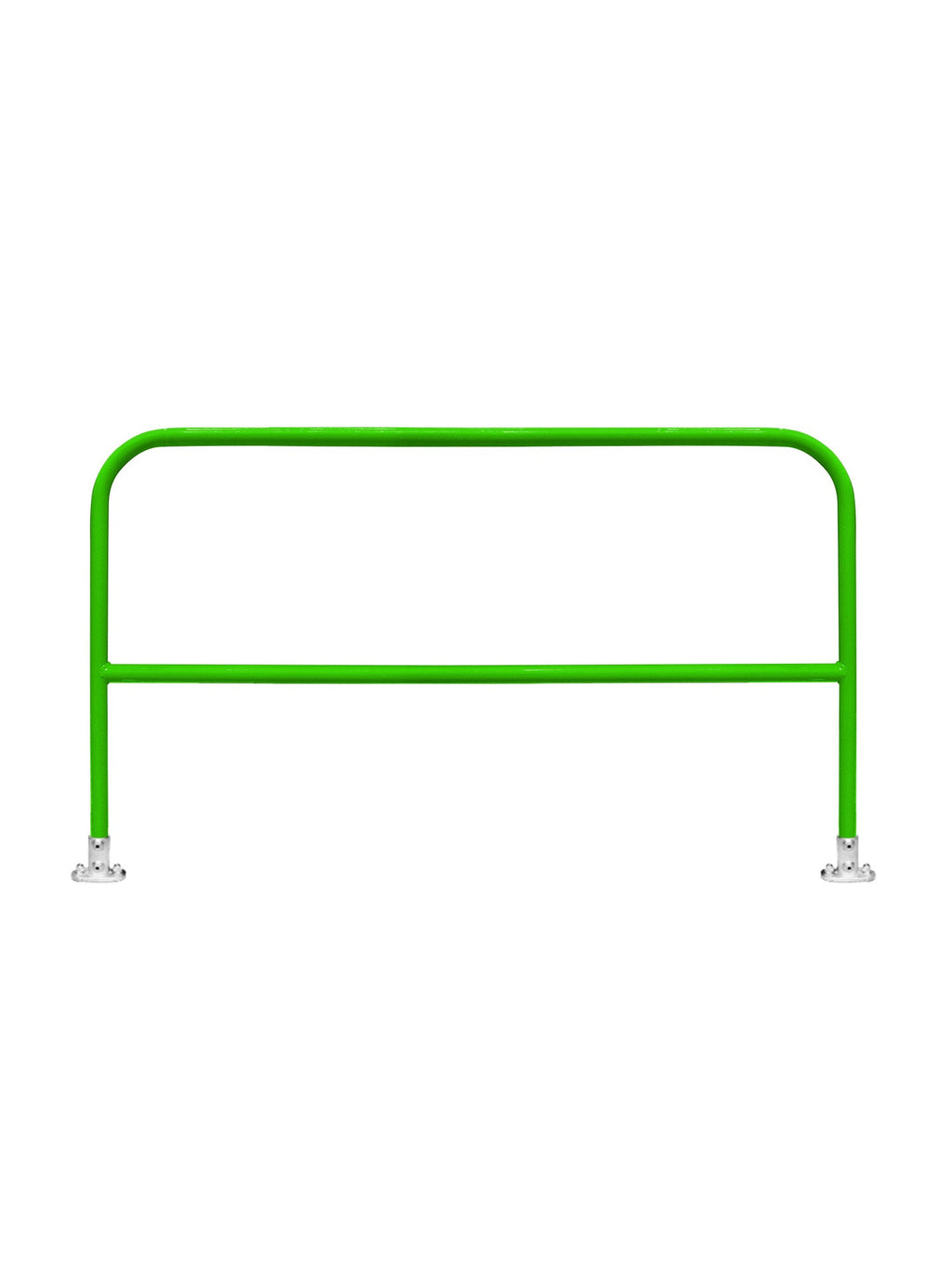

  • Frontline GUS-FXD fixed guardrail system

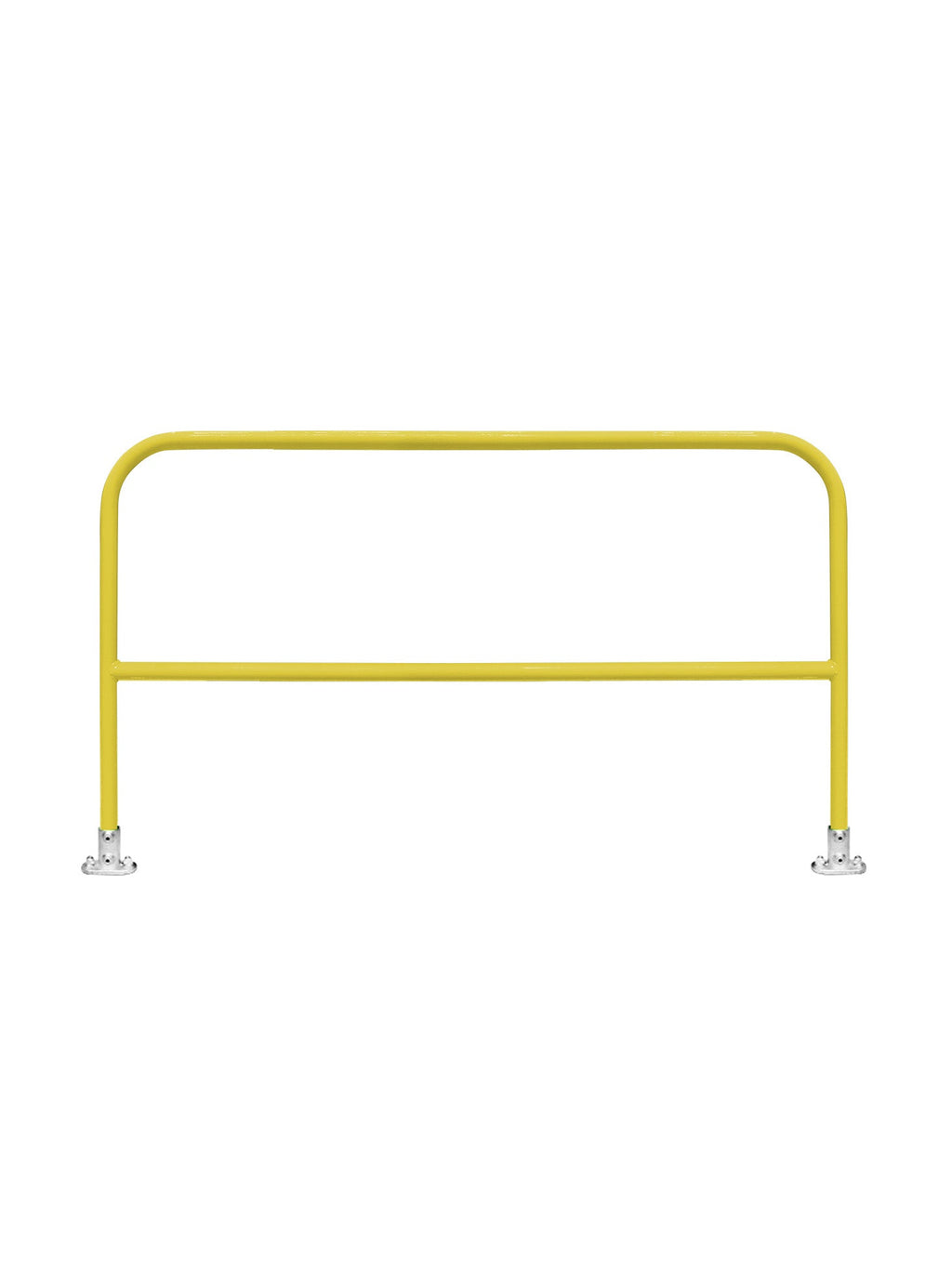

  • Frontline GUS-FXD guardrail system, second view

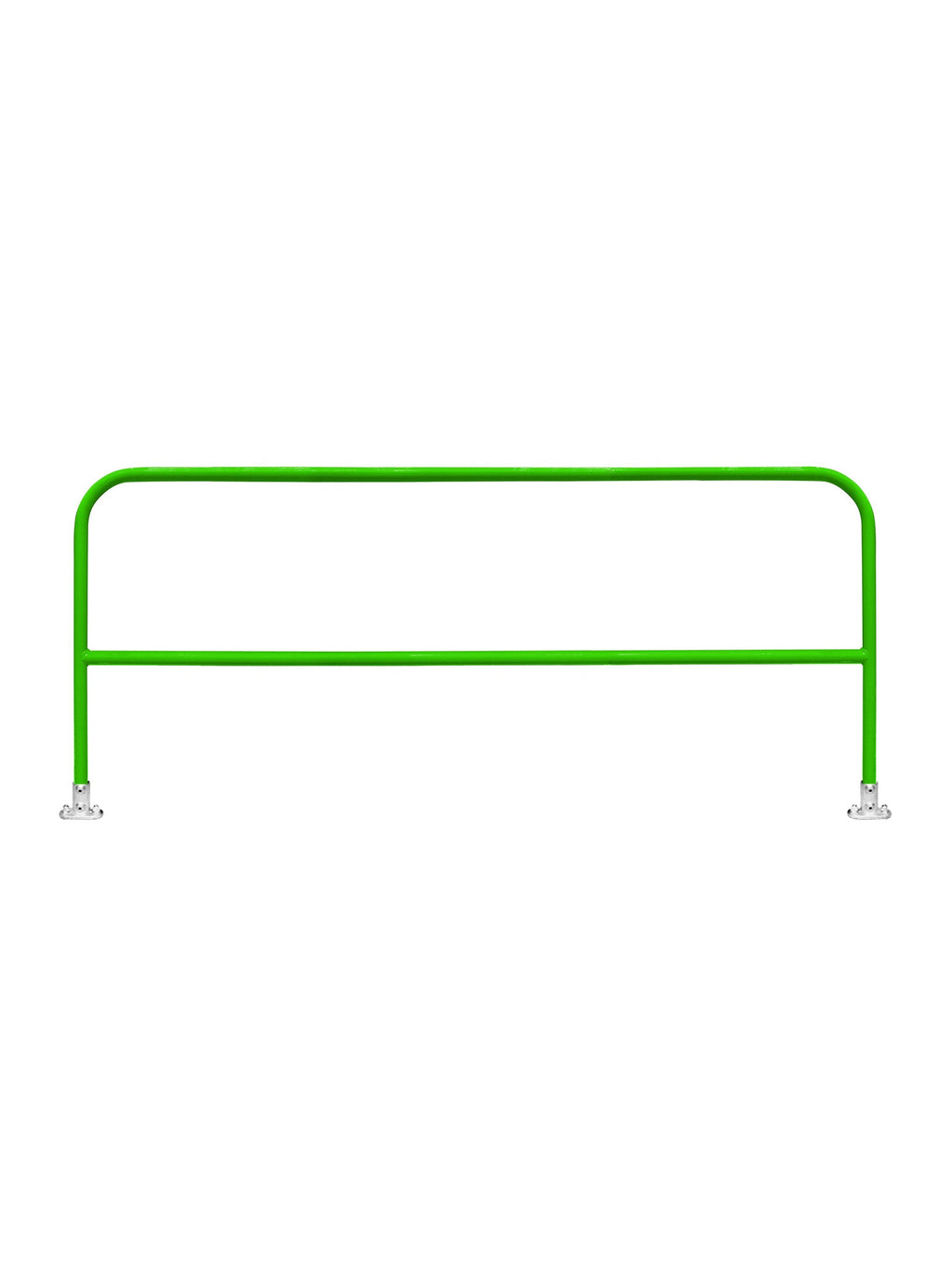

  • Frontline GUS-FXD base fitting detail

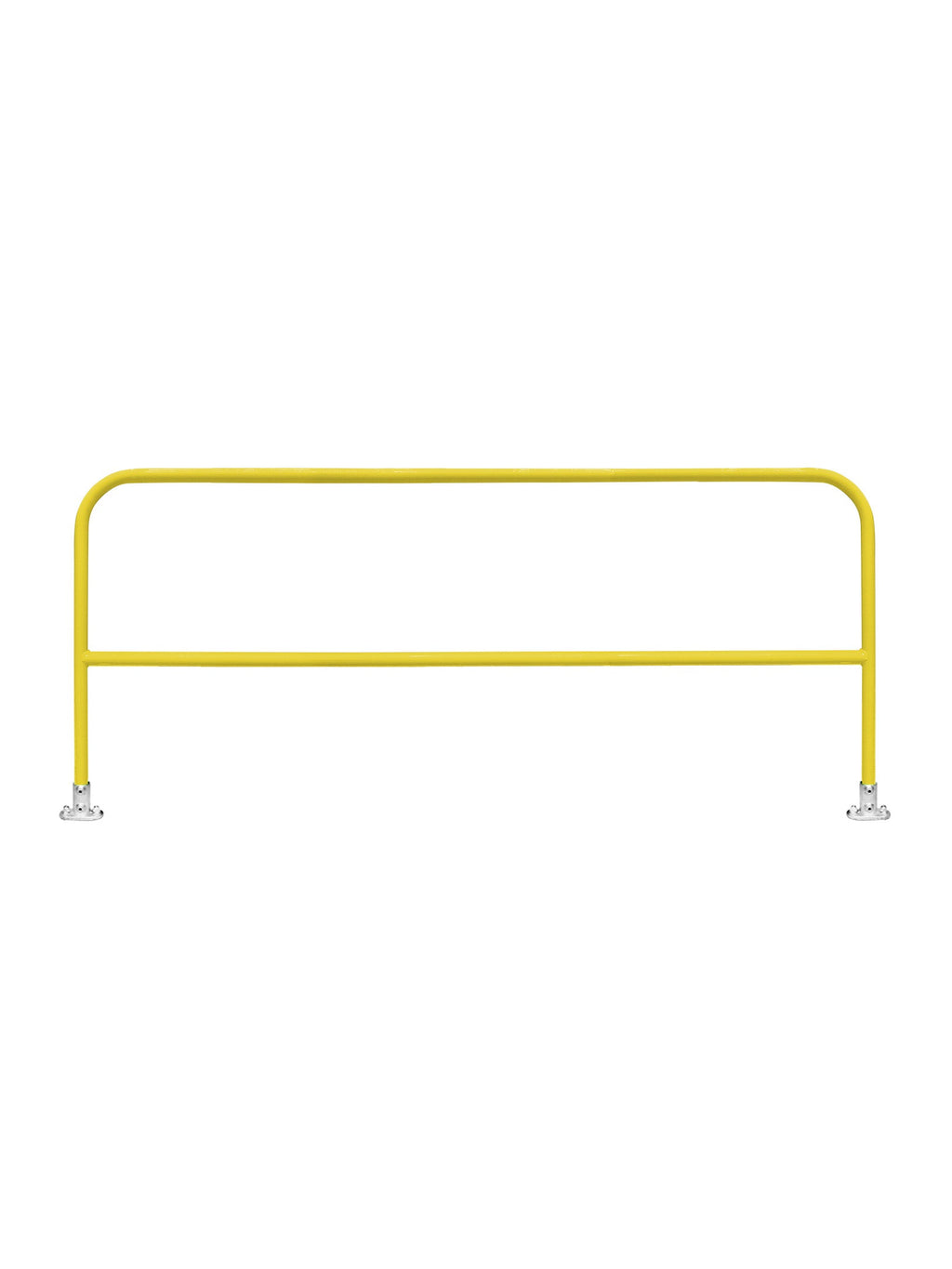

  • Frontline GUS-FXD guardrail mounting

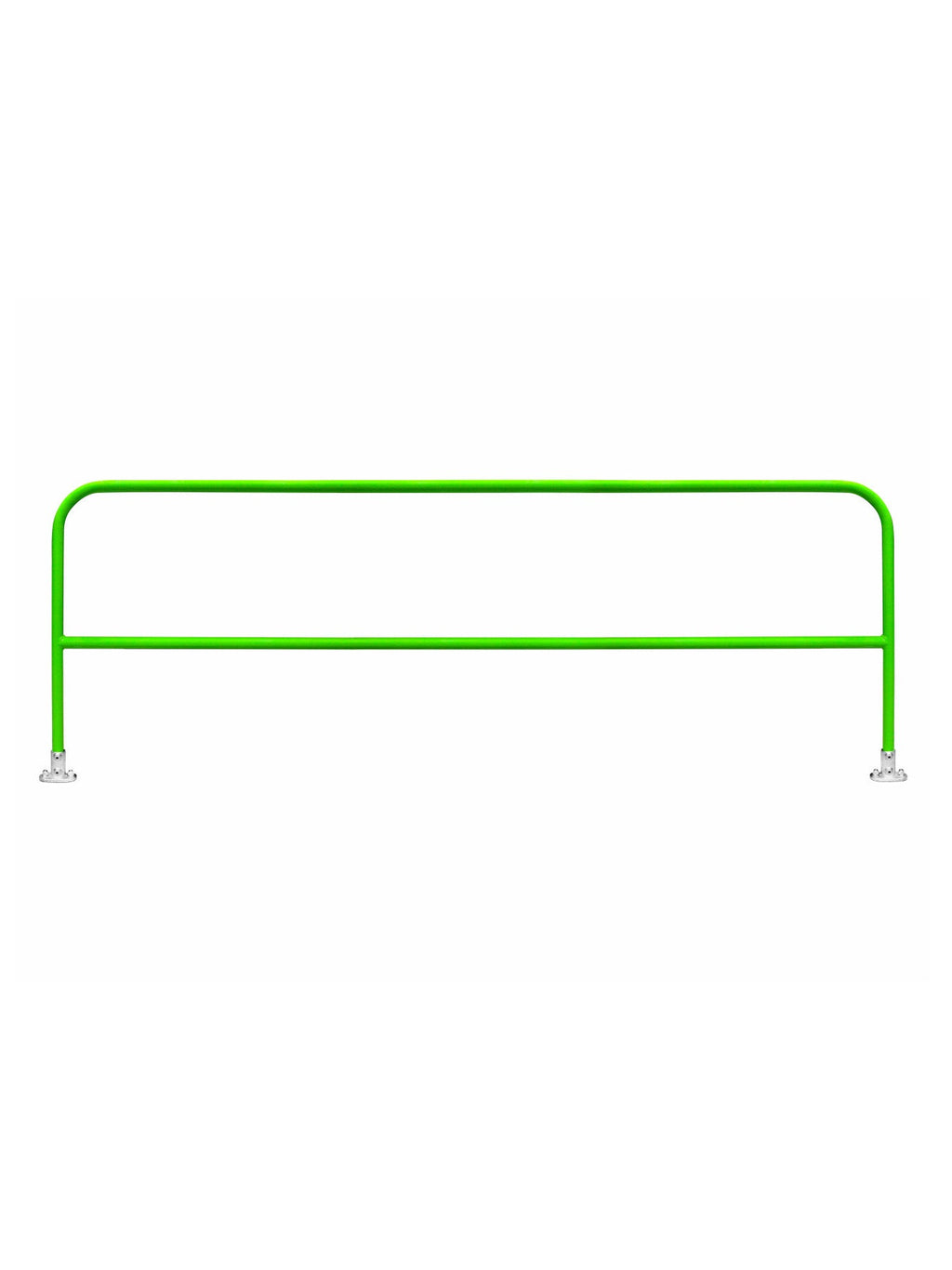

  • Frontline GUS-FXD guardrail system, alternate view

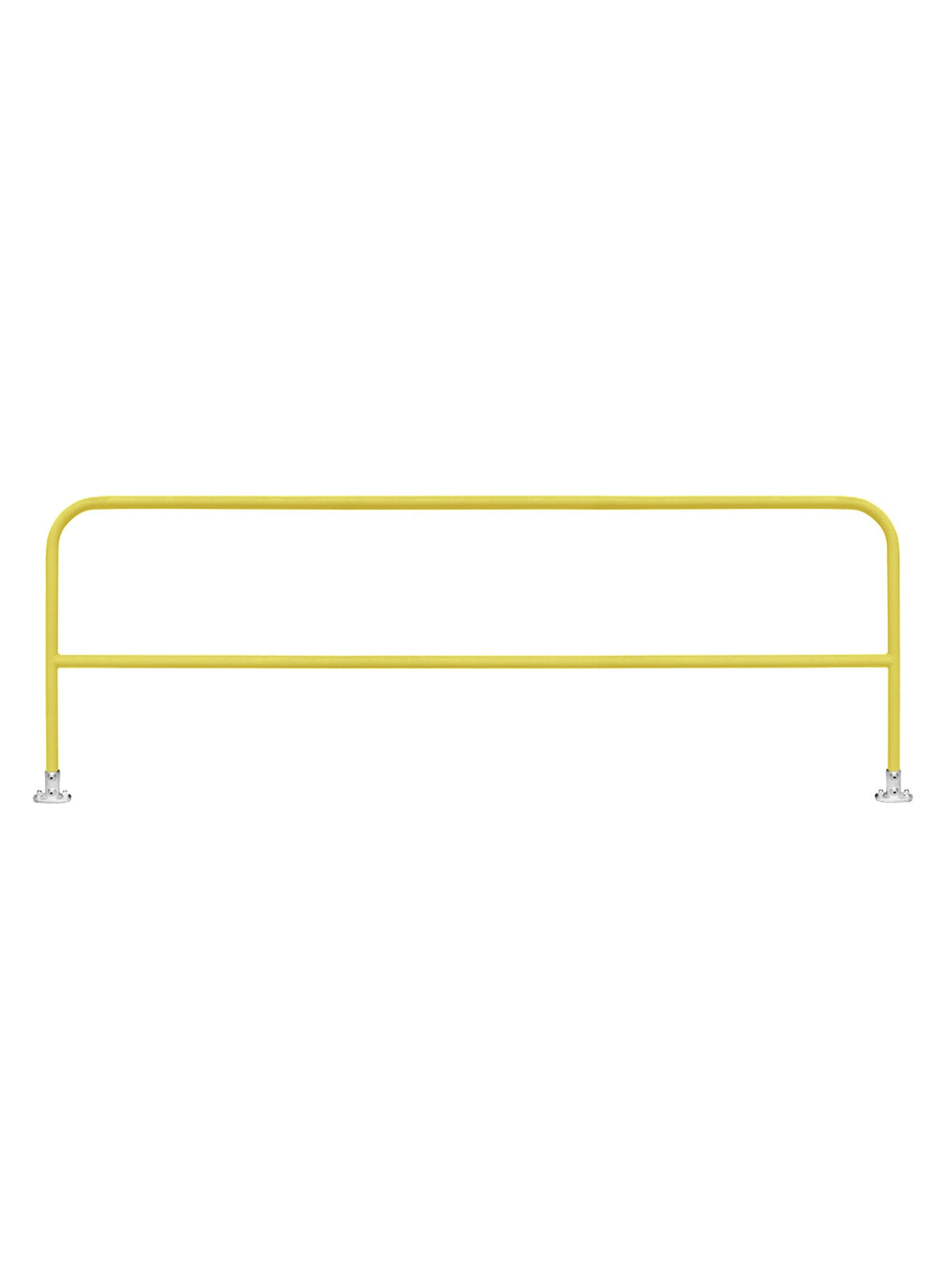

  • Frontline GUS-FXD guardrail, close-up
Frontline GUS-FXD Guardrail System for Concrete or Steel | Canada

Frontline GUS-FXD Guardrail System for Concrete or Steel | Canada

$456.99
Colour
Length

Frontline GUS-FXD Guardrail System for Concrete or Steel Substrates. A fixed guardrail system for permanent installation on concrete or steel. Rails slide into the base fittings and are held by two grub screws. High-strength ASTM-rated steel with a powder coated safety green or safety yellow finish, in 5, 7.5 or 10 ft lengths.

⚠
Compliance in Canada: OSHA / ANSI, not CSAFrontline states the GUS-FXD meets or exceeds OSHA 1910 and 1926. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Fixed guardrail system
Substrate
Concrete or steel
Lengths
5, 7.5 or 10 ft
Fittings
2

Frontline GUS-FXD fixed guardrail system key features

  • Fixed system for permanent installation
  • Drills onto concrete or bolts onto steel substrates
  • Rails slide into the base fittings, held by two grub screws
  • High-strength ASTM-rated steel
  • Powder coated safety green or safety yellow for visibility
  • Installs in minutes (per Frontline)

Frontline GUS-FXD guardrail system specifications

Manufacturer Frontline Fall Protection
Model / SKU GUS05/GUS75/GUS10 + -FXD + GRN or YLW
Lengths 5 ft, 7.5 ft, 10 ft
Fittings 2
Rail retention Two grub screws per fitting
Material High-strength ASTM-rated steel
Finish Powder coated (electrostatic) safety green or safety yellow
Mounting Drilled onto concrete or bolted onto steel
Standards Meets or exceeds OSHA 1910 and 1926; tested by a third-party lab accredited to ISO/IEC 17025:2017 (per Frontline)
Weight, rail height, anchors Not published by Frontline; ask us

Where to install the Frontline GUS-FXD guardrail system

Concrete roofs

Permanent perimeter guardrail drilled into the deck.

Steel structures

Bolt-on guardrail for platforms and decks.

Rooftop equipment

Guard open edges near units you service often.

Industrial floors

Fixed rail at mezzanine and pit edges.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Frontline GUS-FXD CSA certified? Compliance in Canada

Is the Frontline GUS-FXD guardrail system CSA certified?

No. Frontline states it meets or exceeds OSHA 1910 and 1926; no CSA rating is published. For CSA-marked equipment see our Safety Direct range.

How do the rails attach on the Frontline GUS-FXD system?

Rails slide into the base fittings and are held by two grub screws.

What lengths does the Frontline GUS-FXD system come in?

5 ft, 7.5 ft and 10 ft, each in safety green or safety yellow.

GUS-FXD or GUS-EA: which Frontline fixed guardrail fits?

Both mount to concrete or steel. Frontline lists 2 fittings with the GUS-FXD; ask us to match parts to your run.

Pair the Frontline GUS-FXD with more sections for a full run

Order enough GUS-FXD lengths to close the edge, and have the anchors and layout checked by a qualified person for your concrete or steel.
