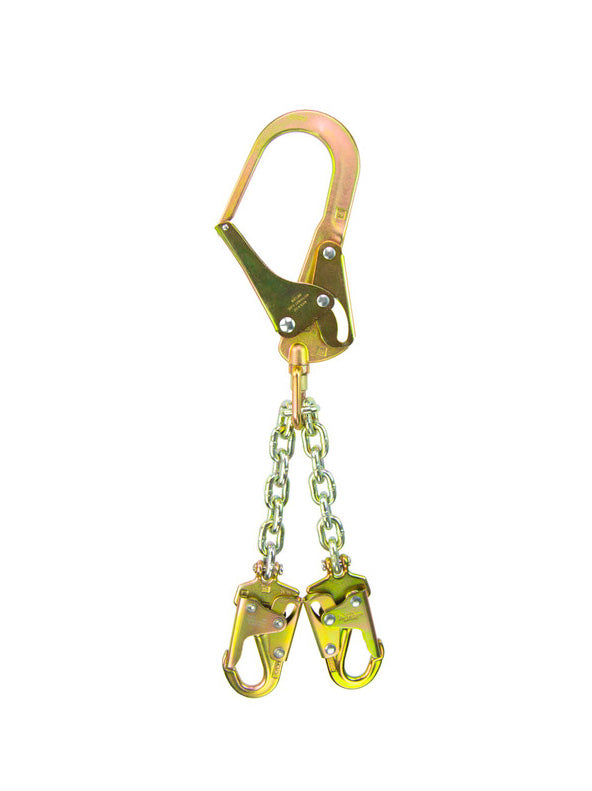

Frontline PSSW2R Rebar Positioning Chain Assembly with Swivel | Canada
Frontline PSSW2R Rebar Positioning Chain Assembly with Swivel | Canada. A rebar positioning chain assembly for ironworkers: snap hook ends with a rebar hook end, and swivelling hooks so the chain follows the worker instead of twisting. Lightweight, with the high tensile strength Frontline builds in for durability, and made for work positioning on the mat or wall. Conforms to ANSI Z359.3-2017, OSHA 1926 Subpart M and OSHA 1910.

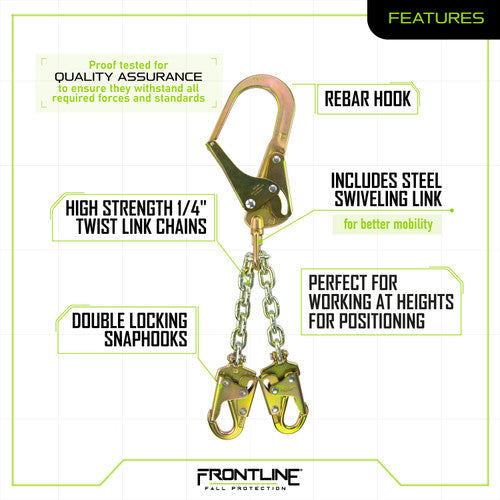

Frontline PSSW2R rebar positioning chain key features
- Lightweight, while incorporating high tensile strength for maximum durability
- Made for work positioning: hands free on vertical rebar and formwork

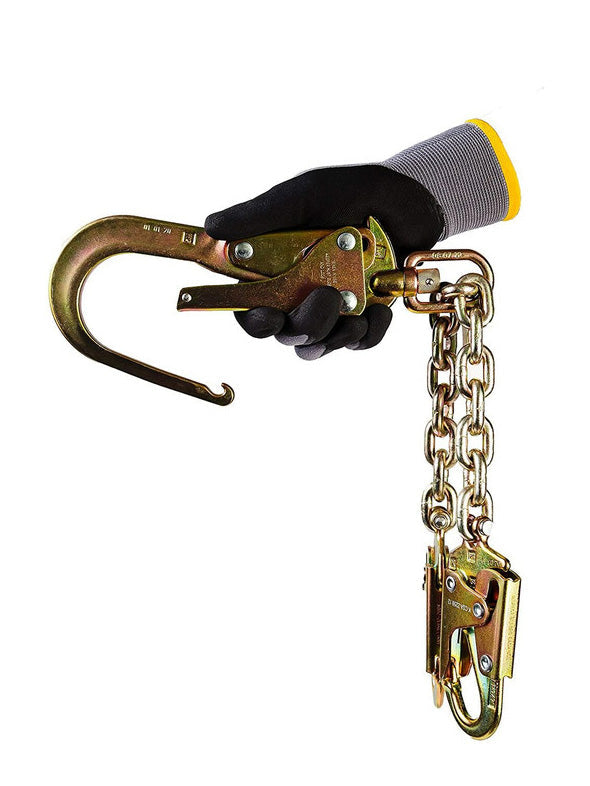

- Snap hook ends with a rebar hook end
- Swivelling hooks for better user positioning
- Conforms to ANSI Z359.3-2017
- Conforms to OSHA 1926 Subpart M and OSHA 1910

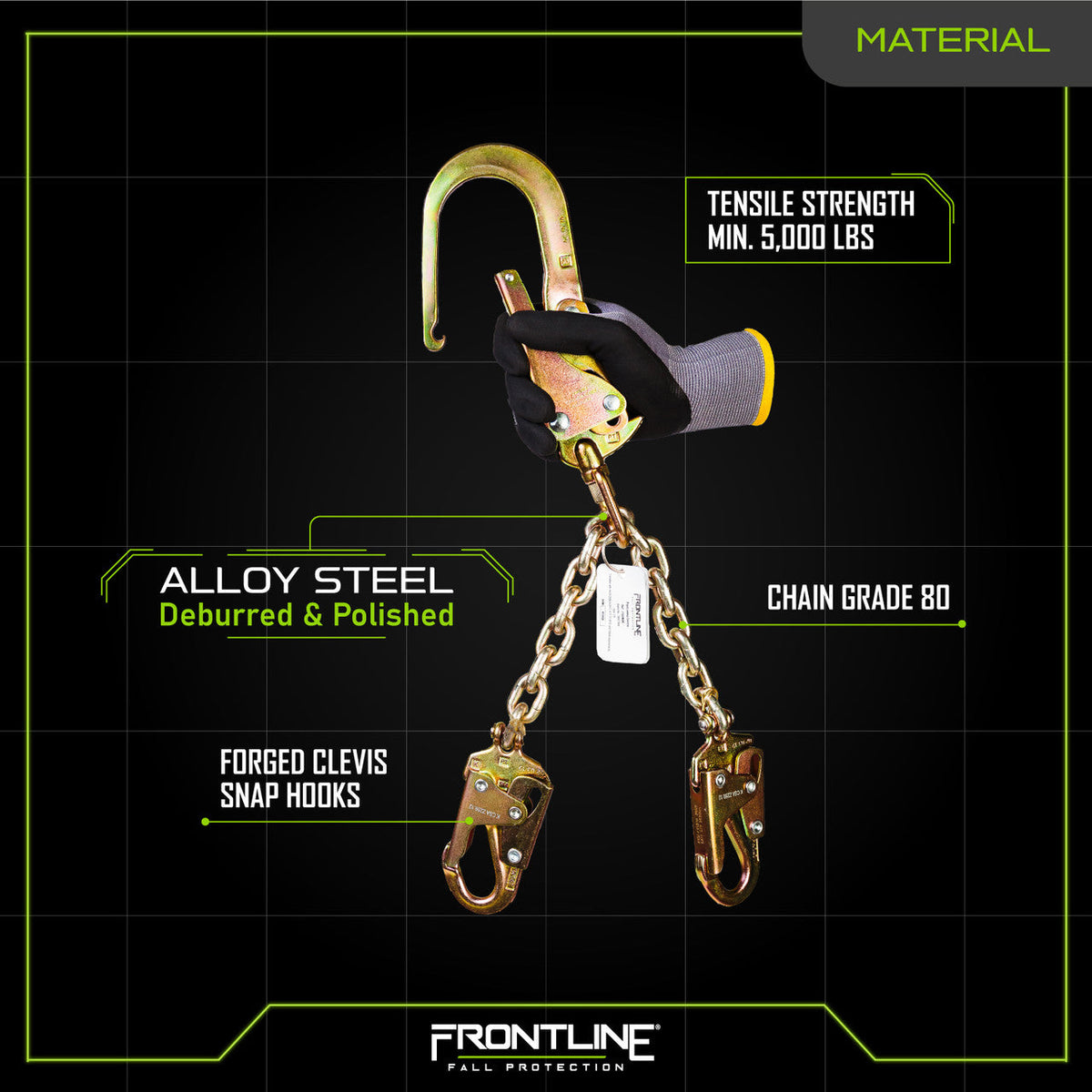

Frontline PSSW2R positioning chain specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | PSSW2R |
| Type | Rebar positioning chain assembly |
| Connectors | Snap hook ends with rebar hook end; swivelling hooks |
| Standards | Conforms to ANSI Z359.3-2017, OSHA 1926 Subpart M and OSHA 1910 |
| Chain length / adjustment / user capacity / weight | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline PSSW2R positioning chain
Rebar walls and columns
Hook the rebar hook over the mat, snap the chain to the harness side D-rings and work hands free.
Formwork and shoring
Positioning on vertical forms while a separate fall arrest system takes the fall.
Precast and tilt-up
Positioning at the panel face during tie and setting work.
Bridge decks
Quick re-positioning along the deck steel with the swivelling hooks.

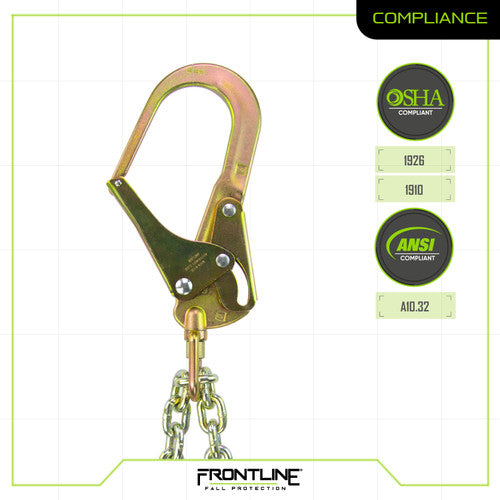

Is the Frontline PSSW2R CSA certified? Compliance in Canada
Is the Frontline PSSW2R CSA certified?
No. Frontline states it conforms to ANSI Z359.3-2017, OSHA 1926 Subpart M and OSHA 1910. For CSA-marked positioning equipment, see our Safety Direct range.
Is a positioning chain fall arrest equipment?
No. A positioning device holds you in place at the work; it is used together with a separate fall arrest system (harness, SRL or shock-absorbing lanyard and anchor).
How does it connect to the harness?
Positioning assemblies connect to the harness side (hip) D-rings; the rebar hook goes over the rebar. Follow Frontline's instructions for the connection sequence.
Why swivelling hooks?
So the chain does not twist as you move: Frontline fits swivels for better user positioning.
How often should the PSSW2R be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall or if a hook, swivel or link shows damage.
Pair the Frontline PSSW2R with a harness and fall arrest system
The PSSW2R is a positioning device. Add a full-body harness with side D-rings and a separate SRL or lanyard and anchor for fall arrest.
