The Frontline RPAS Self Retracting Lifeline is your go-to solution when working at heights and a quick safety reaction is of the utmost importance. Engineered to engage within seconds of a fall, the RPAS limits free fall distance and lessens the impact forces generated on the body — delivering a safer working experience across all industries.
The RPAS lifeline is constructed from Aramid fiber webbing with UHMWPE (Ultra-High-Molecular-Weight Polyethylene) — a premium material combination delivering extreme high-impact strength at a fraction of the weight of conventional steel cable SRLs. The result is an exceptionally lightweight, compact unit that is easy to transport and keeps the lifeline continuously out of the worker's way to reduce snags, trip hazards, and fatigue.
Manufactured to exceed expectations and independently tested by an ISO/IEC 17025:2017 accredited third-party laboratory, the RPAS is built rugged, built to last, and built to give workers the confidence they need to perform their jobs with complete peace of mind whenever fall protection is required.

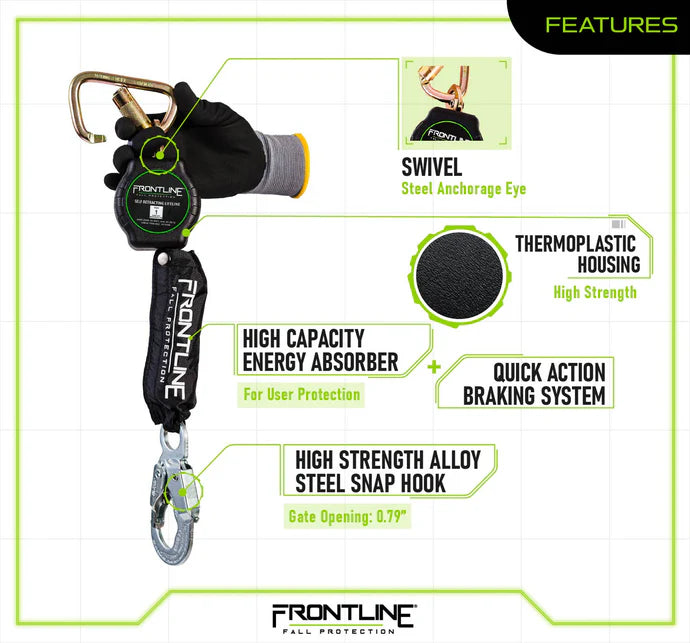

Aramid Fiber + UHMWPE Webbing
Premium lifeline material combines aramid fiber with ultra-high-molecular-weight polyethylene for extreme impact strength at a dramatically reduced weight versus conventional steel cable SRLs.
Lightweight & Compact Design
Exceptionally light and compact, the RPAS is easy to transport between locations and keeps the lifeline continuously clear of the worker's path — reducing snags, trip hazards, and fatigue throughout the shift.
Inbuilt Textile Shock Pack
Integrated textile shock pack with protective cover limits average arresting fall forces to 1,350 lbs and maximum fall arrest distance to 42". The protective cover helps preserve shock pack integrity over time.
Quick-Action Braking System
Fast-engaging braking system arrests descent within seconds of a fall event, limiting free fall distance and protecting the worker from high-energy impact forces.
Swiveling Top & Side Lifeline Exit
Swiveling housing top allows for flexible anchor attachment orientation, while the side lifeline exit keeps the webbing clear and reduces the risk of tangling or interference during movement.
Rugged Thermoplastic Housing
Durable thermoplastic casing protects internal components on demanding job sites, making the RPAS a reliable fall protection device built to withstand daily worksite conditions.
Technical Specifications
| Model | RPAS |
| Type | Aramid Fiber Web Single Leg Self Retracting Lifeline (SRL) |
| Available Lengths | 6', 12', 20' |
| Lifeline Material | Aramid fiber webbing with UHMWPE |
| Hook Type | Steel snap hook |
| Connector Strength | 5,000 lbs |
| Max User Weight Capacity | 310 lbs |
| Max Arrest Force (Average) | 1,350 lbs |
| Max Fall Arrest Distance | 42" |
| Shock Absorption | Inbuilt textile shock pack with protective cover |
| Braking System | Quick-action with swiveling top and side lifeline exit |
| Housing | Rugged thermoplastic |
| Standards | Meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M, OSHA 1910 |
| 3rd Party Testing | Independent lab accredited to ISO/IEC 17025:2017 |
Post-Fall Inspection & Removal from Service
Any SRL subjected to a fall must be immediately removed from service and returned to the manufacturer for inspection before being considered for re-use. Inspect the unit before each use in accordance with manufacturer guidelines and applicable provincial OHS regulations. Do not return to service if the shock pack protective cover shows signs of activation or damage.
Built for Canadian Worksites
The Frontline RPAS is the premium web SRL choice for contractors, trades, and safety managers across Canada who prioritize low weight, compact size, and high-performance fall arrest in a single unit. Available in 6', 12', and 20' lengths, the RPAS is well suited for applications where a lighter, more manageable SRL is needed without sacrificing the ruggedness or independent certification that demanding worksites require.
- Aramid fiber + UHMWPE webbing delivers extreme impact strength at minimal weight.
- Inbuilt textile shock pack limits average arrest forces to 1,350 lbs and fall arrest distance to 42".
- Swiveling top and side exit for flexible anchor orientation and tangle-free lifeline management.
- Lightweight and compact — easy to transport, reduces worker fatigue, minimizes snag and trip risk.
- Independently tested by an ISO/IEC 17025:2017 accredited third-party laboratory.
- Meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M, and OSHA 1910.
Ships from Canada (Stock Dependent)
We aim to ship from within Canada whenever inventory is available. Some components may ship from the United States depending on stock levels.
