Frontline ST12AH / ST18AH Aluminum I-Beam Slider Anchor | Canada

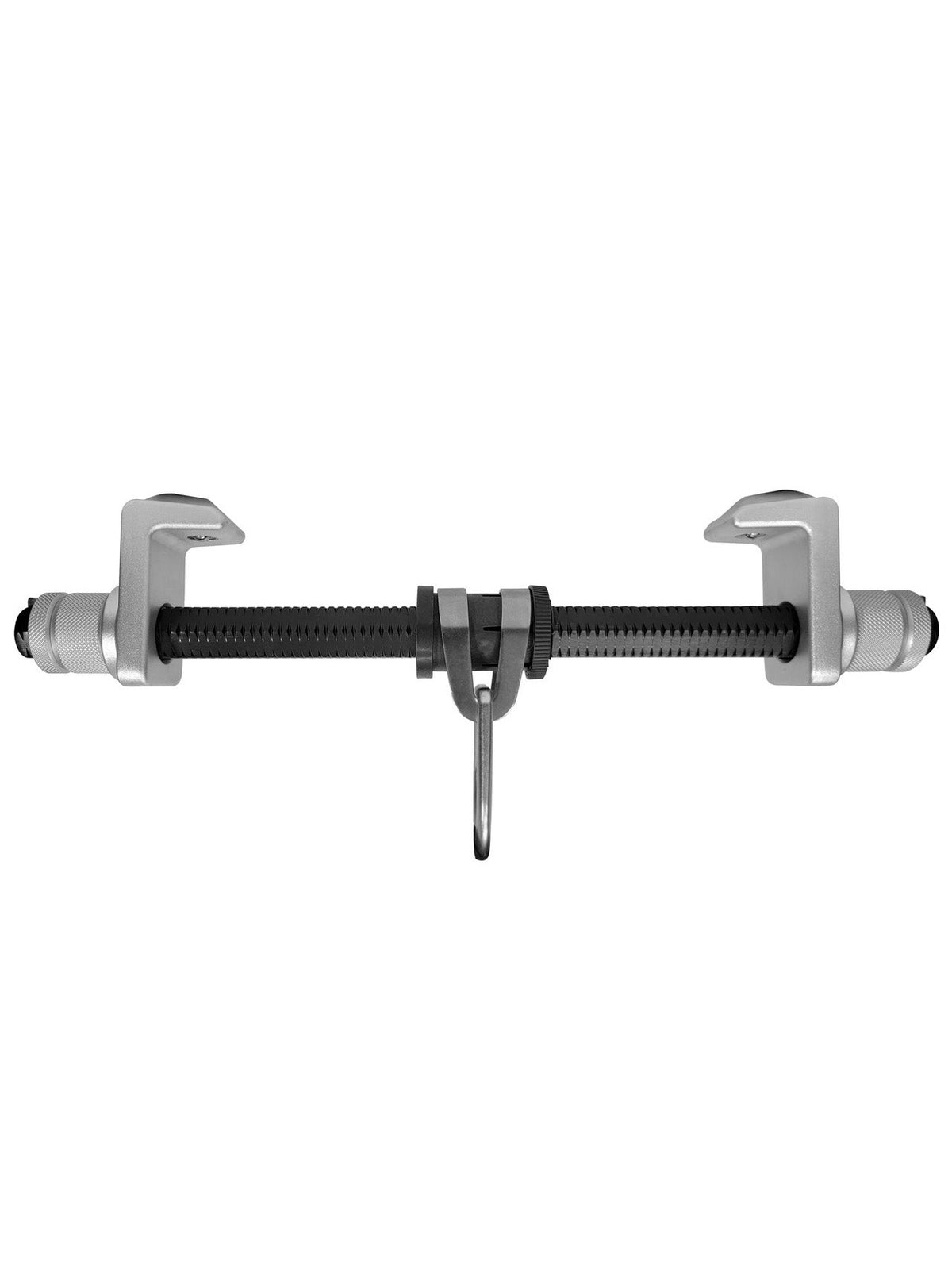

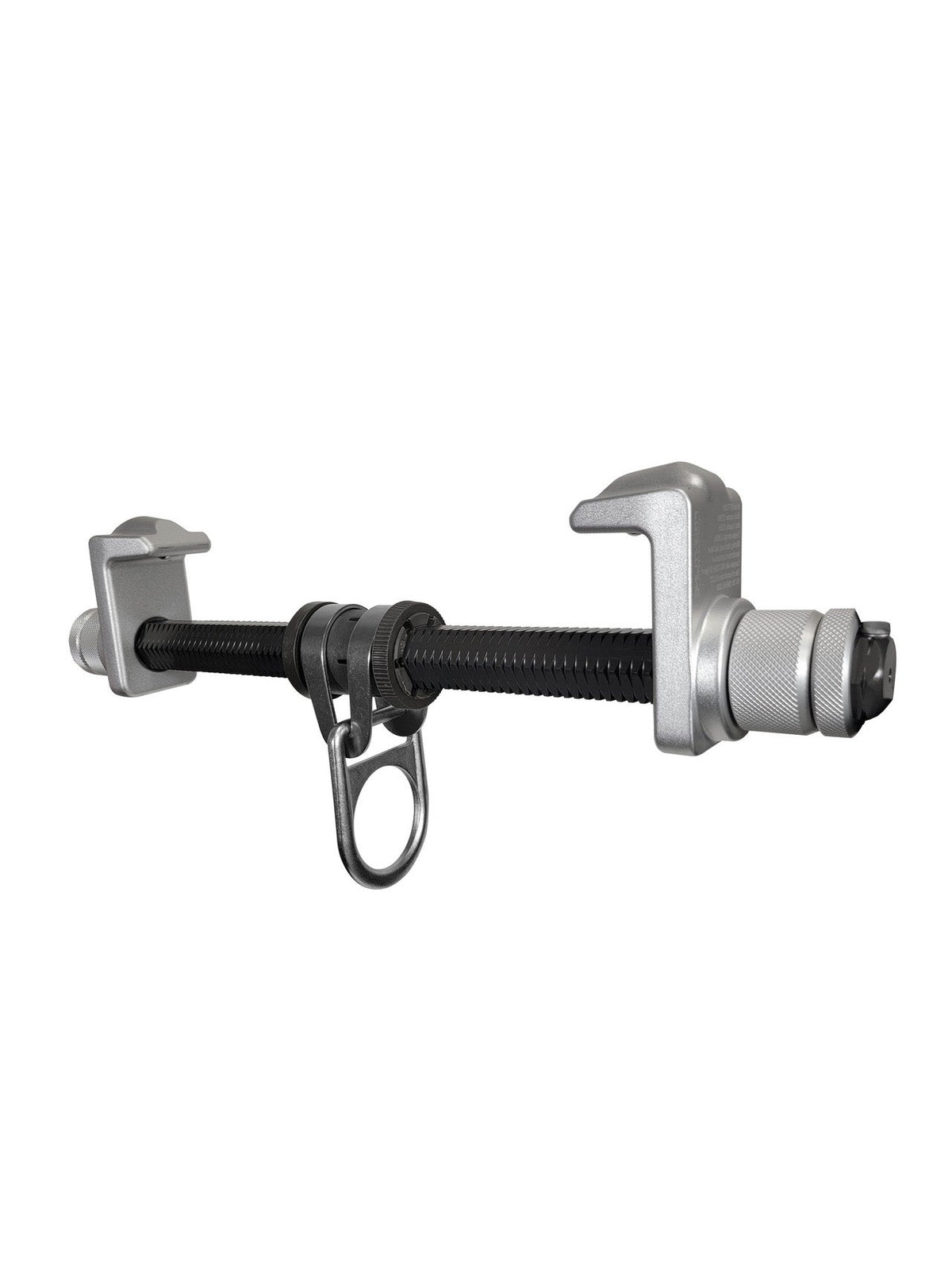

Frontline ST12AH / ST18AH Aluminum I-Beam Slider Anchor | Canada. A lightweight aluminum beam anchor from Frontline that slides along the I-beam flanges on nylon bushings and ball bearings, trailing the worker. It adjusts from both sides to fit I-beams from 3 in wide up to 12 in (ST12AH) or 18 in (ST18AH), installs and moves without tools, and takes a self-retracting lifeline or a shock-absorbing lanyard for one worker.

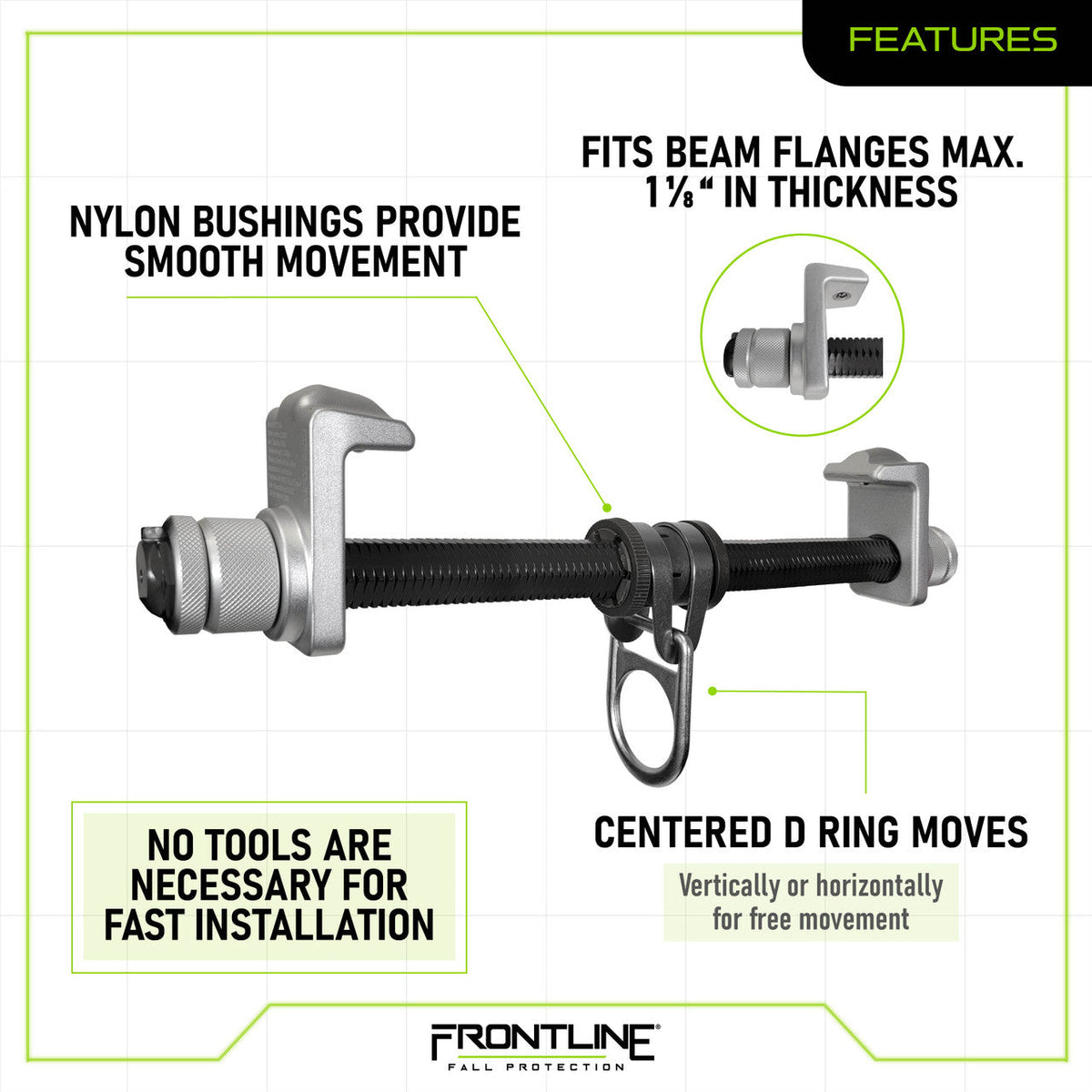

Frontline STAH aluminum I-beam slider anchor key features
- Easy to place and install; quickly removed and moved to the next location
- Nylon bushings and ball bearings let it slide along the beam flanges, trailing the worker

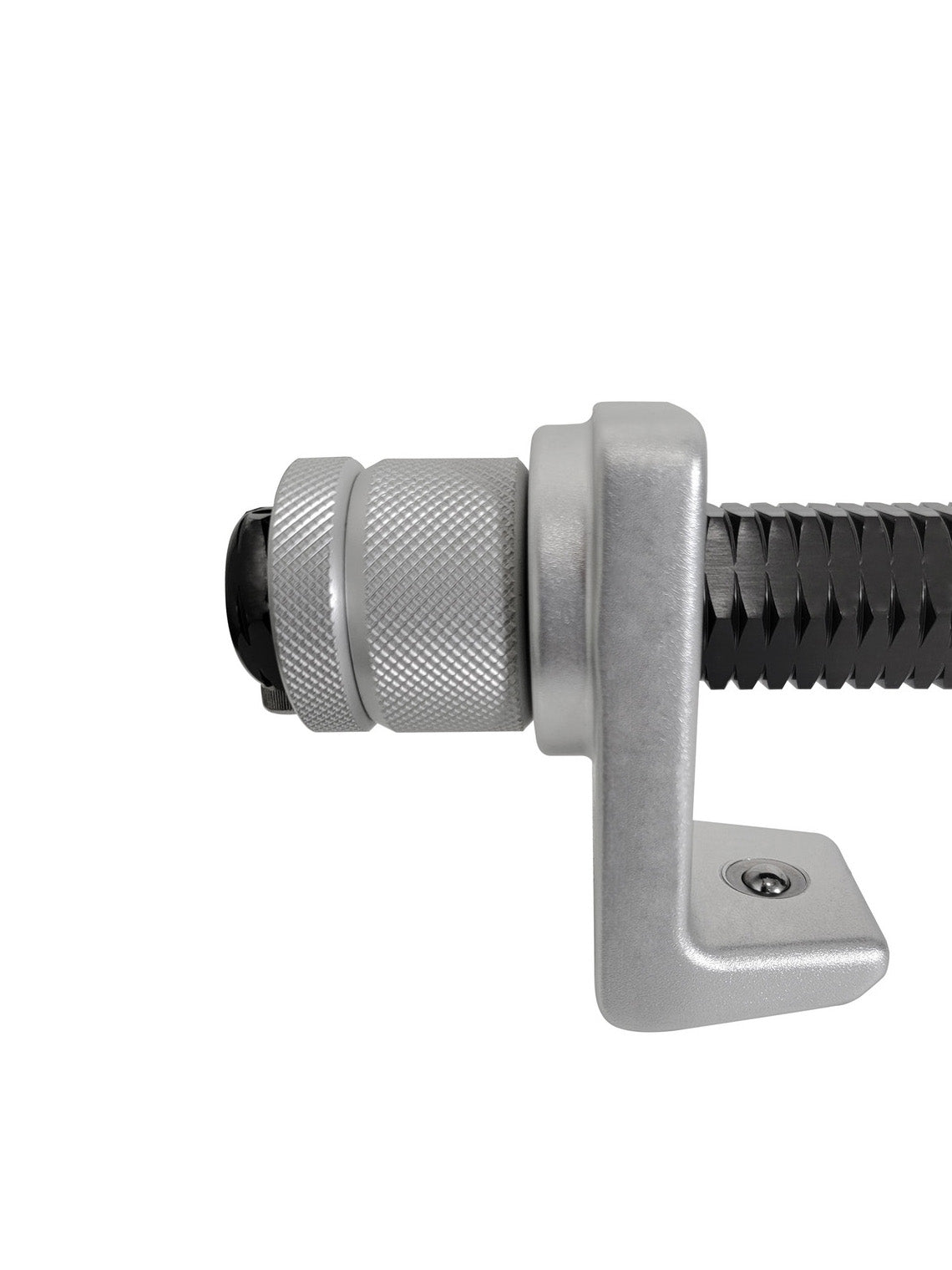

- Adjusts from both sides for a secure fit
- Rated for single-user connection
- Works with a self-retracting lifeline or a shock-absorbing lanyard
- Fits I-beams from 3 in wide, adjusting up to 12 in (ST12AH) or 18 in (ST18AH)

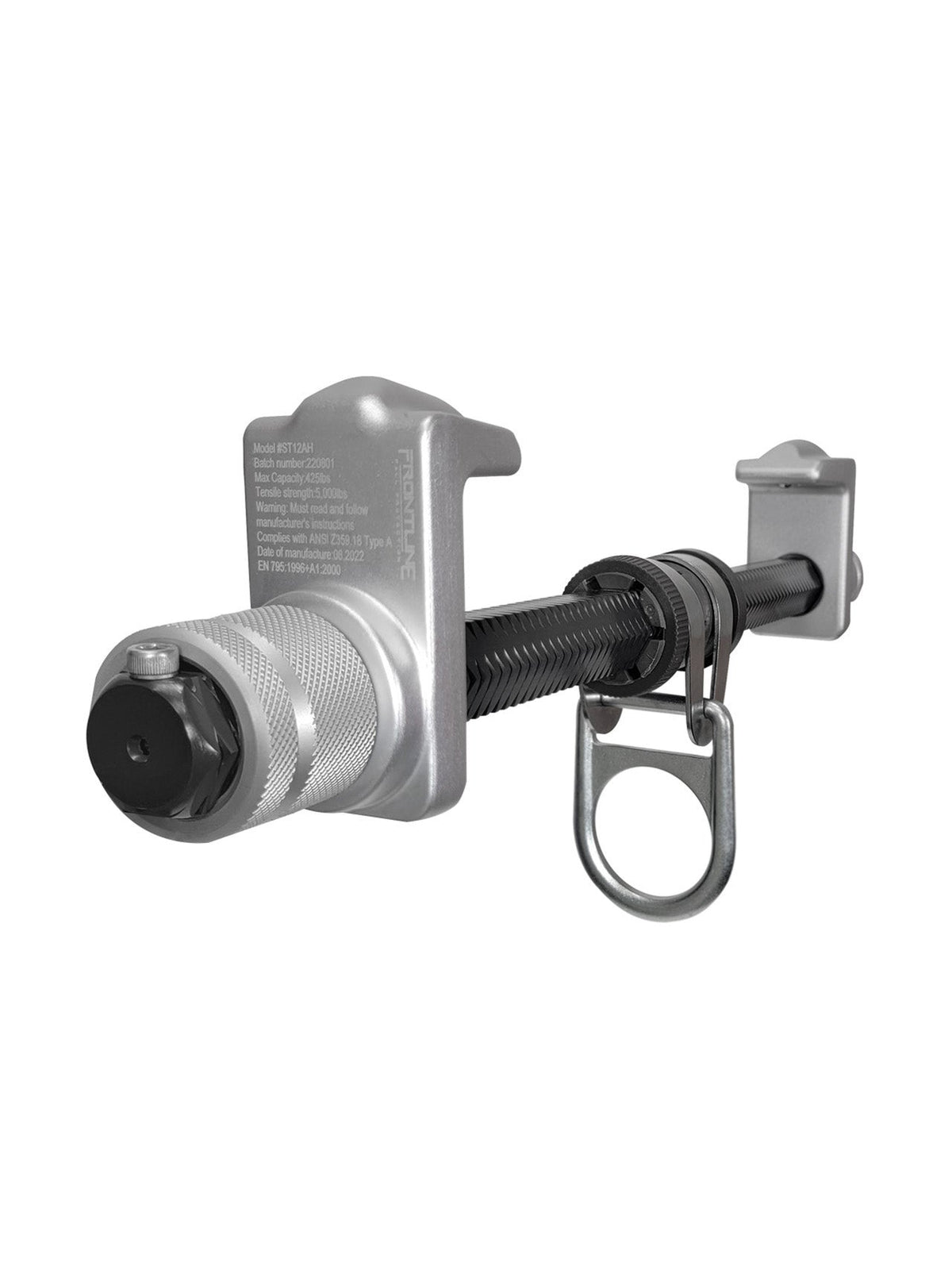

- Rotating D-ring helps the user move between work areas
- Lightweight, rugged aluminum body with a steel anchoring device

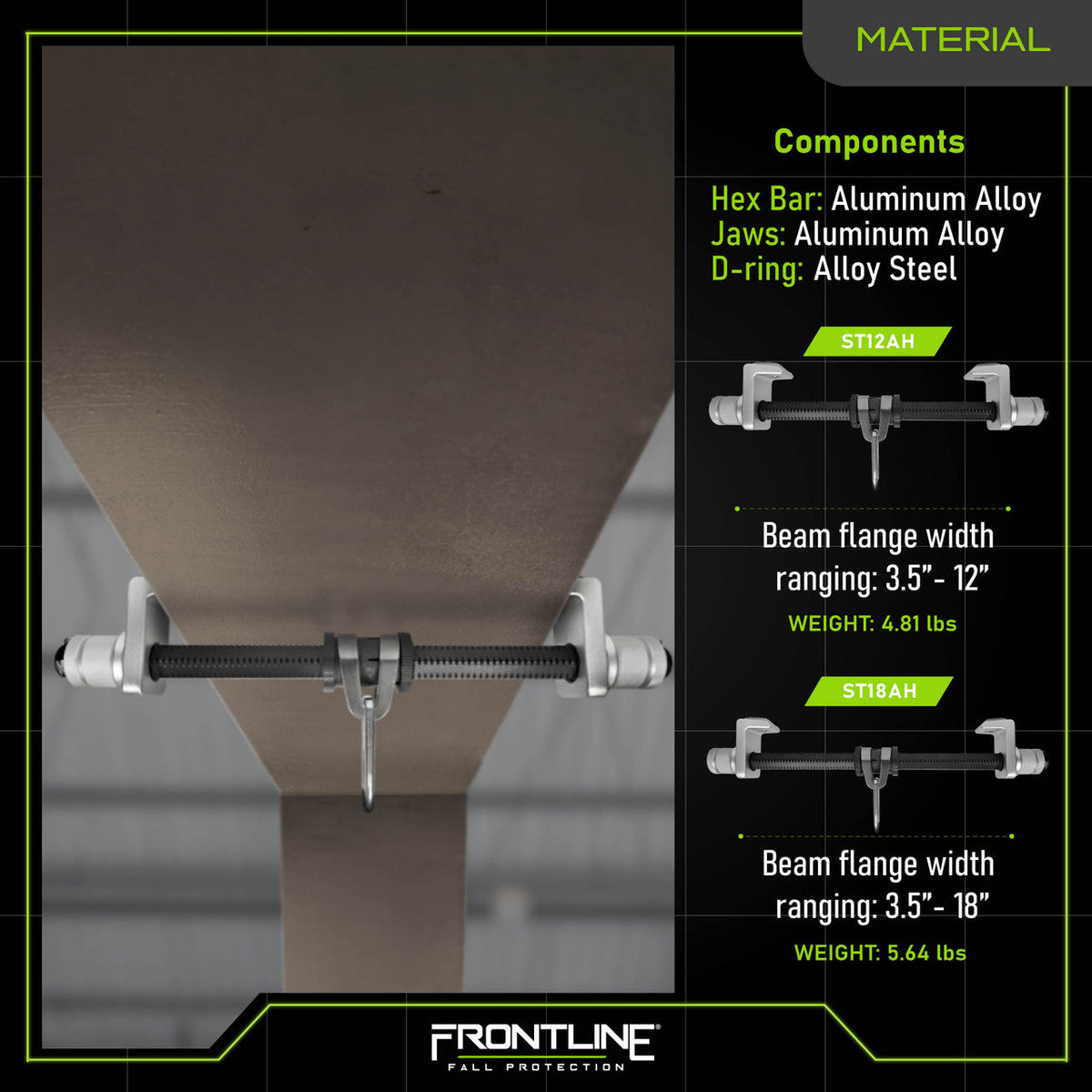

Frontline ST12AH and ST18AH beam anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Models / SKUs | ST12AH (up to 12 in flange) · ST18AH (up to 18 in flange) |
| Beam fit | I-beams from 3 in wide up to 12 in or 18 in, depending on the model |
| Movement | Slides along the flanges on nylon bushings and ball bearings |
| Material | Aluminum body, steel anchoring device |
| D-ring | Rotating |
| Use | Single worker, with an SRL or shock-absorbing lanyard |
| Weight | 6 lb (ST12AH) · 7 lb (ST18AH) |
| Standards | Not listed on Frontline's product page; ask us for the instruction sheet |
| Region | Stocked in Paris, Ontario · ships Canada-wide |

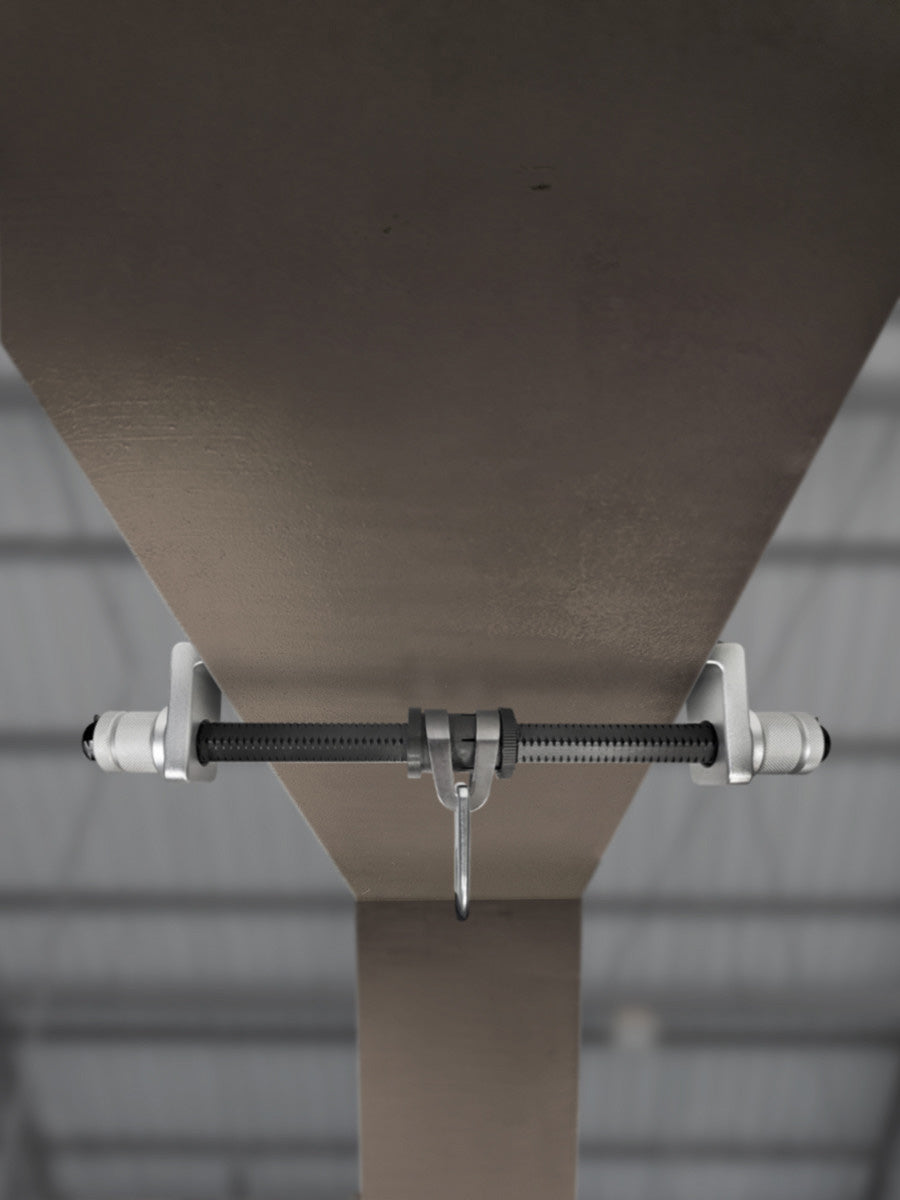

Where crews use the Frontline STAH beam slider anchor
Structural steel erection
A movable tie-off that follows the ironworker along the beam.
Bridge and overpass work
Clamp to the flange, work the span, slide the anchor with you.
Plant maintenance
Temporary overhead anchorage on mezzanine and crane-runway beams.
Pre-cast and tilt-up
Tool-free install on the beam, then move it to the next bay.
Is the Frontline STAH beam anchor CSA certified? Compliance in Canada
Is the Frontline ST12AH or ST18AH CSA certified?
No. Frontline sells it as an ANSI/OSHA-market product and does not list CSA Z259 certification. For a CSA-marked beam anchor, see our Safety Direct range.
Which model fits my beam?
Both start at 3 in wide. The ST12AH adjusts up to a 12 in flange and the ST18AH up to 18 in. Measure the flange width before you order.
What can I connect to the slider anchor?
A self-retracting lifeline or a shock-absorbing lanyard, for one worker at a time.
How often should the anchor be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall or if you find deformation, cracking or corrosion.
Pair the Frontline STAH slider anchor with an SRL or lanyard
The STAH is the anchorage. Add a full-body harness and a self-retracting lifeline or shock-absorbing lanyard for a complete personal fall arrest system.
