Guardian 00300 Skyhook Flat Roof Anchor | Canada

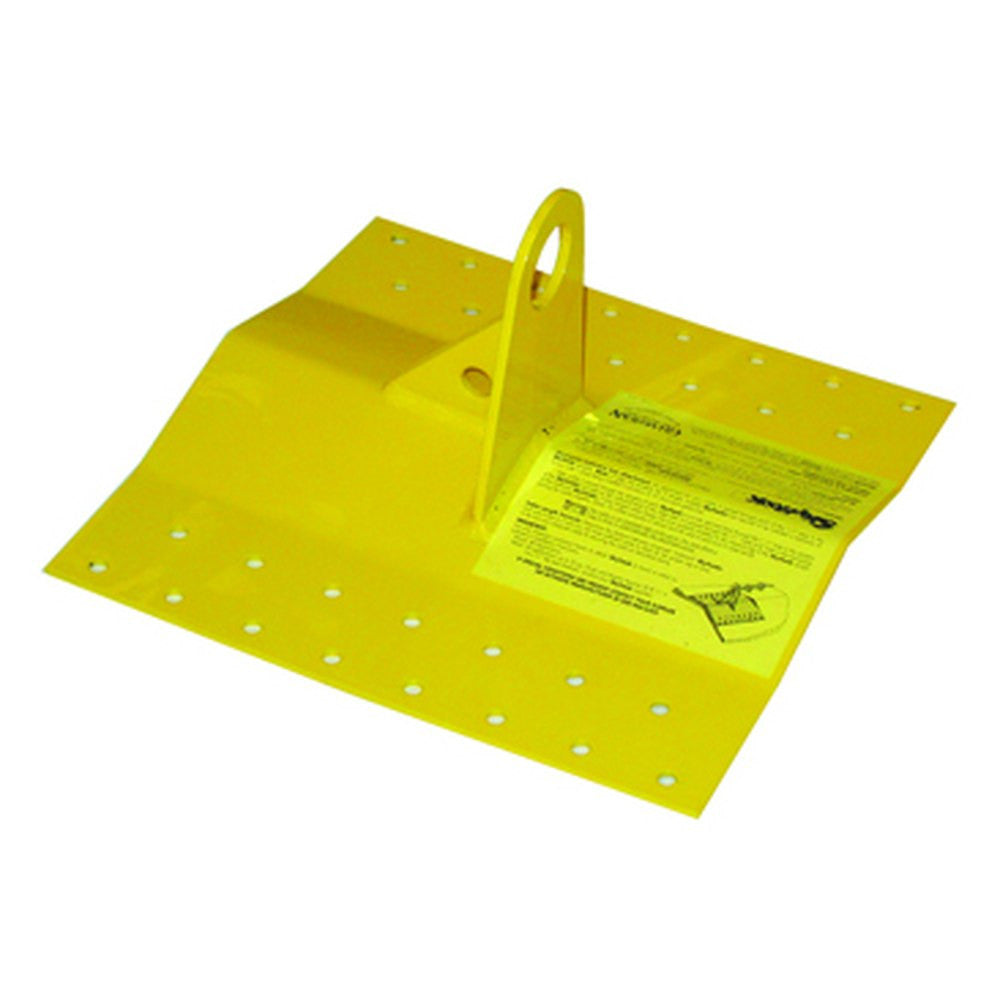

Guardian 00300 Skyhook flat roof anchor. The flat-pitch model of Guardian's Skyhook line: a powder-coated steel Type A anchorage connector that fastens to wood, metal or concrete decks and works as a single tie-off point or a horizontal lifeline end point. For permanent installs, Guardian flashes it with kit #00352.
Guardian 00300 Skyhook roof anchor key features
- Flat-pitch member of the Skyhook anchor line
- Powder-coated steel for durability and weatherproofing
- Single-point tie-off or horizontal lifeline end point
- Installs on wood, metal or concrete through its fastener holes
- Type A anchorage connector
- Flash with kit #00352 for permanent installations
- Minimum service temperature -30°F
Guardian 00300 Skyhook roof anchor specifications
| Manufacturer | Guardian Fall Protection |
|---|---|
| Model | 00300 Skyhook Anchor (flat) |
| Type | Type A anchorage connector |
| Material | Powder-coated steel |
| Minimum breaking strength | 5,000 lb |
| Worker capacity | 130-420 lb, 1 user |
| Roof pitch | Flat |
| Substrate | Wood 3/4 in CDX plywood; metal 20 gauge; concrete 6 in, 2,000 psi or greater |
| Fasteners | Wood: #14 x 10 2 in wood deck screws; metal: #14 x 10 2 in metal deck screws; concrete: 3 1/2 in concrete bolts; fill all holes |
| Horizontal lifeline | Yes, as an end point; connection points in line |
| Standards | OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, ANSI A10.32-2012 |
Where the 00300 Skyhook roof anchor earns its keep
Flat commercial roofs
Anchorage where there is no peak to straddle.
Horizontal lifelines
End point for a lifeline across the roof.
Permanent anchors
Flash in with Guardian kit #00352 and leave in place.
Restraint near edges
Restraint use on slopes up to 4/12 per Guardian.
00300 Skyhook roof anchor questions and CSA status
Is the Guardian 00300 Skyhook roof anchor CSA certified?
No. Guardian lists OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017 and ANSI A10.32-2012, not CSA Z259. For CSA-marked anchors see our Safety Direct range.
Which Guardian Skyhook is for flat roofs?
The 00300. Guardian's pitched models are 00310 (1/12-3/12), 00320 (4/12-6/12), 00330 (7/12-9/12) and 00340 (10/12-12/12).
What decks can the Guardian 00300 Skyhook go on?
Wood (3/4 in CDX plywood minimum), 20 gauge metal, or 6 in concrete of 2,000 psi or more.
How far from the edge does the Guardian Skyhook go?
Guardian says at least 10 ft from all leading edges, mounted flush against the substrate.
Pair the 00300 Skyhook roof anchor with a full system
Pair the Skyhook with a full-body harness and an SRL, rope lifeline or horizontal lifeline for a complete fall protection system.
