Guardian 00510 Ridge-It Roof Anchor 18 in, 3-Pack | Canada
Guardian 00510 Ridge-It permanent roof anchor, 18 in, double D-ring, 3-pack. A permanent ridge anchor for wood-framed roofs: bent at its centre with the plate centred over the peak, then covered by ridge cap or shingles so only the two D-rings stay exposed. Stainless and zinc-plated steel with butyl strips for weatherproofing; 1.1 lb each, 8 stainless spiral nails provided per anchor.
Guardian 00510 Ridge-It roof anchor key features
- Permanent tie-off point for wood-framed roofs; Ridge-It anchors are never reinstalled
- 18 in anchor with two D-rings, bent at the centre over the roof peak
- Stainless steel and zinc-plated steel with butyl strips for weatherproofing
- Butyl strips let it install directly on the roof surface without removing ridge cap or shingles
- Ridge cap or shingles fully cover the anchor plate; the D-rings stay uncovered

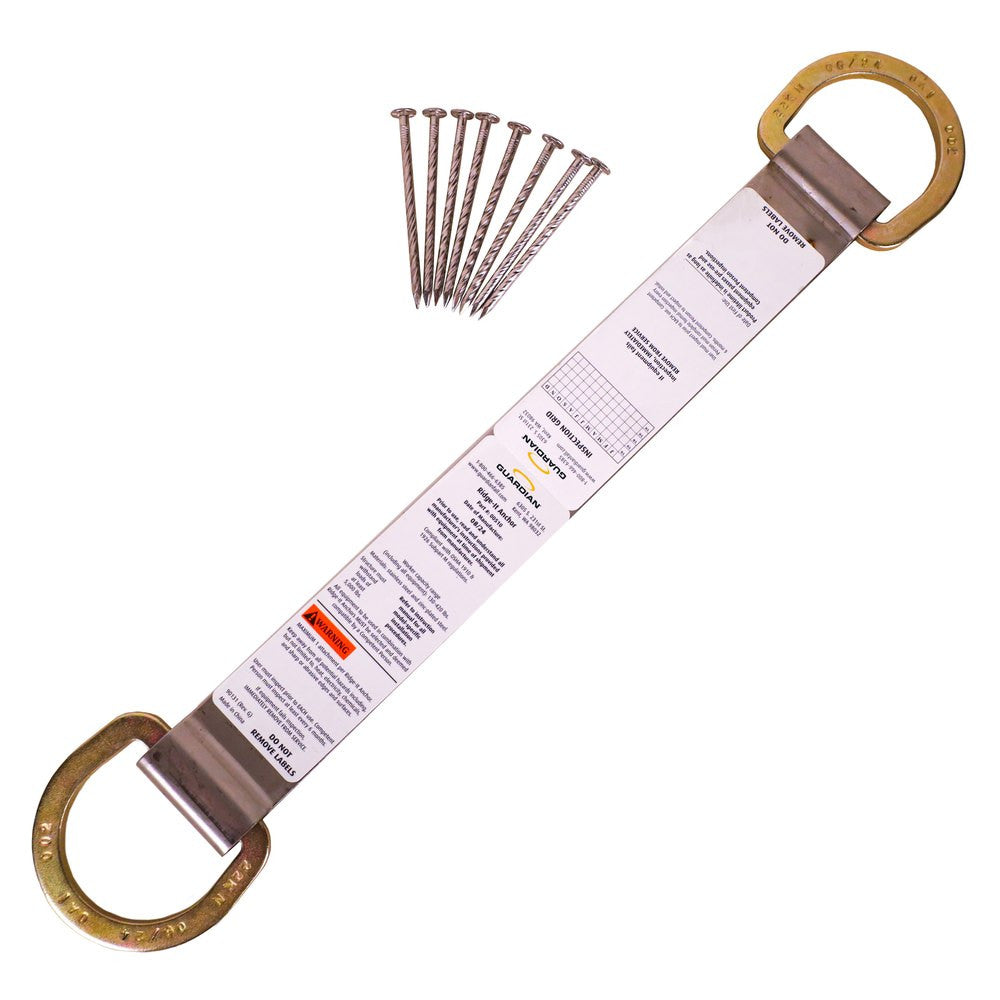

- 8 x 3.5 in 16d stainless steel spiral nails provided with each anchor
- Compatible roof pitch 0/12 to sheer
Guardian 00510 Ridge-It roof anchor specifications
| Manufacturer | Guardian Fall Protection |
|---|---|
| Model | 00510 Ridge-It Anchor 18 in Double D-Ring (sold here as a 3-pack) |
| Length | 18 in |
| D-rings | 2 |
| Weight | 1.1 lb each |
| Material | Stainless steel, zinc-plated steel and butyl |
| Minimum breaking strength | 5,000 lb |
| Worker capacity | 130-420 lb, 1 user |
| Roof pitch | 0/12 to sheer |
| Substrate | Wood 3.5 in total thickness; metal 20 gauge |
| Fasteners | 8 x 3.5 in 16d stainless steel spiral nails provided (wood); 2 in #14-10 sheet metal screws for metal, not provided |
| Use | Permanent installation only; never reinstall; never for horizontal lifelines |
| Standards | OSHA 1926 Subpart M, OSHA 1910 |
Where the 00510 Ridge-It roof anchor earns its keep
New home builds
Set over the ridge during roofing for a permanent anchor under the ridge cap.
Either side of the roof
A D-ring on each side of the peak for future crews.
Service and maintenance
Chimney, gutter and solar work tie off to the exposed D-rings.
Fall restraint
Restraint use on slopes up to 4/12 per Guardian.
00510 Ridge-It roof anchor questions and CSA status
Is the Guardian 00510 Ridge-It roof anchor CSA certified?
No. Guardian lists OSHA 1926 Subpart M and OSHA 1910, not CSA Z259. For CSA-marked anchors see our Safety Direct range.
How does the Guardian 00510 sit on the ridge?
It is bent at its centre and the plate centre goes directly over the roof peak; ridge cap or shingles cover the plate and the D-rings stay uncovered.
Can the Guardian Ridge-It be reused or used with a lifeline?
No. Ridge-It anchors are permanent, must never be reinstalled, and must never be used in horizontal lifeline applications.
What is the difference between the Guardian 00500 and 00510?
The 00500 is a 9 3/4 in anchor with one D-ring (0.8 lb); the 00510 is 18 in with two D-rings (1.1 lb) and goes over the peak.
Pair the 00510 Ridge-It roof anchor with a full system
Pair the Ridge-It with a full-body harness and a rope lifeline or SRL rated for roof work for a complete fall arrest system.
