Guardian 10540 Pitch Pro Roof Anchor, Black, 3-Pack | Canada

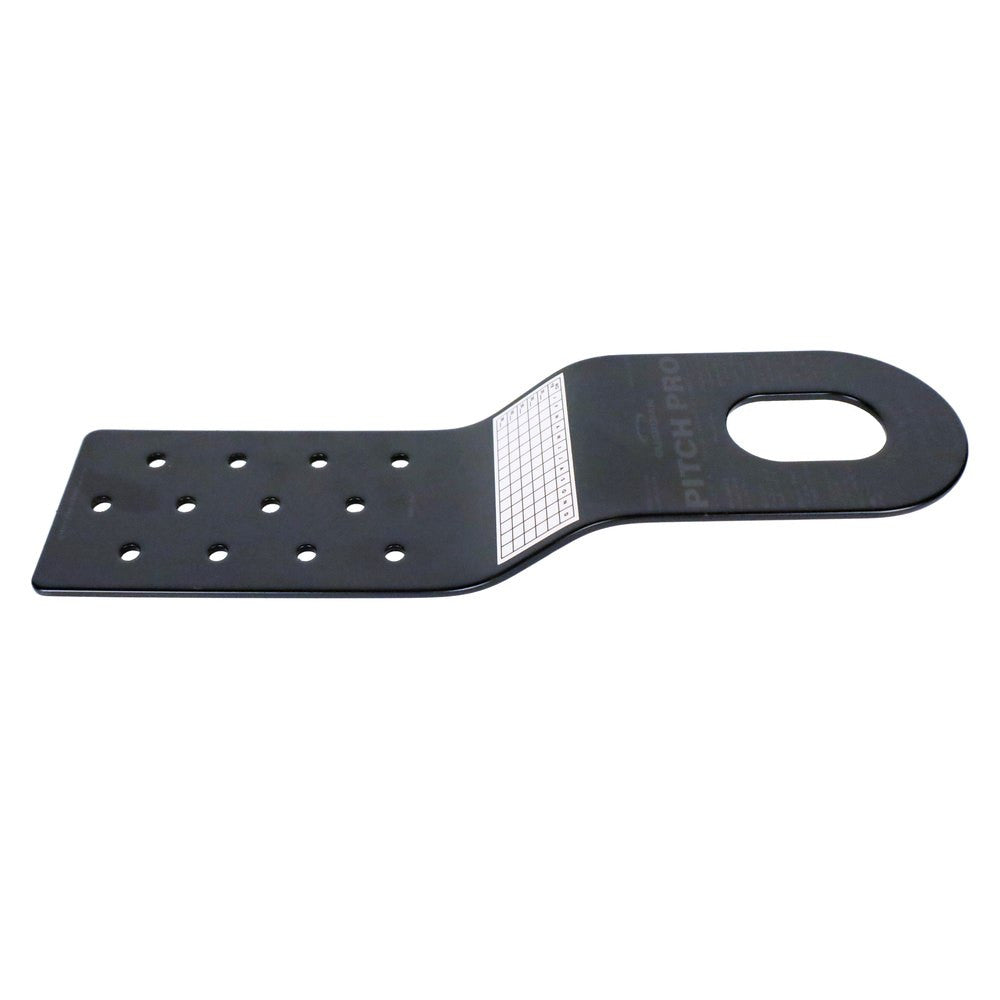

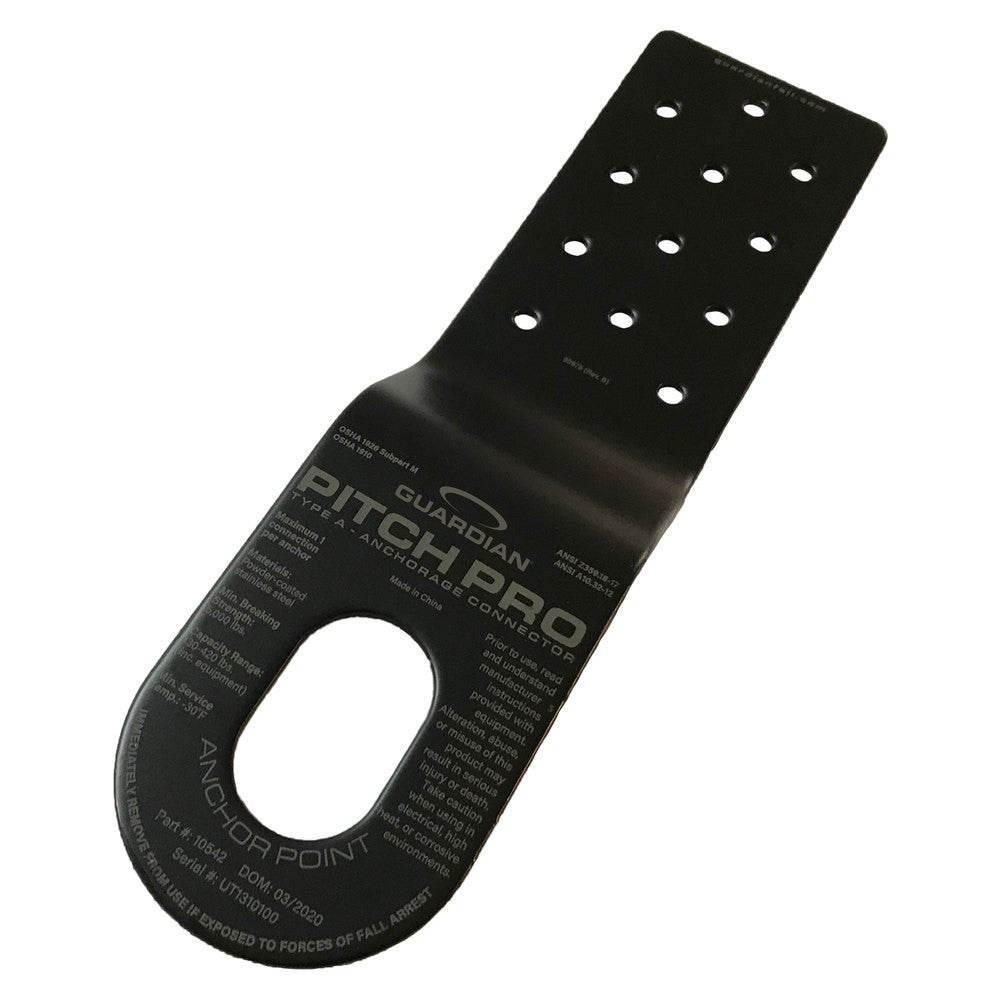

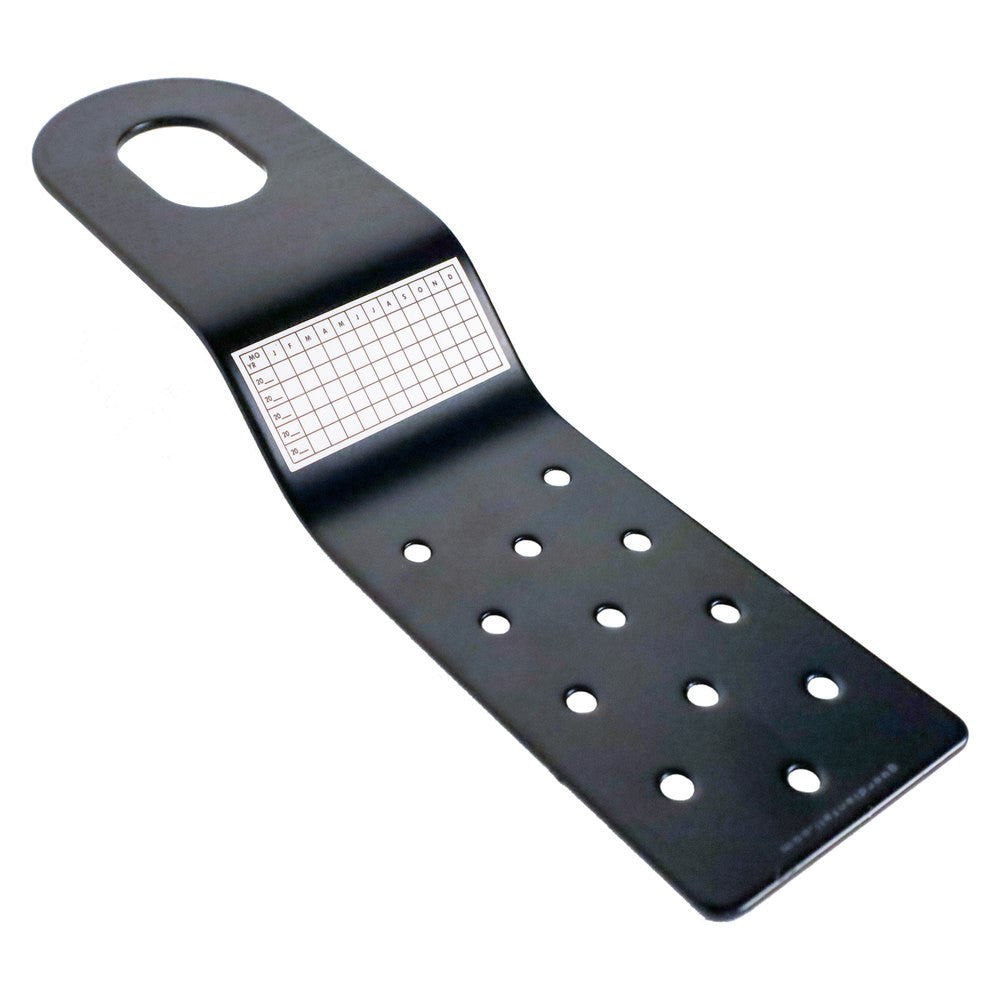

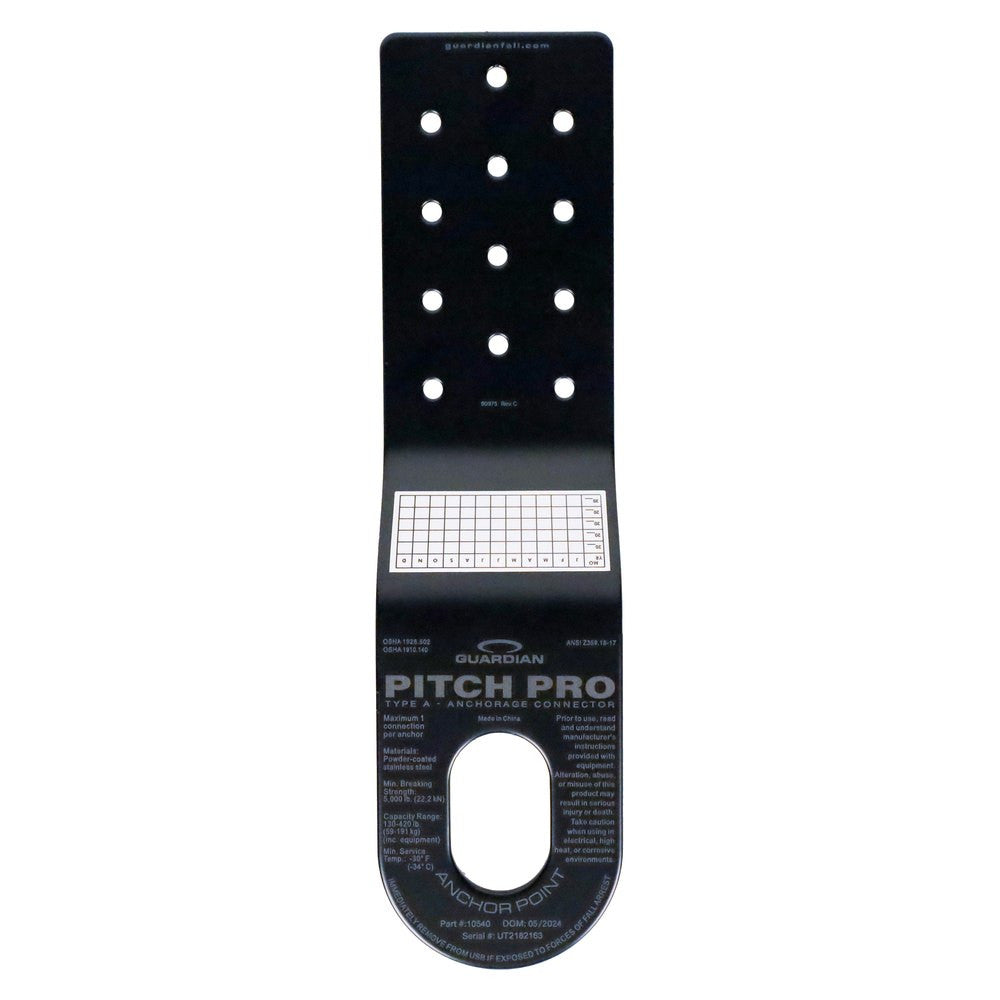

Guardian 10540 Pitch Pro roof anchor, black, 3-pack. Guardian's anchor for sloped-roof asphalt shingle construction: powder-coated steel, 0.85 lb, with offset holes that are easy on trusses. Installs with nails or screws, fits 0/12 to vertical, and can be used in multiple installations with new fasteners each time.
Guardian 10540 Pitch Pro roof anchor key features
- Designed for sloped-roof asphalt shingle construction
- Powder-coated steel, black, 0.85 lb
- Offset holes that are easy on trusses
- Installs with nails or screws
- Roof pitch 0/12 to vertical/sheer
- Rated for fall arrest, restraint, work positioning and rescue
- Horizontal lifeline use with Guardian #30800 Big Boss HLL, up to 2 workers
Guardian 10540 Pitch Pro roof anchor specifications
| Manufacturer | Guardian Fall Protection |
|---|---|
| Model | 10540 Pitch Pro, black (sold here as a 3-pack) |
| Weight | 0.85 lb each |
| Material | Powder-coated steel |
| Minimum breaking strength | 5,000 lb |
| Worker capacity | 130-420 lb, 1 user |
| Roof pitch | 0/12 to vertical/sheer |
| Substrate | Wood 3 1/2 in total combined; concrete 6 in, 2,500 psi |
| Fasteners | Wood: 12 x 2 1/2 in exterior screws or 12 x 16d galvanized framing nails, at least 8 into the truss; concrete: 12 x 3/16 x 1 3/4 in concrete screws |
| Inspection | Before each use; Competent Person at least every 12 months |
| Standards | OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, ANSI A10.32-2012 |
Where the 10540 Pitch Pro roof anchor earns its keep
Asphalt shingle roofs
Built for sloped shingle construction.
Steep pitches
Fits 0/12 to vertical.
Lifeline runs
Pairs with the Guardian #30800 Big Boss HLL for 2 workers.
Repeat jobs
Reusable with new fasteners if it passes inspection.
10540 Pitch Pro roof anchor questions and CSA status
Is the Guardian 10540 Pitch Pro roof anchor CSA certified?
No. Guardian lists OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017 and ANSI A10.32-2012, not CSA Z259. For CSA-marked anchors see our Safety Direct range.
Can the Guardian Pitch Pro be reused?
Yes, in multiple installations with new fasteners each time; never reinstall it if damaged or if it will not lie flush.
What fasteners does the Guardian 10540 Pitch Pro use?
On wood, 12 x 2 1/2 in exterior screws or 12 x 16d galvanized framing nails, with at least 8 into the truss. Do not mix fastener types.
Which colours does the Guardian Pitch Pro come in?
Guardian makes it in black (10540), brown and grey. This listing is the black 10540.
Pair the 10540 Pitch Pro roof anchor with a full system
Pair the Pitch Pro with a full-body harness and a rope lifeline or SRL for a complete fall arrest system.
