Malta Dynamics C1004 Dual SRL Connector — Twin-Leg Bracket | Canada
SRL CONNECTORANSI Z359 / OSHA · NOT CSAMODEL C1004

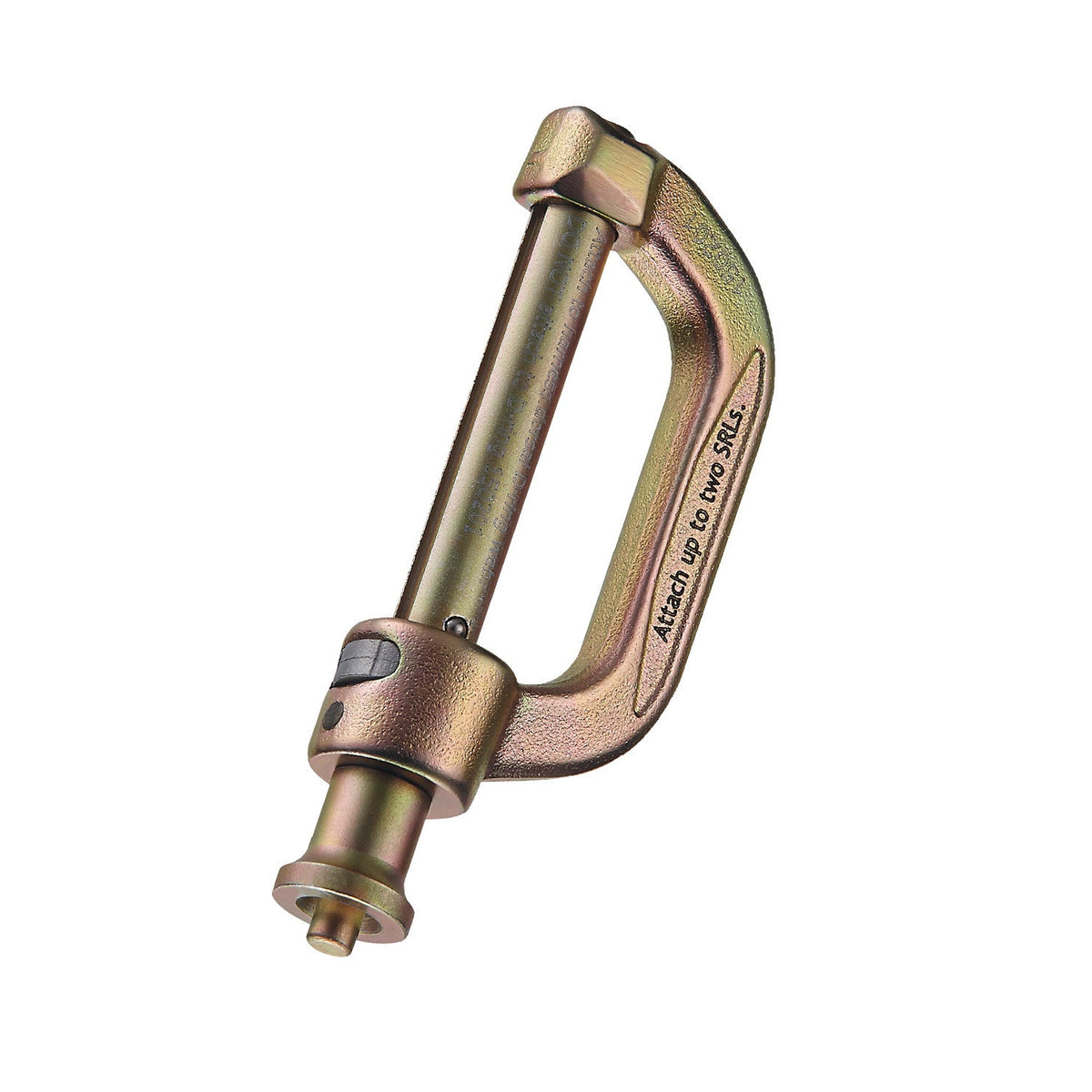

The Malta Dynamics C1004 Dual SRL Connector lets you mount two compatible personal SRLs at the back of the harness for 100% tie-off. The bracket installs beneath the dorsal webbing (never on the D-ring itself) and uses a locking pin with a red indicator that disappears only when fully locked.
Malta Dynamics C1004 dual SRL connector bracket key features
Malta Dynamics C1004 dual SRL connector bracket specifications
| Model | C1004 |
| Product type | Connector |
| Standards | ANSI Z359 / OSHA 1910 and 1926 (per Malta Dynamics) · not CSA Z259 |
| Brand | Malta Dynamics |

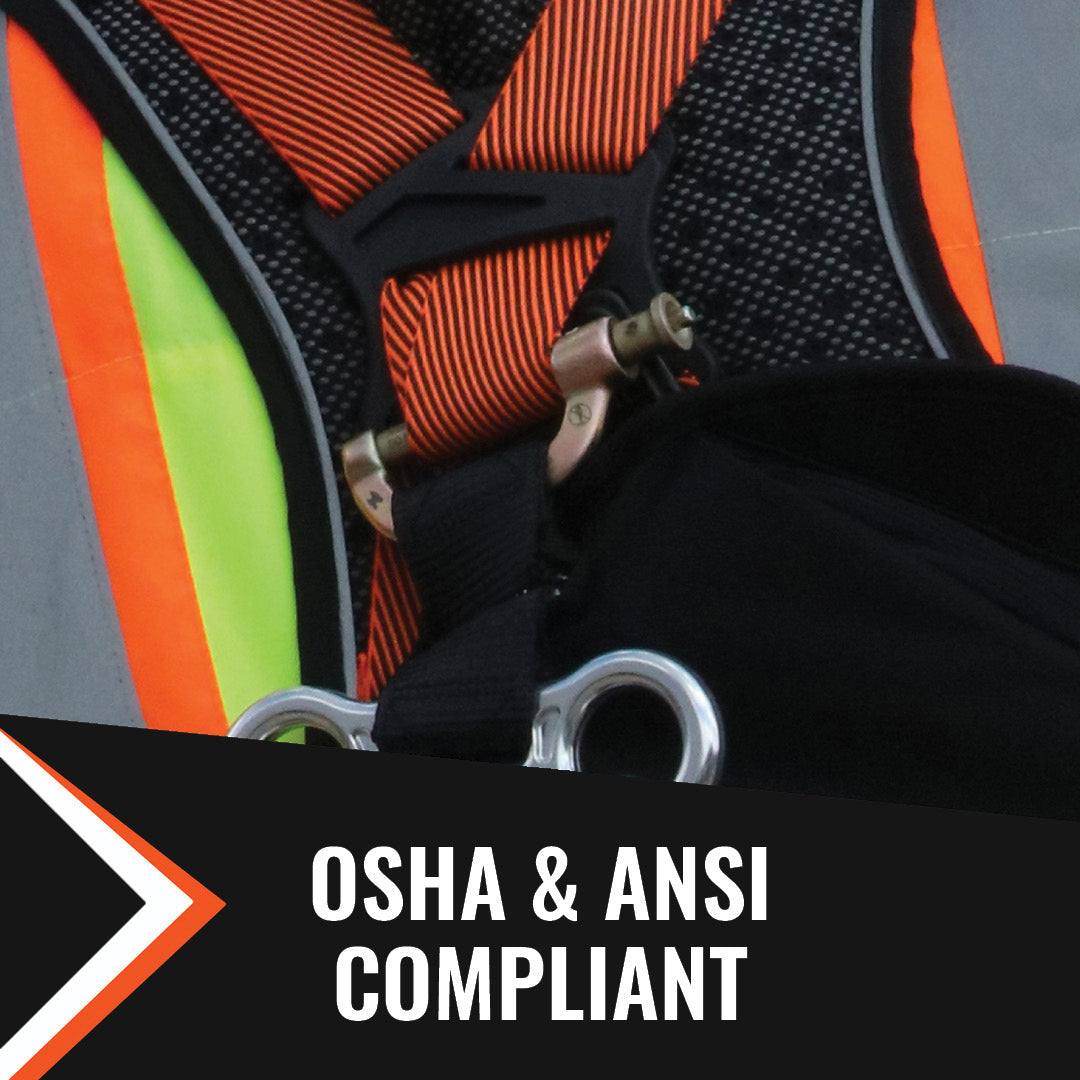

CERTIFICATION — ANSI Z359 / OSHA · NOT CSA
Malta Dynamics lists this product as meeting ANSI Z359 and OSHA 1910/1926 requirements. It is not CSA Z259 certified. If your site or jurisdiction requires CSA-marked fall protection, see our Safety Direct collection; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use.
Malta Dynamics C1004 dual SRL connector bracket FAQ for Canadian sites
Is the Malta Dynamics C1004 CSA certified for Canadian sites?
No. Malta Dynamics lists the C1004 as meeting ANSI Z359 and OSHA 1910/1926 requirements; it is not CSA Z259 certified. Many Canadian sites accept ANSI/OSHA-rated equipment, but confirm with your site safety officer and provincial OHS authority before use. If your site requires the CSA mark, see our Safety Direct collection.
What does the Malta Dynamics C1004 dual SRL connector do?

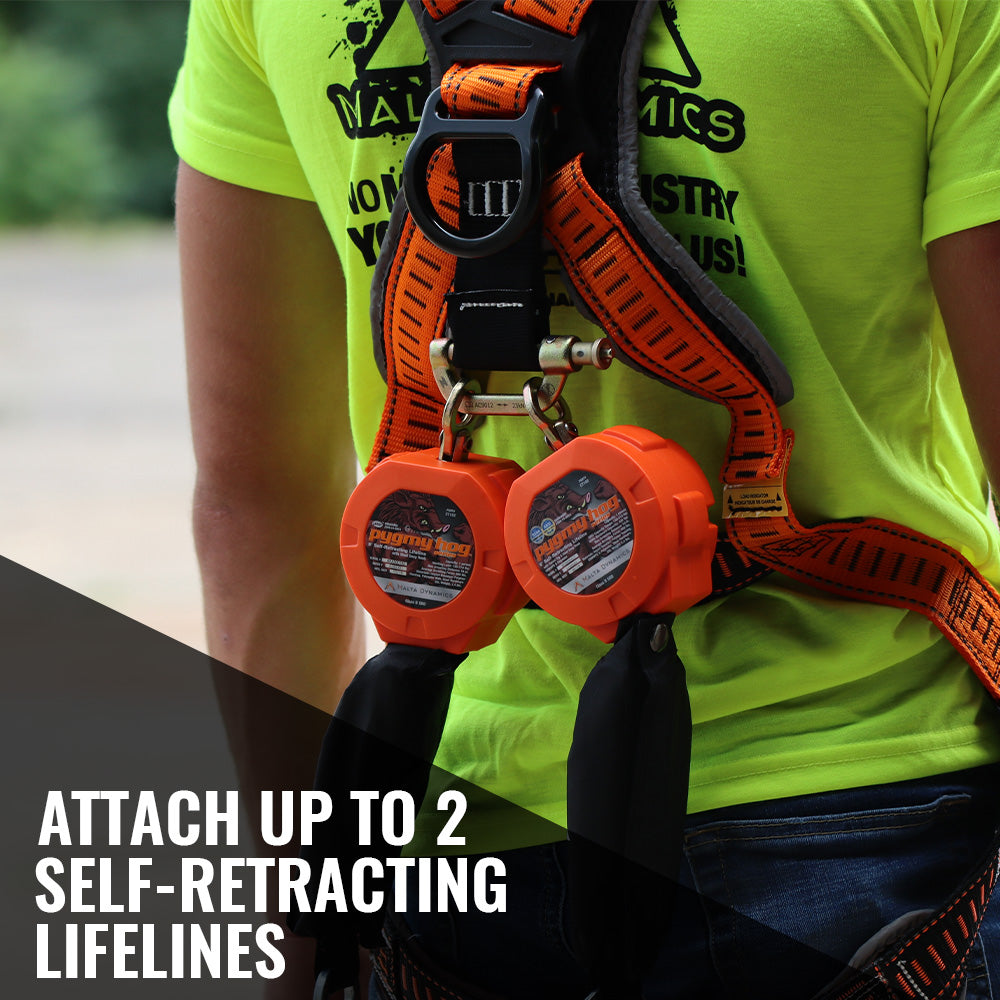

It is a bracket that mounts two compatible personal SRLs at the back of the harness so you stay at 100% tie-off while transitioning between anchor points.
How does the Malta Dynamics C1004 attach to a harness?

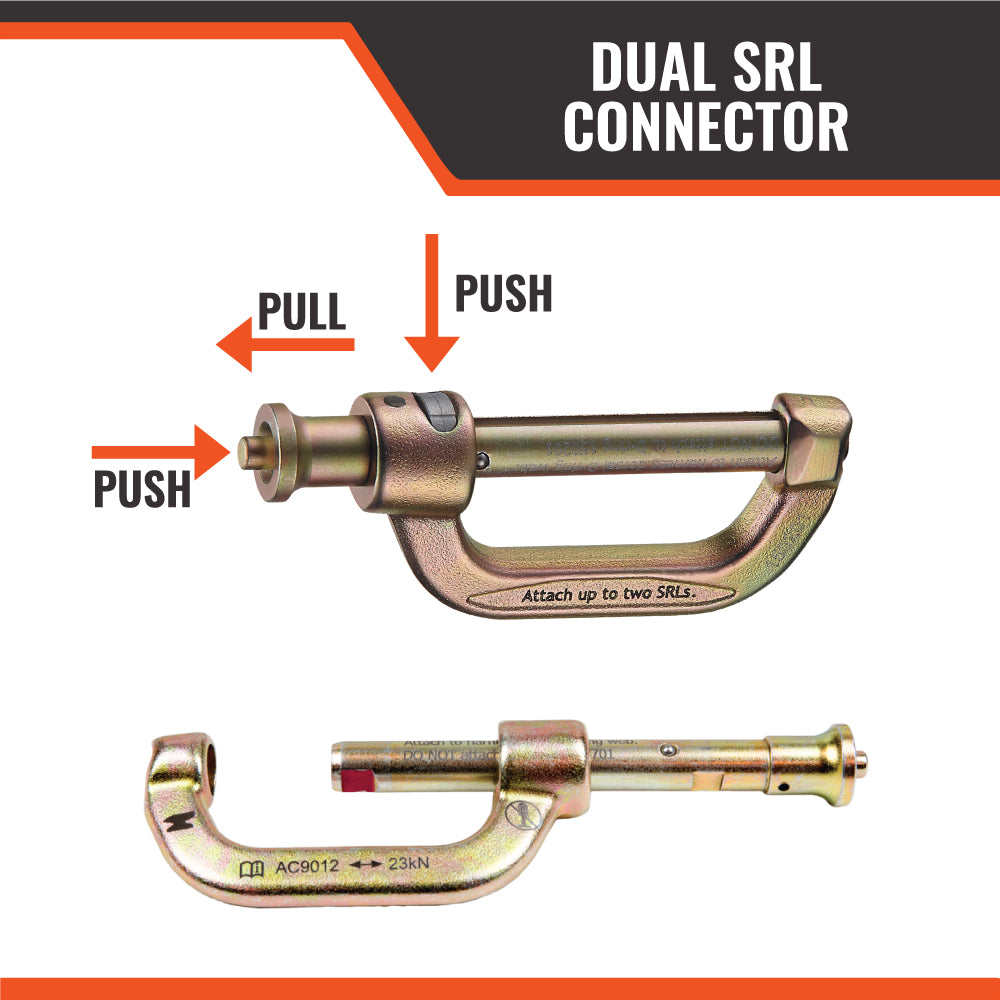

It installs beneath the dorsal webbing — never on the D-ring itself — and locks with a pin that hides a red indicator only when fully engaged.
Which SRLs are compatible with the C1004?
Connect compatible personal SRLs directly to the fixed bracket loop (not with carabiners). Confirm SRL compatibility before use.
How often should the Malta Dynamics C1004 be inspected?
Before every use, and formally by a competent person at least once a year. Remove it from service after any fall or if the inspection finds deformation, cuts, corrosion or other damage.
