Frontline GUS05 Non-Penetrating Guardrail Kit, 50 ft, 5 ft Rails | Canada

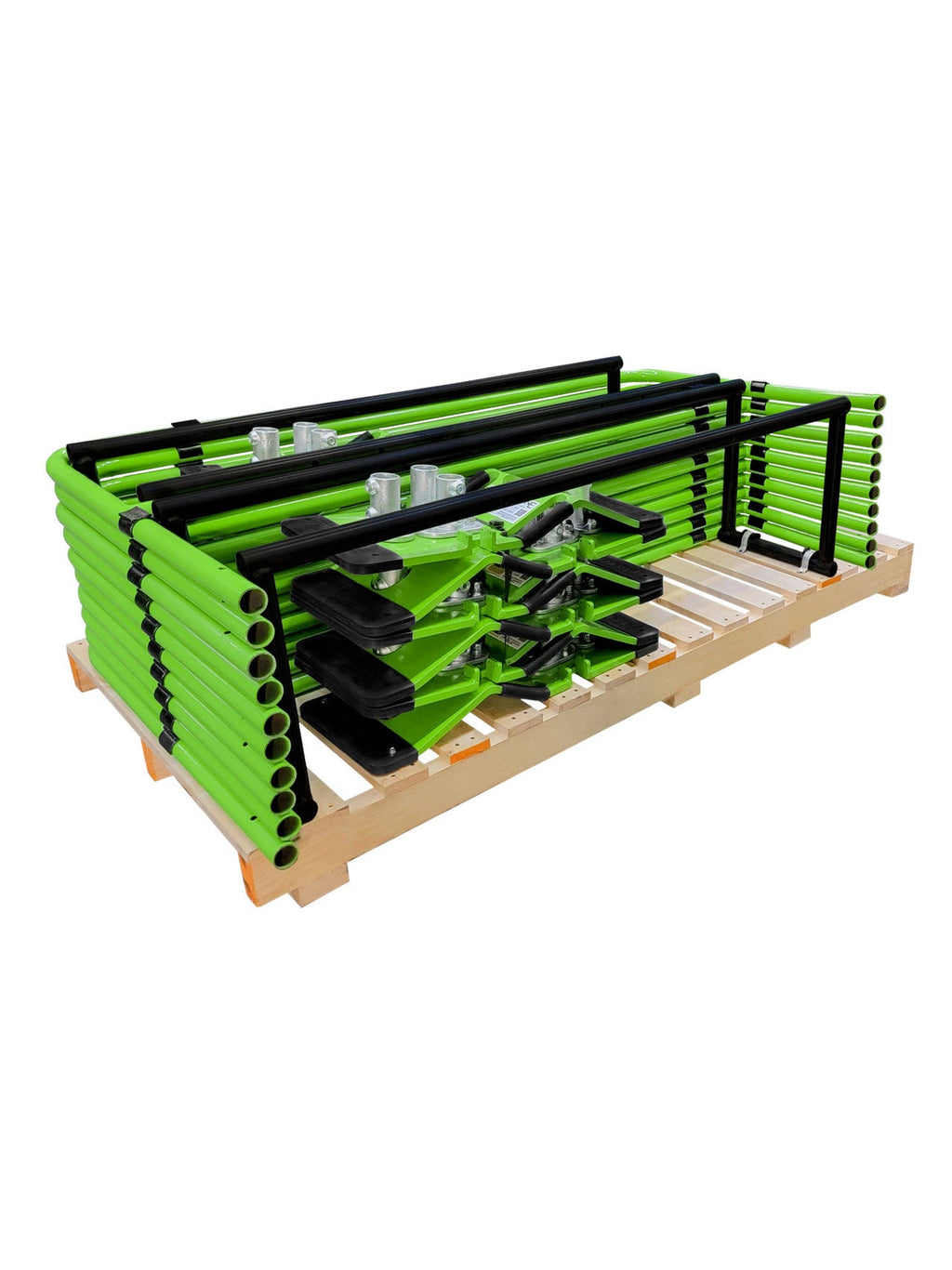

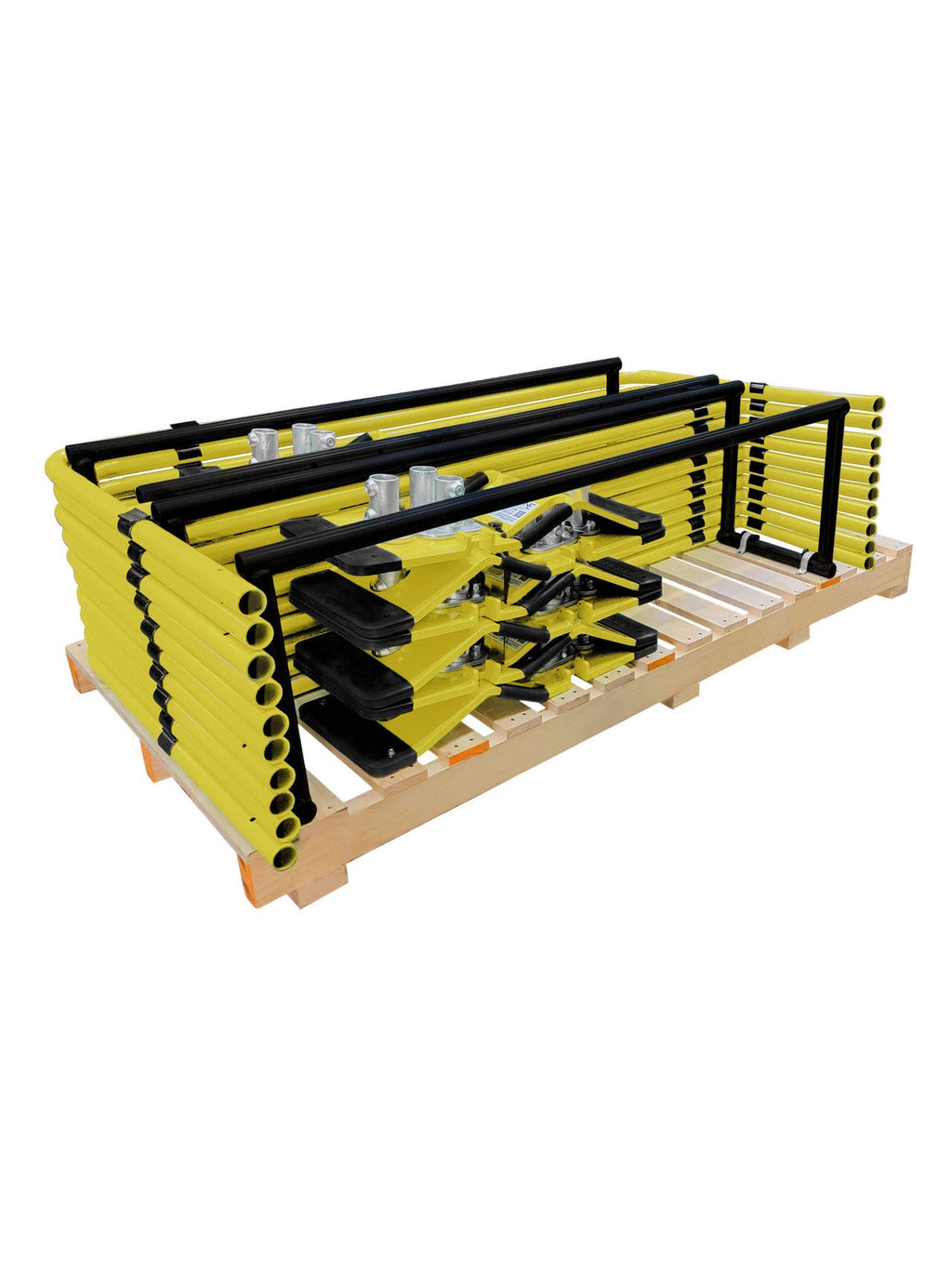

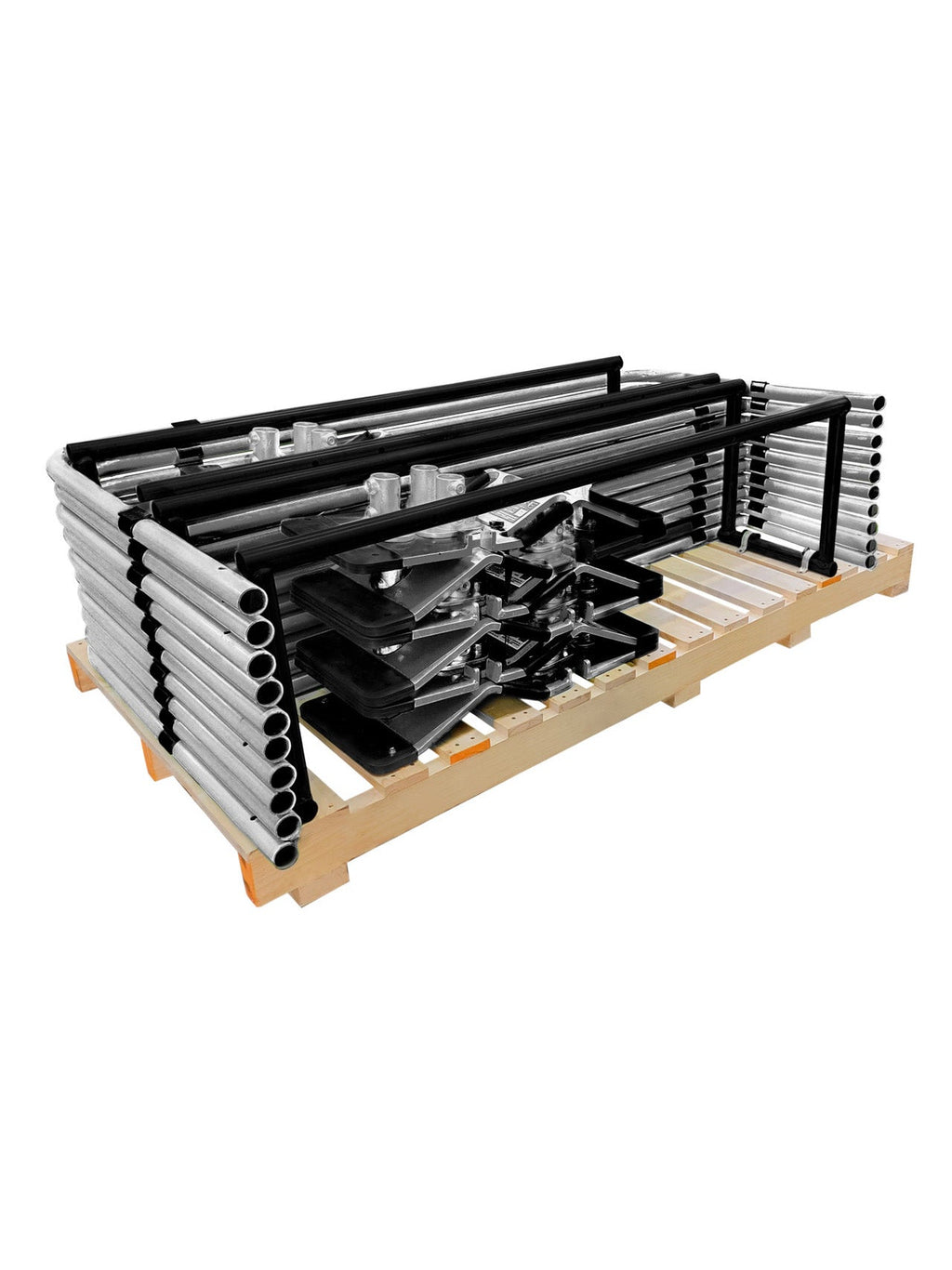

Frontline GUS05 Non-Penetrating Guardrail Kit, 50 ft, 5 ft Rails. A complete 50 ft run of Frontline non-penetrating guardrail: 10 rails of 5 ft and 11 bases. The rails slide into the base fittings and lock with two grub screws, so a crew sets it up in minutes without drilling the roof. Each 56 lb base sits on EPDM supports, has two foam handles and two toe board slots, and nests for stacking. The shorter 5 ft rails suit tight roofs, corners and runs where a 10 ft section won't fit.
Frontline GUS05 guardrail kit key features
- 10 guardrails of 5 ft and 11 bases for a 50 ft run
- Non-penetrating: rails slide into the base fittings and lock with two grub screws
- 56 lb bases on EPDM supports at both ends, with two foam handles
- Two universal toe board slots on each base
- Four holes in each base for an optional fixed install drilled into the substrate
- Bases nest and the system stacks up to 4 pallets high
- High-strength ASTM-rated steel in safety green, safety yellow or hot dip galvanized
Frontline GUS05 guardrail kit specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | GUS05GRN (green) · GUS05YLW (yellow) · GUS05HDG (galvanized) |
| Kit length | 50 ft |
| Rails included | 10 × 5 ft |
| Bases included | 11 |
| Base weight | 56 lb |
| Rail locking | Two grub screws per base fitting |
| Material | High-strength ASTM-rated steel |
| Finishes | Powder-coated safety green, powder-coated safety yellow, hot dip galvanized |
| Standards | Meets or exceeds OSHA 1910 and 1926; tested by an ISO/IEC 17025:2017 accredited lab |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline GUS05 guardrail kit
Flat roof perimeters
Passive edge protection with no roof penetrations.
Tight roof areas
5 ft rails fit short edges and around equipment.
Rooftop service work
Protects HVAC and maintenance crews near the edge.
Is the Frontline GUS05 guardrail CSA certified? Compliance in Canada
Is the Frontline GUS05 CSA certified?
No. Frontline states it meets or exceeds OSHA 1910 and 1926. Confirm your layout meets your provincial OHS guardrail rules before use.
What comes in the kit?
10 rails of 5 ft and 11 bases, for a 50 ft run.
Do I have to drill the roof?
No. It is non-penetrating; each base has four holes if you want an optional fixed install.
Can I add a gate or toe boards?
Yes. Each base has toe board slots, and Frontline makes the GUG55 swing gate and GUTO toe boards for its guardrail bases.
Add a gate and toe boards to the Frontline GUS05 kit
Add the GUG55 swing gate at access points and GUTO toe boards where material could fall. Send us your roof perimeter and we'll work out the kit count. Contact Fall Protection Canada.
