Frontline GUS75 Non-Penetrating Guardrail System Kit – 75' OSHA Compliant Roof Edge Protection Canada

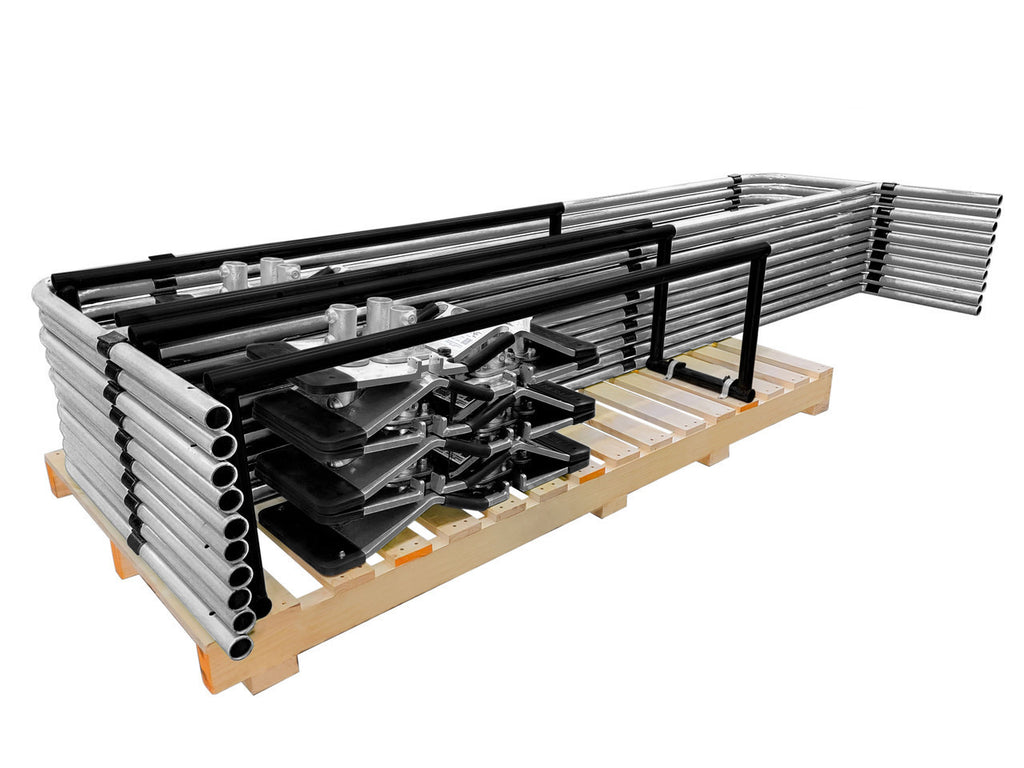

Frontline GUS75 non-penetrating guardrail system, complete 75 ft kit. Passive roof edge protection that sets up without drilling, sized for smaller roof sections, partial perimeters and phased jobs. Rails slide into 56 lb steel bases and lock with two grub screws; EPDM supports protect finished surfaces.
Frontline GUS75 75 ft guardrail kit key features

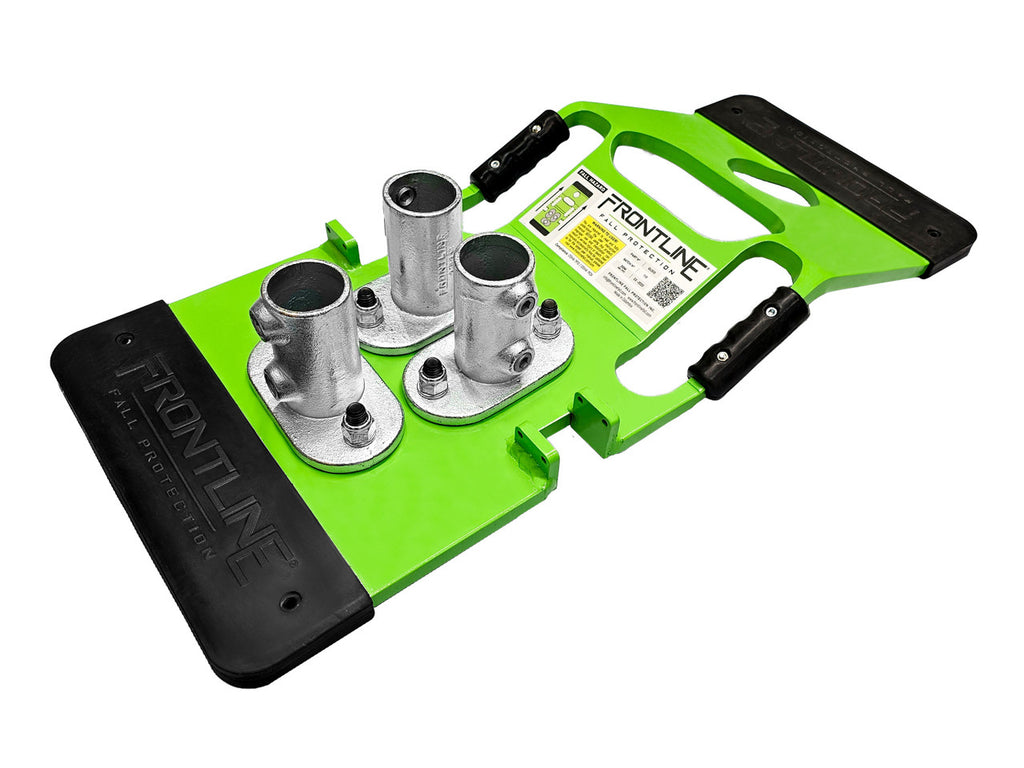

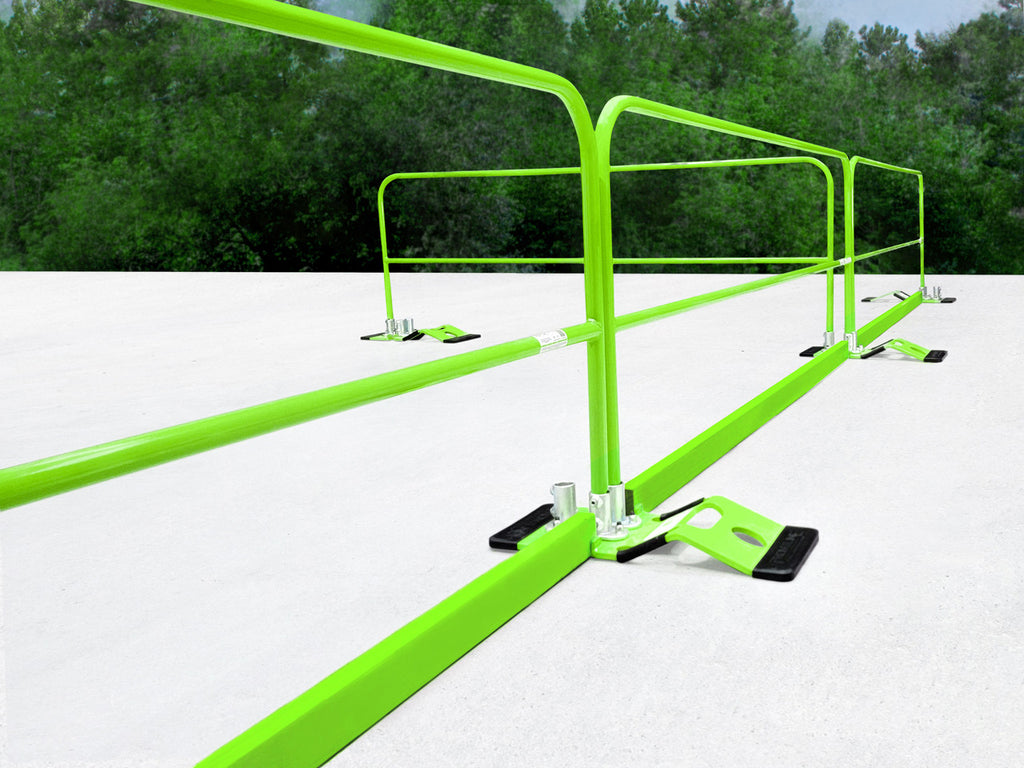

- Non-penetrating set-up: bases sit on the roof, no drilling needed
- Rails slide into the base fittings and are secured with two grub screws
- Two extended EPDM supports on both sides of every base for stability
- Two ergonomic rubber foam handles per base

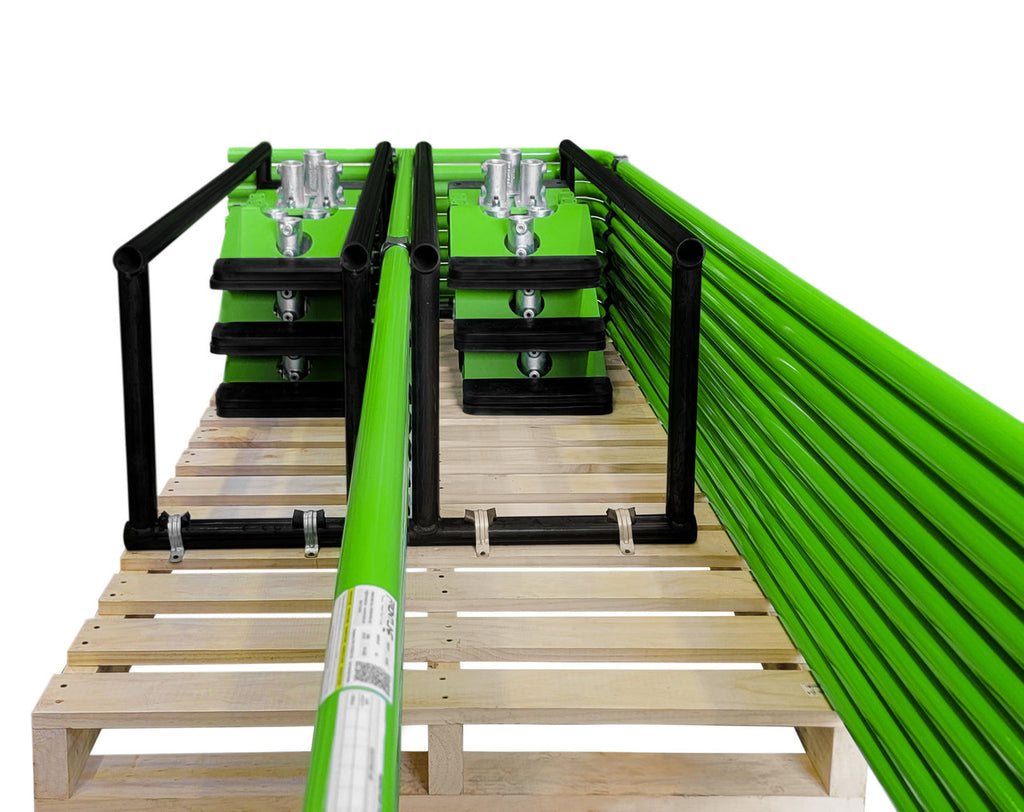

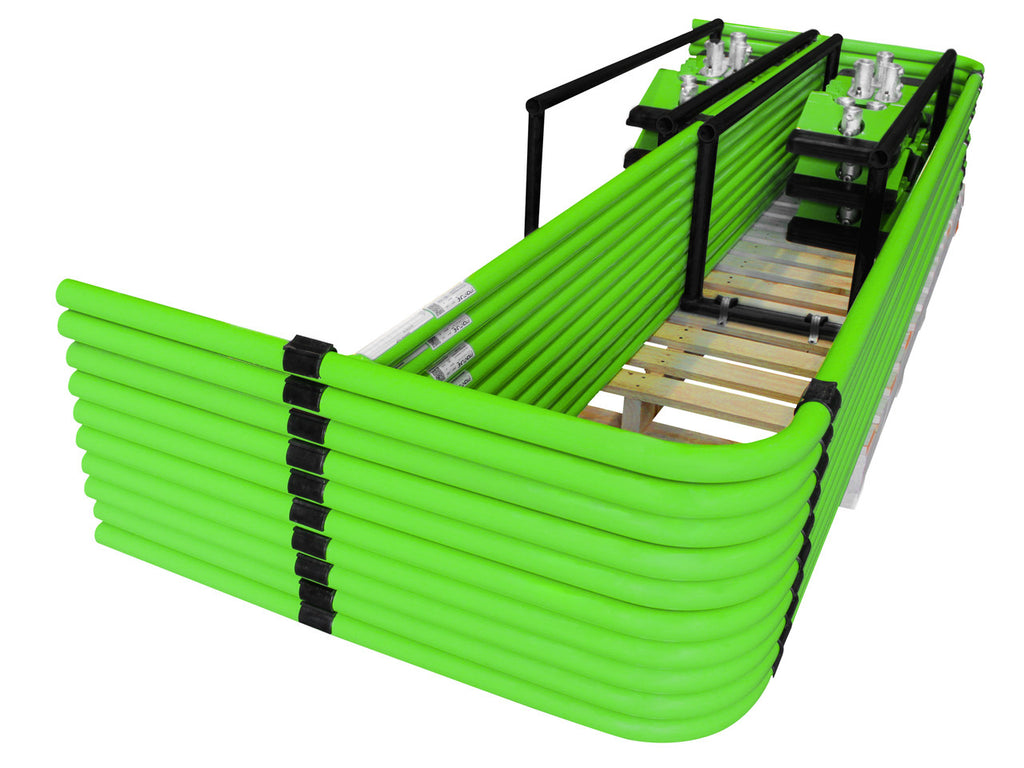

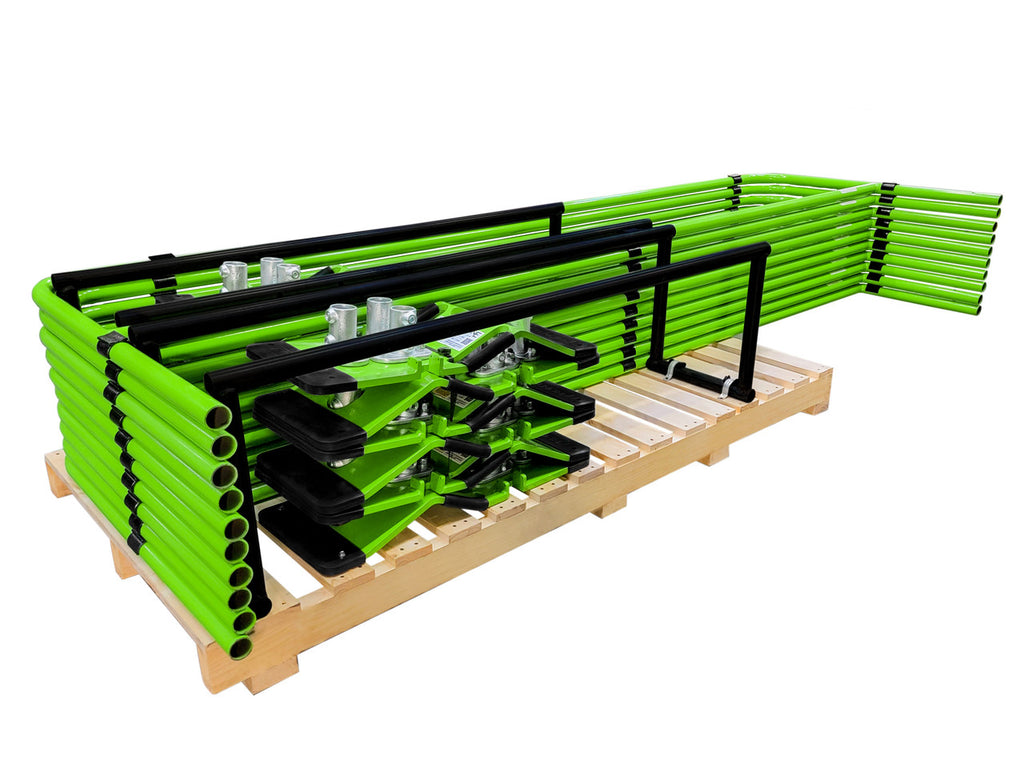

- Bases nest and stack for transport and storage; the system stacks four pallets high
- Two universal toe board slots on every base
- Holes in each base for a fixed installation drilled into the substrate
- High-strength steel rated to ASTM standards
Frontline GUS75 non-penetrating guardrail kit specifications
| Manufacturer | Frontline |
|---|---|
| Model | GUS75 |
| System type | Non-penetrating guardrail system (patent pending per Frontline) |
| Kit length | 75 ft |
| Base weight | 56 lbs |
| Rail connection | Slides into base fittings, two grub screws |
| Material | High-strength steel rated to ASTM standards |
| Finish | Choose the colour from the options above |
| Optional fixed install | Holes in each base for drilling into the substrate |
| Standards | Meets or exceeds OSHA and Cal/OSHA standards; tested by an independent third-party lab accredited to ISO/IEC 17025:2017 (per Frontline). Not CSA. |
Where crews use the Frontline GUS75 75 ft guardrail kit
Smaller commercial roofs and partial edges
A 75 ft run covers shorter perimeters without leftover rail.
Roof hatches, access points and HVAC zones
Guard just the area where crews work and travel.
Phased re-roofing jobs that move along the roof
Bases lift by hand and move with the work zone.
Maintenance and service crews on flat roofs
Passive protection: nobody has to clip in at the edge.
Does the Frontline GUS75 guardrail meet code in Canada?
Is the Frontline GUS75 guardrail system CSA certified?
No. Frontline rates the GUS75 to OSHA and Cal/OSHA. Guardrails are not CSA Z259 personal fall protection; check your provincial guardrail rules.
Should I buy the GUS75 75 ft kit or the GUS10 100 ft kit?
Measure the edge you need to guard. For longer runs see the GUS10 100 ft kit; extra bases and rails are sold separately.
Do I have to drill into the roof to install the GUS75?
No. It is non-penetrating by default; the bases have holes if you want a fixed installation.
What to add to the Frontline GUS75 guardrail system
Add toe boards where tools or material could fall, a gate at access points, extra bases for corners, and a cart to move the system. Need more length? See the 100 ft kit.
