Frontline RPG10 Cable Single-Leg SRL w/ Steel Snap Hook End (10 ft)

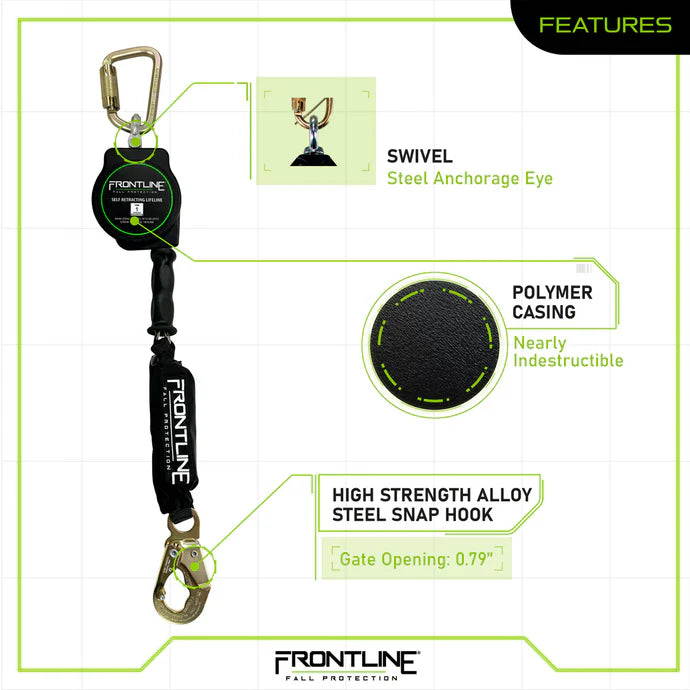

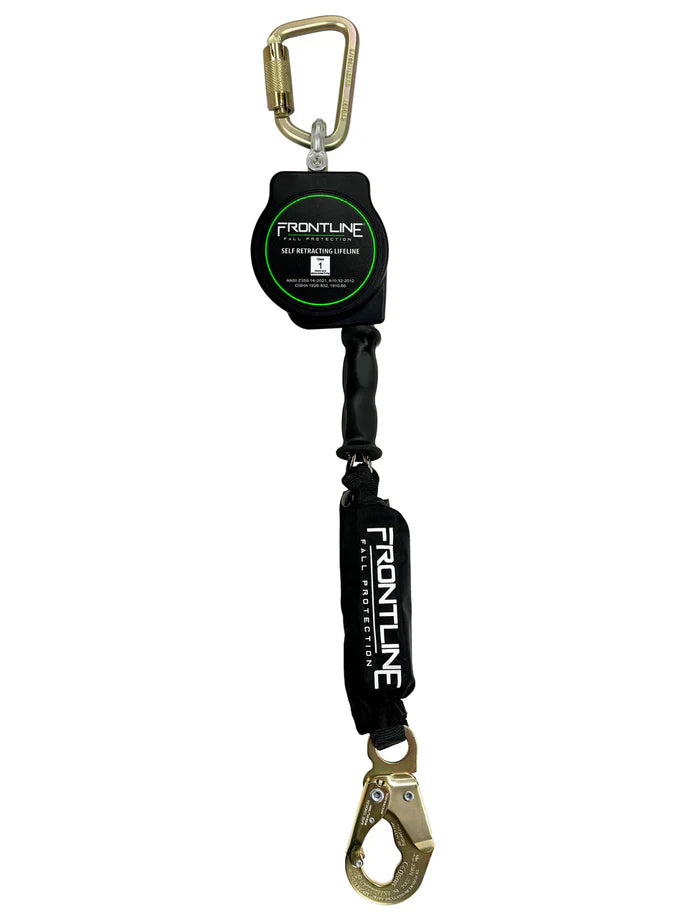

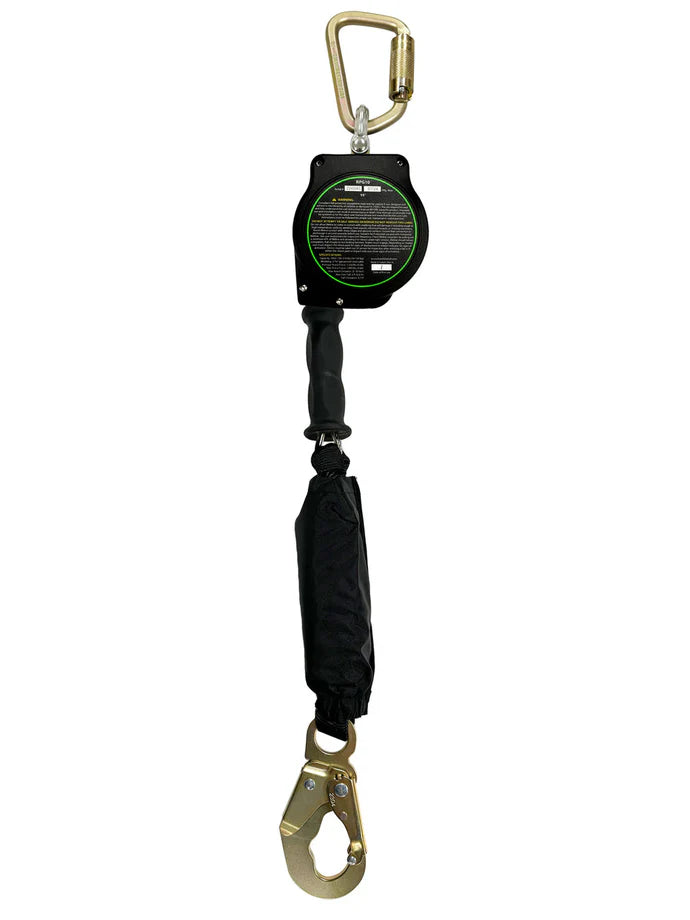

Frontline RPG10 Cable SRL, 10 ft. A compact 10 ft single-leg self-retracting lifeline with 3/16 in galvanized steel cable, for work around sharp edges or outdoors where webbing wears. It engages within seconds of a fall to limit free fall and reduce impact forces, with a quick-action brake and internal energy absorption in a high-impact thermoplastic housing. Swivel anchorage eye with self-locking carabiner; steel snap hook with impact indicator; 310 lb maximum user capacity.
Frontline RPG10 10 ft cable SRL key features
- Engages within seconds of a fall to limit free fall distance
- Quick-action braking system with internal energy absorption
- High-strength 3/16 in galvanized steel cable for sharp edges and outdoor work
- High-impact thermoplastic housing, lightweight and compact
- Swivel anchorage eye with self-locking carabiner
- Steel snap hook with impact indicator at the lifeline end
- Tested by an independent ISO/IEC 17025:2017 accredited lab
Frontline RPG10 self-retracting lifeline specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | RPG10 |

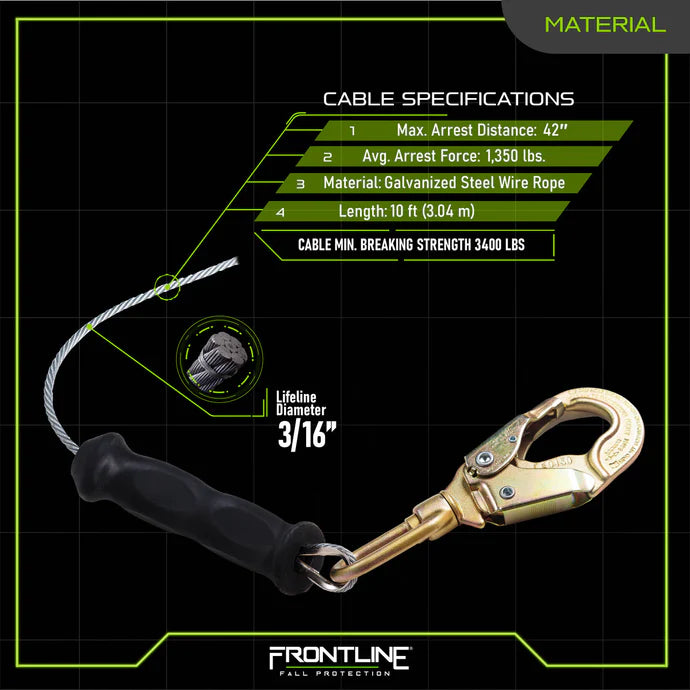

| Lifeline | 3/16 in galvanized steel cable, 10 ft |

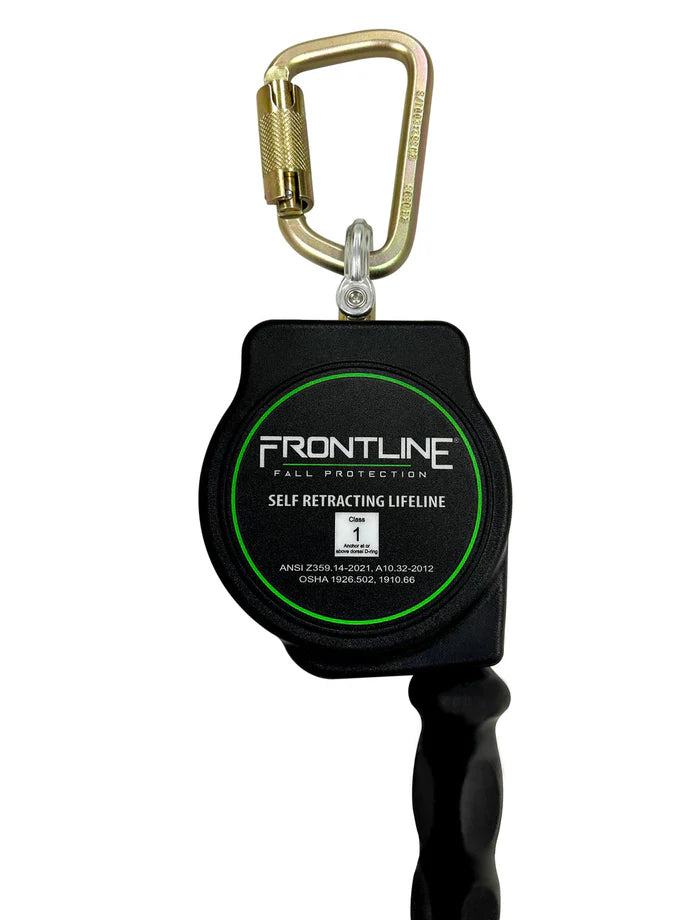

| Housing | High-impact thermoplastic polymer |
| Anchorage end | Swivel eye with self-locking carabiner |

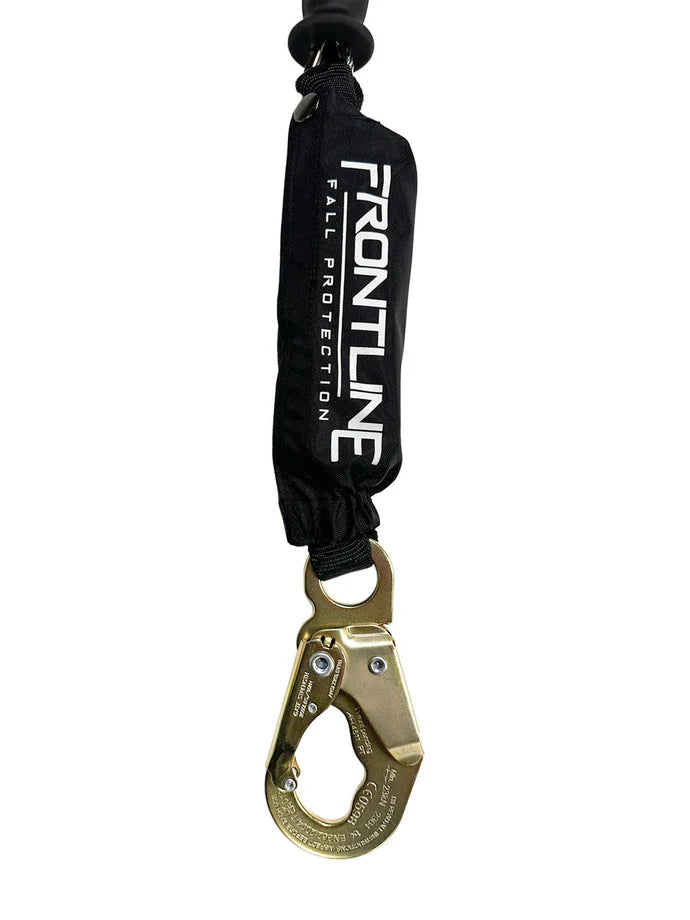

| Lifeline end | Steel snap hook with impact indicator |
| Connector strength | 5,000 lb |
| Maximum user capacity | 310 lb |
| Standards | Meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910 |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline RPG10 cable SRL
Steel erection and framing
Cable stands up to sharp steel edges better than webbing.
Outdoor and roof work
Galvanized cable for work in the weather.
Short overhead tie-offs
A compact 10 ft unit where a long SRL is not needed.
Is the Frontline RPG10 cable SRL CSA certified? Compliance in Canada
Is the Frontline RPG10 CSA certified?
No. Frontline states it meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910. For CSA-marked SRLs, see our Safety Direct range.
Cable or web SRL?
Choose cable, like the RPG10, around sharp edges and outdoors; Frontline's web SRLs are lighter for general overhead use.
What connects to the anchor?
The housing has a swivel anchorage eye with a self-locking carabiner.
Is the SRL reusable after a fall?
No. Frontline says any SRL that has arrested a fall must be removed from service immediately; check the impact indicator on the snap hook before each use.
Pair the Frontline RPG10 SRL with a harness and anchor
Connect the housing to a rated overhead anchor and the snap hook to the dorsal D-ring of a full body harness. Questions on fit or quantities? Contact Fall Protection Canada.
