Frontline VLP+RGSS58ES Vertical Lifeline with Openable Rope Grab
VERTICAL LIFELINE KITANSI/OSHA · 5,000 LBMODEL VLP+RGSS58ES

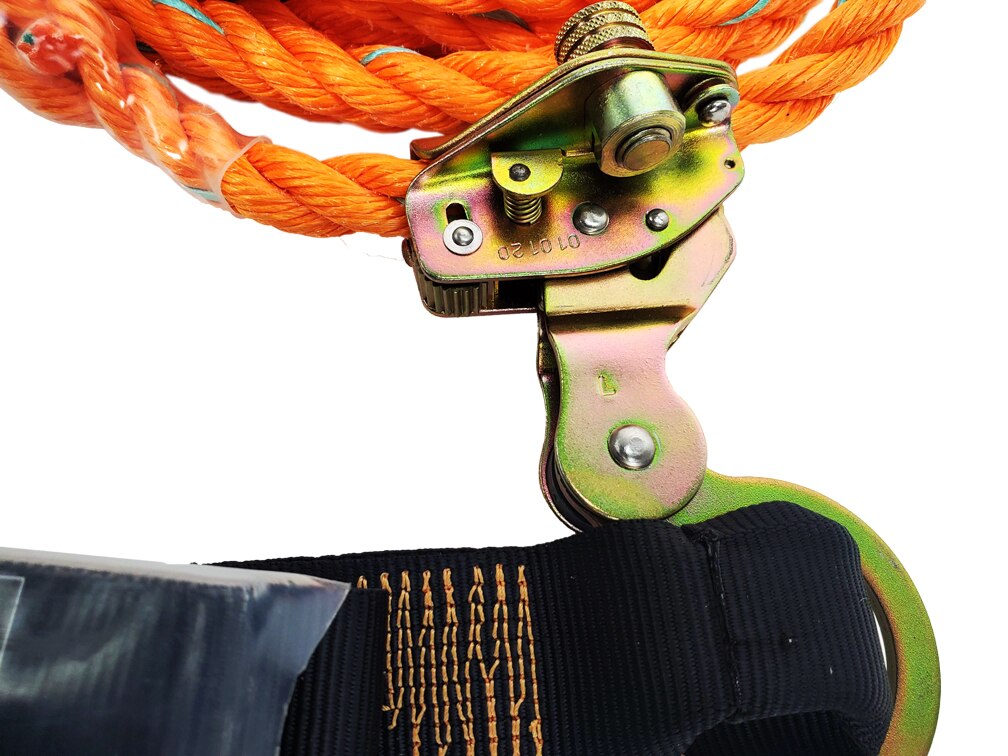

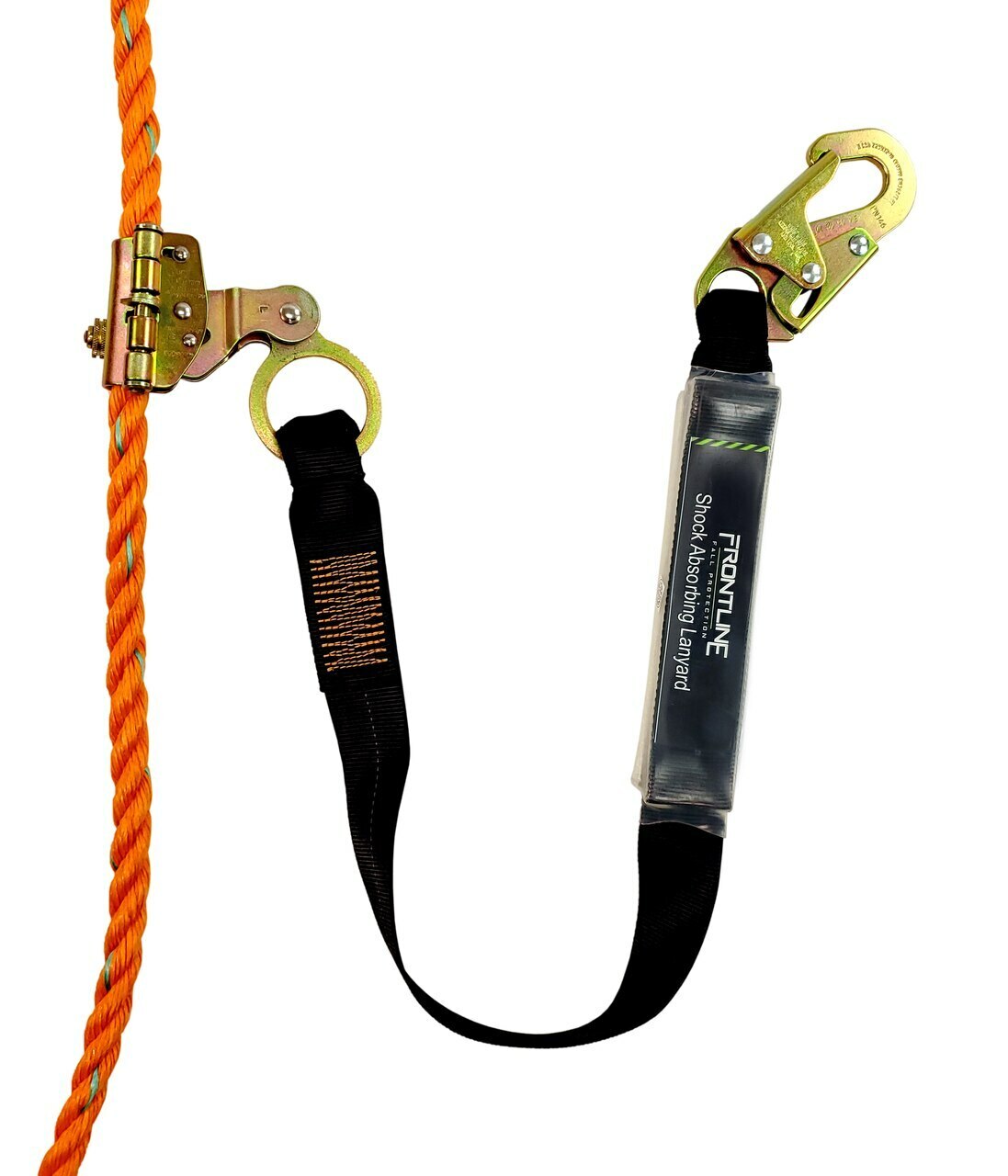

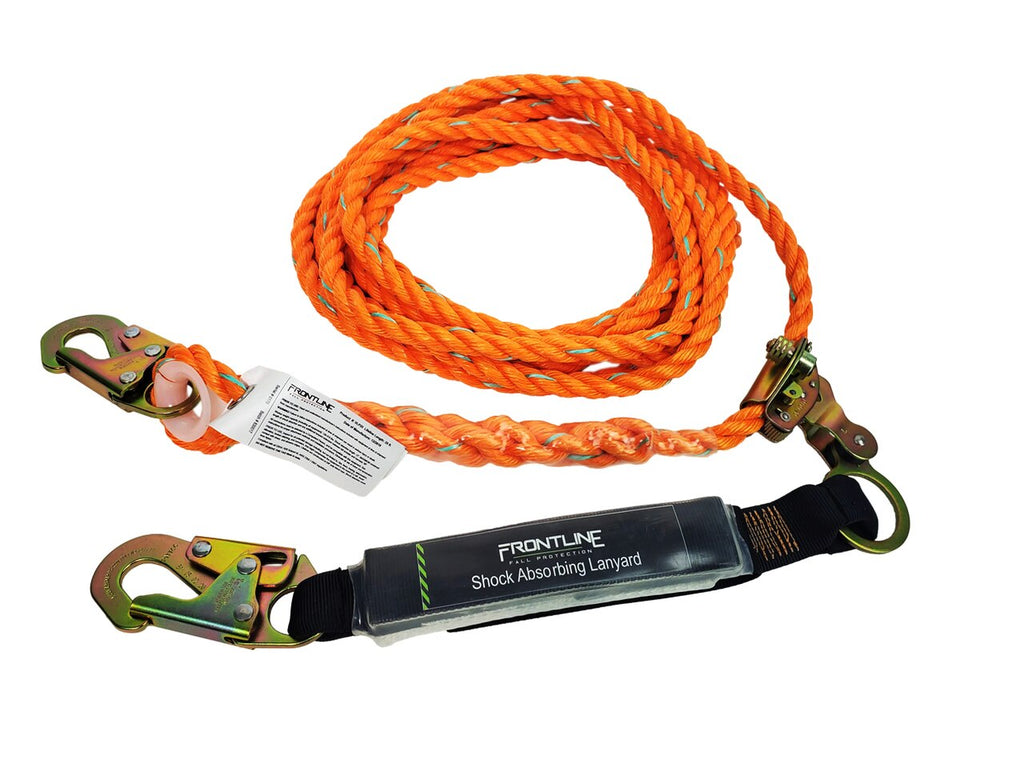

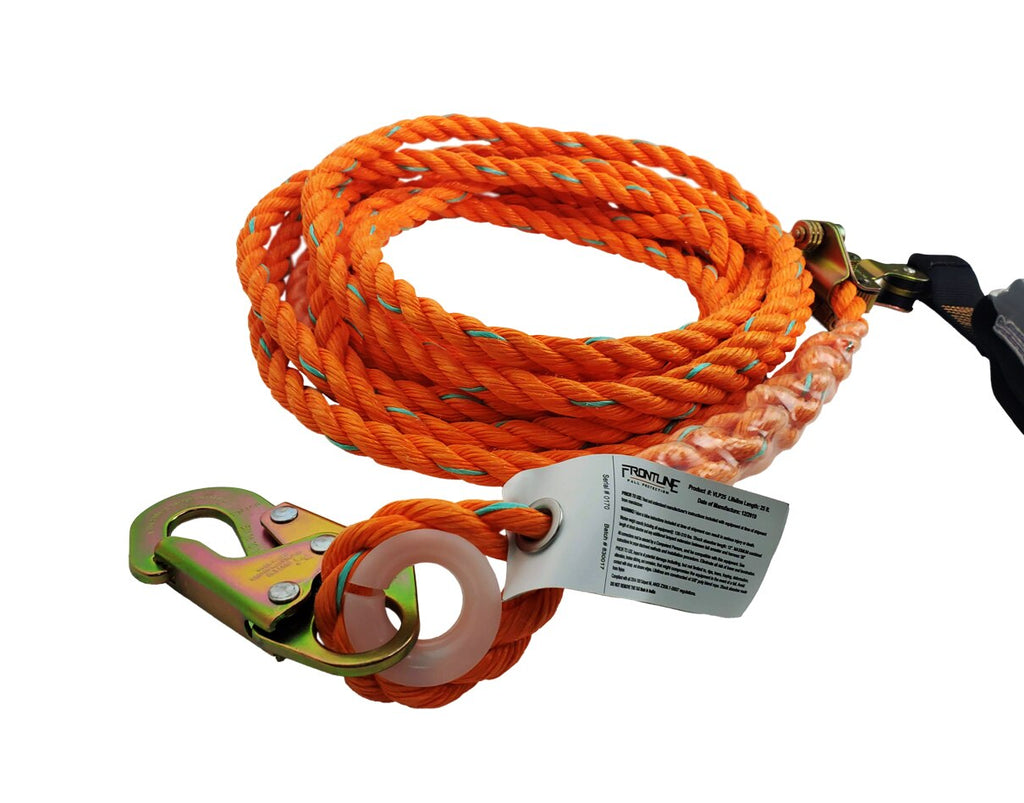

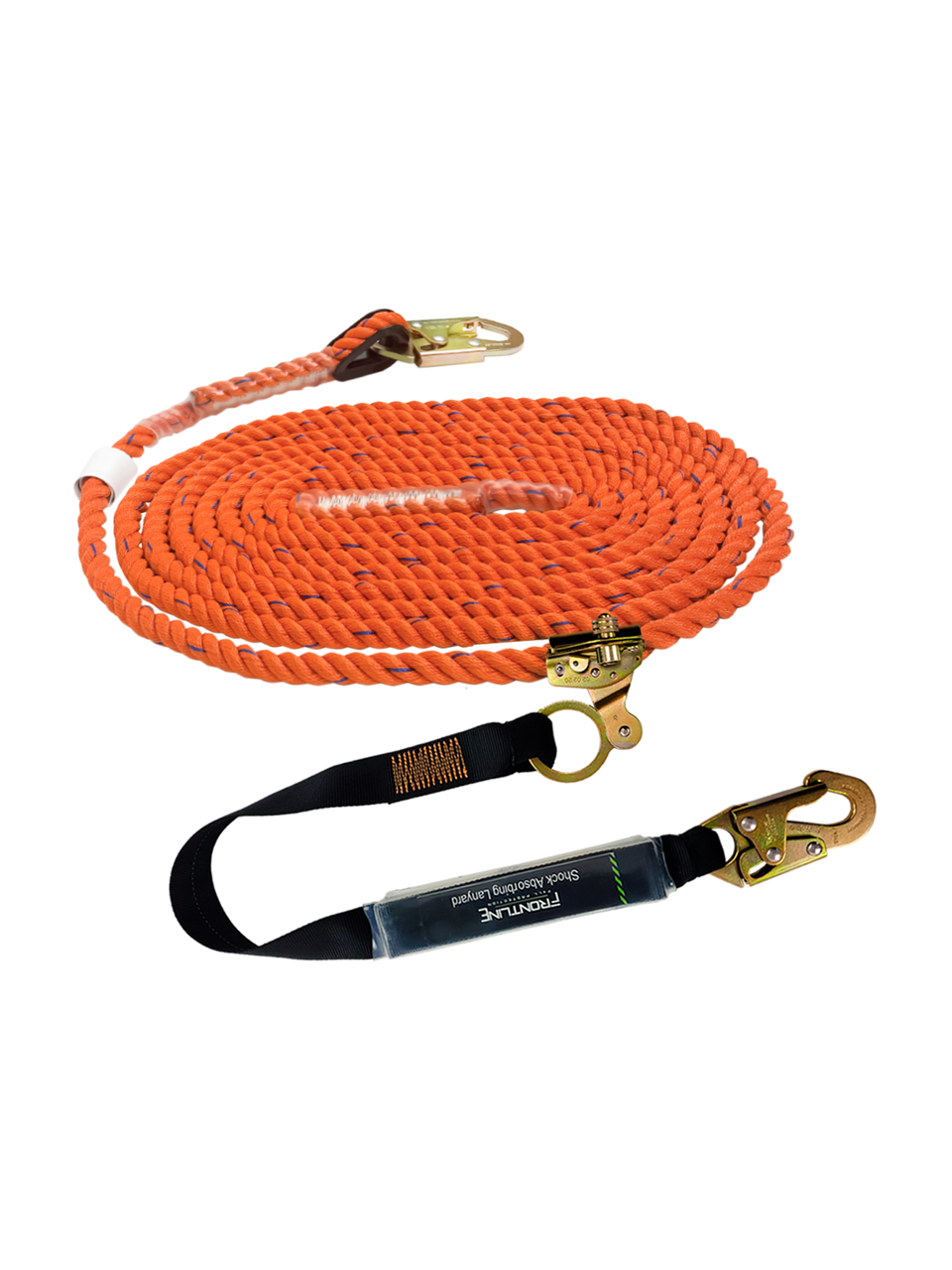

The Frontline VLP+RGSS58ES Premium Vertical Lifeline is a complete rope lifeline kit for climbing and descending on roofs, scaffolds and swing stages: a 25 ft or 50 ft 3-strand polysteel rope (5/8 in), an openable self-tracking steel rope grab with a double locking closure, and a 3 ft shock-absorbing lanyard with an integrated shock pack and a snaphook for your harness back D-ring. The grab opens with one screw, so it goes on anywhere along the line instead of threading from the end.

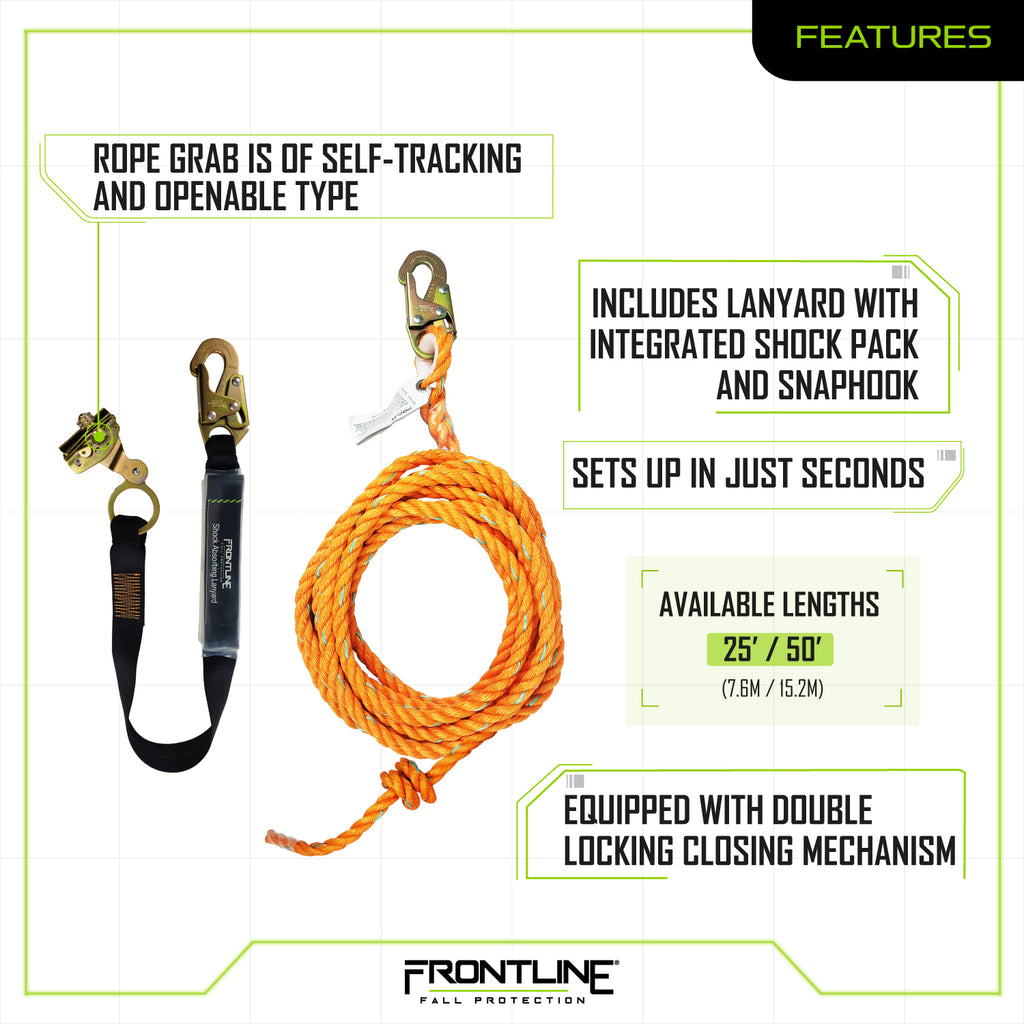

Frontline VLP+RGSS58ES vertical lifeline key features
How to set up the Frontline VLP+RGSS58ES rope grab
Anchor the lifeline to a rated anchor above the work. Unscrew the one screw on the rope grab, open it, feed the rope in, and screw it closed. Clip the 3 ft shock lanyard's snaphook to your harness back D-ring and the grab tracks with you as you move up and down.

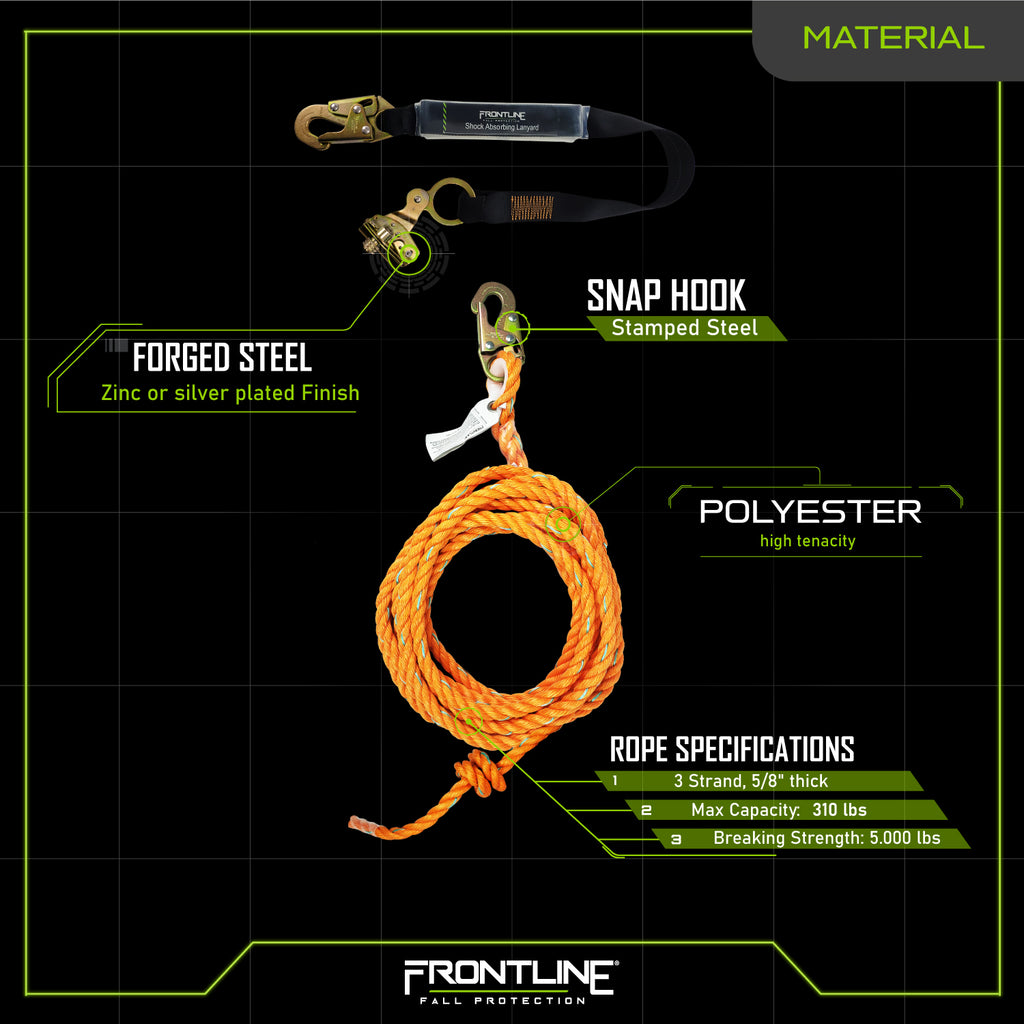

Frontline VLP+RGSS58ES vertical lifeline specifications
| Model | VLP+RGSS58ES |
| Product type | Vertical lifeline kit with rope grab |
| Rope | 5/8 in 3-strand polysteel |
| Lengths | 25 ft or 50 ft |
| Rope grab | Openable, self-tracking, high-grade steel, double locking |
| Lanyard | 3 ft shock-absorbing lanyard, integrated shock pack, snaphook |
| Breaking strength | 5,000 lb |
| User capacity | 310 lb |
| Standards | Meets or exceeds applicable ANSI and OSHA standards (Frontline) |
| Brand | Frontline Fall Protection |

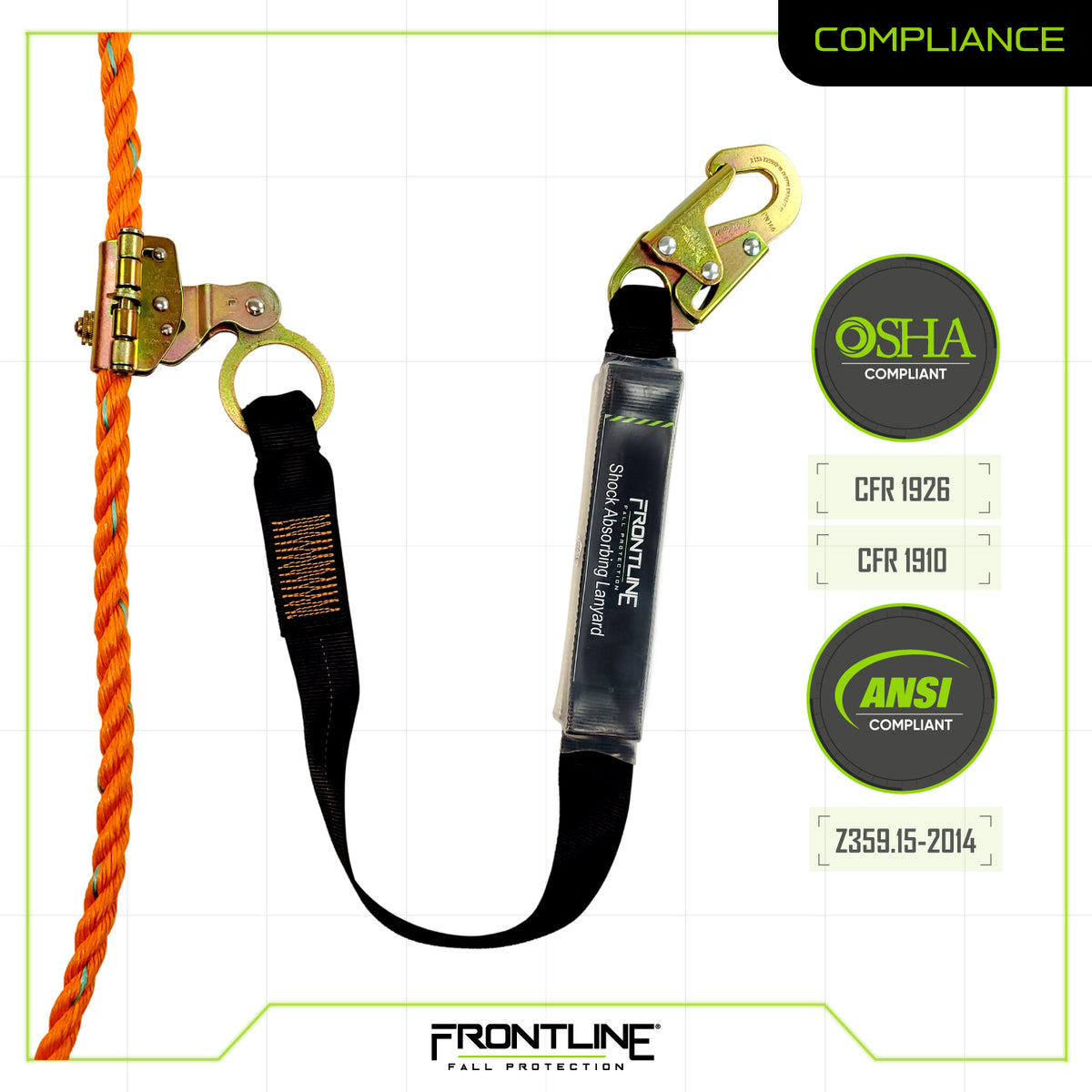

CERTIFICATION — ANSI/OSHA · NOT CSA
Frontline lists the VLP+RGSS58ES as meeting or exceeding applicable ANSI and OSHA standards. It is not CSA Z259 certified. Many Canadian sites accept ANSI/OSHA-rated lifelines; confirm with your authority having jurisdiction before use, and if your site specifies CSA-marked equipment, ask us before ordering.
Frontline VLP+RGSS58ES vertical lifeline FAQ
Is the Frontline VLP+RGSS58ES CSA certified?
No. Frontline lists it as meeting or exceeding applicable ANSI and OSHA standards, not CSA Z259. Check with your authority having jurisdiction whether it is accepted on your site.
Can the rope grab go on in the middle of the line?
Yes. Unscrew the one screw, open the grab, feed the rope in and close it. No need to thread it from the end of the rope.
Should I order the 25 ft or 50 ft lifeline?
Pick the length that reaches from your anchor to the lowest point you will work, with enough rope left to stay on the line.
What does the VLP+RGSS58ES connect to on my harness?
The 3 ft shock lanyard's snaphook clips to your harness back D-ring.
How much weight is the VLP+RGSS58ES kit rated for?
One user up to 310 lb. The system has a 5,000 lb breaking strength.
