SSRA2 Roof Jack Adapters with SSRA1 Anchors, 2-Pack Walkboard Kit | Fall Protection Canada

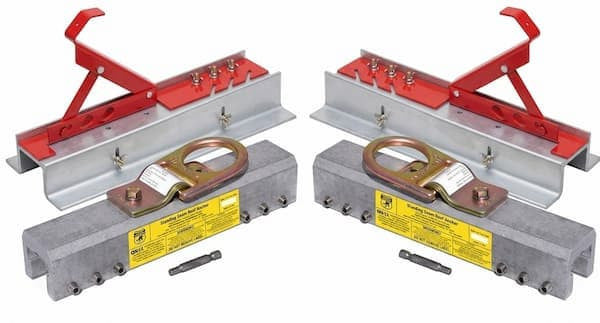

SSRA2 roof jack adapters with SSRA1 anchors, walkboard kit
Non-Penetrating • 6:12 to 12:12 PitchThe SSRA2 Roof Jack Bundle is the complete turnkey kit for installing walkboards on standing seam metal roofs without penetrating the panels or voiding the roof warranty. Two SSRA1 standing seam anchors clamp directly to the roof seams using set screws — no holes, no caulk, no leaks. Two SSRA2 adjustable adapters bolt onto the SSRA1 anchor bases, level themselves to the roof pitch (6:12 through 12:12), and accept a standard 2"x10" walkboard for safe staging on steep-pitch standing seam roofing projects.
What is the SSRA2 roof jack walkboard kit?
The SSRA1 + SSRA2 bundle solves the steep-pitch staging problem on standing seam metal roofs. Traditional walkboard brackets need to be nailed or screwed through the roof — unacceptable on standing seam systems where panel penetration voids the manufacturer's warranty and creates leak risk. The SSRA system uses a non-penetrating clamp design: the SSRA1 anchor grips the seam with twelve stainless steel set screws (six pairs of opposing screws) torqued to spec, holding 5,000 lb minimum static strength without ever touching the roof panel itself. With the SSRA2 adapter mounted to the SSRA1 base, you have a level, stable platform for a 2"x10" walkboard — installed in minutes, removed without a trace at the end of the job. The 2-pack supports a single 10' walkboard with the recommended 8' maximum spacing between adapters. For longer runs, multiply the kit count to match.
SSRA2 roof jack walkboard kit key features
Zero Roof Penetrations
Non-penetrating clamp design preserves the building owner's roof warranty. No holes, no caulk, no leaks — just clamp on, do the work, and remove cleanly.
6:12 to 12:12 Pitch Range

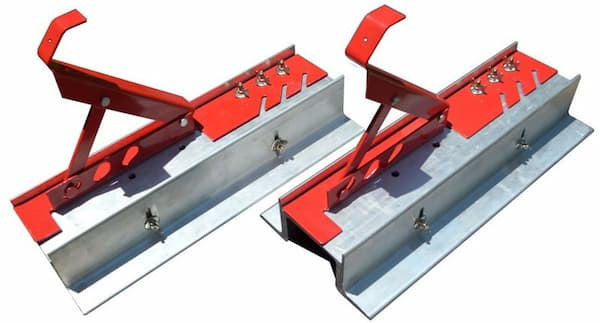

Adjustable stabilizer legs level the walkboard mount on roof pitches from 6:12 through 12:12. Padded feet rest on the roof panel without scratching the finish.
SSRA1 Universal Seam Fit
Patented SSRA1 anchor body fits over 500 standing seam profiles including snaplock, T-seams, bulb seams, mechanical lock, and trapezoidal panels. Approved for 22- and 24-gauge steel only.
5,000 lb Tests, ISO 17025 Lab
Each SSRA1 has 5,000 lb tests from an independent ISO 17025 lab.
6061-T6 Aluminum Construction
Solid 6061-T6 aluminum body with stainless steel hardware. Lightweight (~4.5 lb per SSRA1 anchor) yet rust-free for outdoor jobsite use across all Canadian seasons.
Fast Install & Removal
Experienced installer can mount an SSRA1 anchor in about two minutes and remove it in about one minute. Hand-tool installation only — no impact drivers permitted.
SSRA2 roof jack walkboard kit technical specifications
| Kit Contents | 2 × SSRA1 standing seam anchors, 2 × SSRA2 adjustable roof jack adapters |
| Application | Non-penetrating walkboard staging on standing seam metal roofs |
| OSHA Compliance | OSHA 1926 (general construction) |
| SSRA1 Static Strength | 5,000 lb minimum (per anchor) |
| SSRA1 Ultimate Failure (Tested) | 5,000 lb tests, ISO 17025 lab |
| Pitch Range | 6:12 through 12:12 |
| Material | 6061-T6 aluminum body, stainless steel hardware |
| SSRA1 Weight | ~4.5 lb per anchor |
| Set Screws (Per SSRA1) | 12 stainless steel cupped-tip + 12 stainless steel nylon-tip |
| Cupped-Tip Torque | Per the SSRA1 owner's manual |
| Nylon-Tip Torque | Per the SSRA1 owner's manual |
| Compatible Substrates | 22- and 24-gauge steel standing seam panels only |
| Not Compatible With | Aluminum, copper, zinc, or other soft-metal panels; curved, tapered, or batten-seam profiles |
| Walkboard Size | Standard 2" x 10" lumber (user-supplied) |
| Maximum Adapter Spacing | 8 feet apart (with 10' walkboard) |
| Walkboard Capacity | One worker per 10' walkboard |
| Origin | Designed and fabricated in the USA |
SSRA2 roof jack walkboard kit standards and compliance
Important: Walkboard Staging vs. Fall Arrest Use
This kit is sold and rated as a non-penetrating walkboard staging system, not a primary fall arrest anchor system. When the SSRA2 adapter is bolted to the SSRA1 base, the SSRA1's D-ring is removed and the anchor cannot simultaneously serve as a fall arrest tie-off point. To use any SSRA1 anchor as a fall arrest tie-off, the SSRA2 adapter must be removed and the D-ring re-installed. Workers using this staging kit must still wear appropriate fall arrest equipment — a CSA Z259.10 harness with a CSA Z259.11 lanyard or CSA Z259.2.2 SRL — connected to a separate, dedicated fall arrest anchor. Plan your roof layout to include both staging anchors and separate fall arrest anchors. The SSRA1 component is OSHA/ANSI compliant (5,000 lb static strength) but is not third-party certified to CSA Z259.15. For Canadian fall arrest use of any SSRA1 anchor, acceptance is the responsibility of the installing party, the site safety officer, or a qualified professional engineer.
Where crews use the SSRA2 roof jack walkboard kit
- Steep-pitch standing seam metal roofing installations and repairs
- Solar panel installation on standing seam roof systems
- Skylight installation and replacement on metal roofs
- HVAC and rooftop equipment installation requiring level work platform
- Roof maintenance and inspection on commercial standing seam buildings
- Snow guard, gutter, and trim installation on steep metal roofs
- Re-roofing crews working across multiple standing seam projects
How to install the SSRA2 roof jack walkboard kit

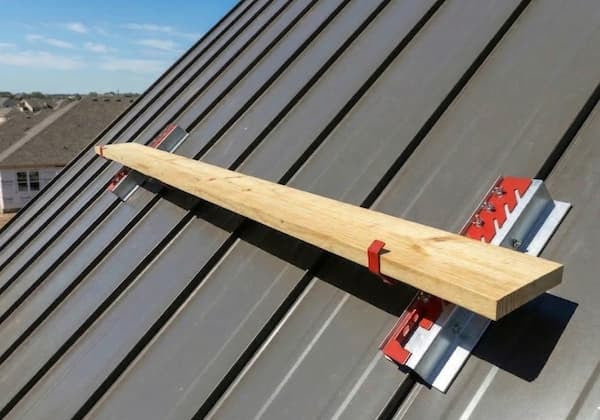

Step 1: Position the two SSRA1 anchors on the roof seams no more than 8 feet apart, oriented so the walkboard will run between them. Torque every set screw to the value in the SSRA1 owner's manual, using a calibrated torque wrench. Hand tools only — never use impact drivers. Step 2: Remove the SSRA1 D-rings (set them aside for later fall arrest use if needed). Bolt the SSRA2 adapters directly to the SSRA1 anchor bases using the two top bolts provided. Step 3: Loosen the SSRA2 stabilizer legs and adjust the bracket face to level for the roof pitch. Snug the padded feet against the roof panel. Step 4: Place a standard 2"x10" walkboard across the two adapters and secure it through the pre-drilled bracket holes using 2" #10 wood screws. Always perform a test fit with an RCT seam clamp or single SSRA1 anchor before bulk installation to confirm proper engagement with your specific seam profile.
SSRA2 roof jack walkboard kit standing seam compatibility
The SSRA1 fits over 95% of standing seam panels in the industry — over 500 specific profiles including snaplock, single-lock, double-lock, T-seam, bulb seam, mechanical lock, MR-24, and trapezoidal styles. Approved for 22- and 24-gauge steel only. Not compatible with aluminum, copper, zinc, or other soft metals (set-screw pressure deforms soft metals and compromises grip). Not compatible with curved, tapered, or batten-seam profiles. Nailstrip-style panels are approximately 50% compatible — some seams are too wide at the base to permit proper engagement. Always perform a test fit before committing to a full installation using an RCT seam clamp or a single SSRA1 anchor against your exact panel profile. Treat compatibility lists as guidelines, not guarantees — final fitment confirmation is the installer's responsibility.
SSRA2 roof jack walkboard kit compliance and standards
Application: Non-penetrating walkboard staging on standing seam metal roofs (not a primary fall arrest device when assembled with SSRA2 adapters)
SSRA1 Compliance: OSHA 1926 / ANSI 5,000 lb static strength; 5,000 lb tests, ISO 17025 lab
CSA Status: SSRA1 anchor is not third-party certified to CSA Z259.15. Canadian users must verify acceptance with a qualified professional engineer or site safety officer before any fall arrest application of the SSRA1 component.
Fall Arrest Requirement: Workers using this staging kit must wear separate fall arrest PPE (CSA Z259.10 harness, CSA Z259.11 lanyard or CSA Z259.2.2 SRL) connected to a separate, dedicated fall arrest anchor.
SSRA2 roof jack walkboard kit questions answered
SSRA2 roof jack walkboard kit shipping and stock in Canada
The SSRA2 + SSRA1 bundle ships across Canada from Fall Protection Canada. Contact Fall Protection Canada for bulk pricing on multi-kit orders, large-project staging packages, or to add a calibrated micro-torque wrench to your order.
