Standing Seam SRL Pro Kit – Non-Penetrating Roof Anchor + 6 ft Self-Retracting Lifeline | OSHA/ANSI | Canada

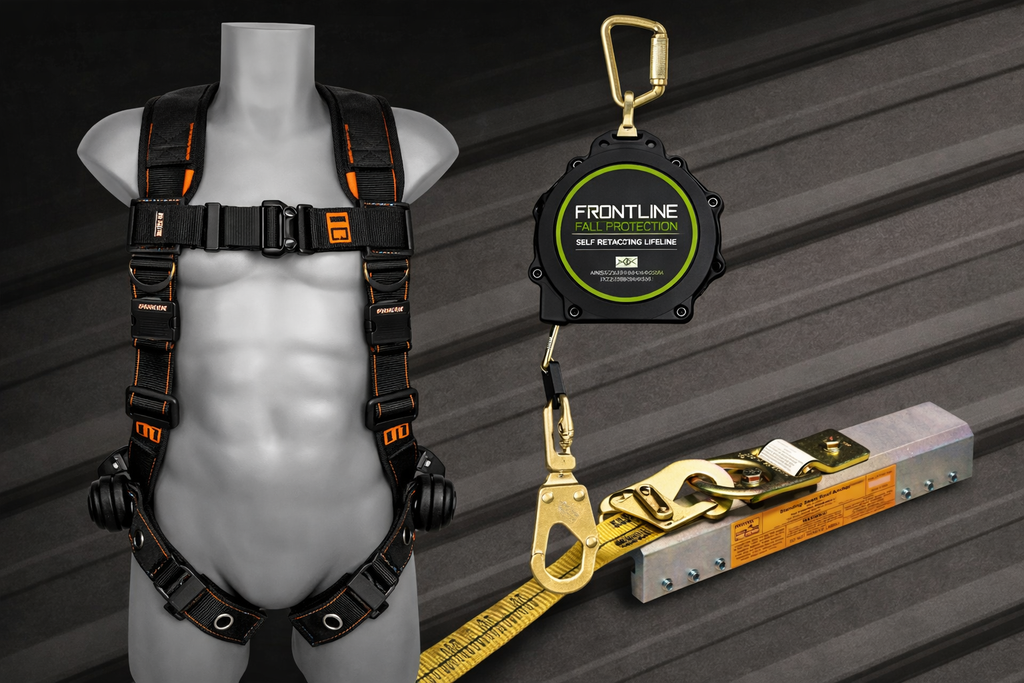

Standing Seam SRL Pro Kit — 30 ft Metal Roof Fall Protection
CSA Z259.16 — Complete Fall Arrest SystemPro Upgrade → 5× the working radius of standard kits
Full-Mobility Fall Protection for Standing Seam Metal Roofs — Anchor, Harness & 30 ft Cable SRL
The Standing Seam SRL Pro Kit is the professional-grade upgrade for metal roofing crews who need to cover the entire roof slope from a single anchor point. It pairs the proven SSRA1 non-penetrating standing seam anchor with a Frontline Combat™ 110CTB full-body harness and a 30-foot galvanized cable self-retracting lifeline (SRL) — giving workers roughly 2,800 sq ft of protected working area from one anchor, compared to approximately 113 sq ft with a standard 6 ft SRL kit.
Standard standing seam kits bundle a 6 ft SRL. That tethers workers within arm's reach of the anchor — fine for localized tasks, but impractical for full panel runs, ridge-to-eave installations, or solar array layouts. The Pro Kit solves this by extending the working radius to 30 feet in every direction while maintaining automatic fall arrest through the cable SRL's instant-lock braking system. One anchor point, one harness, full roof coverage.
SSRA1 Standing Seam Anchor — Non-Penetrating, 22.2 kN
The SSRA1 clamps directly to standing seam profiles using twelve stainless steel cup-point set screws torqued to 28 ft-lbs. 6061-T6 aluminum body weighs just 4.5 lbs. Rated to 5,000 lbs (22.2 kN) per CSA Z259.15. Zero penetrations, zero sealant, zero warranty risk. Tested on 500+ seam profiles including T-seam, bulb seam, snap-lock, and trapezoidal rib. Installs in under 10 minutes with a standard torque wrench.

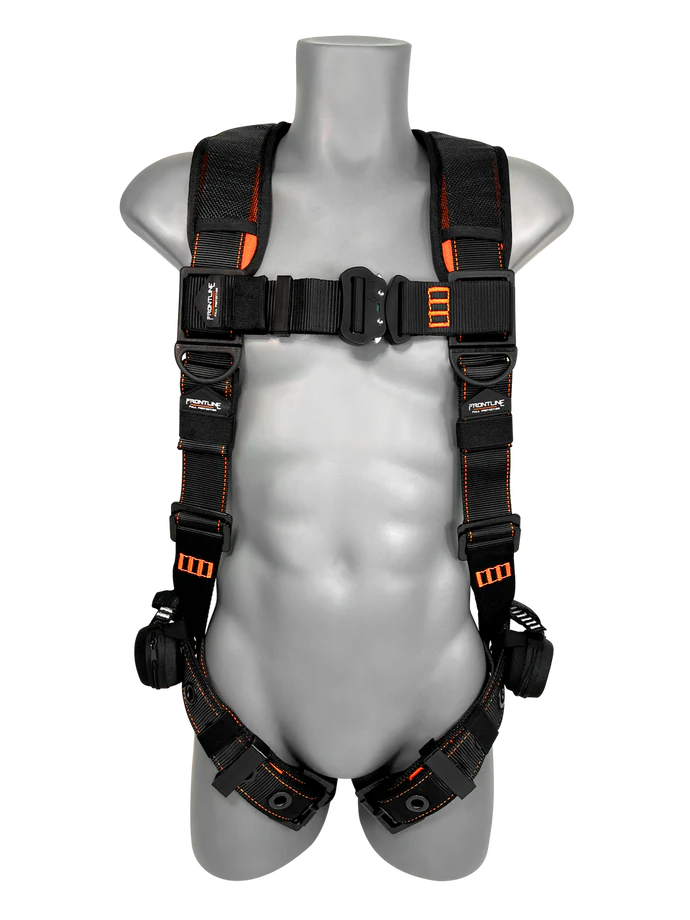

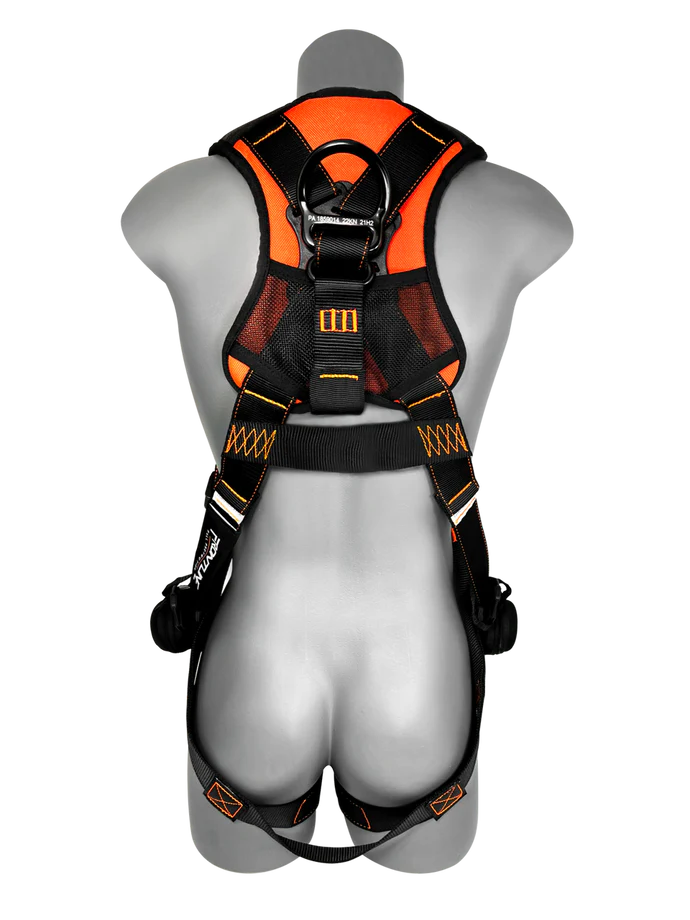

Frontline Combat™ 110CTB Harness — Built for Metal Roofing
CSA Z259.10 full-body harness with dorsal D-ring for fall arrest and front chest D-ring for ladder climbing. Tongue-buckle legs, pass-through chest. The Combat™ platform is purpose-built for roofing contractors — wide shoulder padding reduces fatigue during full-day installations, and the lightweight construction won't bog crews down on steep pitches. Sizes S through 2XL, rated to 130 kg (310 lbs).

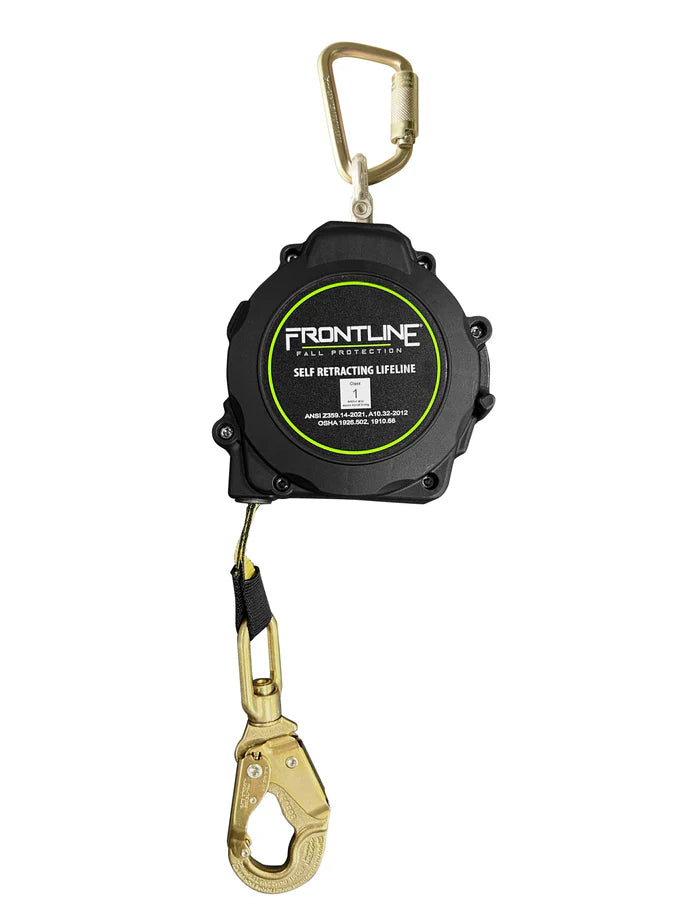

Frontline 30 ft Galvanized Cable SRL — Full Roof Reach
The RPGC30 uses 3/16" galvanized steel cable that resists abrasion against metal panel edges, screw heads, and flashing. Quick-action centrifugal braking locks within 24 inches during a fall. Internal energy absorber eliminates the need for a separate shock pack. Swivel anchorage eye at housing, steel snap hook at lifeline end with visual fall indicator. Thermoplastic housing with rubber grip handle for easy transport. 310 lb capacity per CSA Z259.2.2.
One Kit, Full Compliance — No Component Matching Required
Every component in this kit is pre-matched and rated as a complete active fall protection system under CSA Z259.16. No engineering review, no compatibility questions, no secondary sourcing. The carry bag keeps all components together for organized truck storage, clean site deployment, and efficient post-use inspection. Issue the bag, deploy the kit, work the roof.
Why 30 Feet Changes Everything on a Metal Roof
A 6 ft SRL creates a working circle of roughly 12 feet in diameter — enough for a single panel or one piece of equipment. A 30 ft cable SRL creates a working circle of 60 feet in diameter, covering approximately 2,800 sq ft from a single anchor point. On a typical 40 ft × 60 ft commercial standing seam roof, that means one SSRA1 anchor placed at the ridge covers the entire slope. No anchor repositioning. No repeated disconnect-and-move cycles. No wasted time. Workers move freely from ridge to eave, from panel to panel, while the cable SRL extends and retracts automatically — arresting a fall within 24 inches if it happens.
Standing Seam SRL Pro Kit Specifications
| Kit Name | Standing Seam SRL Pro Kit |
| Anchor | SSRA1 Standing Seam Roof Anchor (CSA Z259.15) |
| Anchor Material | 6061-T6 Aluminum, stainless steel set screws |
| Anchor Load Rating | 5,000 lbs (22.2 kN) |
| Anchor Weight | 4.5 lbs (2.0 kg) |
| Set Screw Torque | 28 ft-lbs |
| Harness | Frontline Combat™ 110CTB (CSA Z259.10) |
| Harness D-Rings | Dorsal (fall arrest) + Front chest (climbing/positioning) |
| Harness Buckles | Tongue-buckle legs, pass-through chest |
| Harness Sizes | S / M / L / XL / 2XL |
| SRL | Frontline RPGC30 — 30 ft Galvanized Cable SRL (CSA Z259.2.2) |
| SRL Cable | 3/16" galvanized steel |
| SRL Length | 30 feet (9.1 m) |
| SRL Braking | Centrifugal, locks within 24" (0.6 m) |
| SRL Energy Absorption | Internal (no external shock pack required) |
| SRL End Connector | Steel snap hook with visual fall indicator |
| SRL Anchorage Connector | Swivel eye with self-locking carabiner |
| Maximum Worker Weight | 130 kg (310 lbs) |
| Working Radius from Anchor | 30 ft (9.1 m) — approx. 2,800 sq ft coverage |
| System Standard | CSA Z259.16 — Active Fall Protection System |
| Connecting Components | CSA Z259.12 rated |
| Seam Compatibility | T-seam, bulb seam, snap-lock, trapezoidal rib (500+ profiles) |
| Included Accessories | Heavy-duty carry bag, tagline |
| Approx. Kit Weight | 18.5 lbs (8.4 kg) |
| Country of Stock | Canada — no cross-border delays |
Why Cable SRL — Not Webbing — for Metal Roofing
- Standing seam metal roofs present sharp edges: exposed screw tips, panel end cuts, flashing corners, and ridge cap edges
- Webbing SRLs are vulnerable to cuts and abrasion when dragged across metal surfaces — a single nick can compromise the lifeline's load rating
- The RPGC30's 3/16" galvanized steel cable is designed for exactly this environment: it resists edge cuts, withstands abrasion from panel surfaces, and maintains full rated strength even after repeated contact with metal components
- Cable SRLs also perform consistently in wet conditions, freezing temperatures, and UV exposure — all common on Canadian metal roofing projects from spring through fall
- For metal roofing work, cable is the professional choice — period
Who Needs the SRL Pro Kit on Canadian Job Sites
Metal Roofing Contractors — Full Panel Runs
New standing seam installations where crews work ridge-to-eave on panels 20–40 ft long. The 30 ft SRL covers a full panel run from one anchor placement. Panel replacement, re-roofing, and retrofit projects where repositioning a short SRL every few feet wastes hours per day.
Solar Installation Teams — Array-Scale Coverage
Residential and commercial solar crews mounting rail systems and panels on standing seam roofs. The SSRA1's nylon-tip variant (sold separately) protects premium finishes while the 30 ft SRL lets installers reach across an entire array section without unhooking. One anchor, one hook-up, full array coverage.
HVAC & Mechanical Contractors — Rooftop Units
Rooftop equipment installation and service calls on standing seam commercial buildings. The 30 ft reach lets technicians move between multiple RTUs, ductwork connections, and service points without relocating the anchor for each task.
Commercial Maintenance & Inspection Teams
Routine inspection, gutter maintenance, and seasonal repair on standing seam commercial and industrial buildings. The portable kit travels between buildings, and the 30 ft SRL covers most commercial roof sections from a single ridge-mounted anchor point.
Safety Managers & Equipment Coordinators
Specifying fall protection for metal roofing projects under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, or Quebec CNESST requirements. The kit is a single-SKU procurement that satisfies CSA Z259.16 without engineering review or component matching.
Rental & Multi-Site Operations
Equipment rental companies and multi-crew operations that need a versatile metal-roof kit deployable across 500+ standing seam profiles. One SKU covers virtually every metal roof in Canada. The carry bag keeps components together for easy check-out, check-in, and post-use inspection.
SRL Pro Kit vs. Standard 6 ft Kit — Side-by-Side
| Feature | SRL Pro Kit (30 ft Cable) | Standard Standing Seam Kit (6 ft SRL) | Lanyard-Based Kit |
|---|---|---|---|
| Working radius from anchor | 30 ft (2,800 sq ft) | 6 ft (113 sq ft) | 6 ft (113 sq ft) |
| Full panel run coverage | Yes — ridge to eave | No — anchor repositioning needed | No — anchor repositioning needed |
| Automatic retraction | Yes — cable retracts as worker moves | Yes | No — excess lanyard creates trip hazard |
| Free-fall distance | ≤ 24 inches | ≤ 24 inches | Up to 6 ft + deceleration |
| Cable vs. webbing | Galvanized steel cable — edge-safe | Varies by kit | Webbing — edge-vulnerable |
| Anchor repositioning per shift | Minimal (1–2 placements) | Frequent (10–20+ placements) | Frequent (10–20+ placements) |
| Productivity impact | Minimal — continuous workflow | Moderate — frequent stops | High — frequent stops + trip hazard |
| Non-penetrating anchor | Yes — SSRA1 | Yes — SSRA1-style | Varies |
| Voids roof warranty | No | No | Depends on anchor type |
| CSA Z259.16 system | Yes | Yes | Only if pre-matched |
When This Kit Is the Right System — and When It Isn't
✓ Use When:
- The roof is standing seam metal (T-seam, snap-lock, bulb, trapezoidal)
- Workers need to travel more than 6 feet from the anchor point during the task
- Full panel runs, ridge-to-eave work, or solar array installations are planned
- Penetrating the roof panel is prohibited by warranty or building owner
- The crew wants to minimize anchor repositioning during the shift
- Sharp metal edges are present (cable SRL is required over webbing)
- CSA Z259.16 compliance is needed without engineering consultation
✗ Consider Alternatives When:
- Work is localized within 6 ft of anchor — the Standard Standing Seam Kit is sufficient and lighter
- The roof is not standing seam — use appropriate anchor for shingle, flat, or concrete substrates
- Multiple workers need simultaneous coverage from one anchor — consider the SSRA3 Horizontal Lifeline System
- Fall clearance distance is less than 18.5 ft below the anchor — the 30 ft SRL may exceed available clearance (calculate using our clearance distance guide)
- Work requires descent control or rope access — a separate vertical lifeline system is needed
Clearance Distance Note — Do the Math Before You Deploy
A 30 ft SRL requires adequate fall clearance below the anchor point. The minimum clearance calculation accounts for: SRL free-fall distance (2 ft) + deceleration distance (3.5 ft) + worker height (6 ft) + safety margin (3 ft) = approximately 14.5 ft of clearance below the D-ring connection. On most standing seam roofing applications where the anchor is at the ridge and the worker is on the slope, this clearance is easily met. For low-rise or near-ground-level applications, verify clearance before deploying the 30 ft SRL. See our Fall Protection Clearance Distance Guide for the full calculation method.
Building a Complete Metal Roofing Safety Program
The SRL Pro Kit covers one worker per anchor point. For larger crews, multi-slope projects, or operations requiring continuous coverage across an entire building perimeter, expand your metal roof safety program with complementary equipment:
Working on premium painted or coated standing seam panels? Consider swapping the standard SSRA1 (cup-point set screws) for the SSRA1 Nylon-Tipped anchor, which uses nylon-tipped set screws to protect Kynar, PVDF, and factory-painted finishes from surface marking.
Canadian-Stocked. Metal Roof Engineered. Season-Ready.
Roofing season in Canada is a finite window. Equipment delays — customs holds, brokerage invoices, backorders from US warehouses — cost project days you can't recover. The Standing Seam SRL Pro Kit ships from Canadian inventory. No border friction. No currency surprises. No lead-time guessing. The complete kit arrives job-ready when your crew needs it, not two weeks after the project was supposed to start.
Ships from Canada • Engineered for Canadian Metal Roofing
All components stocked in Canada. CSA Z259 certified for legal compliance on every Canadian job site. Transparent CAD pricing with no brokerage surprises. The professional-grade metal roof fall protection system trusted by contractors across Ontario, Alberta, British Columbia, and Quebec.
Compliant under Ontario O. Reg. 213/91, Alberta OHS Code Part 9, BC OHS Regulation Part 11, Quebec CNESST, and all other Canadian provincial OHS fall protection requirements.
Frequently Asked Questions — Standing Seam SRL Pro Kit
What's the difference between the SRL Pro Kit and the standard Standing Seam Safety Kit?
The core difference is working radius. The standard Standing Seam Safety Kit includes a 6 ft SRL, limiting the worker to a 12-foot diameter circle around the anchor. The SRL Pro Kit upgrades to a 30 ft galvanized cable SRL, expanding the working circle to 60 feet in diameter — approximately 2,800 sq ft of protected area from a single anchor point. This means fewer anchor repositions, faster workflow, and the ability to cover full panel runs from ridge to eave without unhooking. The Pro Kit also uses a galvanized cable SRL (rather than webbing), which is more durable against the sharp metal edges found on standing seam roofing projects.
Is the 30 ft cable SRL safe to use on a metal roof with sharp edges?
Yes — that's specifically why this kit uses a galvanized cable SRL rather than a webbing model. The 3/16" galvanized steel cable resists cuts from exposed screw tips, panel end cuts, flashing edges, and ridge cap corners. Webbing SRLs can be nicked or cut when dragged across metal surfaces, which compromises their rated strength. For any work on metal roofing where the lifeline may contact panel edges, cable is the professional standard. The RPGC30 maintains its full rated load capacity even after repeated contact with metal surfaces.
Is this kit CSA compliant for use on Canadian job sites?
Yes, fully. The SSRA1 anchor meets CSA Z259.15 (Anchorage Connectors). The Frontline Combat™ 110CTB harness meets CSA Z259.10 (Full-Body Harnesses). The Frontline RPGC30 SRL meets CSA Z259.2.2 (Self-Retracting Devices). All connecting hardware meets CSA Z259.12 (Connecting Components). Together, the system is rated under CSA Z259.16 as a complete active fall protection system. It satisfies provincial OHS requirements in Ontario (O. Reg. 213/91), Alberta (OHS Code Part 9), British Columbia (OHS Regulation Part 11), Quebec (CNESST), and all other Canadian jurisdictions without modifications or engineering review.
How much fall clearance do I need to use the 30 ft SRL?
You need approximately 14.5 feet of clearance below the worker's dorsal D-ring to the nearest obstruction or lower level. This accounts for: 2 ft maximum free-fall distance (SRL braking), 3.5 ft maximum deceleration distance (internal energy absorber), 6 ft worker height below D-ring, and 3 ft safety margin. On standing seam roofing where the anchor is mounted at the ridge, this clearance is typically well exceeded — the fall path follows the roof slope, not a vertical drop. For low-rise structures or near-ground applications, calculate clearance before deploying. Our clearance distance guide provides the full calculation method.
Can I use this kit for solar panel installation on standing seam roofs?
Absolutely — solar installation is one of the primary use cases for this kit. The 30 ft SRL provides enough reach to cover an entire residential or small commercial solar array section from a single anchor point, which dramatically speeds up rail mounting and panel placement. If you're working on premium painted or coated standing seam panels, we recommend swapping the standard SSRA1 anchor (cup-point set screws) for the SSRA1 Nylon-Tipped variant, which uses nylon-tipped set screws to prevent marking on factory finishes. The harness and SRL remain the same — only the anchor tips change.
Does the SSRA1 anchor damage the standing seam panels?
No. The SSRA1 is a non-penetrating anchor — it clamps to the standing seam profile without drilling holes. The cup-point set screws grip the seam geometry under controlled torque (28 ft-lbs), creating a mechanically locked connection rated to 5,000 lbs. The screws do not puncture through the panel, so the weatherproofing barrier remains intact. Most standing seam panel manufacturers explicitly permit non-penetrating clamp-type anchors. If the project involves premium coated panels where even surface marking is a concern, the Nylon-Tipped SSRA1 is the recommended alternative.
What standing seam profiles does the SSRA1 fit?
The SSRA1 has been tested and rated on over 500 standing seam profiles, including T-seam (double lock), bulb seam, snap-lock, and trapezoidal rib profiles. It fits essentially every common standing seam metal roofing system used on Canadian commercial, residential, and agricultural buildings. If you have a non-standard or unusually narrow seam profile, contact us with the panel manufacturer name and seam dimensions for compatibility confirmation before ordering.
